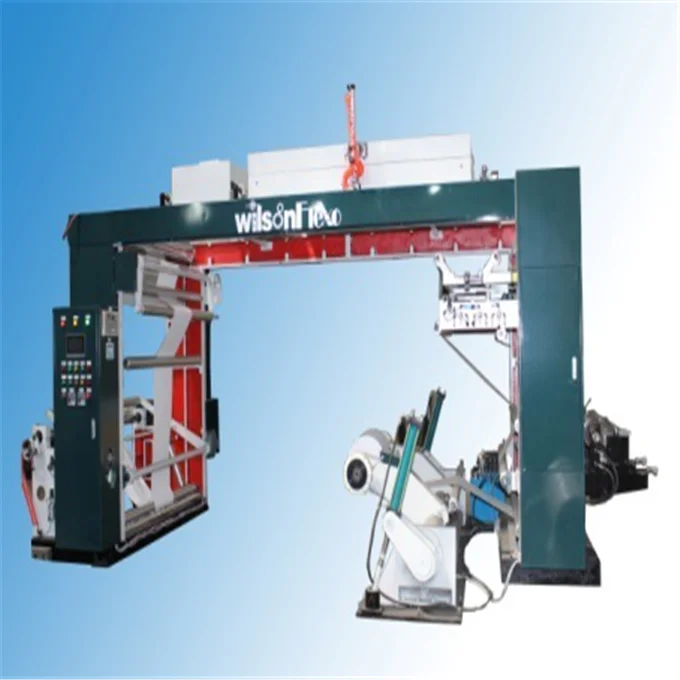

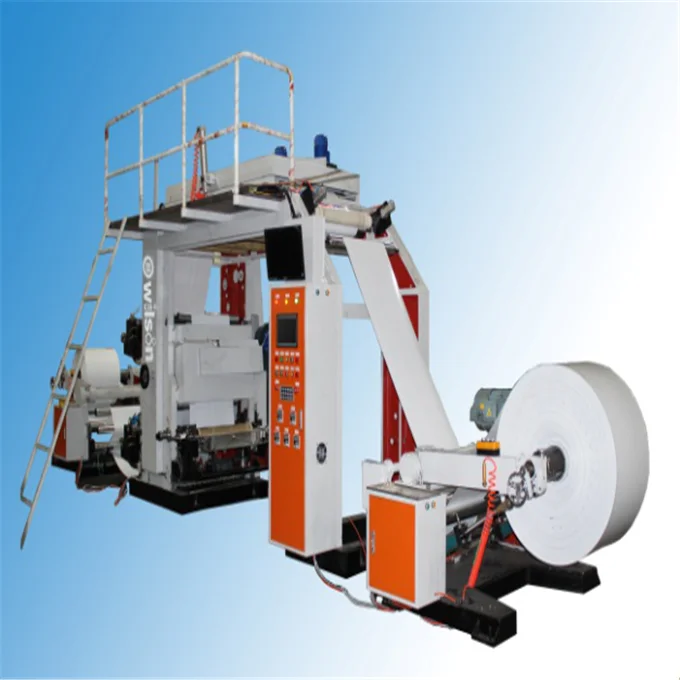

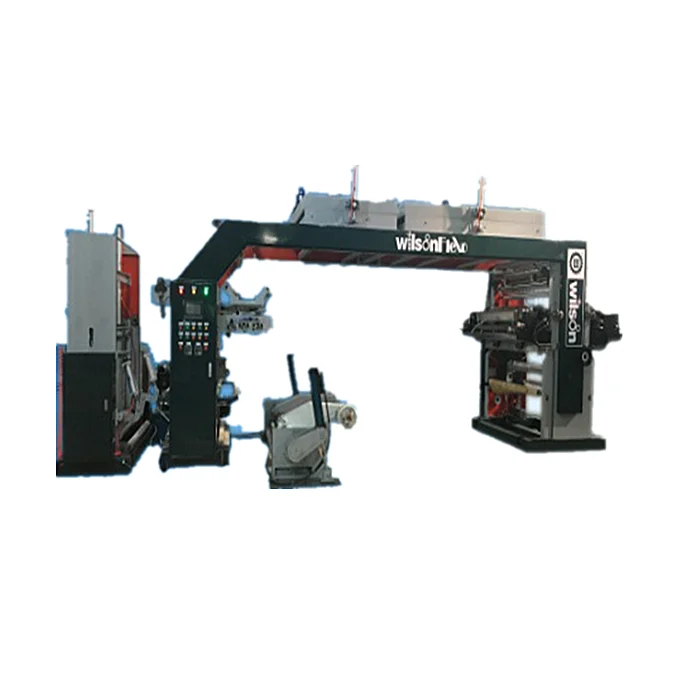

Customizable 2 color paper bag ink flexible printing machine

Printing color: 2 colors
Printing width: 400-1000mm
Using unwinding segment correction
Model ARS180
Specifications: Correcting motor Japan Sanyo Electric
Drive motor EPGA drive motor
Correction stroke 75 mm
Sensor AE-210 Japan Fuji high-precision ultrasonic, resolution 0.05mm
Sensor holder Wide adjustable range with fine adjustment and high precision
Electronic limit limit stroke can be adjusted to adapt to various materials
Features: good correction effect, no vibration
Adapt to any material without individual adjustment
Metal case, stronger anti-interference
Fast response up to 50 mm/s
The thrust is large, the heaviest can push 2000kg
Printed part:
Structure: consists of a receiving roller, a printing roller, an anilox roller, and a fully enclosed doctor blade
      Quick-change with a shaft-printed armor plate and quick positioning of the ruled line
The lifting plate adopts hydraulic device with uniform pressure and no vibration.
The ink basin is open from the reflow,
Aluminum crucible is semi-sealed with small bearings made in Japan
8 sets of fully enclosed squeegee
8 sets of automatic ink circulation device
Specification: The bearing roller is made of Japanese special steel, electroplated with 10 wire thick hard chrome protective layer, and the runout error is below 0.010mm.
Printing unit coloring section::
Horizontal alignment: color set, color screw, cup box, 6202 bearing and plated locking copper screw
Longitudinal adjustment: main flange, main flange, fine-tuning copper screw, fine-tuning main eccentricity, 16006 bearing
Bearings use Japan NSK
Features: easy to operate, stable color
Dry part:
Structure: separate drying system for each printing unit
Adopting one closed drying box, one cold air, two hot air, three sets of devices with air blowing and heat returning
Multiple sets of flat closed air nozzles, independent air drying
Electric heating tube heating, strengthen the drying system, easy to print water-based ink

1.Provide on-site installation, commissioning and staff training, one year free quality warranty and lifetime cost maintenance.

2.If there is any problem with our machine, please contact us immediately and we will respond to you within 12 hours and help you solve the problem.

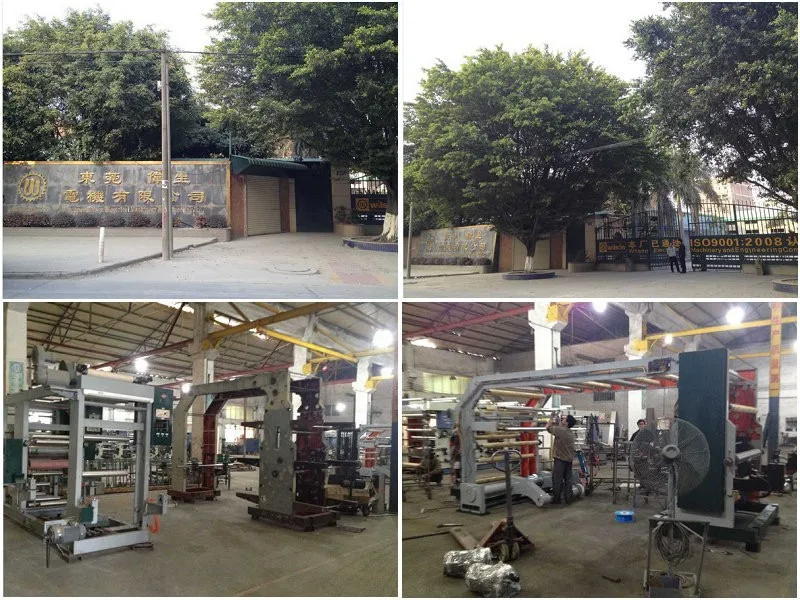

 Dongguan Wilson Electrical Machinery Limited was founded in 1983, is located in the back bay street, shatin, New Territories, Hong Kong charcoal depression 33-35 6th floor block H century industrial center, was founded in 1993 in Dongguan phoenix hills, Dongguan Wilson Electrical Machinery Limited, established in 2002, moved to Dongguan qiaotou , is currently in China specializing in the production of flexible version (offset printing press, and gravure (copper plate), one of the pioneers of the printing press.
Dongguan Wilson Electrical Machinery Limited is a medium-sized enterprise mainly engaged in design and manufacturing, and also engaged in printing machine parts processing, maintenance and technical improvement. After years of market expansion, it now has three subsidiaries, namely Hong Kong wilson electrical engineering co., LTD, Hong Kong junliang enterprise co., LTD and Dongguan Wilson Electrical Machinery Limited. The production plant covers an area of more than 19,000 square meters and has a strong engineering department and technical service department. It has a laboratory research center and a new product development research center.

Q1: Are you a factory or a trading company?
A1: We were founded in 1983 and are the actual factories and manufacturers of printing and packaging machines. They have been 36 years old.
Q2: What is the difference between the machine properties I want and your model?
A2: Regardless of machine performance or special configuration, we can customize the machine according to customer's needs.
Q3: Where is your factory? How do I get there?
A3: Our factory is located in Dongguan, Guangdong Province, China, less than half an hour's drive from Changping Railway Station. We welcome domestic and foreign customers to visit!
Q4: Which industries are widely used in your machine?
A4: Mainly used to make plastic bags and labels. Vertical bags, zipper bags, transparent necessities and food plastic bags, beverage bottles plastic labels, paper cups, medical bags, laminated films or soft cardboard.
Q5: What is the payment period?
A5: For new customers, our payment terms are 40% T / T ahead of production and 60% of the balance should be paid before delivery.
Q6: How is your main market?
A6: Our products sell well all over the country and enjoy a good reputation in China. We also focus on opening up overseas markets such as Eastern Europe, Middle East, Southeast Asia, Americas, Africa and other countries.
Q7: How does your factory handle quality control?
A7: Quality is the most important principle. We pay attention to quality from every small part. We guarantee that the quality will not be shipped.
