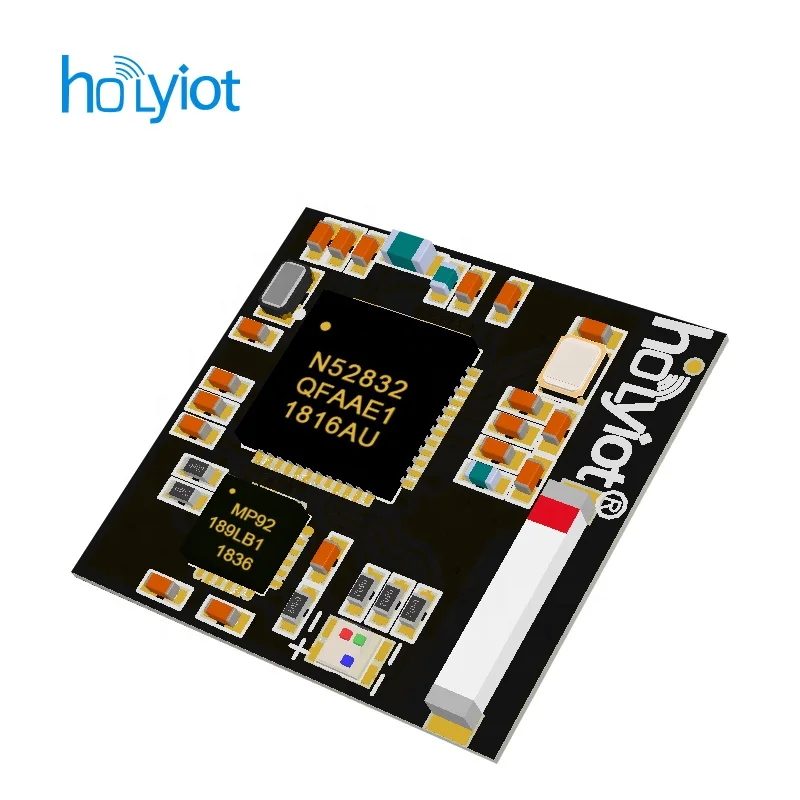

New original nRF52832 9 axis accelerometer gyroscope beacon

YJ-18008 BLE sensor is based on Nordic nRF52832 Soc , The nRF52832 SoC is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® low energy (previously called Bluetooth Smart), ANT and 2.4GHz ultra low-power wireless applications. The nRF52832 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 512kB + 64kB RAM. The embedded 2.4GHz transceiver supports Bluetooth low energy, ANT and proprietary 2.4 GHz protocol stack. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.

Processing power

Multiprotocol radio(bluetooth low energy,ANT,2.4G proprietary)

Power efficiency

Hardware module :

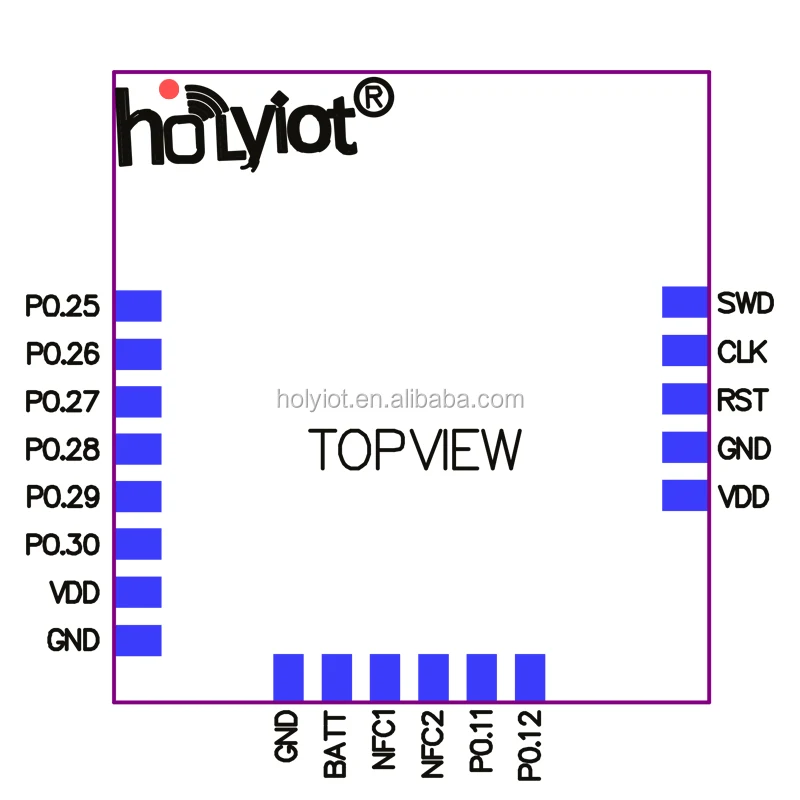

SWD programmer (SWDIO,SWCLK,VDD,GND)

nRF52832 QFAA

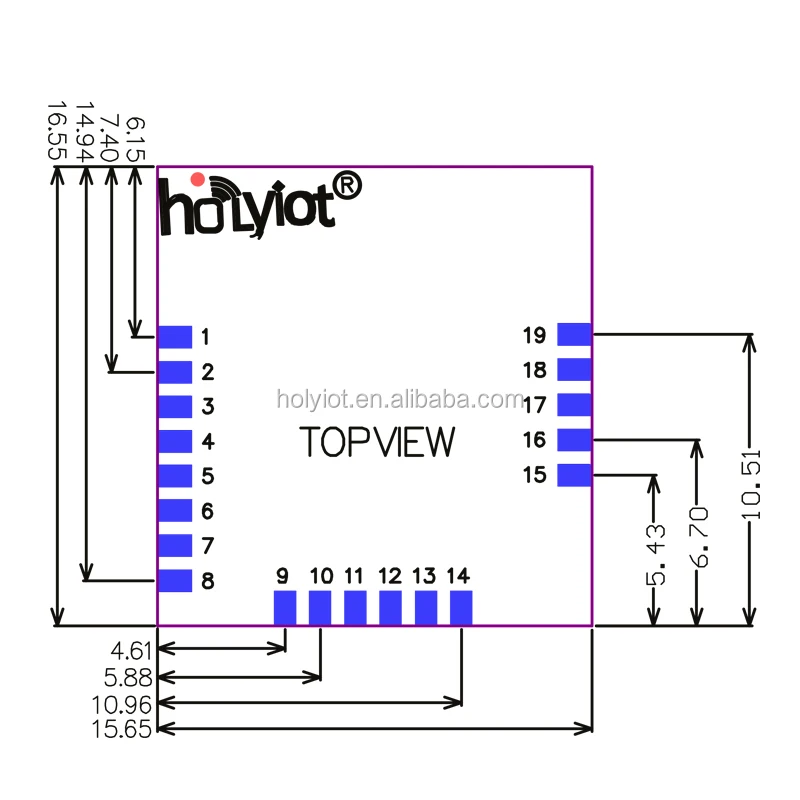

Size :37mm*24mm

BLE stack & RF 2.4Ghz

Accelerometer sensor : MPU9250

Features :

Single chip, highly flexible, 2.4 GHz multi-protocol SoC

32-bit ARM Cortex-M4F Processor

1.7v to 3.6v operation

512kB flash + 64kB RAM

Supports concurrent Bluetooth low energy/ANT protocol operation

On-chip NFC tag for Out-of-Band (OOB) pairing

Up to +4dBm output power

-96dBm sensitivity, Bluetooth low energy

Thread safe and run-time protected

Event driven API

On air compatible with nRF24L and nRF24AP series

2 data rates (2Mbps/1Mbps)

PPI - maximum flexibility for power-efficient applications and code simplification

Automated power management system with automatic power management of each peripheral

Configurable I/O mapping for analog and digital I/O

3 x Master/Slave SPI

2 x Two-wire interface (I²C)

UART (RTS/CTS)

3 x PWM

AES HW encryption

Real Time Counter (RTC)

Digital microphone interface (PDM)

On-chip balun

Applications :

Internet of Things (IoT)

Wearables

SmartHome sensors

Connected white goods

Computer peripherals

Voice-command smart remotes

A4WP ‘Rezence’ wireless charging

Beacons

Sports and fitness sensors and hubs

Connected health products

Smart watches

RC Toys

Interactive games

Building automation and sensor network
