Golf Cart Parts ,Motor Speed Controller Curtis,Equipment Parts 1253-4804
The Curtis 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts, articulating/telescoping booms), and other industrial vehicles.
The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of programmable parameters.
The 1253 controller is fully programmable through a Curtis 1313-4401 Handheld Programmer or 1314 PC Programming Station. The programming device provides diagnostic and test capability in addition to configuration flexibility.
Key Features
Curtis Model: 1253-4804
Norminal Battery Voltage (Volts): 48V
Amature Current Limit (amps): 600
Programmable Undervoltage Cutback (Volts): 32-42
Overvoltage Cutoff (Volts): 60
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage: 28–60V DC
KSI input current (no contactors engaged):
60 mA without programmer
130 mA with programmer
Logic input current: < 1 mA
Status LED output current (max.): < 2 mA
Heatsink overtemperature cutback: linear cutback starts at 80°C; complete cutoff at 120°C
Heatsink undertemperature cutback: 50% current below -25°C
Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°C
Package environmental rating: IP54
Throttle Type: 0-5KΩ (default setting), 5K-0Ω, 0-5V or single-ended 3-wire potentiometer (1kΩ to 10kΩ range)
Dimensions: L196xW146xH77 mm
Net Weight: 2.6 kg
Features include:
Smooth and Quiet Control
Programmable acceleration rates provide smooth application of pump motor torque.
15.6 kHz PWM frequency for near-silent operation.
Programmable Flexibility
Easily programmable through a Curtis programming device.
Four Speed Select inputs (SS1.SS4) with individually programmable top speeds.
Programmable throttle input for precise speed control with a variety of signal sources.
Programmable turn-off delay allows SS4 to be used for power steering.
Adjustable minimum speed setting to ensure pump lubrication and to maintain steering system pressure.
Robust Safety and Reliability
Interlock feature disables the controller when operator is not present.
Programmable startup lockout prevents inadvertent operation.
Seamless integration with Curtis gauges (models 803, 841, 906, and enGage. IV) for lift lockout function.
Lift lockout disables the controller at low battery state of charge.
Redundant watchdog timer circuits ensure proper software operation.
External Status LED output for easy troubleshooting.
Short-circuit protection on main contactor driver.
Precharge control prevents pitting of contactor tips at startup.
Thermal cutback provides protection to the controller.
Rugged housing meets IP54 environmental ratings.
Easily programmable through the Curtis Model 1313-4401 Handheld Programmer or 1314 PC Programming Station.
Overview:
The CURTIS 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts, articulating/telescoping booms), and other industrial vehicles.
The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of programmable parameters.
Key Features:
CURTIS Model: 1253-4804
Norminal Battery Voltage (Volts): 48V
Amature Current Limit (amps): 600
Programmable Undervoltage Cutback (Volts): 32-42
Overvoltage Cutoff (Volts): 60
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage: 28–60V DC
KSI input current (no contactors engaged):
60 mA without programmer
130 mA with programmer
Logic input current: < 1 mA
Status LED output current (max.): < 2 mA
Heatsink overtemperature cutback: linear cutback starts at 80°C; complete cutoff at 120°C
Heatsink undertemperature cutback: 50% current below -25°C
Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°C
Package environmental rating: IP54
Throttle Type: 0-5KΩ (default setting), 5K-0Ω, 0-5V or single-ended 3-wire potentiometer (1kΩ to 10kΩ range)
The CURTIS 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts, articulating/telescoping booms), and other industrial vehicles.
The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of programmable parameters.
Key Features:
CURTIS Model: 1253-4804
Norminal Battery Voltage (Volts): 48V
Amature Current Limit (amps): 600
Programmable Undervoltage Cutback (Volts): 32-42
Overvoltage Cutoff (Volts): 60
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage: 28–60V DC
KSI input current (no contactors engaged):
60 mA without programmer
130 mA with programmer
Logic input current: < 1 mA
Status LED output current (max.): < 2 mA
Heatsink overtemperature cutback: linear cutback starts at 80°C; complete cutoff at 120°C
Heatsink undertemperature cutback: 50% current below -25°C
Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°C
Package environmental rating: IP54
Throttle Type: 0-5KΩ (default setting), 5K-0Ω, 0-5V or single-ended 3-wire potentiometer (1kΩ to 10kΩ range)
Feature Include :
mooth and Quiet Control
Programmable acceleration rates provide smooth application of pump motor torque.
15.6 kHz PWM frequency for near-silent operation.
Programmable Flexibility
Easily programmable through a CURTIS programming device.
Four Speed Select inputs (SS1.SS4) with individually programmable top speeds.
Programmable throttle input for precise speed control with a variety of signal sources.
Programmable turn-off delay allows SS4 to be used for power steering.
Adjustable minimum speed setting to ensure pump lubrication and to maintain steering system pressure.
Robust Safety and Reliability
Interlock feature disables the controller when operator is not present.
Programmable startup lockout prevents inadvertent operation.
Seamless integration with CURTIS gauges (models 803, 841, 906, and enGage. IV) for lift lockout function.
Lift lockout disables the controller at low battery state of charge.
Redundant watchdog timer circuits ensure proper software operation.
External Status LED output for easy troubleshooting.
Short-circuit protection on main contactor driver.
Precharge control prevents pitting of contactor tips at startup.
Thermal cutback provides protection to the controller.
Rugged housing meets IP54 environmental ratings.
Product Name | Curtis Controller |
Model Number | 1253-4804 |
Voltage | 48V |
Current | 600A |
Applied Model | Electric vehicle |

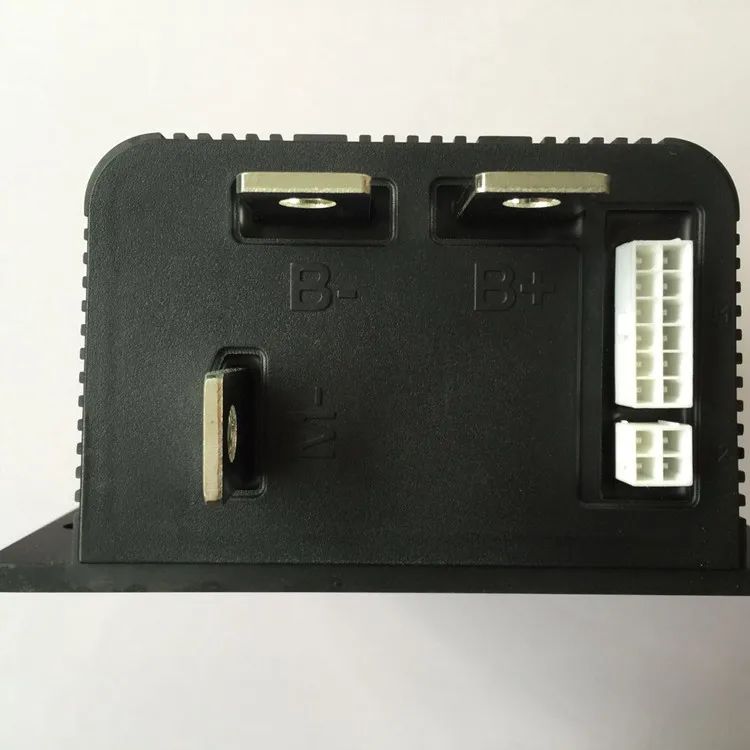

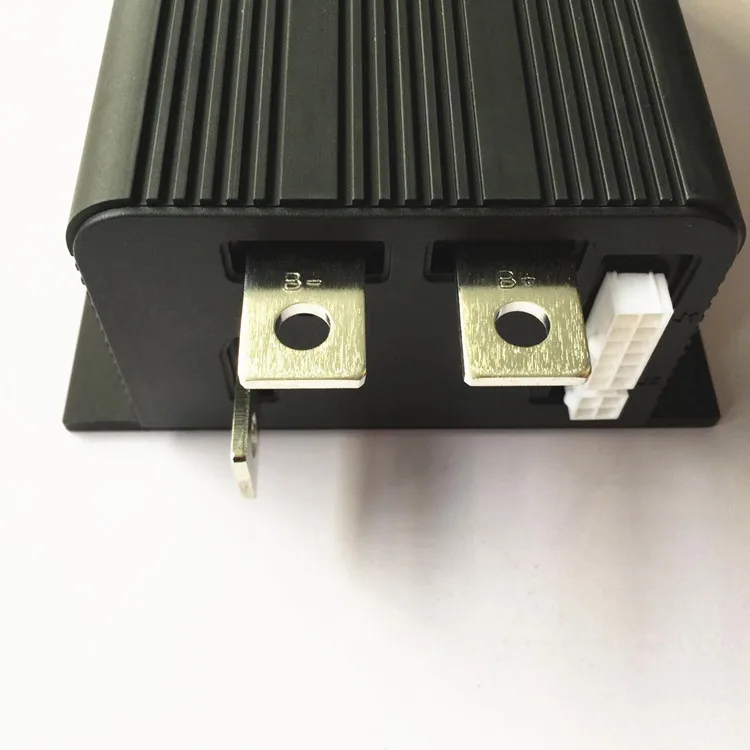

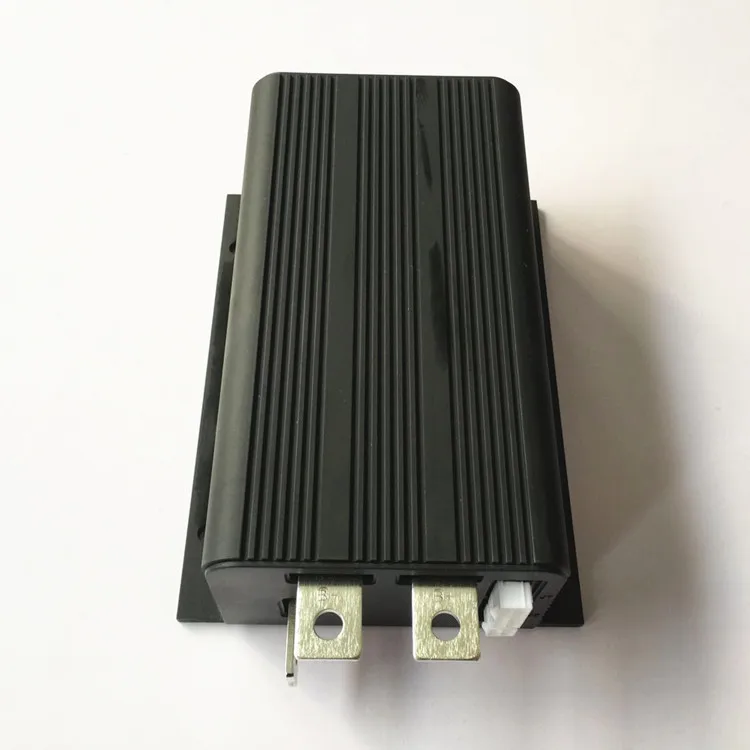

Details Images
Application
FAQ
Q: How to confirm a spare part ?
A: Usually, we confirm a spare part according to following details:
(2) Model number of a part.
(3) Photos of a spare part.
Q: How long is your delivery time?
A: Generally, 1-2 days for normal products.
Q: Any service about spare parts ?
A: Based on clients' enquiry, we supply correct products with photos.
Q: How to do the order and payment ?
A: Please check below details for your reference.
(2) Please tell us your PayPal account, then we send you an invoice by PayPal.
(3) After you confirm an order, we will send you an official invoice for your payment.
