high precision 3 roll rubber calender machine with CE ISO

Product Overview

Description

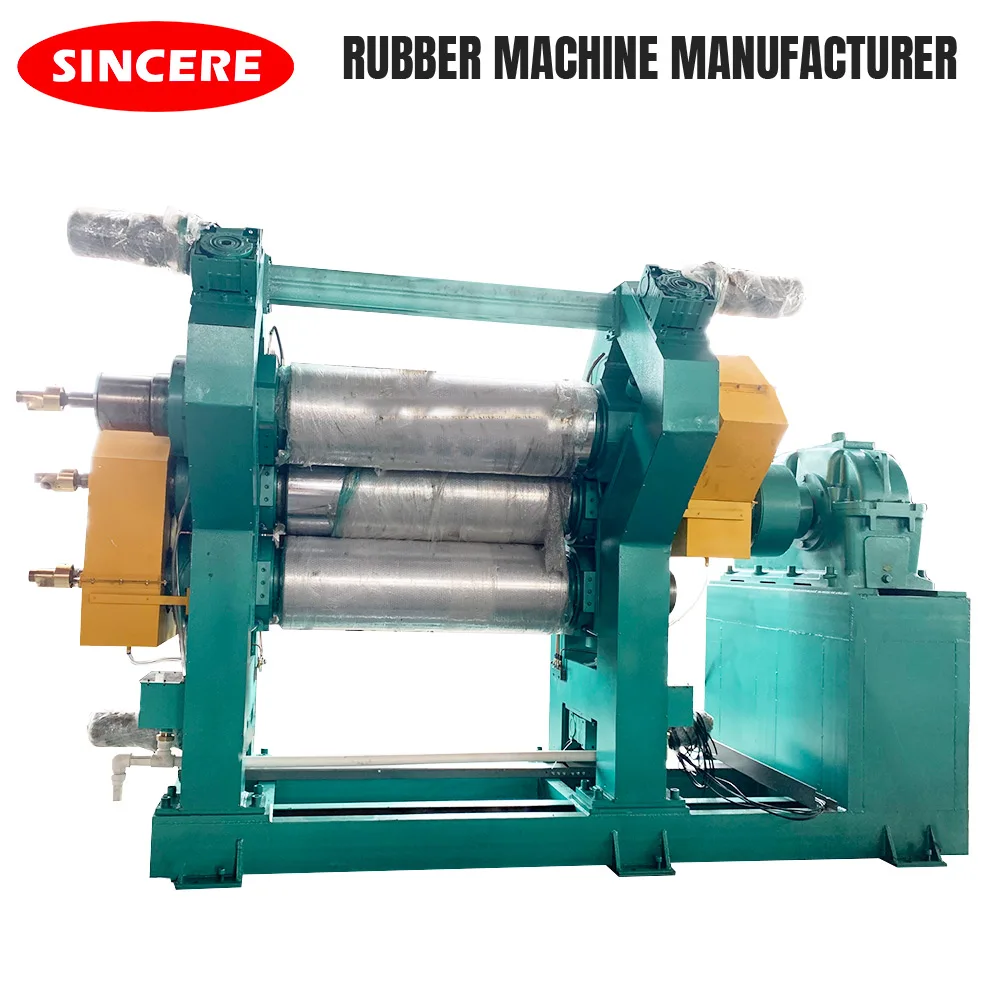

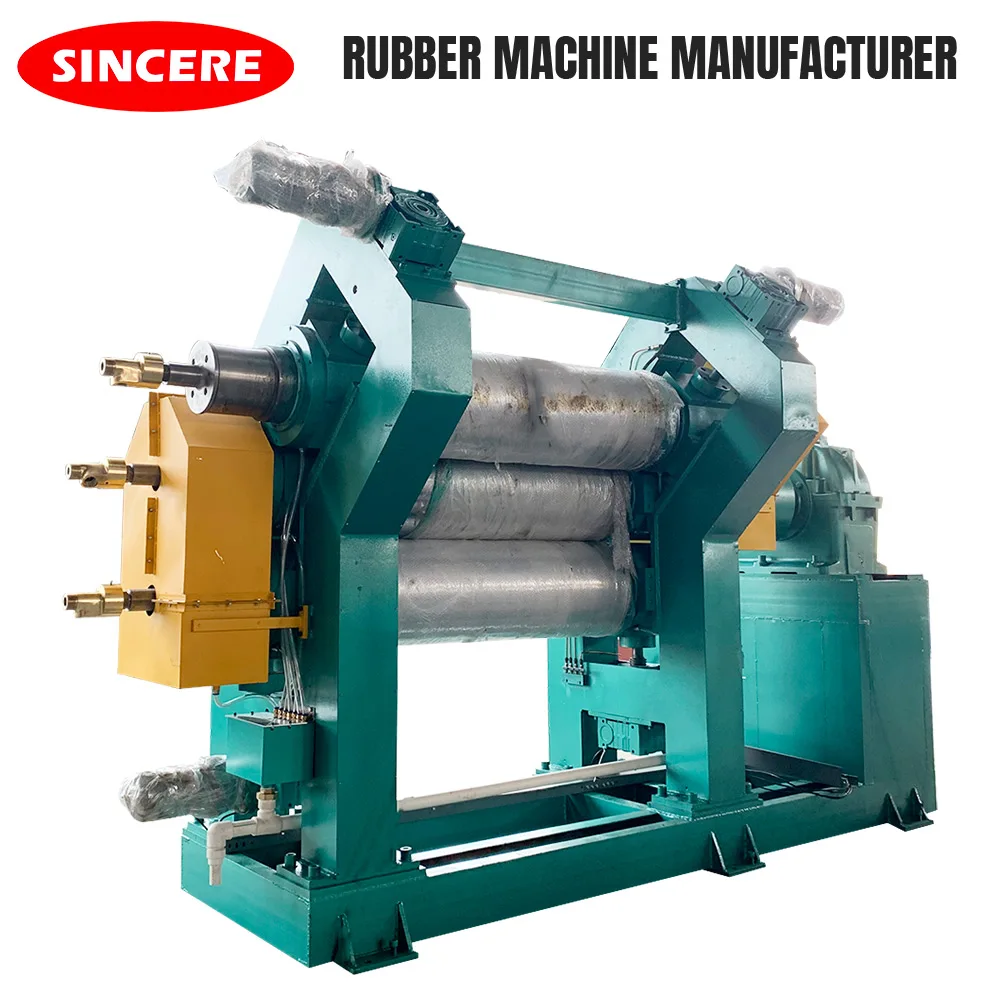

high precision  3-roll rubber calender machine with CE ISO

Main Features

1) The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.

 2) The rolls are arranged in I, and L forms. The upper rolls have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction

3) The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.

4)The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.

Specfication/Type	Roll dia.x Length             (mm)	Middle roll liner speed              (m/min)	Min. thickness of the product                     (mm)	Calendering width          (mm)
XY-3F  1120	360X1120	2-20	≥0.20	900
XY-3F  1400	400X1400	2.5-25	≥0.20	1200
XY-3F  1450	450X1450	2.5-25	≥0.20	1225
XY-3F  1600	510X1600	2.5-25	≥0.20	1400
XY-3F  1730	610X1730	4.5-45	≥0.20	1500
XY-3F  2540	820X 2540	3-30	≥0.20	2200
XY-3F  3400	900X3400	3-35	≥0.20	3100

Packaging & Shipping

Packing: normally nude packing, we can also pack it by your request.

Shipping: shipped in 45 workdays after receiving payment.
