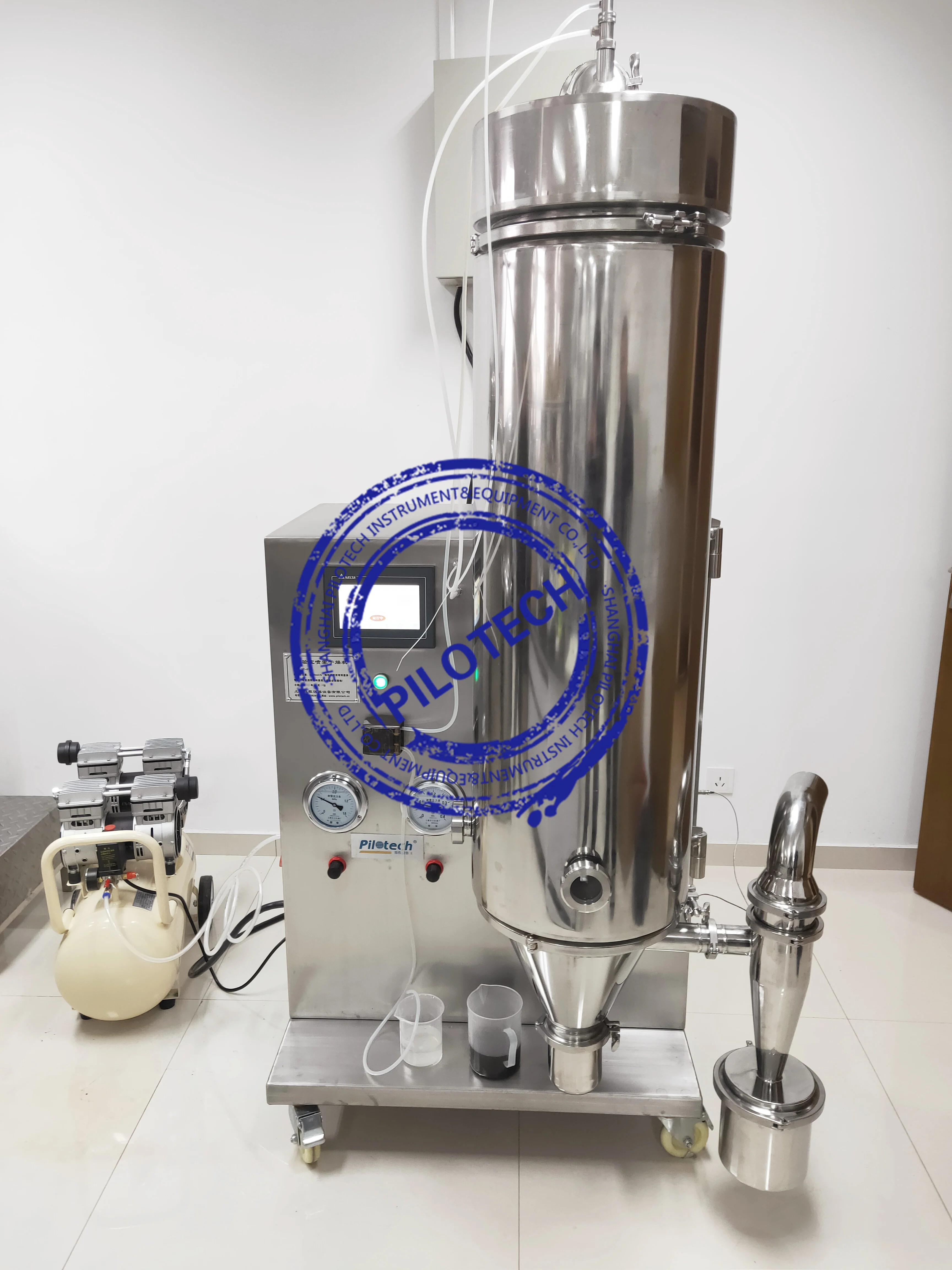

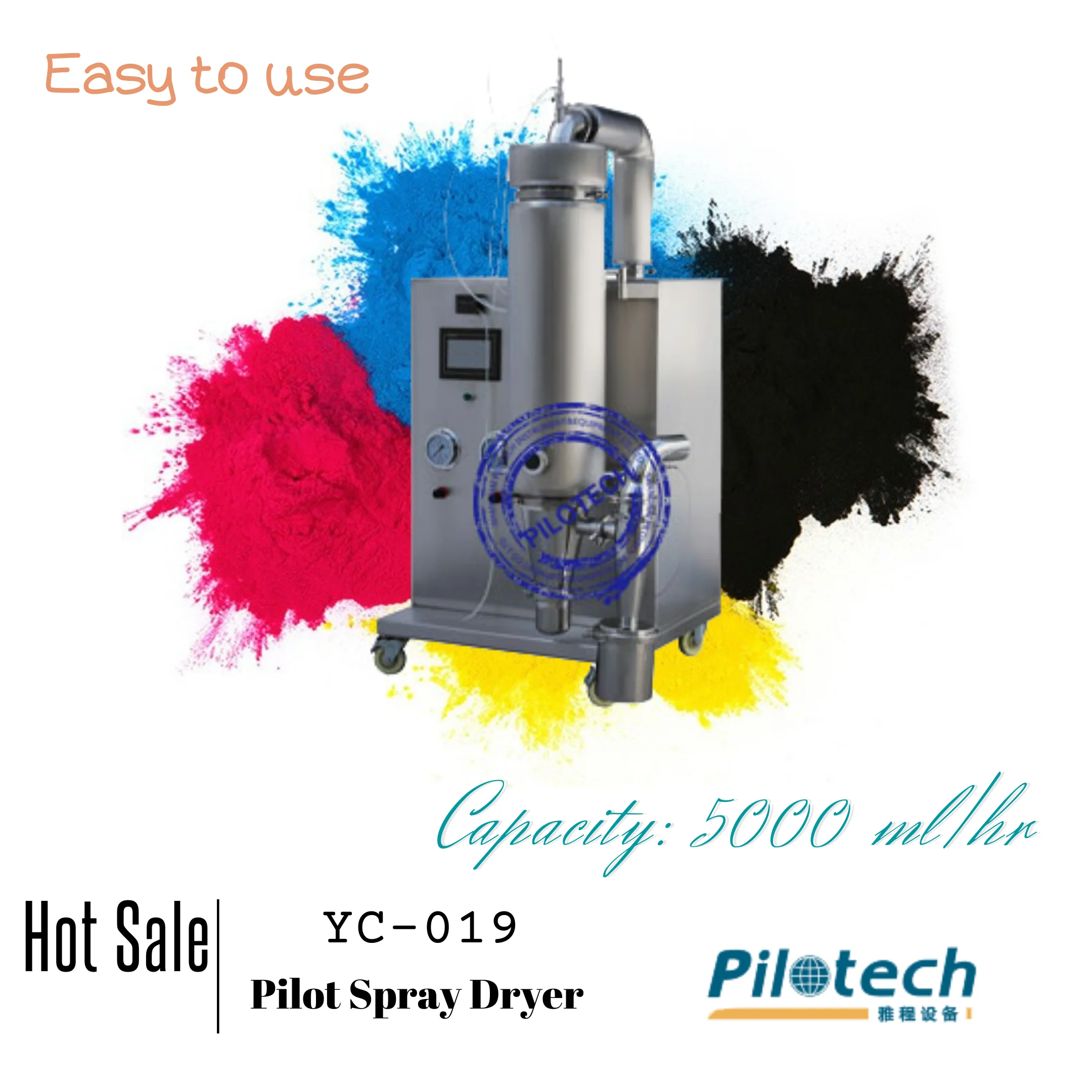

YC-019 lab spray dryer





YC-019 lab spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. Flexible switch between small and high processing capacities The minimum and maximum capacities of YC-019 lab spray dryer are respectively 100ML and 5L/H. Being capable of continuous production, it is a perfect combination of minor, small and pilot scale.


Color Touch Screen,Fast setup and cleaning times

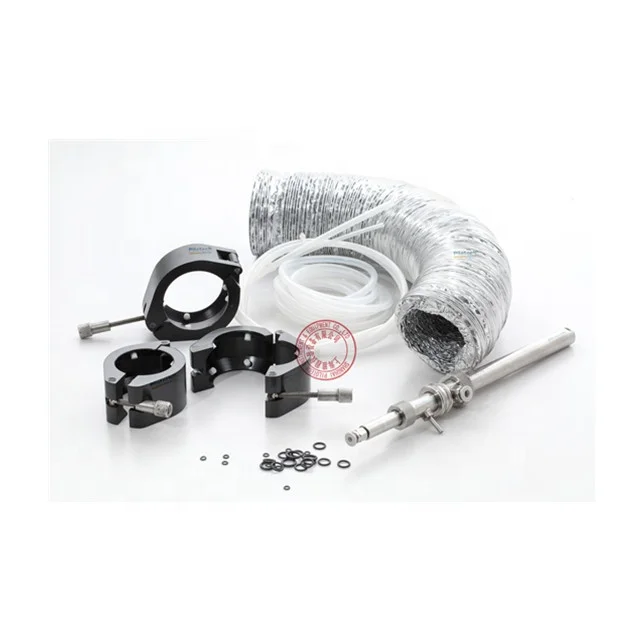

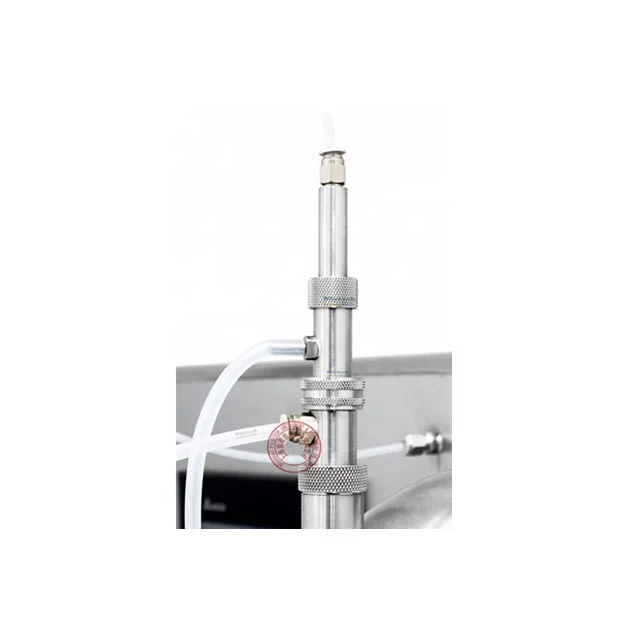

Two Fluid Nozzle with SUS316L stainless steel





Product Advantage


High recovery rate
With only one cyclone separator, recovery rate is always a problem with lab spray dryers and it is difficult to improve recovery even with two cyclones. With the structured redesigned, YC-019 lab spray dryer can reach a maximum recovery rate of 92%, excellently solving the problem of low recovery.


Large particle processing ability
Size of particles dried with conventional lab spray dryers is generally 1-25μm, but they cannot meet requirements of processing of catalyst and other large particles. With YC-018, you can get particles with a maximum size of 100μm and it is the first choice for processing of catalyst and other large particles sizing 60-100μm.


Perfect combination of low temperature and ultra-high temperature
With maximum inlet air temperature reaching 350°C, it can meet ultra-high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese medicine, extracts of natural substances and other materials with sugar content. No material will adhere to the wall during drying and materials are featured with excellent fluidity after drying.


Product Paramenters


NO
Name
Parameter
1
capacity
5000ml/L
2
inlet temperature
max350℃
3
outlet temperature
max160℃
4
noise
<60db
5
min sample
100ml
6
operation mode
automatic
7
temperature control
PLC controller
8
heating control
±1℃
9
body material
SUS-304 stainless steel
10
Seal of cγclone/cylinder
Silicone




Company Introduction

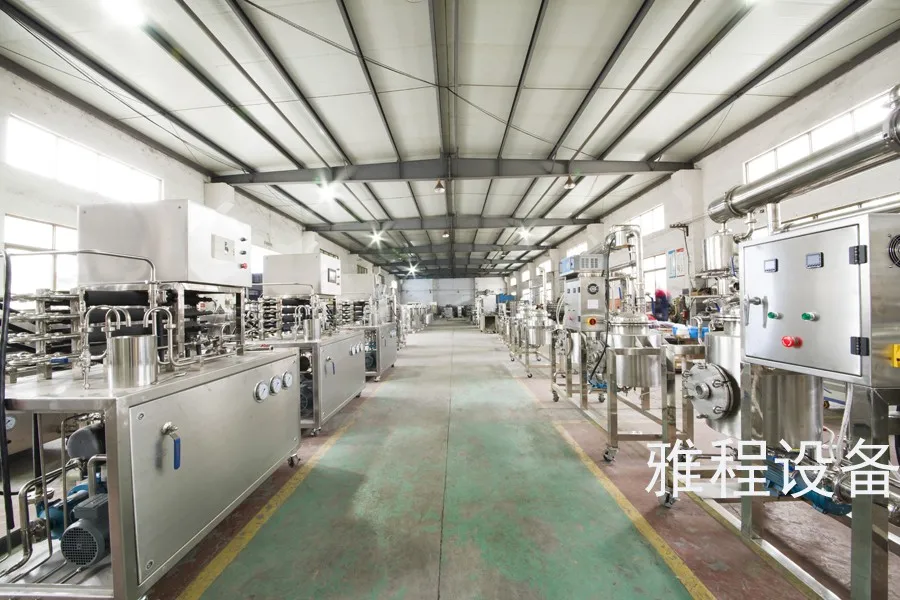

Shanghai Pilotech Instrument Equipment Co., LTD is a modern high-tech enterprise, specialized in the R&D production, laboratory drying equipment, sterilization equipment, extraction equipment and small dairy beverage production lines. Over 10 years of development, Shanghai Pilotech has formed a complete and strict enterprise management system and had a professional research and production team, sales service team and after-sales service team,our products meet CE standard of European Union.





Certifications




Packing

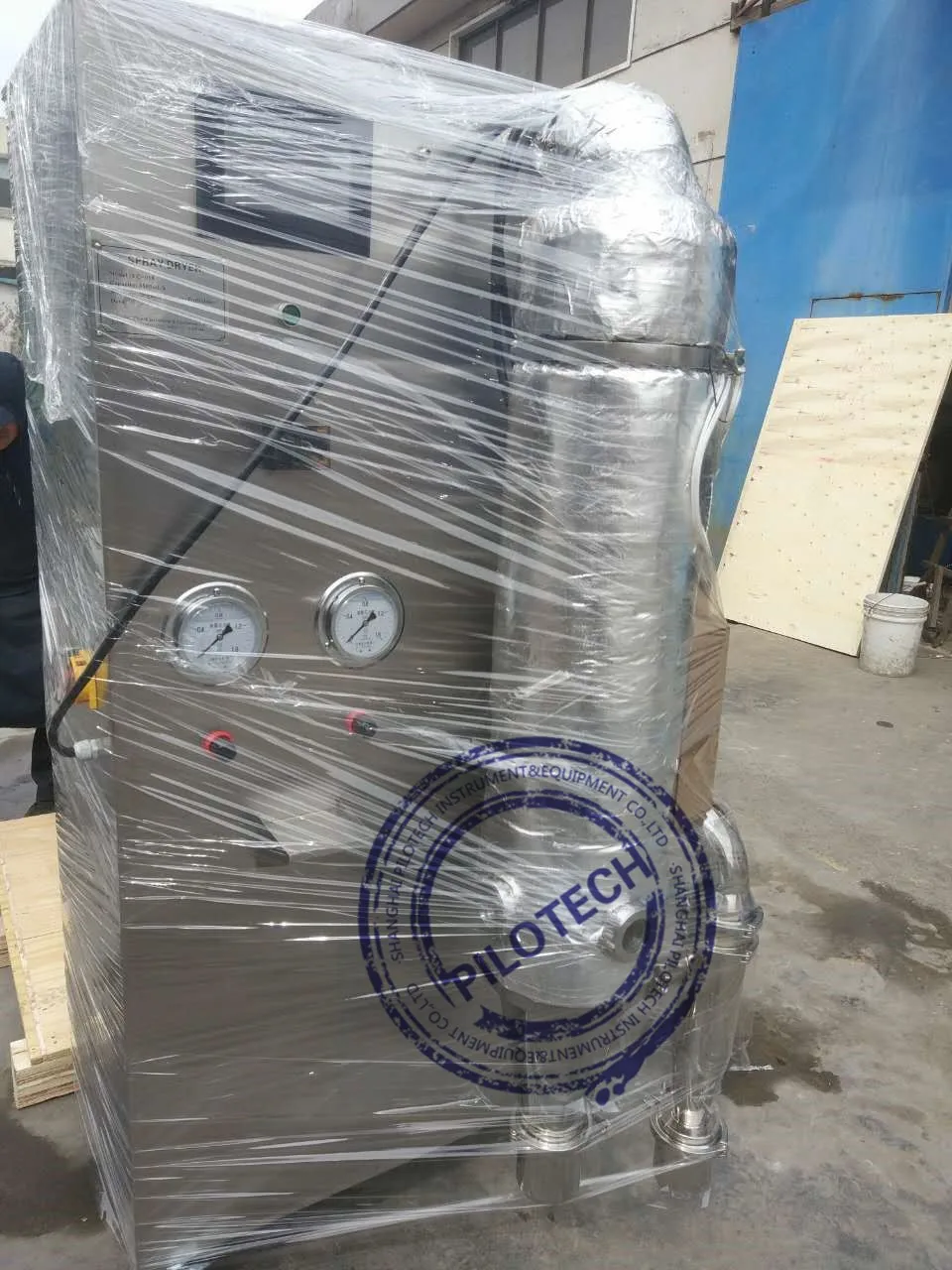

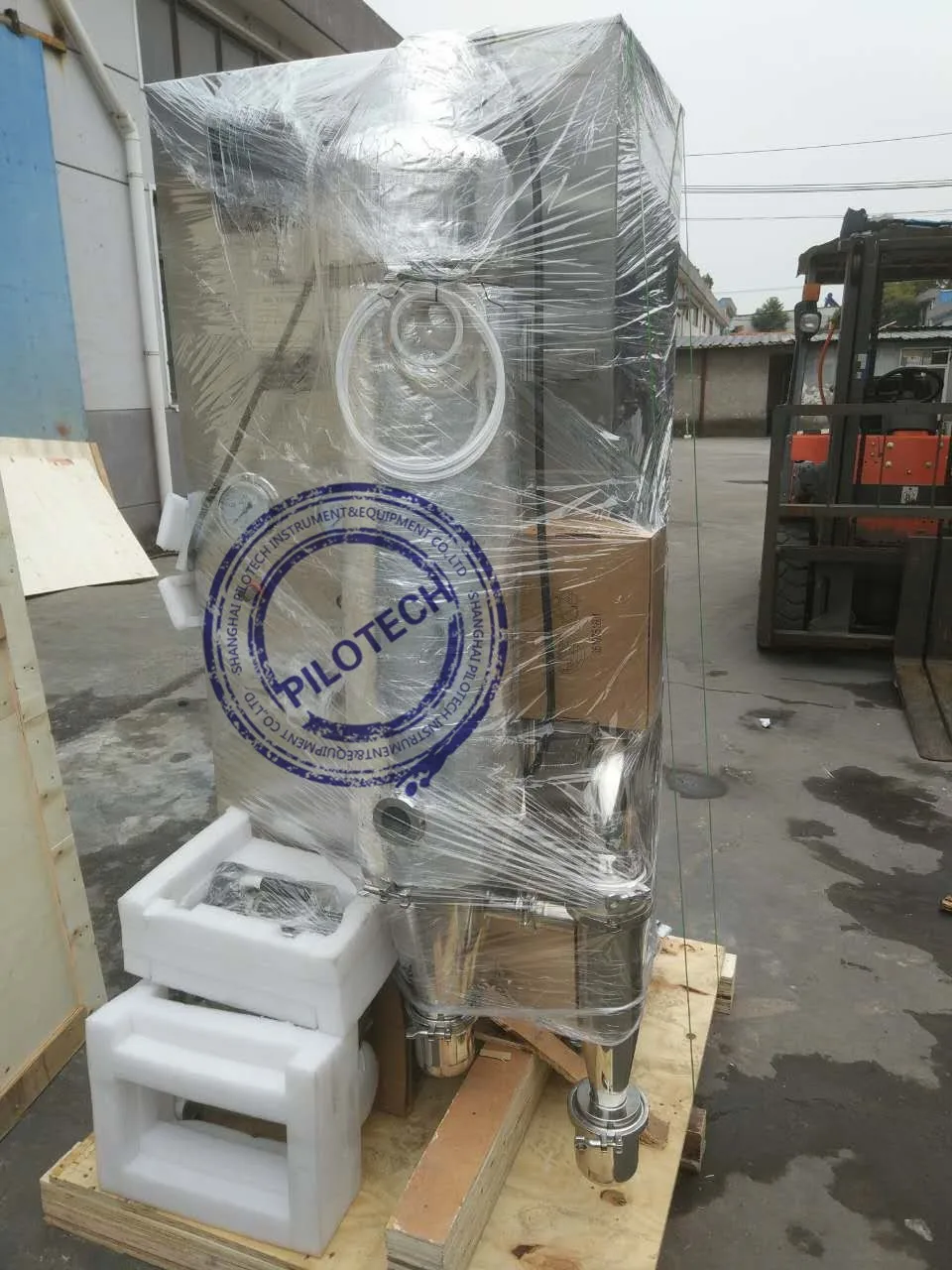

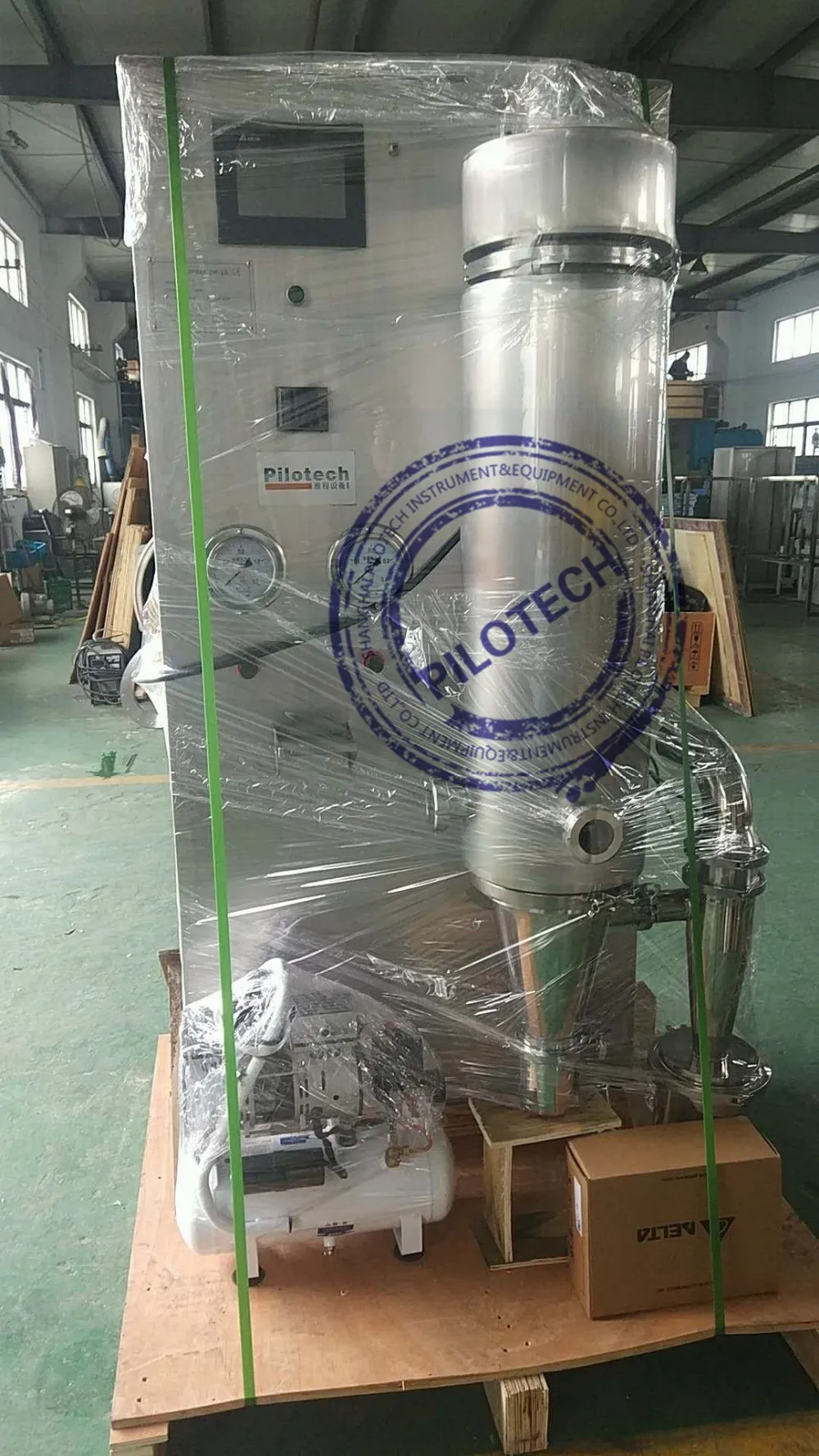

The package is standard export Tri-ply wood(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.tri-plywood packing are very firm, suitable for sea, air and land transport.


Customer Photos




FAQ


 Q.Do all products have English operating interfaces and operating manuals?

Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use.

Q.How is the after-sales serviceof your company?
We offer one-year quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only.

Q.As for the overseas market, what kind of policy does Pilotech have on dealers?
Pilotech welcomes dealers worldwide to sell our products, and we will provide dealers with strong technical support and competitive prices. Pilotech hopes to grow and develop together with distributors from different countries.
