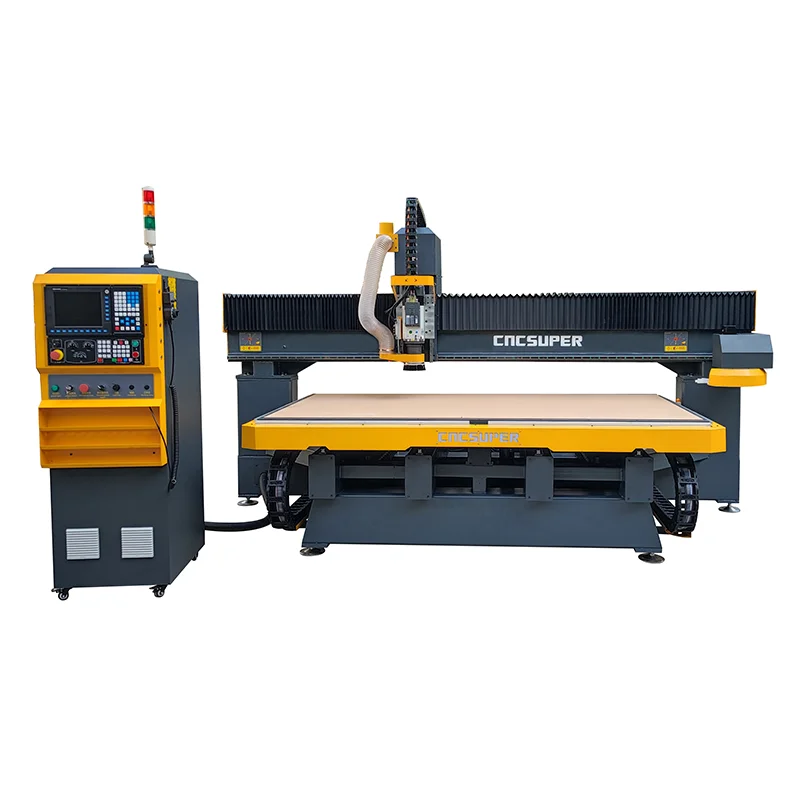

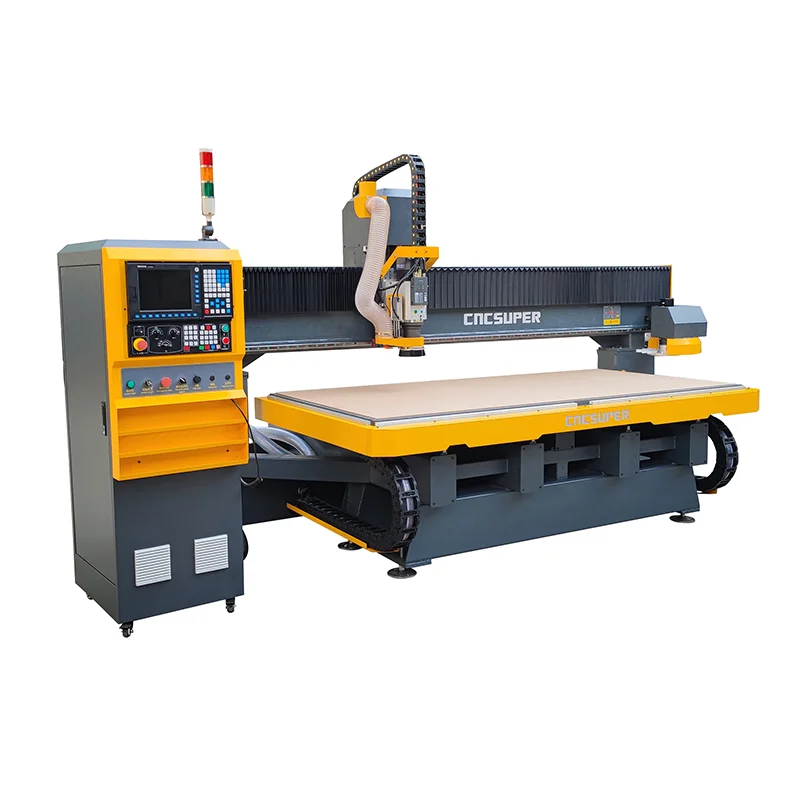

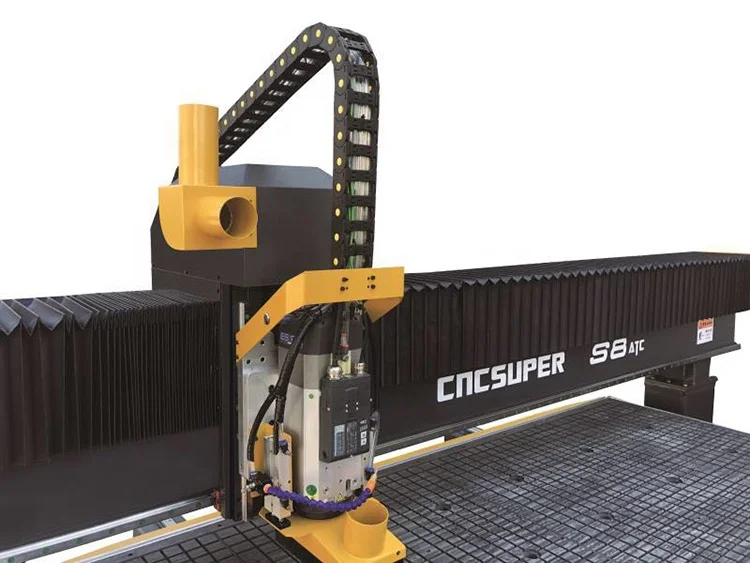

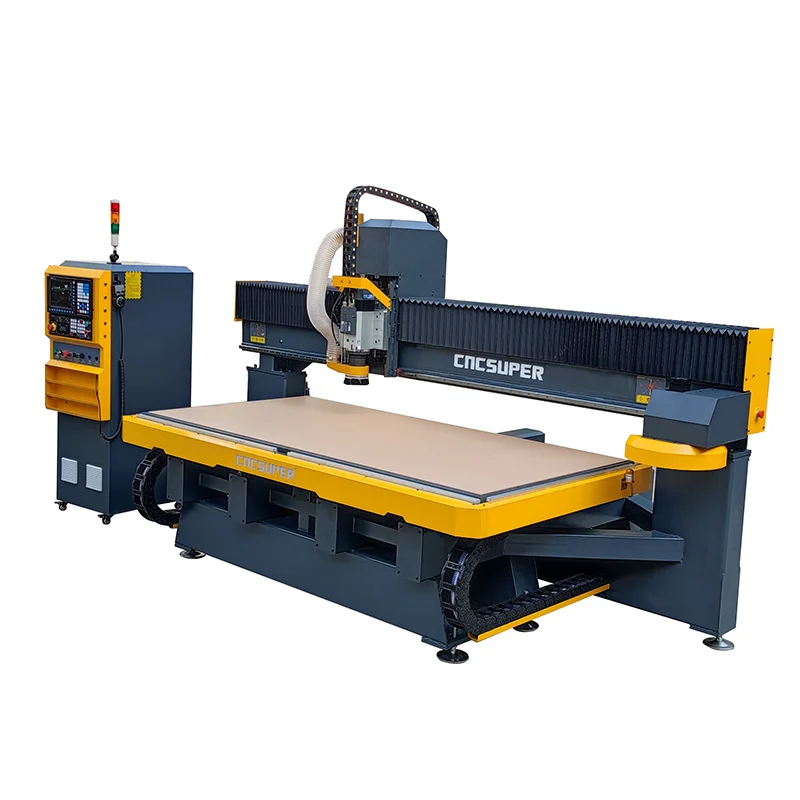

Hot sales new product high precision atc woodworking cnc wood router
- Category: Wood Router >>>
- Supplier: Foshan Saichao Machinery Co. Ltd.
Share on (62254132976):
Product Overview
Description
Product Description
1. Adopt industrial heavy-duty seamless welded structures design, identify the deformation of welded structures by finite element analysis, also use low temperature annealing control, in order to ensure the best strength and rigidity.
2. X.Y.Z axis all ball screw transmission to assure high precision. Table moving function to make load and unload the work piece more convenience.

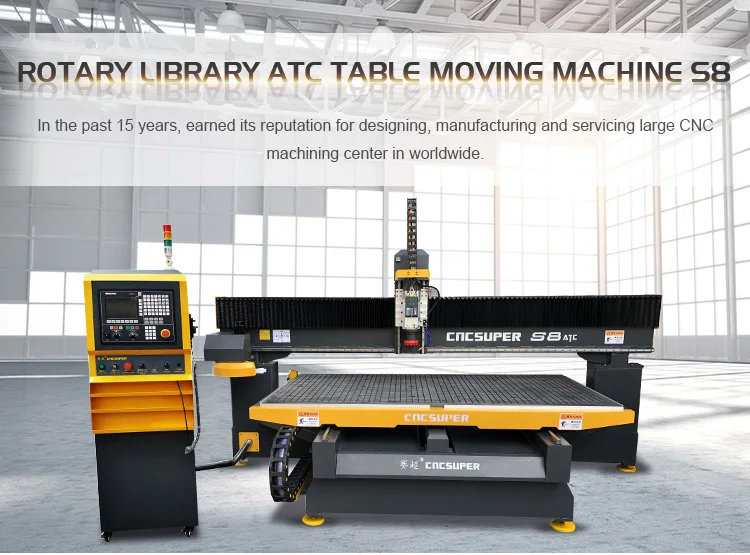

3.Static fixed gantry and moving the table transmission mode, more stability and small vibration.
4.Using multiple adjustable screw, convenient to adjust machine balance.

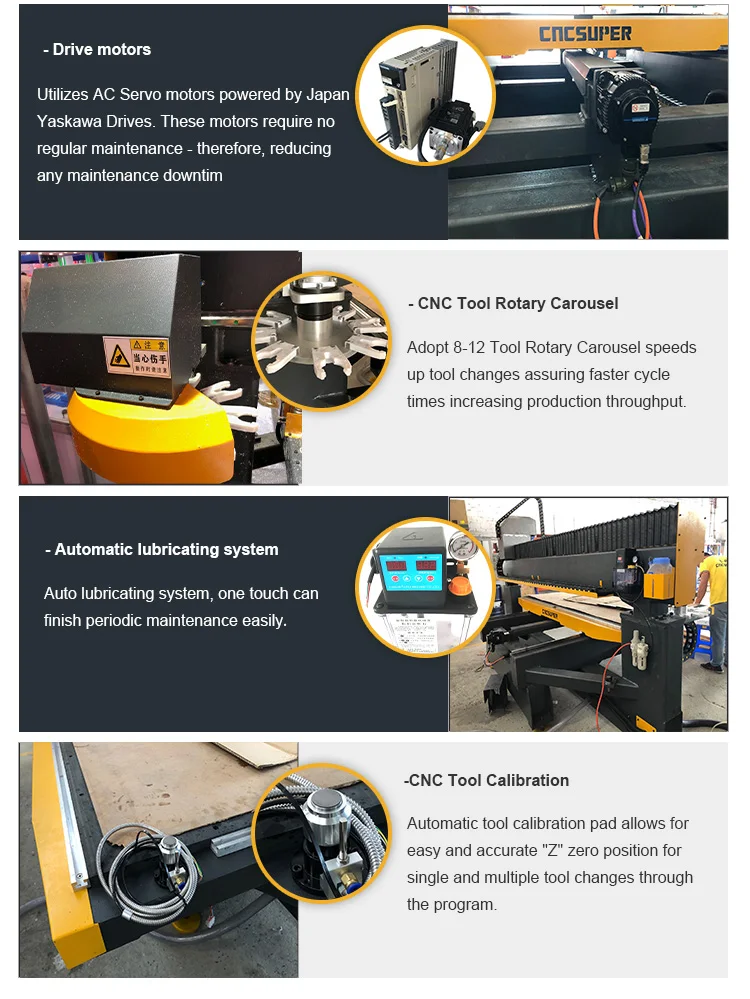

5. Configuration with imported Japan YASKAWA servo system, powerful transmission, more faster.
6. Adopt Italy HSD9.6KW ATC tool changer spindle motor, low noise and beating rate, lager torque and high efficiency cutting, ensure smooth light incisions.
7. Standard configuration with matrix vacuum table, great bearing capacity, strong adsorption.
8. Independent controlling cabinet, isolate heavy-current and weak-current, simple maintenance.
2. X.Y.Z axis all ball screw transmission to assure high precision. Table moving function to make load and unload the work piece more convenience.
3.Static fixed gantry and moving the table transmission mode, more stability and small vibration.
4.Using multiple adjustable screw, convenient to adjust machine balance.
5. Configuration with imported Japan YASKAWA servo system, powerful transmission, more faster.
6. Adopt Italy HSD9.6KW ATC tool changer spindle motor, low noise and beating rate, lager torque and high efficiency cutting, ensure smooth light incisions.
7. Standard configuration with matrix vacuum table, great bearing capacity, strong adsorption.
8. Independent controlling cabinet, isolate heavy-current and weak-current, simple maintenance.
NO. | DESCRIPTION | |||||
1 | Working area(XY) | 2500x1300mm | ||||
2 | Z travel height | 260mm | ||||
3 | Positional accuracy | ±0.04/300mm | ||||
4 | Spindle power | HSD 9.6KW air cooling ATC spindle | ||||
5 | NO. of revolution | 24000rpm/min | ||||
6 | X.Y.Z axis rail | Taiwan HIWIN guiding rail 30 | ||||
7 | Motor and drive | Japan YASKAWA servo motors and drives | ||||
8 | Inverter | TAIWAN DELTA inverter | ||||
9 | Max Cutting Speed | 30000mm/min | ||||
10 | Controller | NC Studio NK280 with hand wheel (TAIWAN SYNTEC optional) | ||||
11 | Software compatibility | Type 3 or Artcam | ||||
12 | Table | Moving table with vacuum | ||||
13 | Vacuum pump | TAIWAN EUROVAC 7.5KW rotary vane vacuum pump | ||||
14 | Lubricate | Self-lubrication system | ||||
15 | Format | G code HPGL | ||||

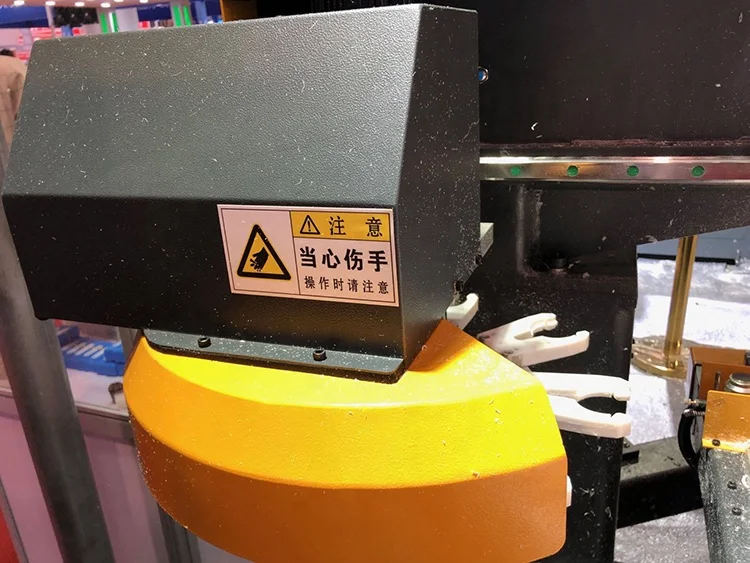

16 | Tool change type | Rotary type knife library | ||||
17 | Tool magazine motor | MIGE servo motors and drives | ||||
18 | Magazine capacity | 8 positions ATC (Optional 10-12 positions) | ||||
19 | Diameter of cutter | 3.175-12.7mm | ||||
20 | Working voltage | AC380V, 3PH/50HZ | ||||
21 | Lathe structure | Seamless welded steel structure | ||||
22 | Weight | 3000KG | ||||
