Automatic Film Applicator Bar Coater for Thin Film Coating
- Category: Coating Machines >>>
- Supplier: Xiamen Lith Machine Limited
Share on (62254639725):
Product Overview
Description
Product Description

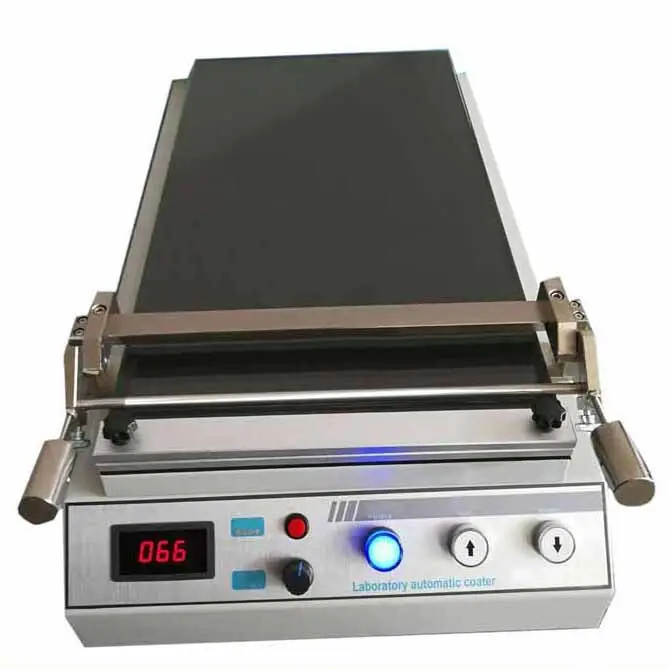

Lab Automatic Heatable Vacuum Film Coater for Battery Electrode Coating
Introduction

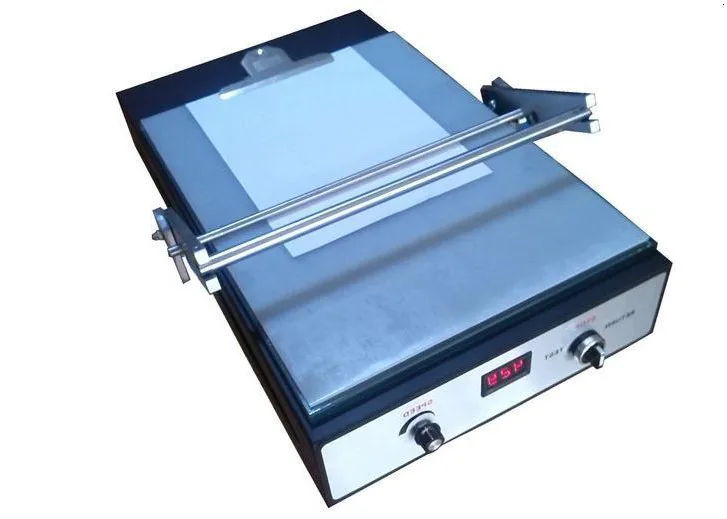

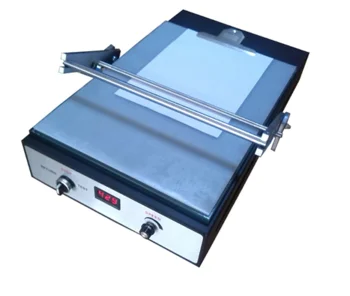

LITH-XT-200CA Film coating machine is lab Automatic Film Coater with glass bed as coating plate. It adopts OSP precision wire rod to with a larger range of coating range. This lab coating machine can be used for research on ceramic tape casting. crystal film, special nanometer film and Li-Ion battery electrode coating.
This Wire rod coating machine adopts precision extrusion type coating measuring rods coated film (the thinnest film coating thickness up to 1.5 um). It also can be used for Paper printing, film, adhesive tape production.
This model is without heating function, Heating lid is available at extra cost for drying . please select model LITH-TMH if we need hot function.
Specifications
Model | Film Coating Machine TMAX-XT-200CA |
Working Voltage | 110V AC or 208 - 240V AC 50/60Hz Single Phase |
Power | 200W |
Traverse Speed | 0 - 200 mm/sec variable |
Max. Coating Dimensions | 430*300mm (L*W) |
Coating base size | 570*340mm (L*W) |
Platform | Glass bed for coating |
Coating thickness | Coating film by precision wire bar (Thinnest coating film thickness is 1.5um) |
Coating wire bar size | Diameter : 10mm, Length: 400mm,Effective coating width:300mm |
Product Dimensions | 570mm(L) *340mm(W) * 100mm(H) |
Net Weight | 20kg |
Warranty | One year limited warranty with lifetime support |

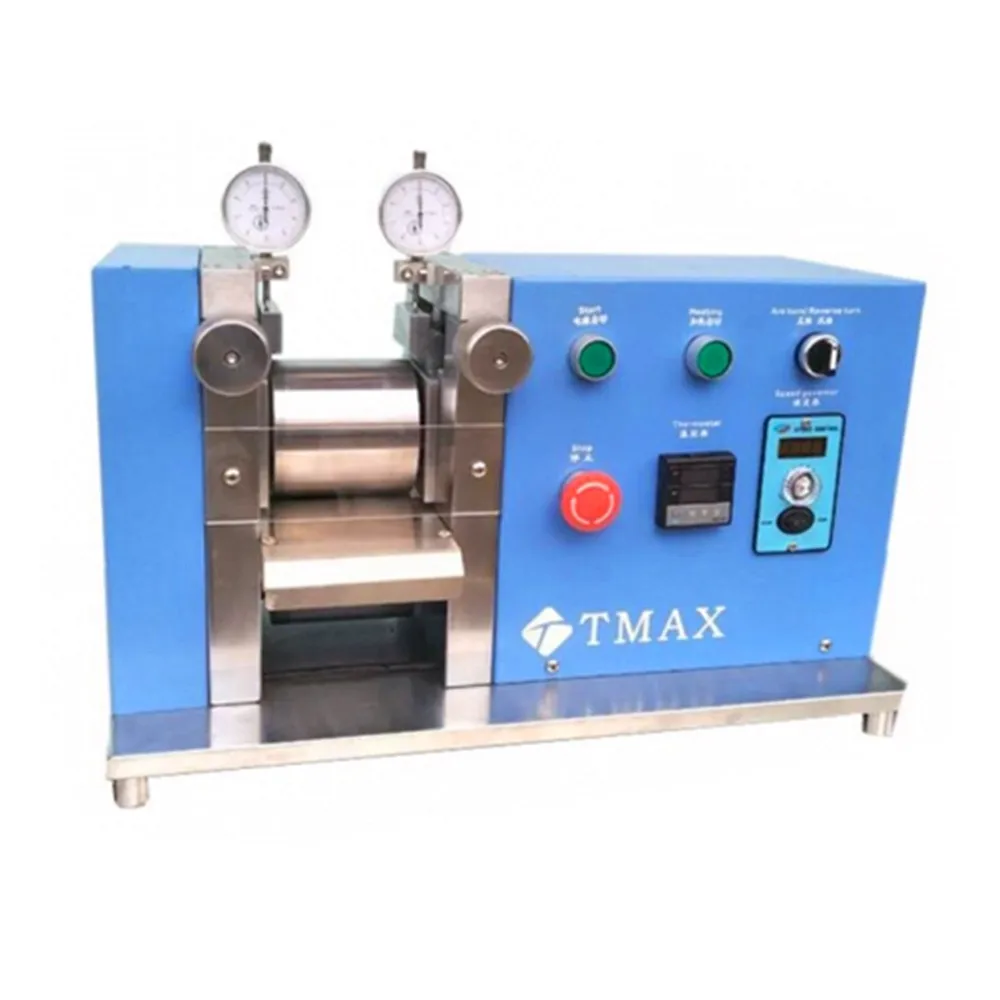

Application Notes | Rolling is absolutely necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here.
You may need a vacuum oven to dry the films after coating You may need a vacuum mixer to remove air bubbles inside the slurry and tomake all coatings uniform. You may need a Slurry Viscosity Tester to make coatings consistent |
Product Images
Related Products
Certifications
Company Information
Cooperative Partners
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
Packaging & Shipping
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
