Для того чтобы свернуть батарея установка для термопереноса с сушильный шкаф для электрода машина для нанесения покрытия
- Category: Coating Machines >>>
- Supplier: Xiamen Lith Machine Limited
Share on (62255383396):
Product Overview
Description
Product Description

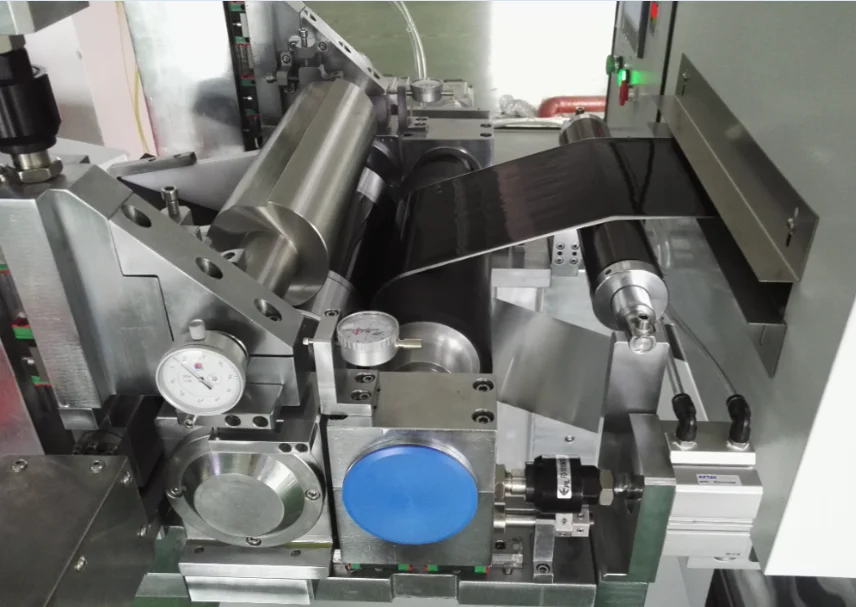

Roll To Roll Battery Transfer Coating Machine With Drying Oven For Electrode Coater
Introduction
LITH-MRX300 is a automatic battery electrode coating system with a compact footprint that is less than 6'x3'. It uses transfer coating technique for better coating uniformity and is perfect for research or building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's the most convenience.
Specifications
Working Voltage | 380V AC |
Max. Power Consumption | 10 KW ( 30A Air breaker required ) |
Max. Coating Width | 300mm |
Thickness adjustable range | 0-5mm |
Coating thickness (after drying) | 20 - 200um (for most kinds of battery electrode coating material) |
Thickness Precision | ± 3µm (± 5µm at edges) |
Coating Speed | 0-300 mm / minute |
Max. Drying Temperature | 150°C |
Temperature Accuracy | ±2.5°C |
Heating Zone Length | 710mm (28") |
Reeling/Unreeling Shaft | 75mm (ID) |
Max. Reeling/Unreeling Diameter | 300mm (OD) |
Max. Coating Length | Depending on the coating and substrate thickness. Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run |
Coating Modes | Using transfer coating technique ( Reverse comma ) for better uniformity Two available coating modes selectable on the control panel. Continuous mode Intermittent coating ( system performs coating, stops, coats again and so on. The length of the coating and break segments can be specified by the user ). |
Slurry Stirring | SS316 Moving Rod |
Exhaust Port Size | 127mm O.D |
Compressed Air | 0.5-0.8 MPa (Air compressor not included. Please click here to order) |
Product Dimensions | 1650mm ( L) x 1250mm (W) x 1200mm (H) |
Warranty | Two Years limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
Net Weight | 1000 kg |
Shipping Dimension | 70" x 50" x 60" |
Related Products
Certifications
Company Information
Cooperative Partners
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
Packaging & Shipping
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
