Plasma CNC Portatile Cutting Machine KNCAM Brand CUT 3 3

Product Overview

Description



Plasma CNC Portatile Cutting Machine KNCAM Brand CUT 3-3

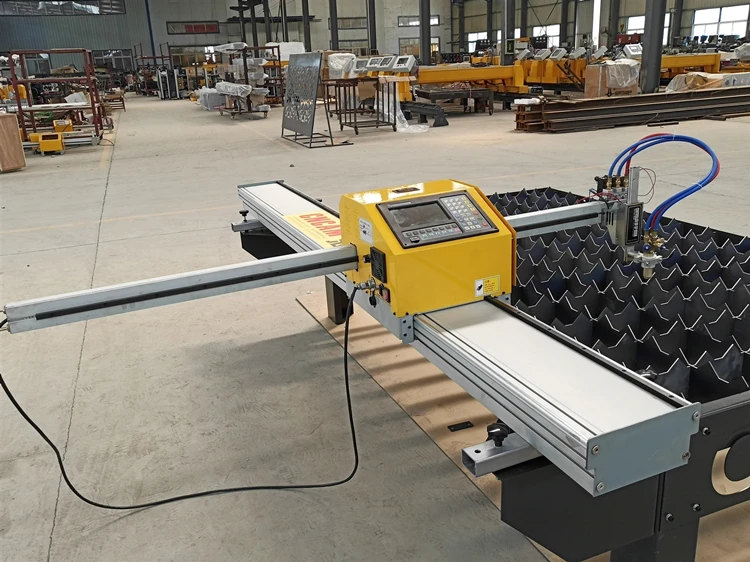

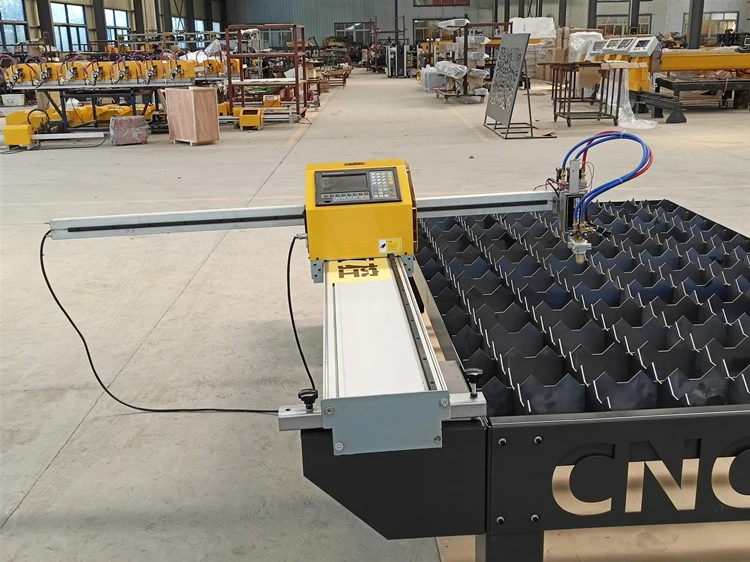

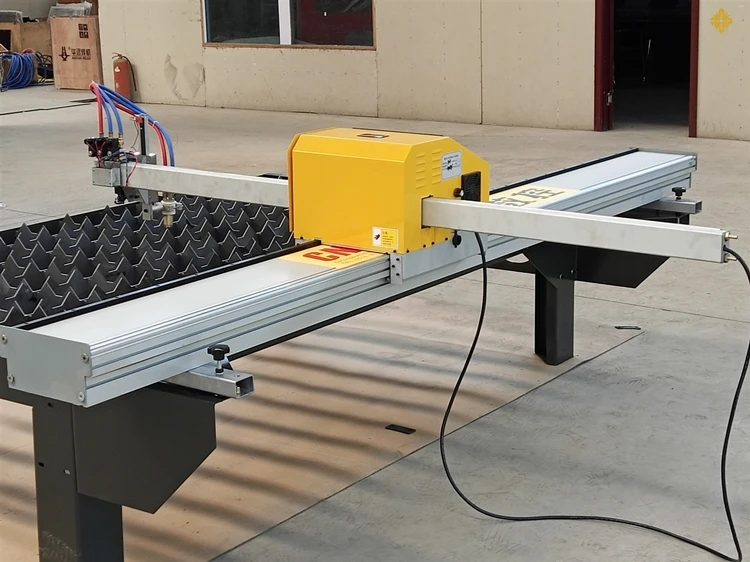

Whole machine

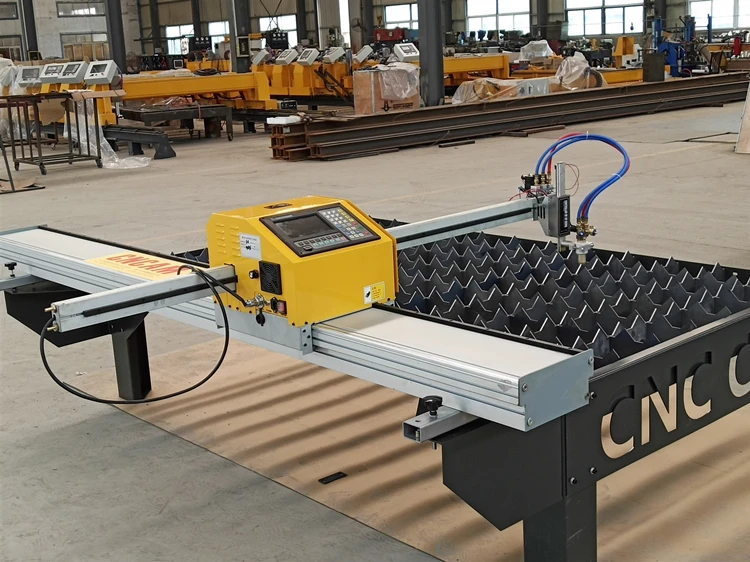

Whole machine

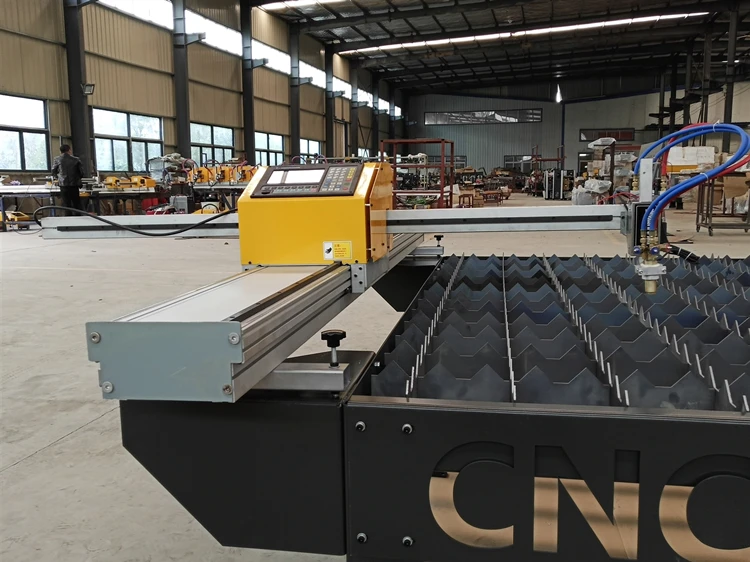

Whole machine

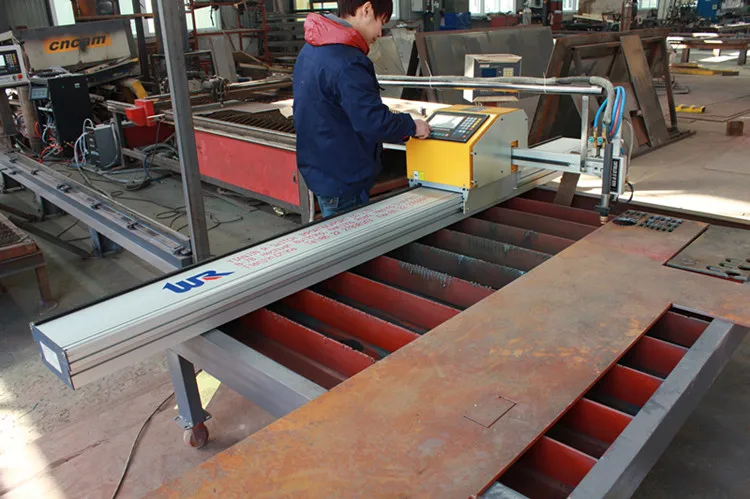

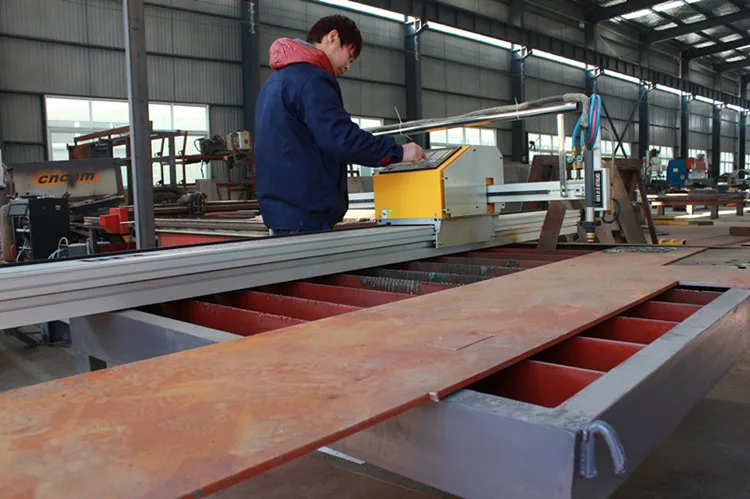

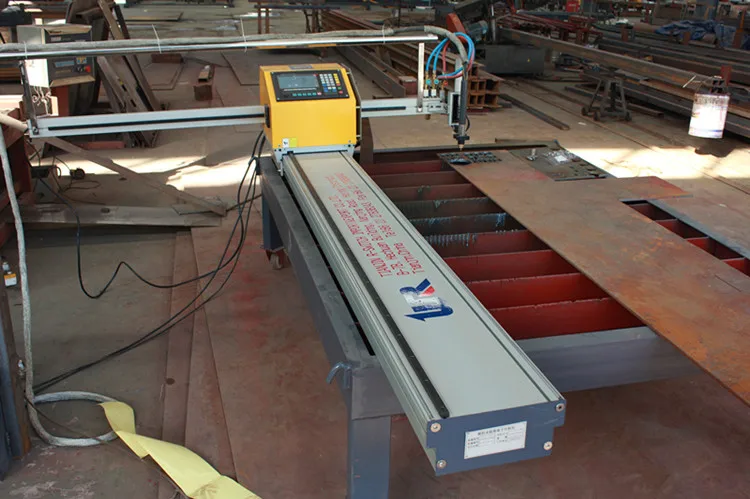

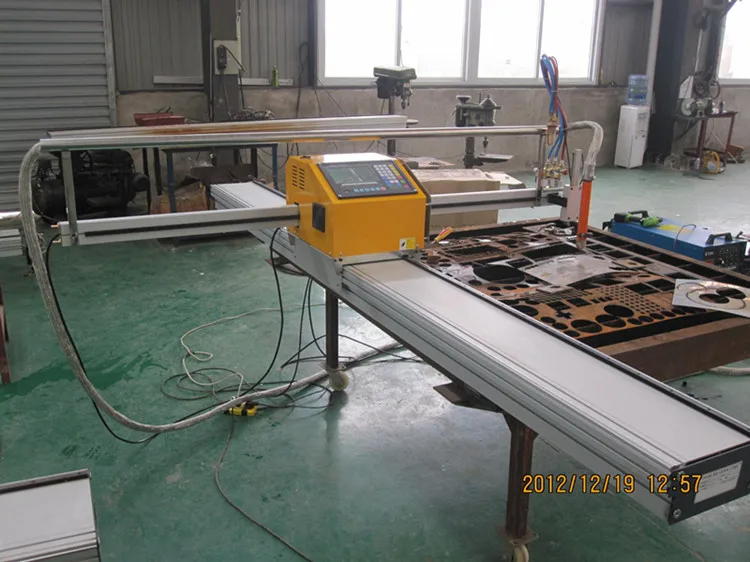

Cutting site

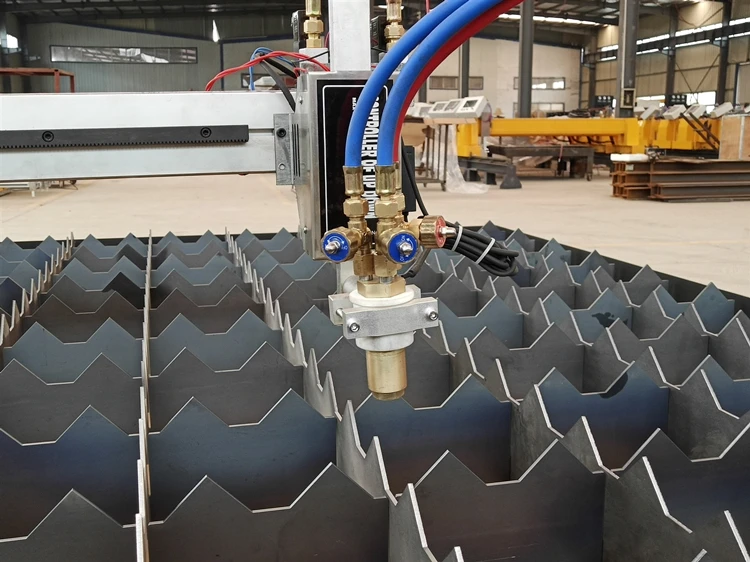

Plasma cutting



Plasma cutting







Cutting mode	Flame cutting or plasma cutting
Materials to cut	Mild steel, carbon steel, stainless steel, aluminium, etc
Working area	1500mm×2500mm
Flame cutting thickness	8-200mm
Plasma cutting thickness	≤30mm depending on plasma power source
Vertical stroke of cutting torch	≤120mm
Cutting speed	1-3500mm/minute

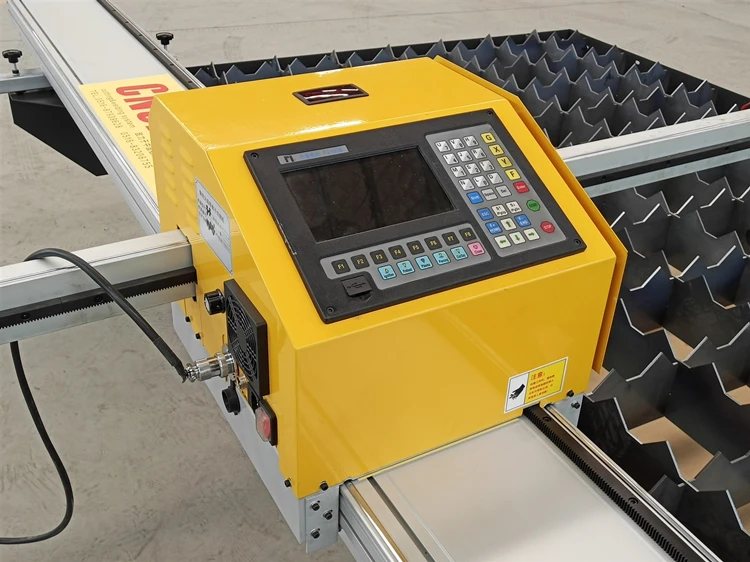

Control system	F2100B
Driving system	stepper motor
Working language	English, French, Spanish, Portugues, Russian, etc









4. Function characteristics

1. Can choose the operating menu in English, Portuguese, French, Russian, Dansk, Korean, etc, language can be shifted easily.

2. 47 common graphics are available, drawing sizes and hole dimensions are settable.

3. Support different modes like plasma cutting, flame cutting, demonstration.

4. Various parameters are available, can meet the demand of different processing techniques.

5. Oxygen/fuel and plasma IO are controlled separately.

6. Support edge cutting, preheating time for cutting thick plates is shortened.

7. Accelerating and decelerating can be accomplished in motion

8. Cutting speed is restricted at the turning to avoid over-burning.

9. Have the function of power-failure memory and break-point memory.

10. Select row and column manually.

11. Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.

12. "Cutting offset" function can avoid material waste when material-layout is wrong.



5. Cutting samples



6. Our services



7. About our company

Xuzhou Haibo CNC Technology Co.,Ltd is a company integrating R&D, production and sales. The company started from year 2000 when we developed software of engraving machines. The company was incorporated in 2003, producing CNC engraving machines. In 2005 we started developing software of CNC cutting machines. In 2007 we started producing CNC cutting machines. Currently our products are various CNC Plasma Cutting Machines, CNC Flame Cutting Machines, Fiber Laser Cutting Machines, etc. The company has its own patented controlling system, products have been exported to Poland, Russia, Ukraine, India, Egypt, Thailand, etc.
