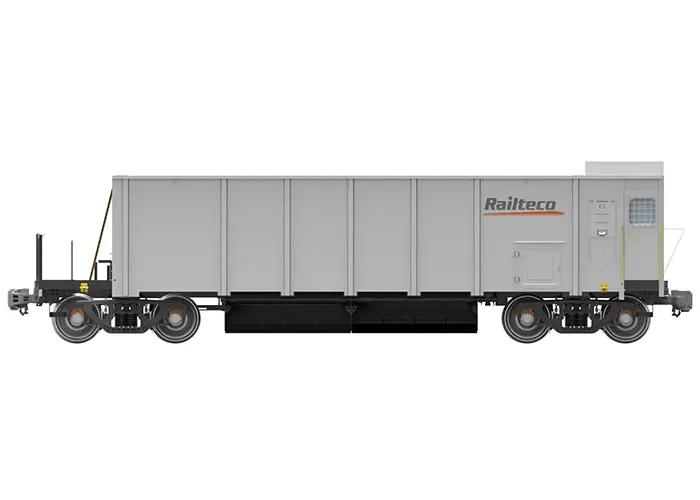

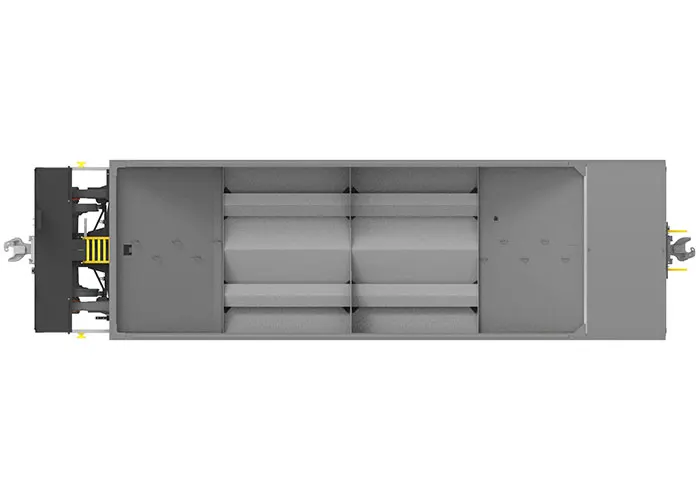

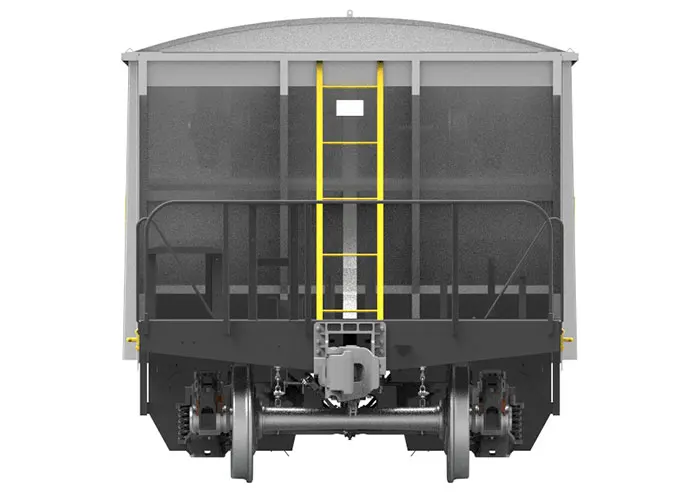

Ballast Hopper Wagon
Brief description:
This self-discharging open hopper wagon is suitable for carrying bulk goods such as ballast and ore. Wagon unloading is done via two left doors, two right doors and two center doors. The doors are operated pneumatically. The air which operates doors is taken from the train brake pipe. The left doors and right doors can also be operated by manpower. The wagon is loaded from the open top and discharged either on the two sides of rails also between rails. The wagon design meets the requirements of AAR and TB standard.
The wagon is loaded from the open top.
The goods is discharged either on the two sides of rails also between rails.
The range of axle-load is from 16t to 23t according to client’s requirement.
Parameters:
Tare weight | ≤24t |
Payload | 60t |
Capacity | 36m3 |
Axle load | As per client |
Track gauge | As per client |
Maximum operating speed | 80km/h |
Length over coupler | 12038mm (approximately) |
Rmin (single wagon) | 70m |
Quantity of unload door | 6 (2 left doors, 2 right doors, 2 center doors) |
Bottom door opening | 190mm (approximately) |
End wall angle | 36.5° |
Break type | AAR or TB |
Coupler type | As per client |
Bogie type | Cast type |
Operating type of bottom door | Pneumatically and manually |
