chipboard hot press machine hydraulic hot press machine
US $11500-$12000

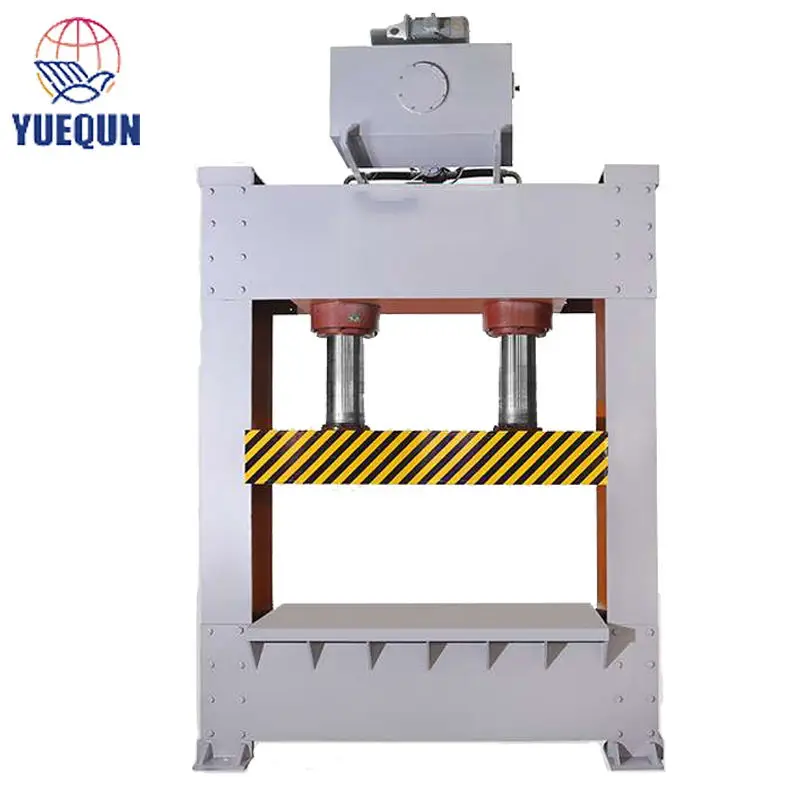

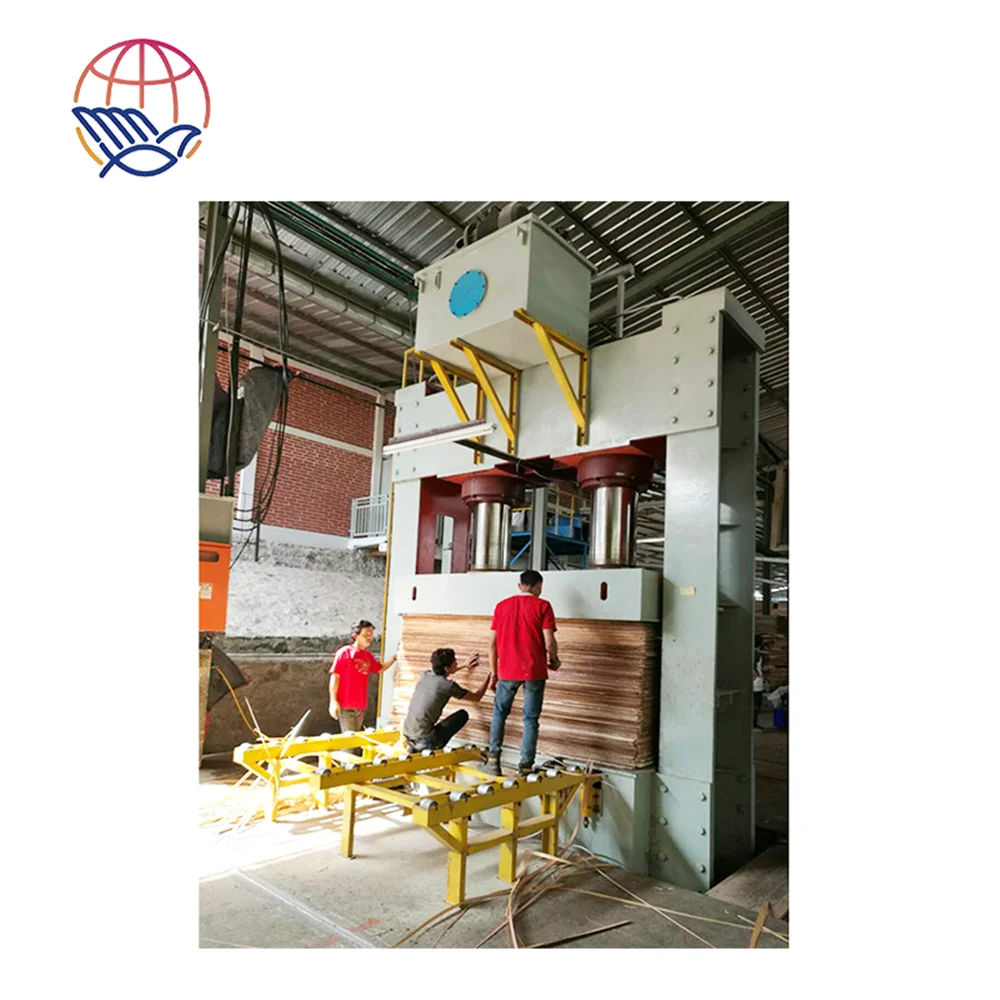

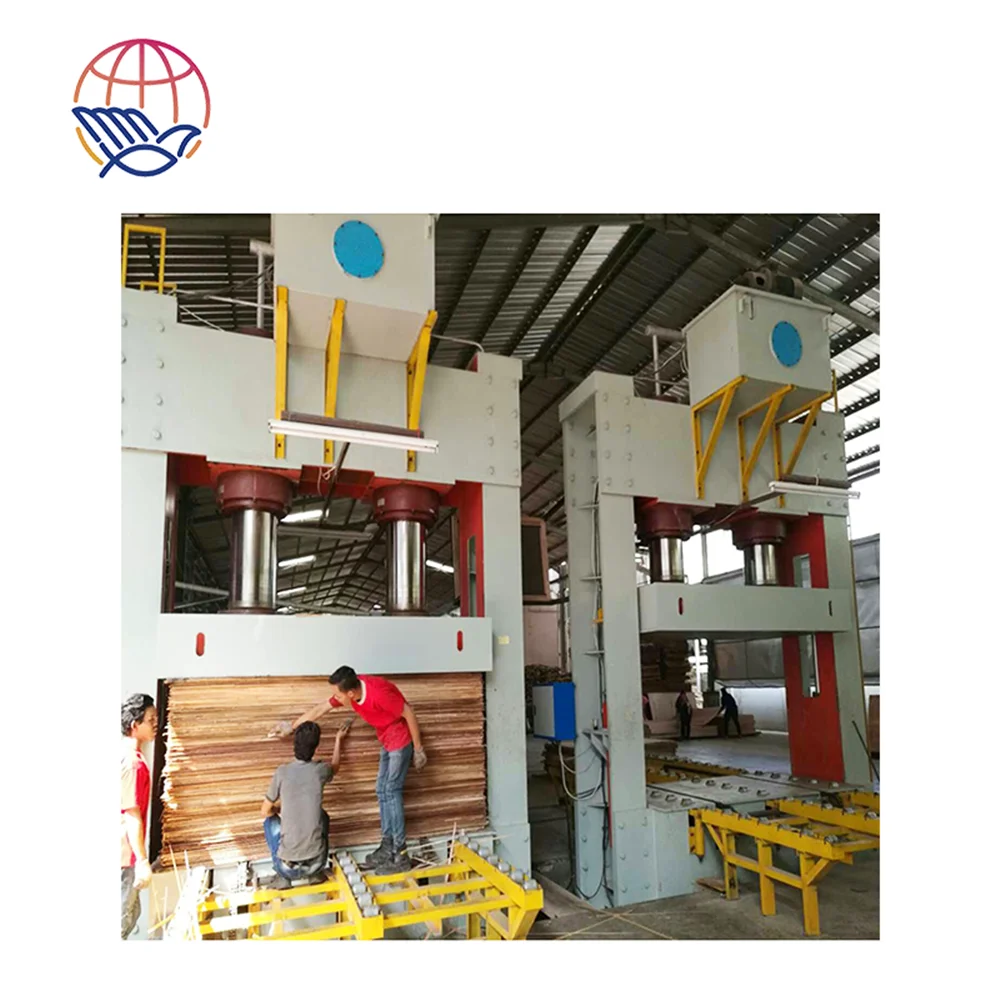

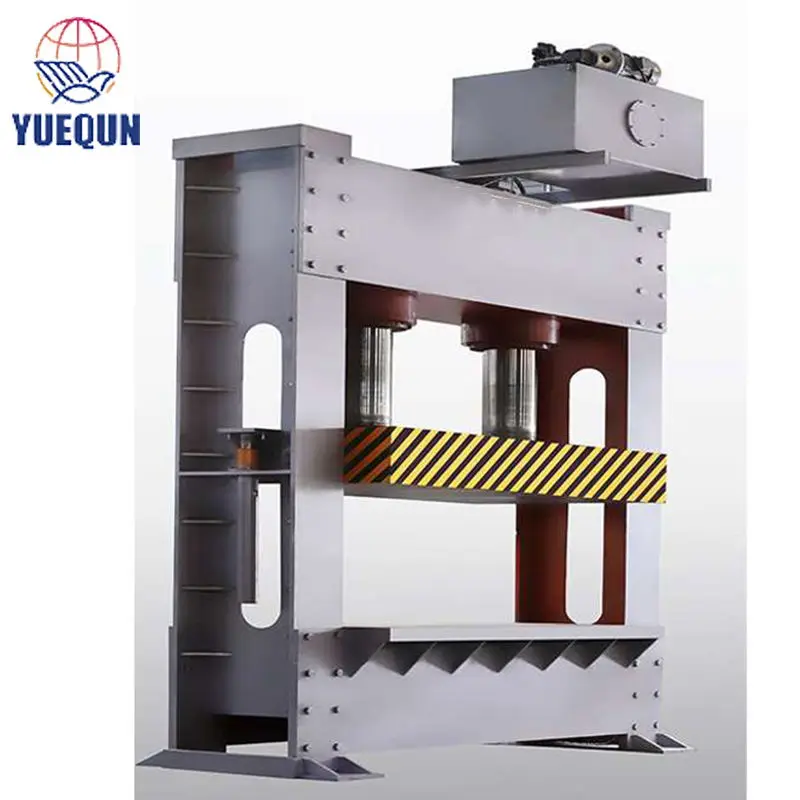

Машина для холодного прессования двери, машина для холодного прессования фанеры
- Category: Press >>>
- Supplier: Shandong Yuequn Machinery Co. Ltd.
Share on (62257416166):
Product Overview
Description
Product Description
Product Application
1 This machine is used for pre-pressing process of making plywood, block board and decorative board.
2 The whole structure is designed and manufactured based on advanced international experience and new technological requirements.
3 The electric system and hydraulic system of the machine have been examined precisely and the free-beam will not fall by its own gravity with results assuring excellent quality.
4 The cylinder is made of super-hard metal,and the seal use low-resistance stepped gaskets, no leakage.
Detail
Adopting advanced
electronic
devices/parts and touch-screen operating panel
More than 20 years researching and developing leading
Technology having been put into our manchinery
electronic
devices/parts and touch-screen operating panel
More than 20 years researching and developing leading
Technology having been put into our manchinery
More than 2 decades manufacturing experience,A guarantee of quality manchinery.
Also adopting premium raw material,leaving no margin for any defects in our products
Also adopting premium raw material,leaving no margin for any defects in our products
Simply place your order，leave the rest to us!
Taiwan hydraulic system ----- good quality hydraulic unit ,fast press ,lower power sonsumption
Mitsubishi PLC and touch screen ----- easy to operate high efficiency

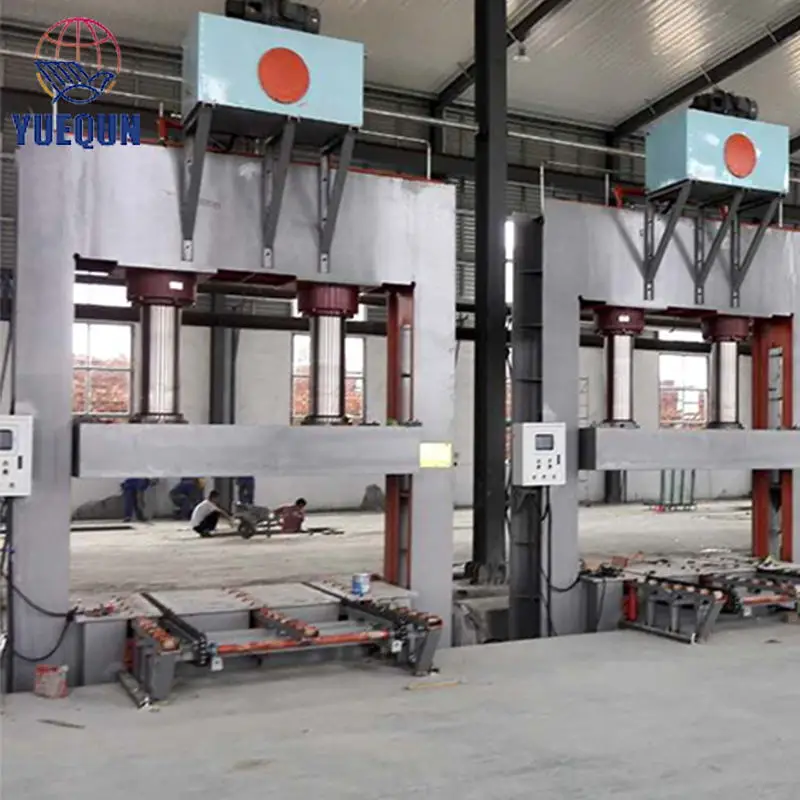

Introduction of plywood cold press machine(briefly)

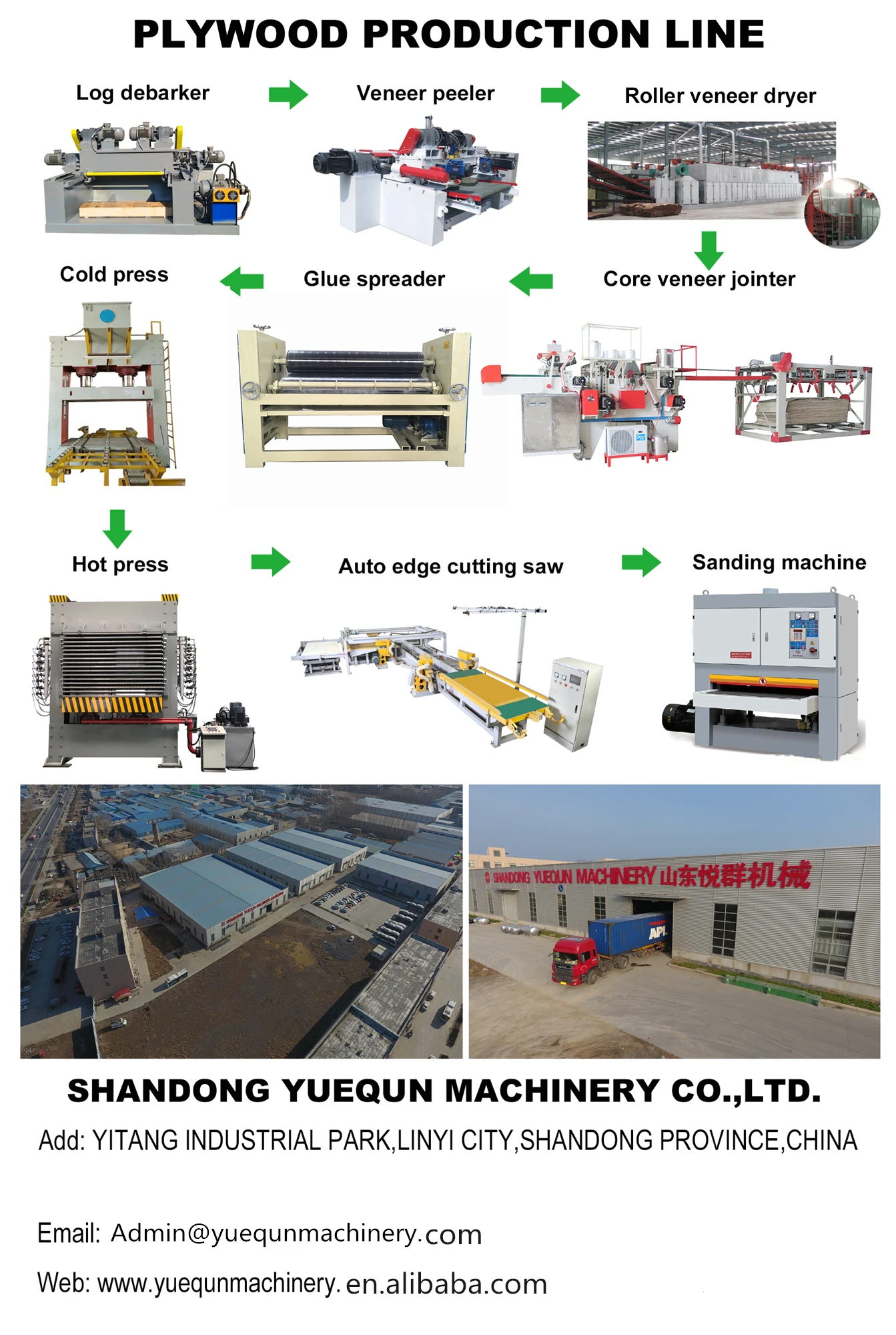

Cold press machine is the auxiliary in plywood production line, which is used to shorten the cycle time of hot press and improve the quality of plywood before gluing board. Cold press machine belongs to the pressing machine. Cold press machine is mainly used to press the gluing veneer, so that make the initial shape, and then into the hot press machine to press. It is important to improve the quality of plywood, and it is an significant part. Cold press machine in general consists with the rack, fixed beam, moving beam, the plate device, cylinder and hydraulic system, electric control device components.
Advantage of our cold press machine
1.Easy to operate, reasonable design, stable performance
2.fast and efficient pressing.
3.Emergency safety braking.
4.Trip limited device.
5.Automatic compression and unloading pressure function
6.Work-table height convenient for human body
Product Application

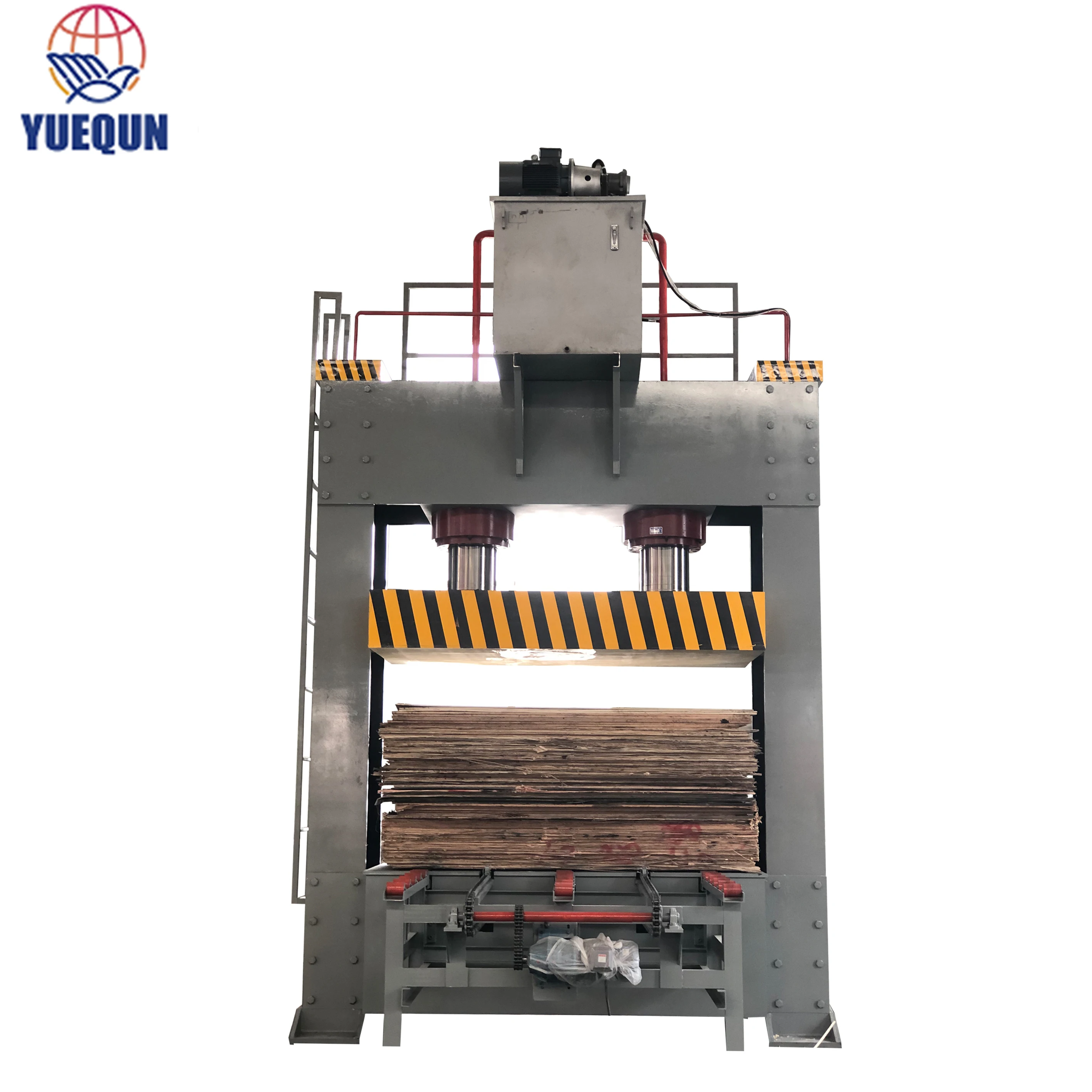

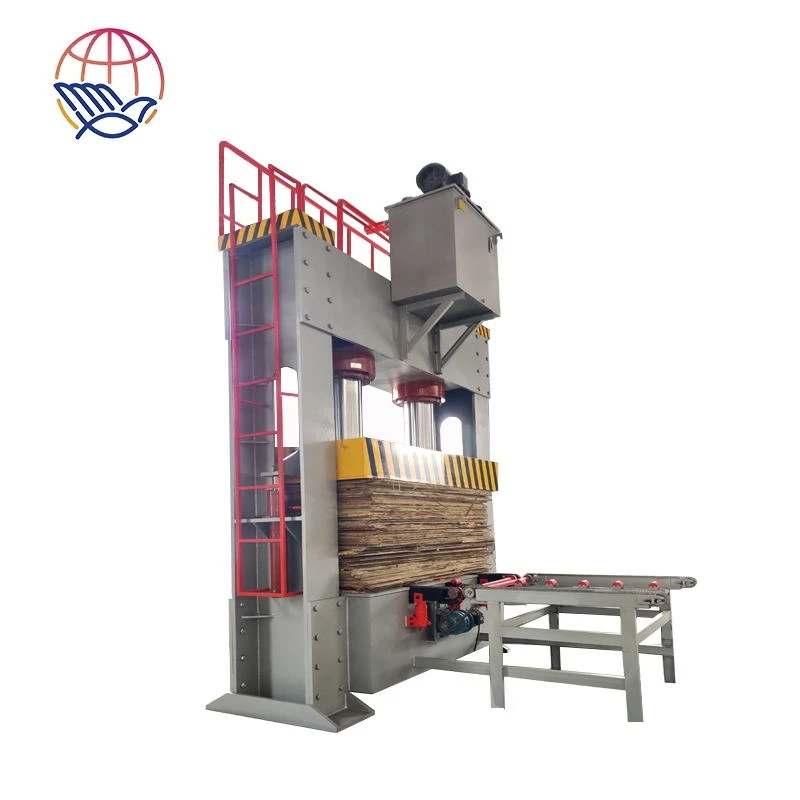

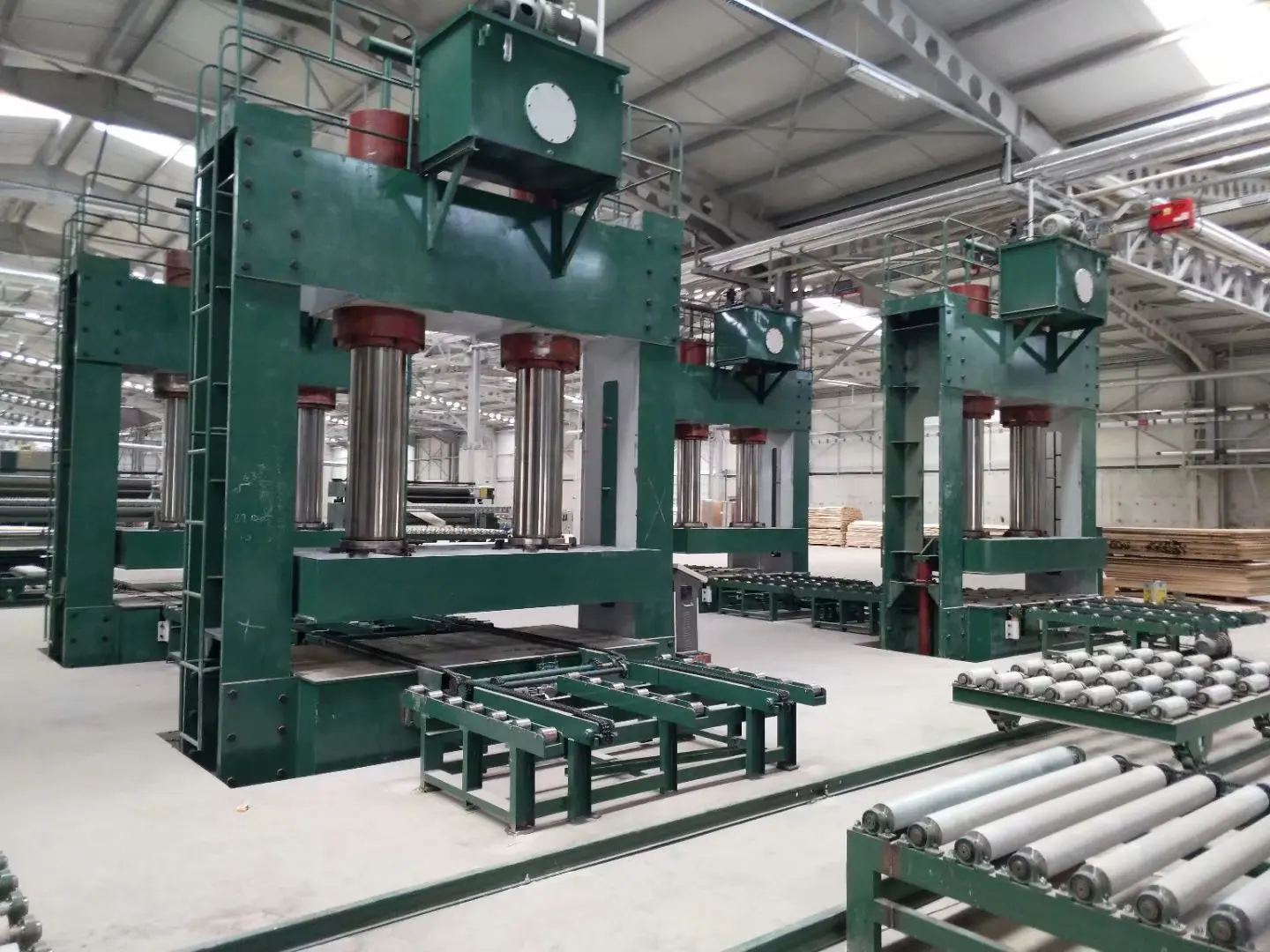

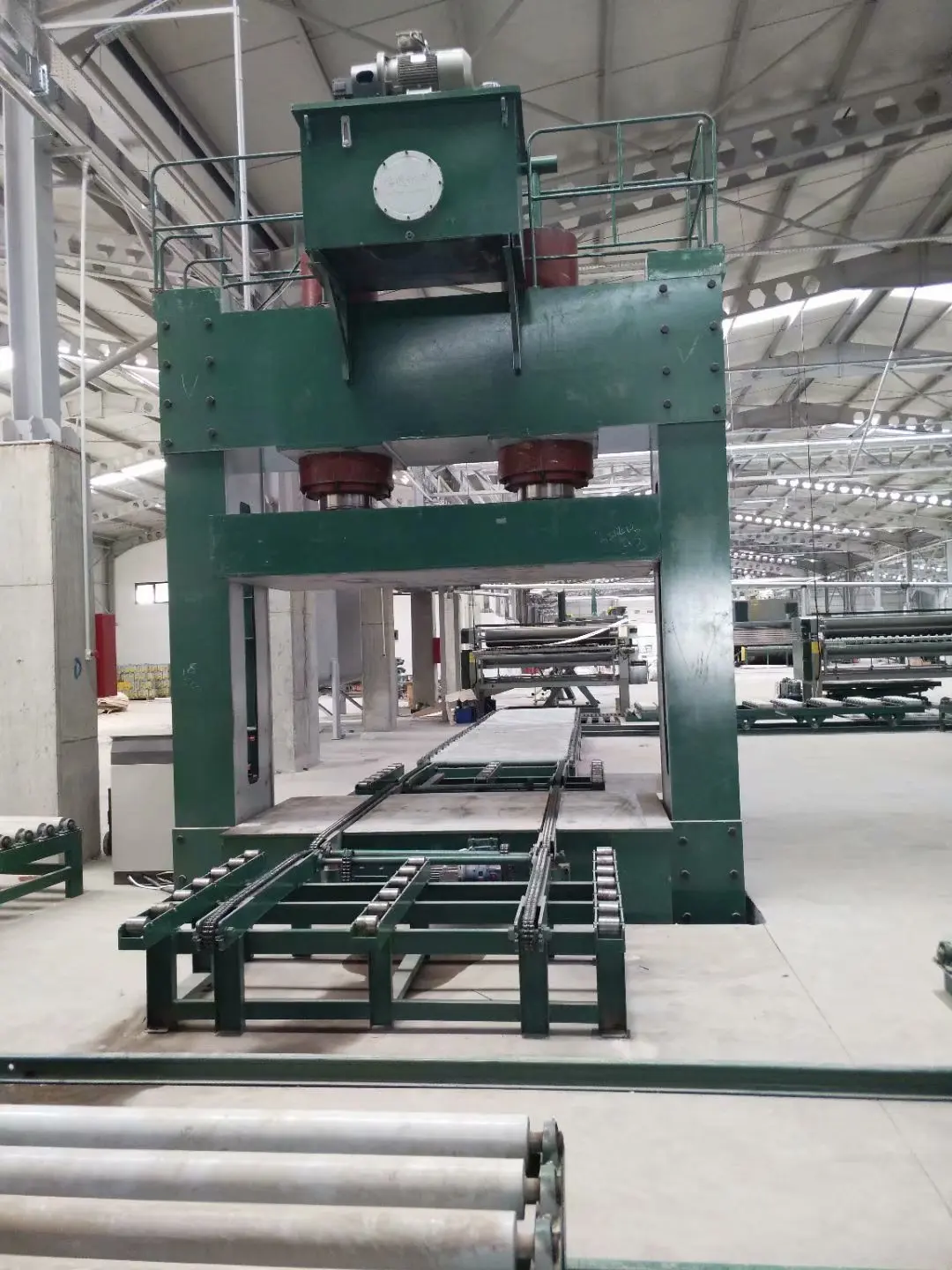

cold press for plywood with automatic loading table
This machine is used for pre-pressing process of making plywood, also blockboard and decorative board.
400T Cold Press Machine For Plywood | ||||||
Max pressure: | 400T | Weight: | About 13T | |||
Board feeding direction: | Transverse | Layer spacing: | ||||
Layers: | 1 Layers | |||||
Cylinder: | 2*360*800mm | Cylinder: | 2*80mm*800mm | |||
Stroke: | 800mm | Compression resistance: | =<25Mpa | |||
Total power: | 7.5Kw | Thickness of the frame: | 30mmQ235 | |||
Low pressure pump flowing: | High pressure pump flowing: | |||||
Working methods: | Full automatic | Upper and bottom beam: | 900mm | |||
500T Cold Press Machine For Plywood | ||||||
Max pressure: | 500 Tons | Weight: | 14Tons | |||
Board feeding direction: | Transverse | Layer spacing: | ||||
Layers: | 1 Layers | Numbers of plate: | ||||
Cylinder: | 2*360*800mm | Cylinder: | 2*80*800mm | |||
Stroke: | 800mm | Compression resistance: | =<25Mpa | |||
Total power: | 7.5KW | Thickness of the frame: | 30mmQ235 | |||
Low pressure pump flowing: | High pressure pump flowing: | |||||
Working methods: | Full automatic | Upper and bottom beam: | 900mm | |||
Main Features
1)the whole structure is designed and manufactured based on advanced international experience and new technological requirements;
2)the electric system and hydraulic system of the machine have been examined precisely and the free beam will not fall by its own gravity with results assuring exxcellent quality;
3)the cylinder is made of super-hard matal,and the seal use low-resistance stepped gaskets, no leakage.
Certifications

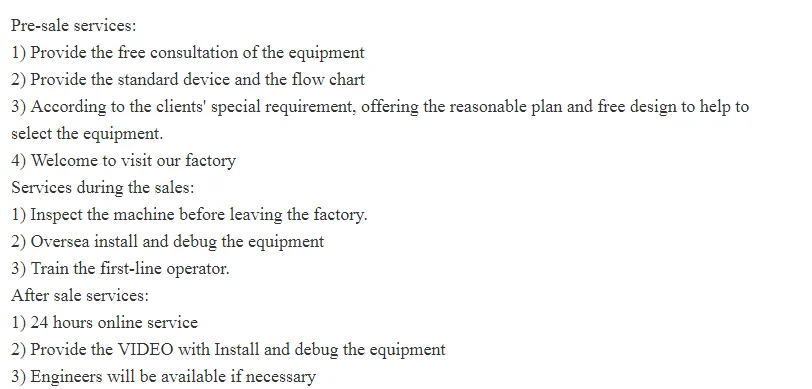

Our Service

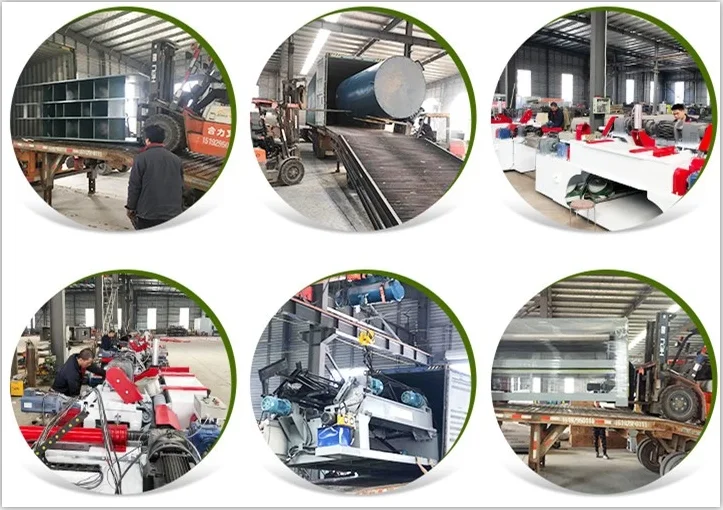

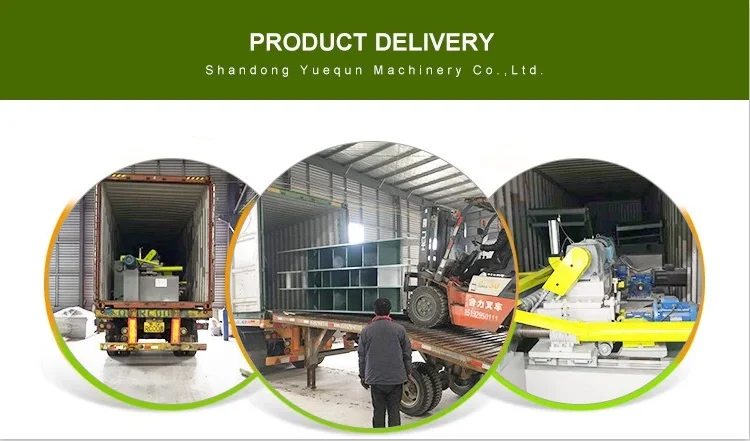

Packing&Delivery
