New design Fully Automatic Furring Channel Omega Profile Roll Forming Machine

Product Overview

Description

New design Fully Automatic Furring Channel Omega Profile Roll Forming Machine

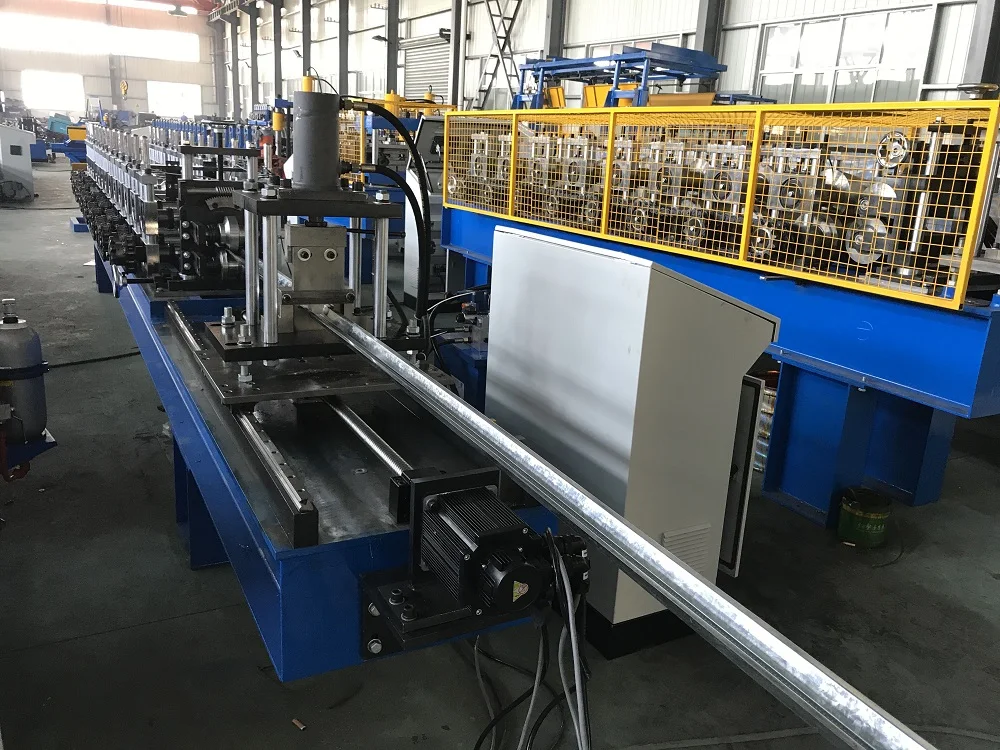

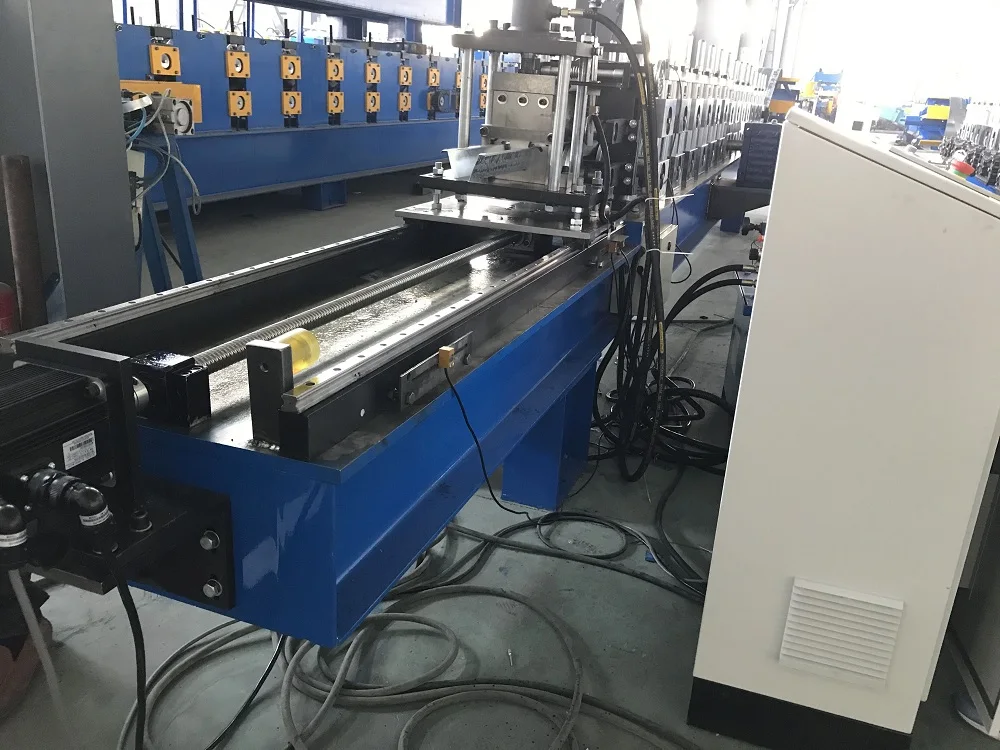

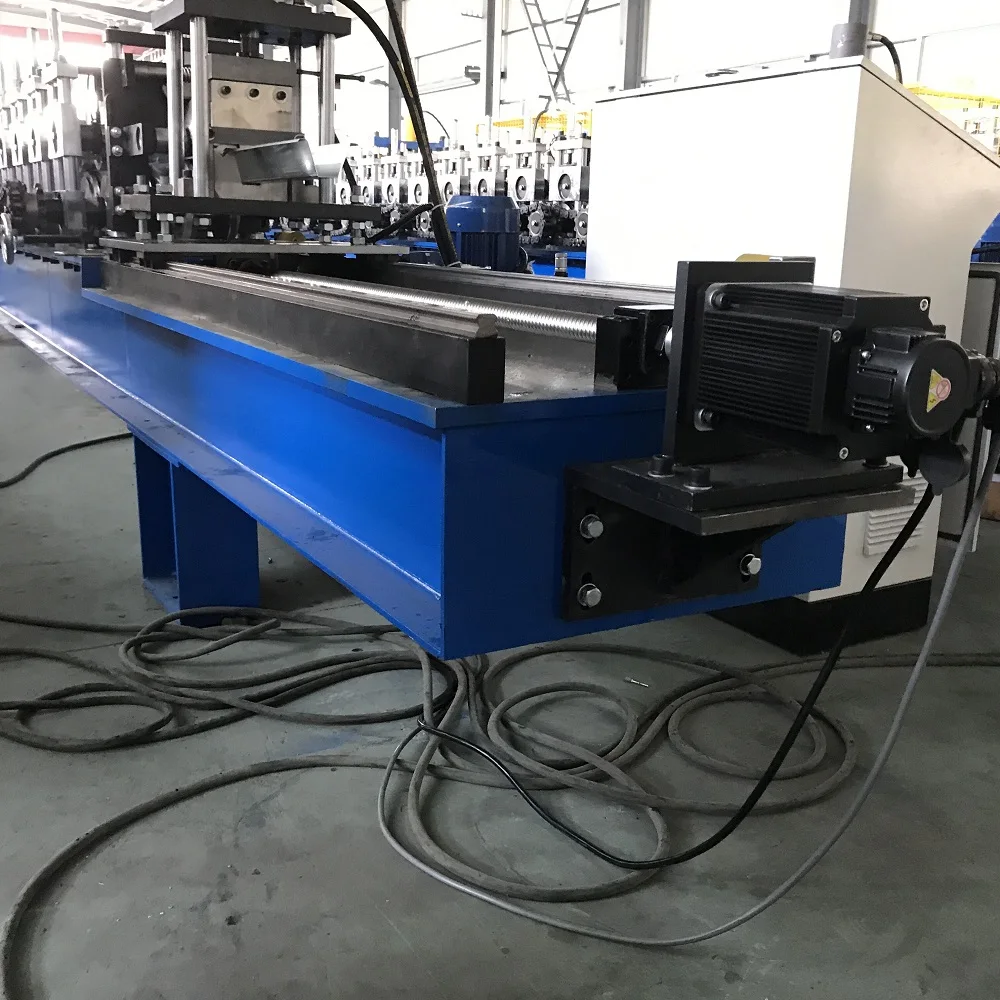

New design Fully Automatic Furring Channel Omega Profile Roll Forming Machine is used to produce the furring channels, the ceiling batten channel, the roofing batten channel for housees. Furring Channel, Roof Ceiling Batten Roll Forming Machine can work at the speed of 35 meters per minute, with servo motor tracking cutting. Machine body is pillar structural, with safety protection cover. There are two encoder to measure the length of the cutting productus, PLC is world famous PLC system. Whole ceiling batten, roofing batten machine is including below parts: 2 tons manual decoiler, leveling system, the main roll forming machine and tracking cutting system, and 2 sets output receiving table.

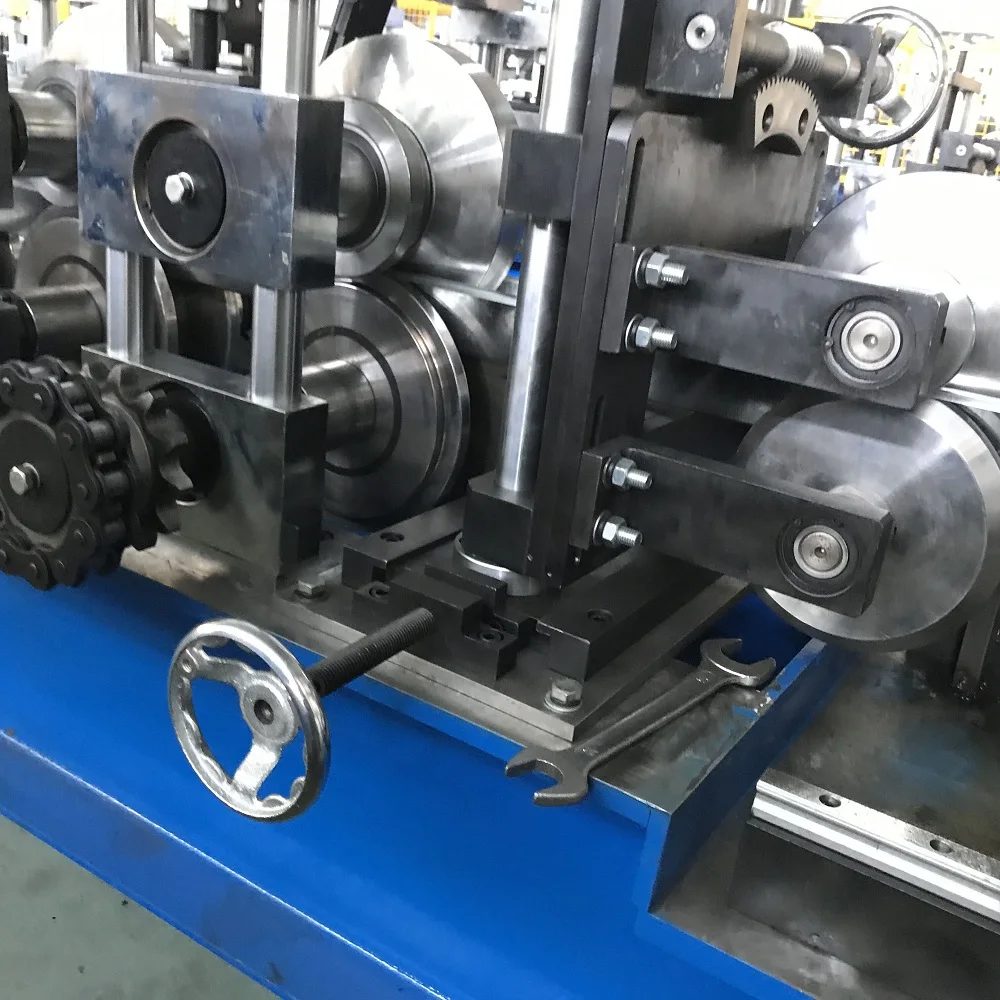

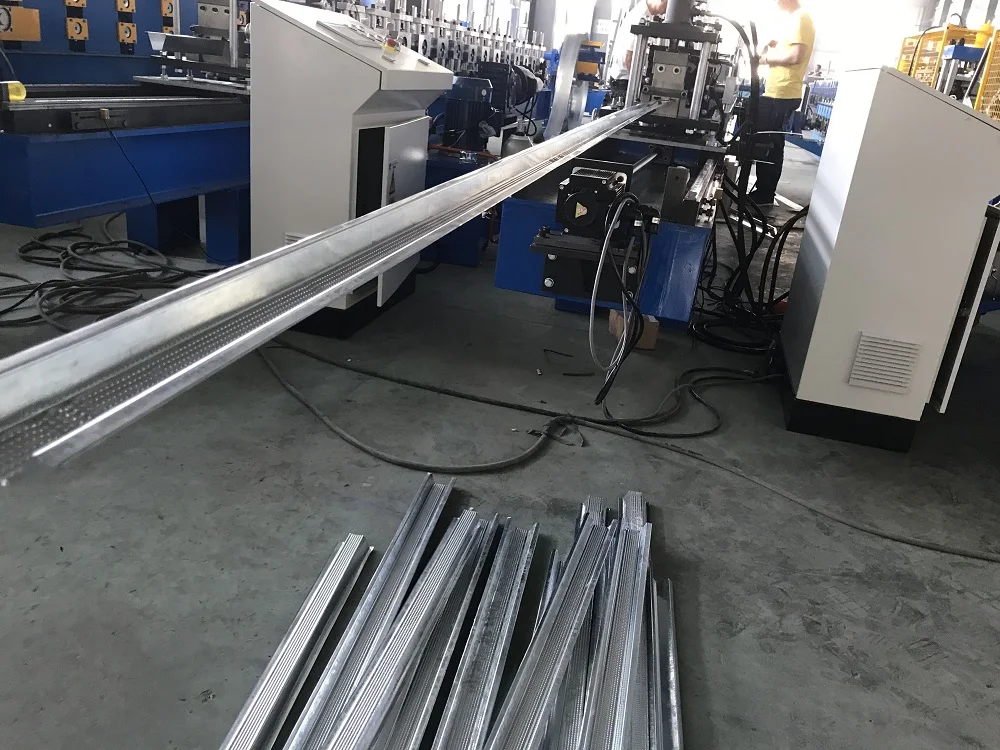

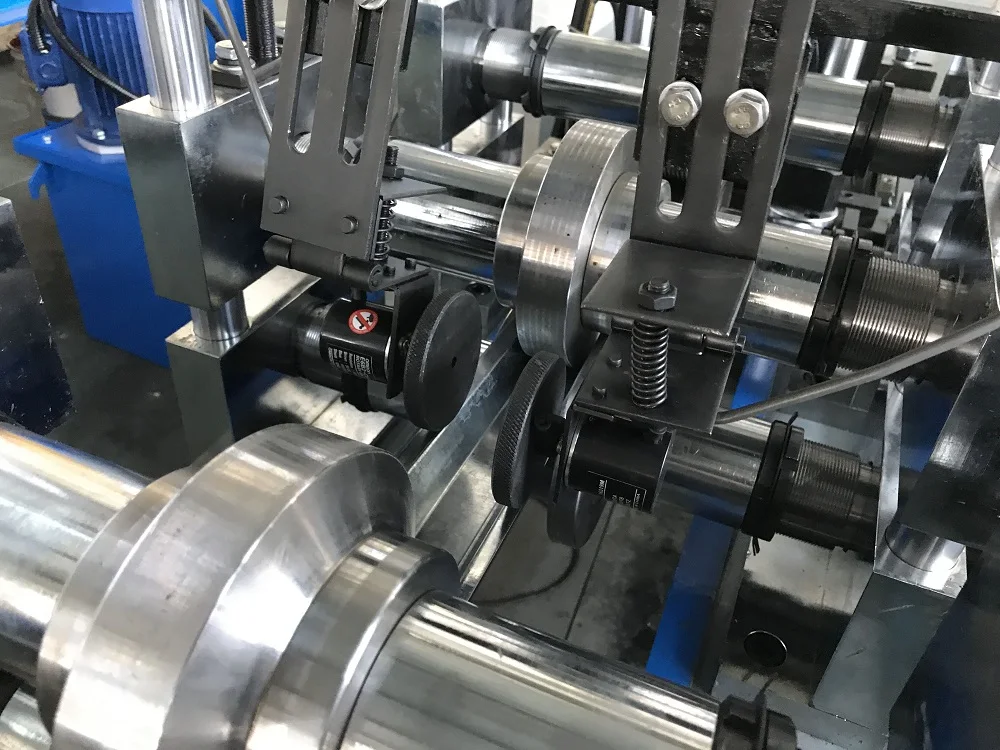

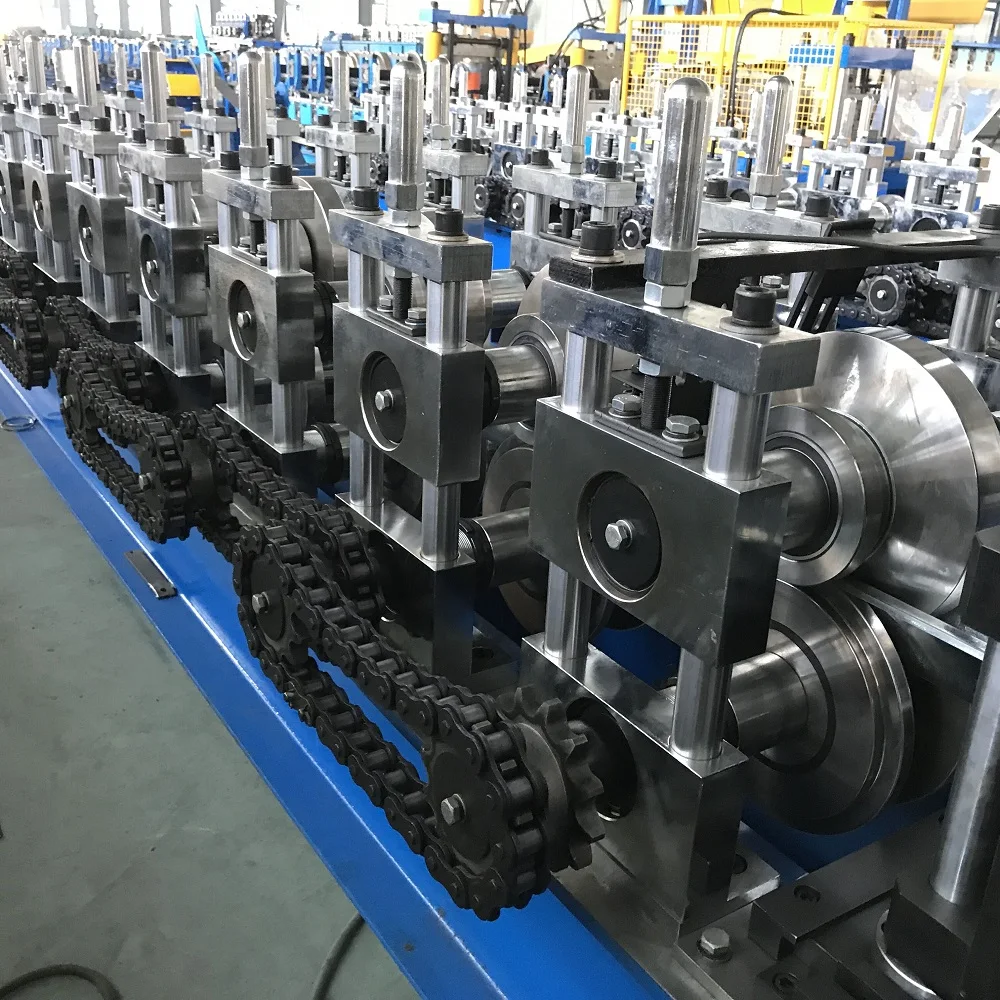

Below are some machine pictures for your reference:

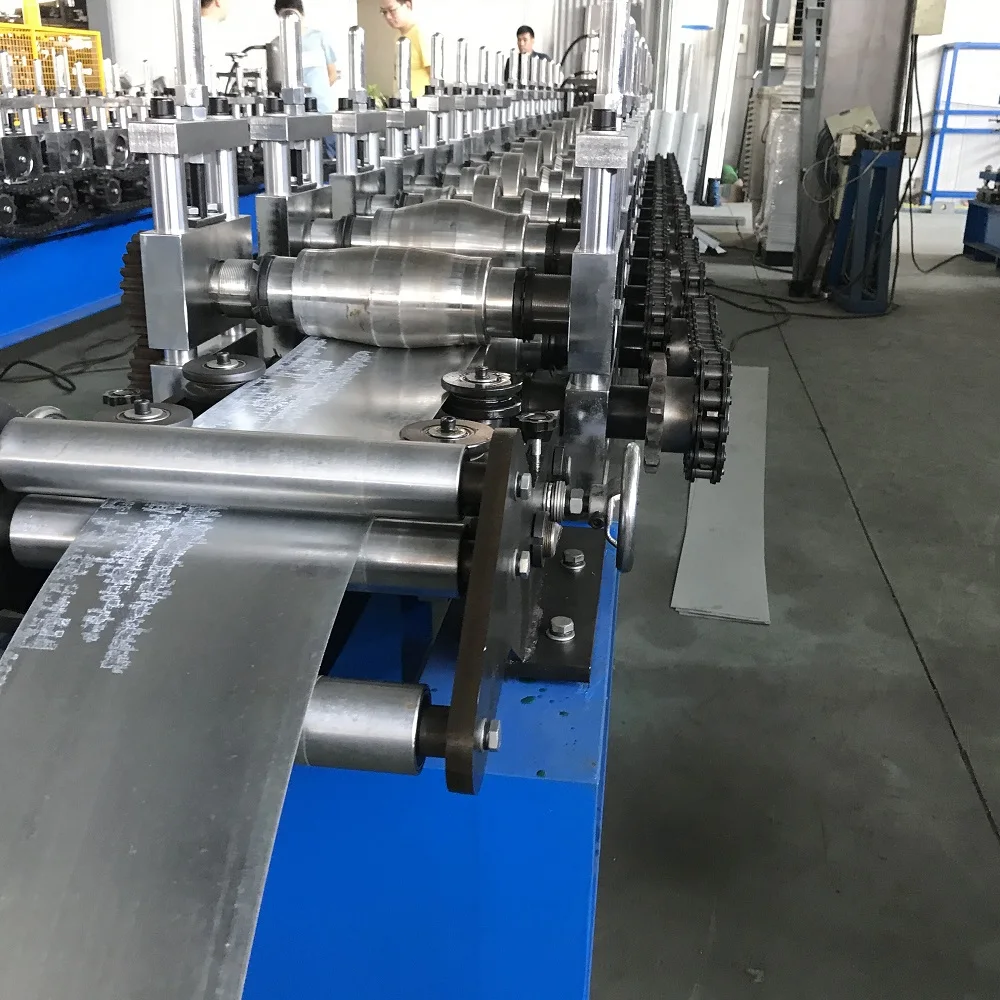

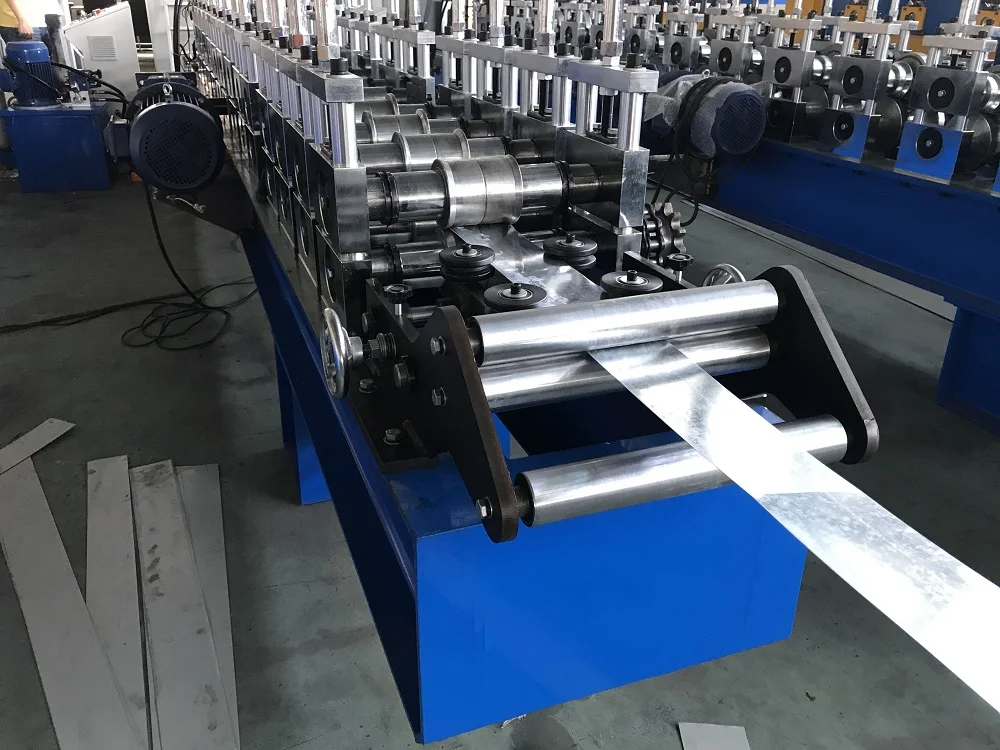

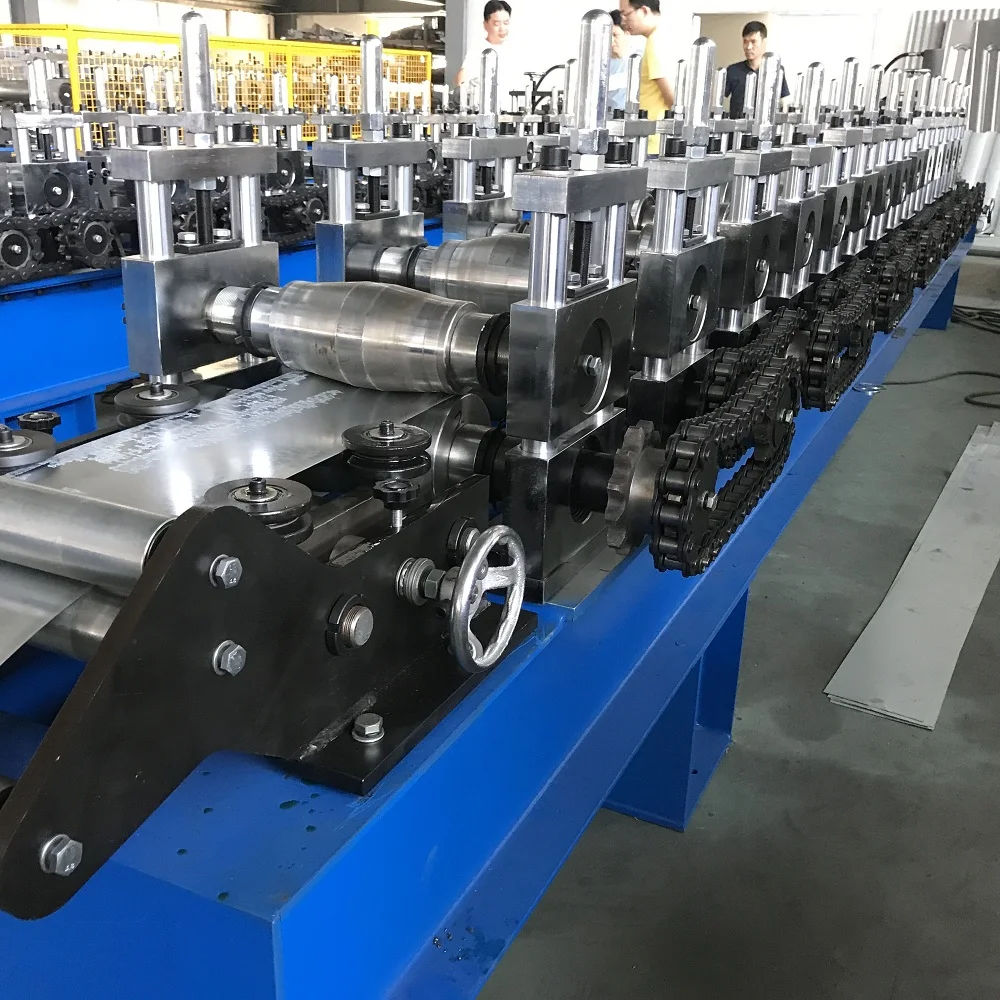

This is the feeding levelling system of the Furring Channel, Roof Ceiling Batten Roll Forming Machine.



Below is the specifications of the C purline roll former machine dual profile ceiling batten roll forming machine z shaped steel machine:

Model 40 Batten Rollformer
Speed 30-40m/min
Thickness 0.3-0.8mm
Controlling Panasonic PLC
Manual De-coiler 2 ton de-coiler
Roller station 14 stations
Post cutting 1 set
Roller material Gcr15 finish machining after quenching HRC58-62℃,chromium coating.
Shaft material and diameter 45# steel finish machining,diameter is 70mm
Main power 7.5 kw
Hydraulic press 12 Mpa
Hydraulic power 4 kw
Blade material Cr12Mov, quenching HRC 58-62℃
Length tolearance 3m±1.5mm
Voltage Australia standard voltage 415 V
Transmission 1,0 inch single chain
structural Pillar structure
Color Company color
Size Length*Width*Height
6.5m*1,3m*1.2m
Delivery time 40 days

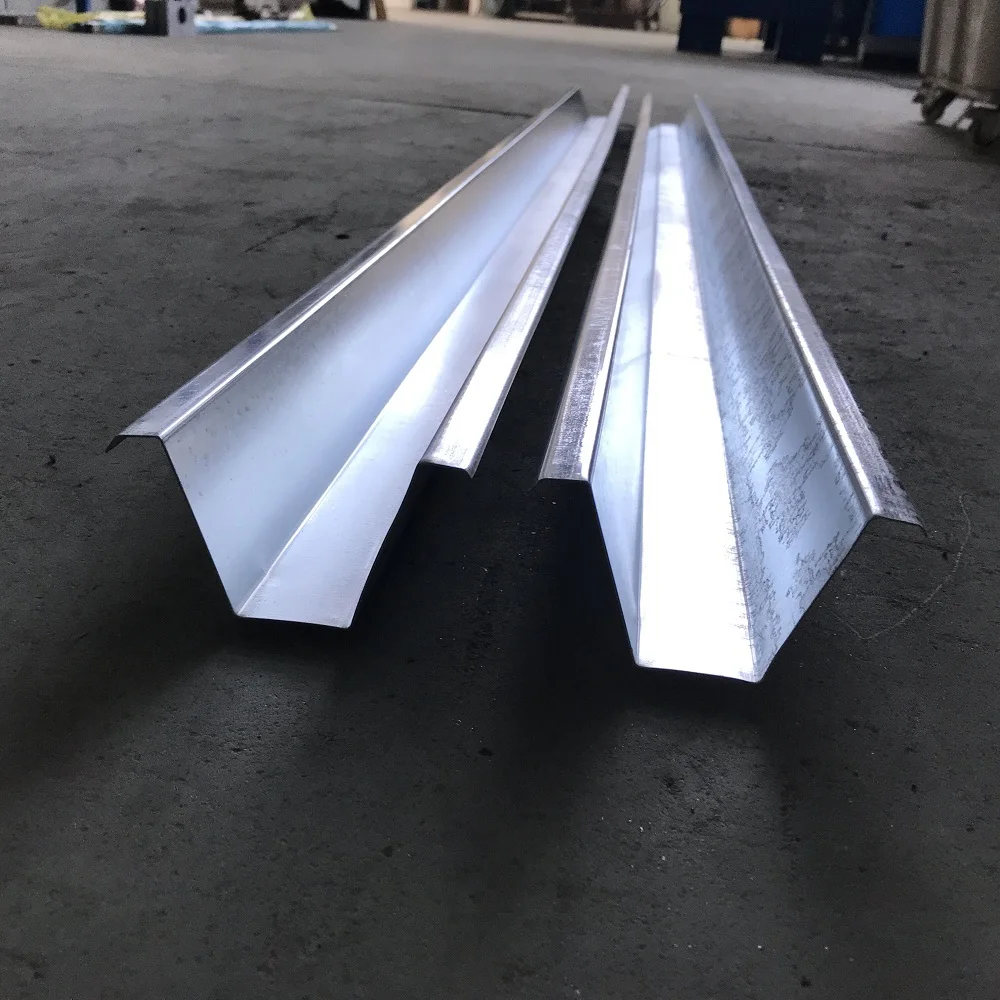

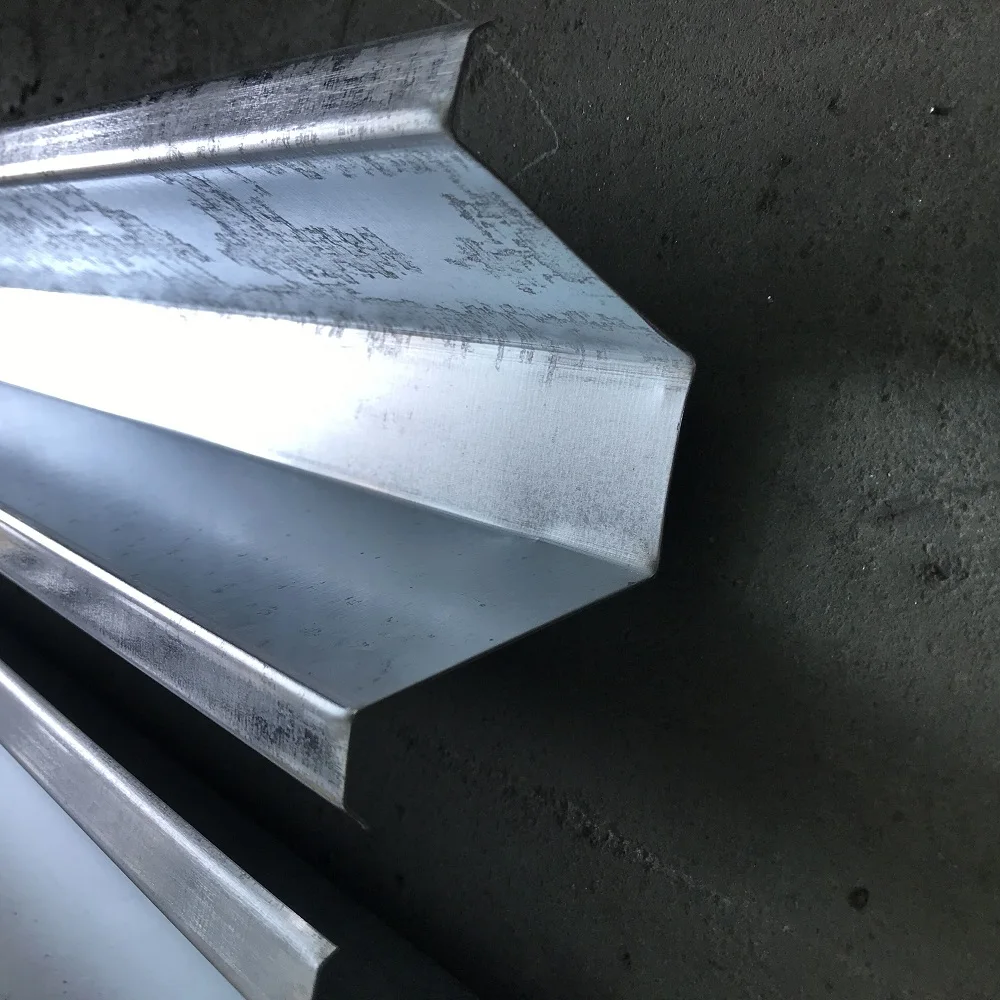

Furring Channel, Roof Ceiling Batten Roll Forming Machinecan produce the roofing batten and ceiling batten with the sizes 40mm, 43mm, 61mm and any other sizes you need.

we can help customer to deisgn the machine according to different requirement of the logo punching, embossing, and we can work together in a team for customer to work out the good profile with customer's factory's special charactors.



If you want to know more about the C purline roll former machine dual profile ceiling batten roll forming machine z shaped steel machine, please feel free contact me!
