Product Overview
Description
Product Description

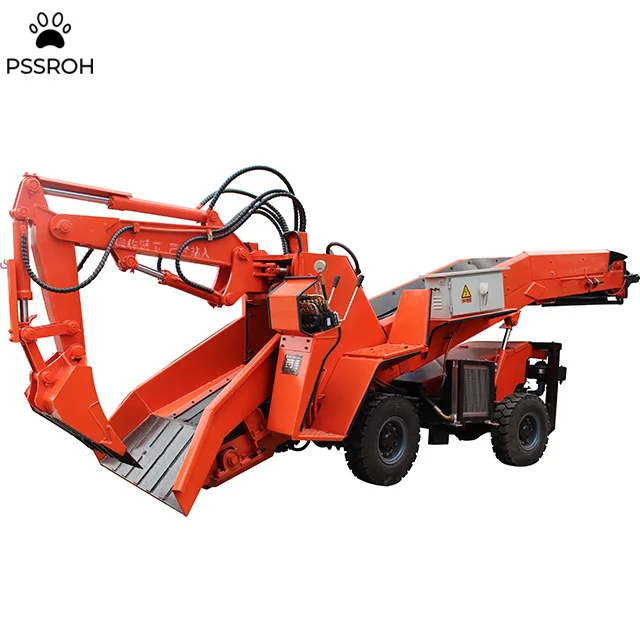

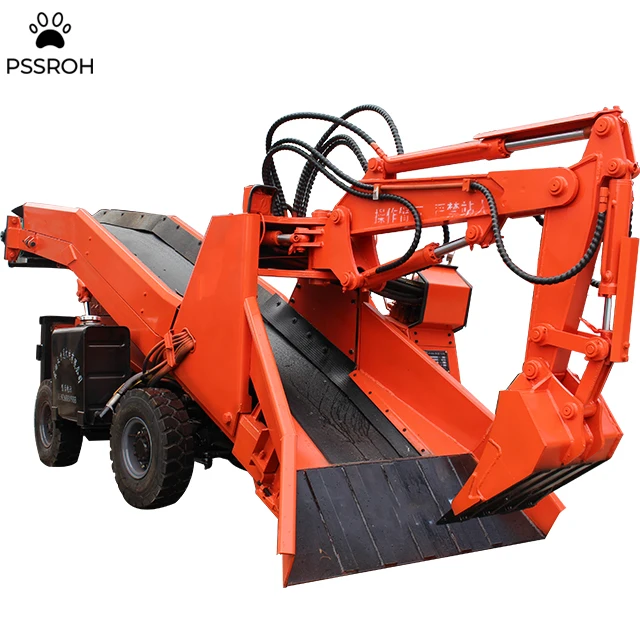

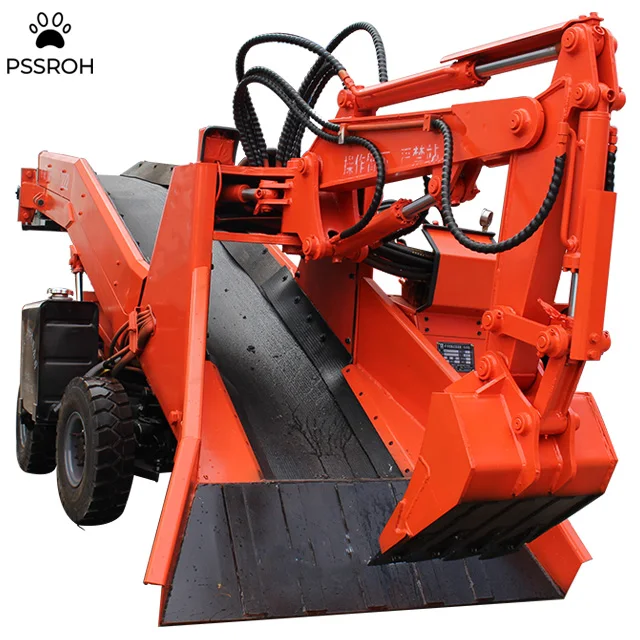

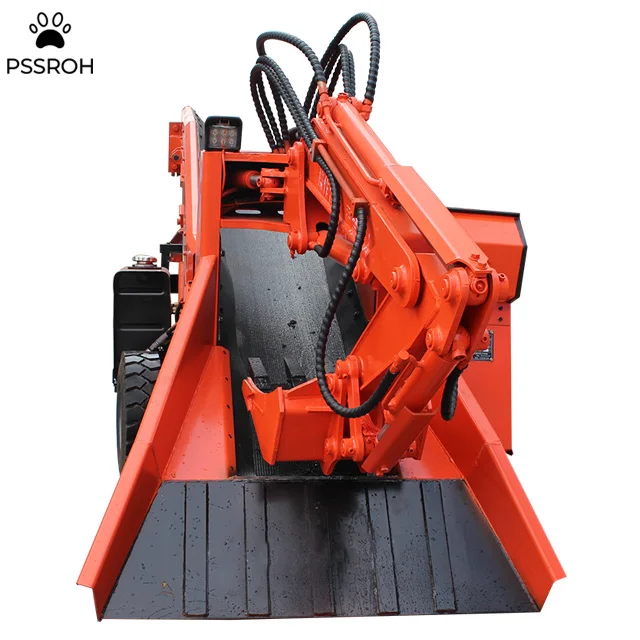

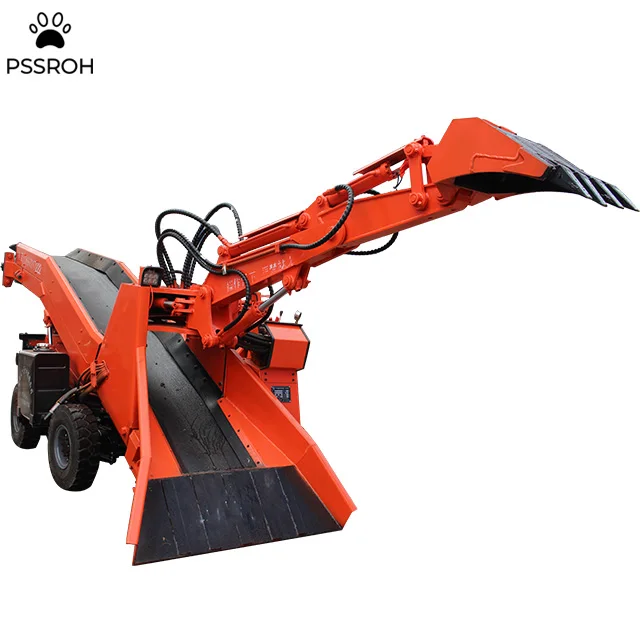

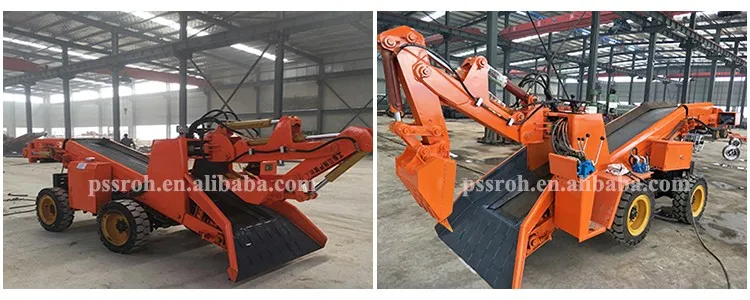

The tunnel mucking loader also known as haggloader or tunnel excavator, is a type of underground construction mucking loading machinery mainly used in excavating of tunnel mining, mine engineering, narrow space mining operation such as metal mine, water transferred roadway, Urban jacking pipe, and etc. Besides, it can also be used to collect and transport ( convey ) different kinds of clastic rock from various engineering.
Our mucking loader is with a different capacity of 40 cubes, 50 cubes, 60 cube, 80 cube, 100 cube, 120 cube per hour. Mucking loader can be divided into different types: coal mine, rock load and excavation, tunnel excavation, underground engineering. While, according to the different mining or tunneling conditions, we can especially design the all kinds of haggloaders to meet customers' needs, such as crawler muck loader, track mucking loader, wheel mucking loader, roller heading mucking machine.
Our mucking loader is with a different capacity of 40 cubes, 50 cubes, 60 cube, 80 cube, 100 cube, 120 cube per hour. Mucking loader can be divided into different types: coal mine, rock load and excavation, tunnel excavation, underground engineering. While, according to the different mining or tunneling conditions, we can especially design the all kinds of haggloaders to meet customers' needs, such as crawler muck loader, track mucking loader, wheel mucking loader, roller heading mucking machine.
Features:
1.The conveyor of this wheel mucking loader or wheel haggloader can discharge the rock into the auto dumper, shuttle mining car, side-dumping car, belt conveyor, skip and other transshipment equipment. The dumping height can be designed according to the requirements of customers.
2. It is environmental-friendly, low consumption, high efficiency, etc. Thus, the mucking loader or haggloader, is essential and advanced mining equipment which can be used to replace manpower and other mechanical equipment.
3.By adopting the manual operated value, the wheel mucking loader can be operated easily. With a seat and cab, the intensity of work can be alleviated. Its driving force includes dynamo and diesel is optional.
1.The conveyor of this wheel mucking loader or wheel haggloader can discharge the rock into the auto dumper, shuttle mining car, side-dumping car, belt conveyor, skip and other transshipment equipment. The dumping height can be designed according to the requirements of customers.
2. It is environmental-friendly, low consumption, high efficiency, etc. Thus, the mucking loader or haggloader, is essential and advanced mining equipment which can be used to replace manpower and other mechanical equipment.
3.By adopting the manual operated value, the wheel mucking loader can be operated easily. With a seat and cab, the intensity of work can be alleviated. Its driving force includes dynamo and diesel is optional.
Working Site

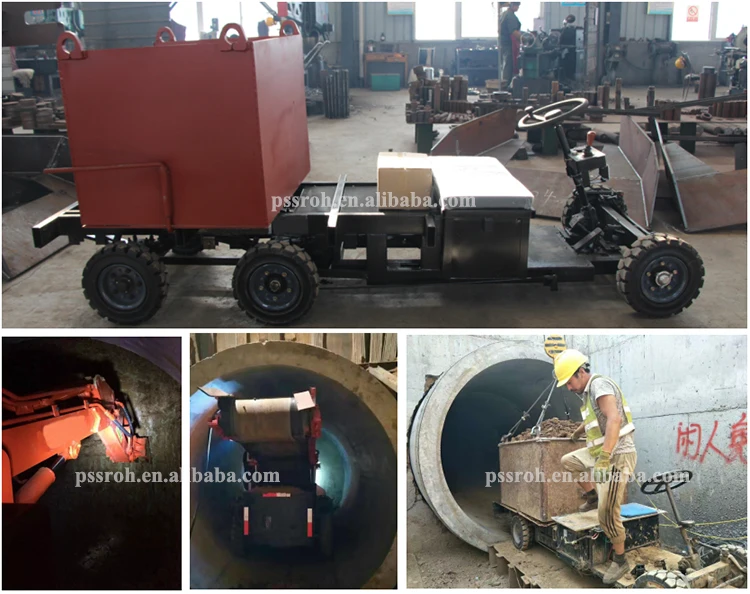

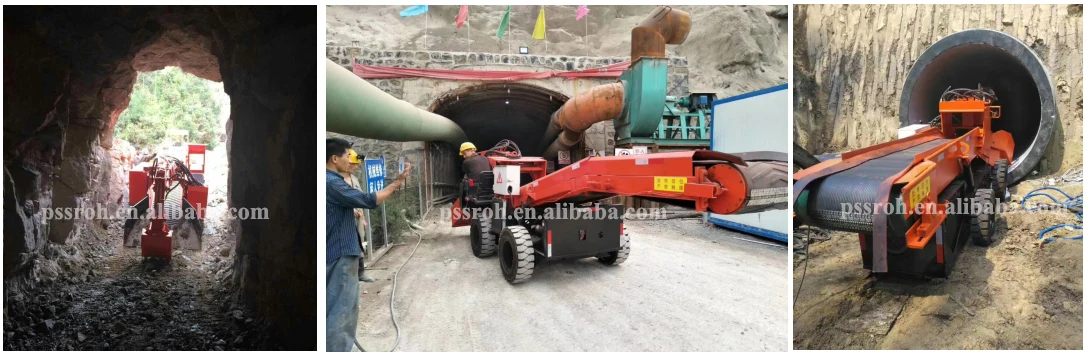

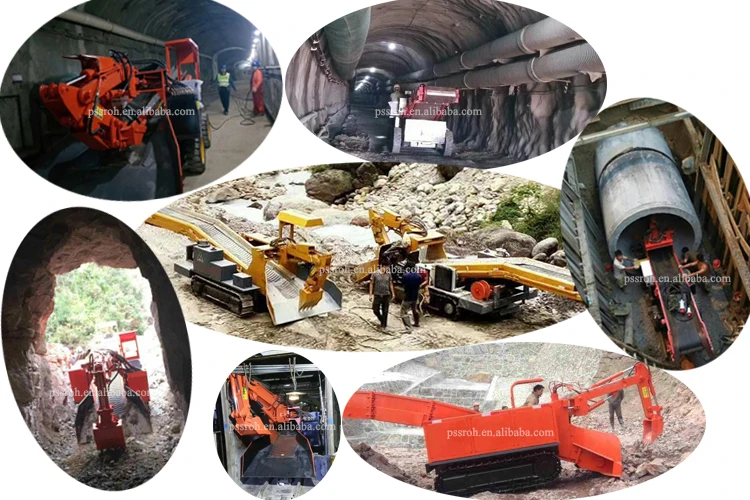

work inside mine working in tunnel work in pipe-jacking/tube

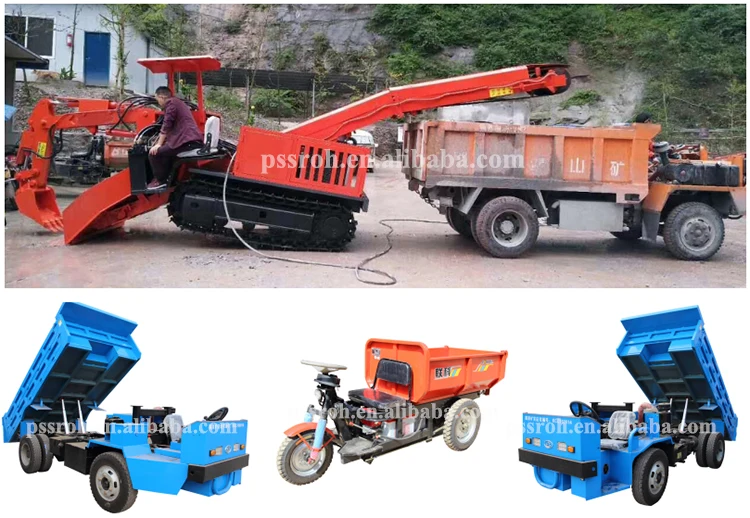

Working site and related mini dumper truck
If you are also interested in our mini dumper, Please click the above picture,
It can be skipped to mini dumper product page, you can check the details.
Specification
When your mine slope is less than 8 degrees, you can use wheel type
If your mine slope is more than 8 degrees, please click " Available item " to check crawler type.
When your mine width is more than 1.55M, height is more than 2M,
Our ZWY-60/11T model tunnel mucking loader can go inside your mine to work.
If not, please skip to " Available item " , to click other models picture and check details.
ZWY-60/11T model Mucking loader technical parameters
Techinal Data | Functional Parameters | ||||
Overall Dimension | 5600*1550*1670 mm | Loading Ability | 60 m3/h | ||
Ground Clearance | 200mm | General power | 11 kw | ||
Wheel Base | 1500 mm | Weight | 3450 kg | ||
Digging Width | 2850 mm | Climbing ability | ≤ 10° | ||
Digging Height | 1850 mm | Belt Speed | 0.63 m/s | ||
Digging Depth | 420 mm | Travelling Speed | 2.5 km/h | ||
Digging Distance | 1450 mm | Rated Work Pressure | 16 Mpa | ||
Dumping Height | 1300 mm ( variable ) | Transporting Way | Belt | ||
Dumping Distance | 1300 mm ( variable ) | Moving Way | Tire | ||
Operating Mode | Multiway value | ||||
Adaptive tunnel dimension ( Width * Height ) | ≥1.55*2 m | ||||
Normally, before we quoted you our model machine, we would like to ask you some questions,
To provide the most suitable model machine according to your mine or tunnel information.
Please check the specific size of our model ZWY-60/11T

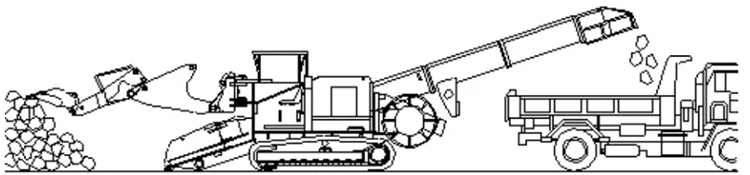

height is more than 2M, Our ZWY-60/11T model machine can go inside your mine From the left picture, you could see that, Normally, for the mine, we need to leave space for emergency matters, cable lines and ventilating device. With considering that, our Model ZWY-60/11T can be apply to the mine or tunnel which section is more than 1.9M*2M | ||
When you send inquiry, please provide the most detailed information of your mine or tunnel information,
We can save time to provide you the most suitable model machine according to your information.
Questions is as follows:
Q1: What kind of mine or tunnel you are going to use machine ? Such as gold mine or diversion tunnel?
Q2: What is your mine width and height ? Has curve inside your mine ?
Q3: What is your mine or tunnel slope ? More than 8 degrees ?
Q4: Do you have transporting vehicle behind our machine ? what is the size ?
Specific Details

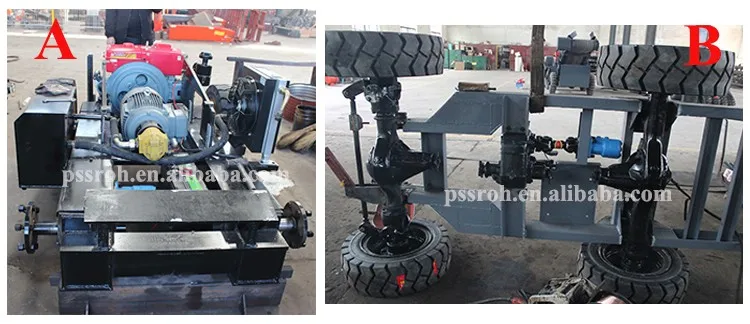

For the wheel type mucking loader, we have 2 types, Type A, rotate at original place. Type B, wheel bridge structure.
Type A, rotate at original place Type B, wheel bridge structure.
This type machine is suitable to use in narrow mine, This type of machine uses front axle and rear axle, which
have a curve inside tunnel, which has smaller radius makes the chassis structure. This type has reliable quality,
of turning circle. and easy to maintenance.
In this product page, we would like to introduce wheel bridge structure mucking loader. Model ZWY-60/11T
ZWY-60/11T, number 60 refers to capacity, 60m3/hour, number 11 means the motor power, T refers to wheel type.
If you are interested in rotate at original place type, please contact me, I will send video and details to explain.
The following is all the information of model ZWY-60/11T.
ZWY-60/11T, number 60 refers to capacity, 60m3/hour, number 11 means the motor power, T refers to wheel type.
If you are interested in rotate at original place type, please contact me, I will send video and details to explain.
The following is all the information of model ZWY-60/11T.

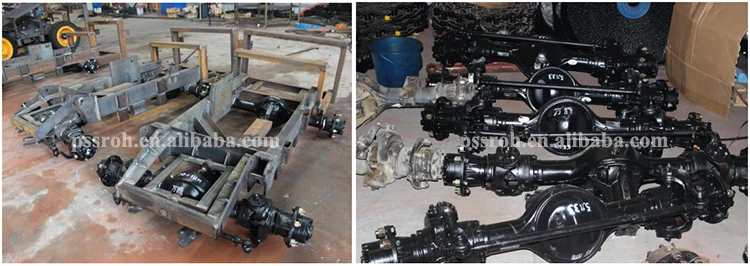

Wheel bridge chassis structure of tunnel mucking loader
The chassis part consists of frame, front axle, rear axle, motor ( explosion- proof motor ), hydraulic gear pump, hydraulic motor, oil tank and etc. When the machine is connected with electricity, the motor works to drive the oil pump through the hydraulic transmission control system, then, make the hydraulic motor to work. The hydraulic motor will let the gearbox to drive the front, rear axle and the steering cylinder. In this way, the machine can be walking forward, walking backward and turn of the machine.

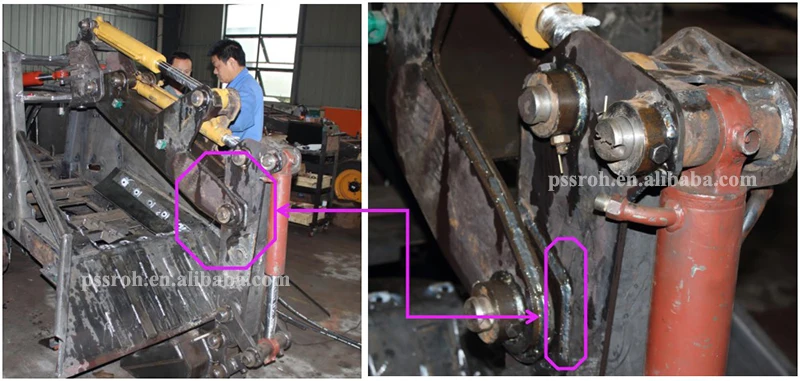

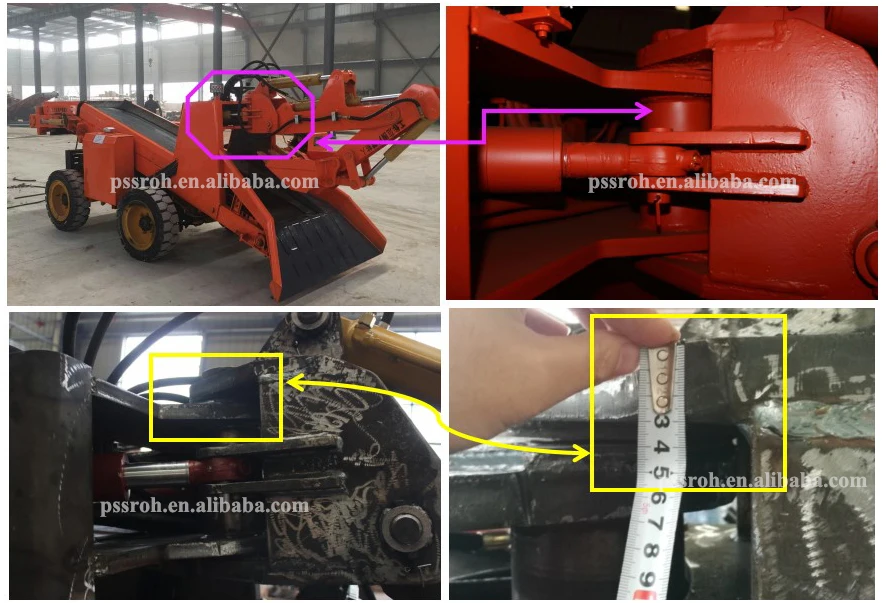

Portal frame has firm structure, which uses 30mm thickness plate, and with 10mm thickness wear plate.
At the connection part between big arm and small arm,
there is one extra wear plate, which is around 10mm thickness.

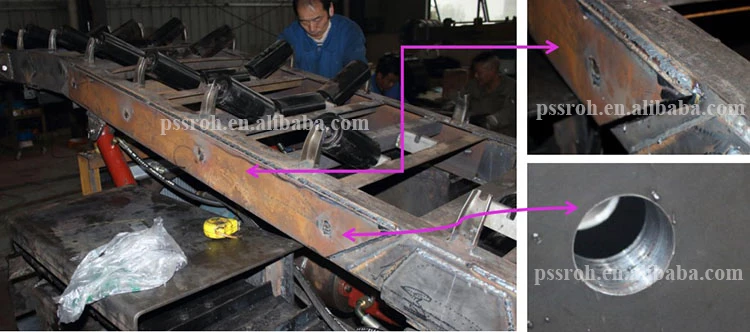

The structure of our conveyor is very intensive, and we have strengthened in the core part.
In the besides of conveyor, we add the wear resisting plates on both sides, and you can see several hollow holes,
The function of that hollow holes is, to strengthen the weld between the wear resisting plates and the conveyor.
By adding that wear resisting plates, can enhance the load bearing ability.
In the besides of conveyor, we add the wear resisting plates on both sides, and you can see several hollow holes,
The function of that hollow holes is, to strengthen the weld between the wear resisting plates and the conveyor.
By adding that wear resisting plates, can enhance the load bearing ability.
Sliding chassis structure of mucking loader ( We can customize machine width )
We can customize the narrowest width, which machine can work in narrow place.

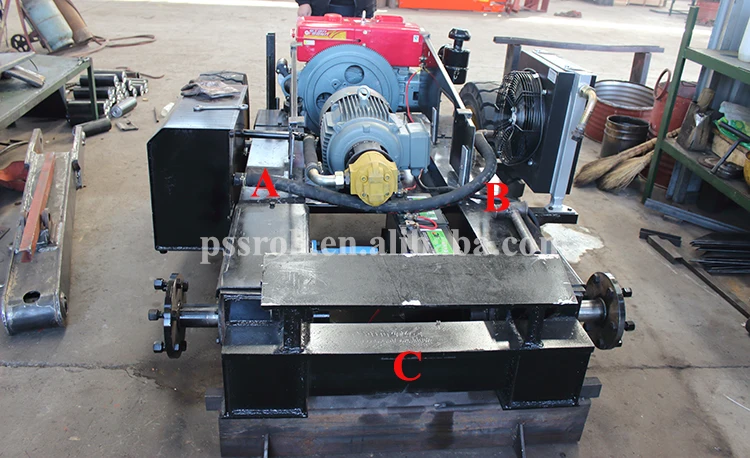

Sliding chassis structure has 2 pieces hydraulic motor to drive the machine, one hydraulic motor in A side, to drive 2 wheels, the other hydraulic motor in B side, to drive another 2 wheels. The chassis is made by our factory, so we can customize the C length, to achive machine width customize. While the wheel bridge structure is mainly of bridge, which has limitation of width. You can click the above picture to check details.
Sliding chassis structure has 2 pieces hydraulic motor to drive the machine, one hydraulic motor in A side, to drive 2 wheels, the other hydraulic motor in B side, to drive another 2 wheels. The chassis is made by our factory, so we can customize the C length, to achive machine width customize. While the wheel bridge structure is mainly of bridge, which has limitation of width. You can click the above picture to check details.
Available Item
Our factory are available for customers to customize the machine, The following items need extra money.
We can lengthen the tail part, the tail part can be folden, adding second-pumping conveyor.

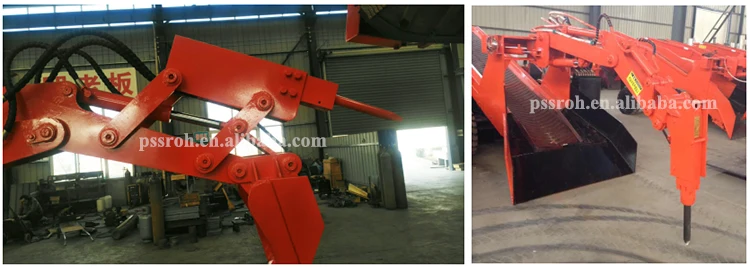

Breaker / Hammer for tunnel mucking loader
If you need the breaker for hard rock or clay, we can also add for you.
please contact me to receive youtube link of how the break works
please contact me to receive youtube link of how the break works

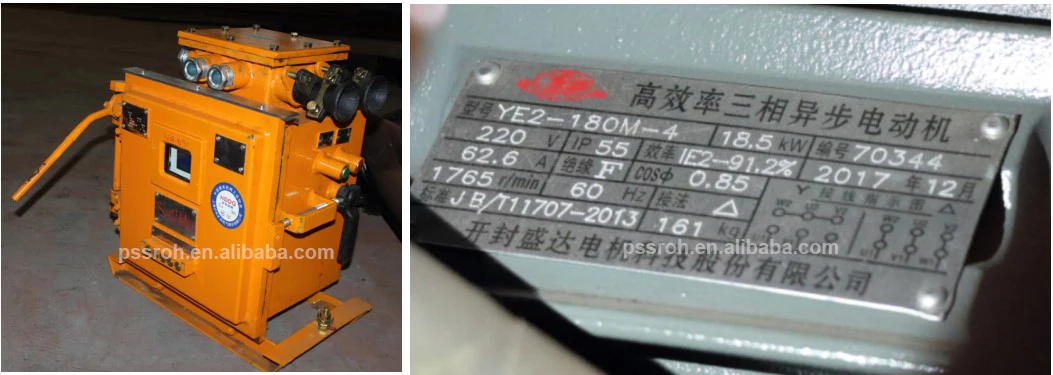

We can customize the explosion proof motor, We can customize the motor into three phase 220v, 60HZ,
Which for the machine to use in coal mine. Which we made for American customer before.
Which for the machine to use in coal mine. Which we made for American customer before.
Professional motor supporting manufacturers, we can provide three-phase, 220V 380V 440V 660V, 50HZ and 60HZ, three-phase motors of various specifications for different national voltage requirements.

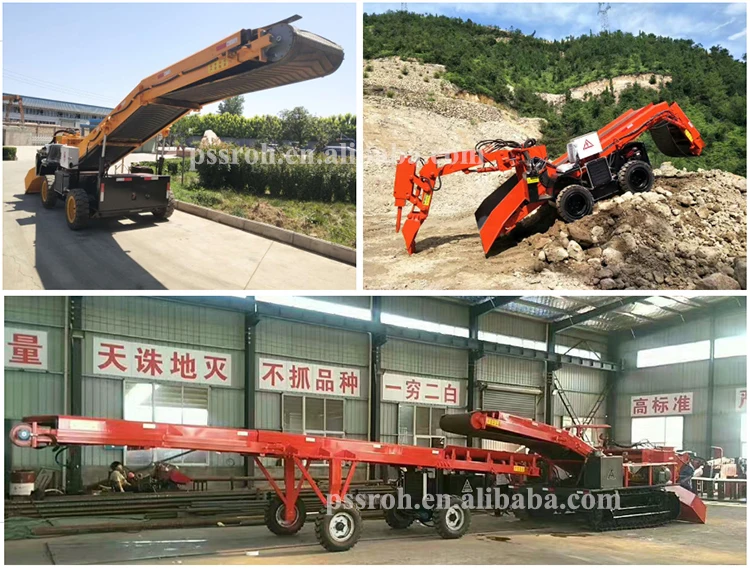

The following is our wheel type other models product, you can click the corresponding model's picture, to skip to its page to check specific details.
ZWY-50/11T ZWY-80/15T ZWY-100/18.5T ZWY-80H Sliding
The following is our crawler type models product, you can click the corresponding model's picture,
to skip to its page to check specific details.
to skip to its page to check specific details.
Packing & Delivery

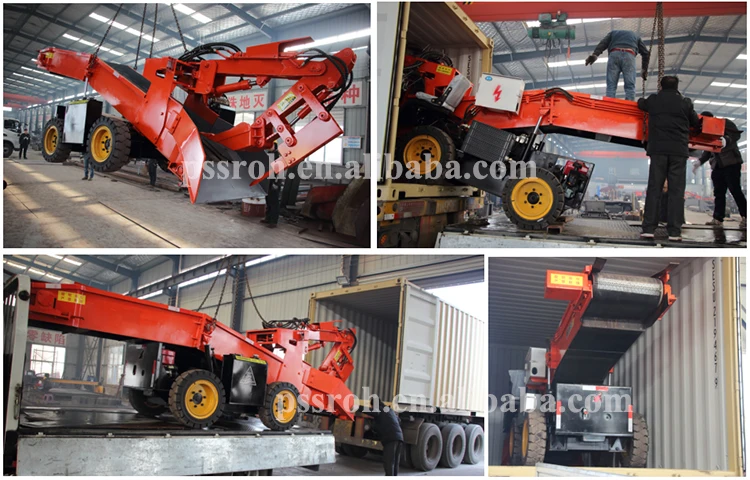

All the mucking loader will be deliveried in container, without packing.
But machine will be fixed well from top to container and also bottom to container.
The delivery time is 15 working days after your payment.
But machine will be fixed well from top to container and also bottom to container.
The delivery time is 15 working days after your payment.
