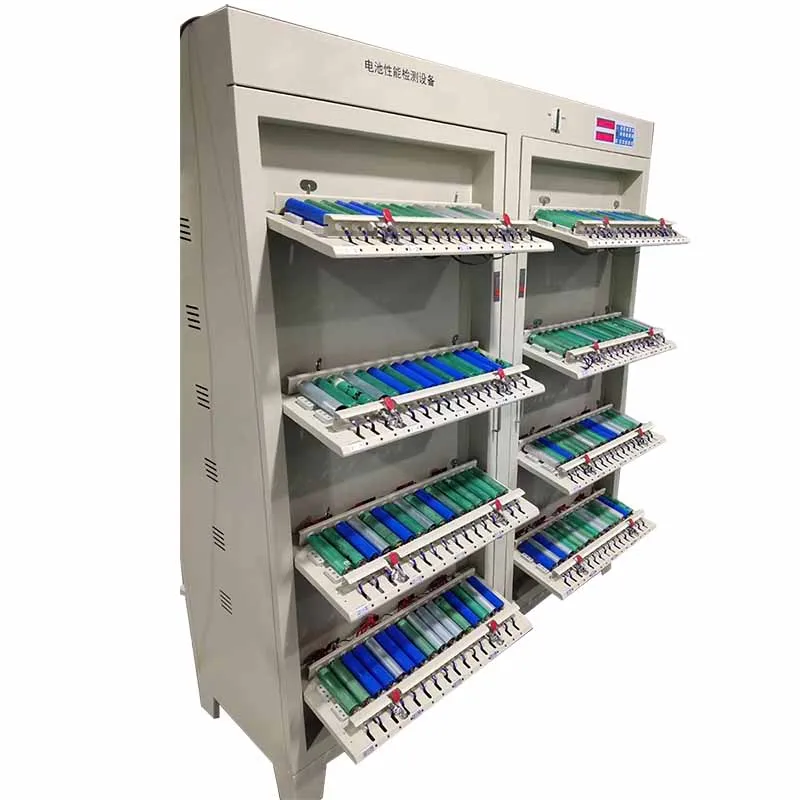

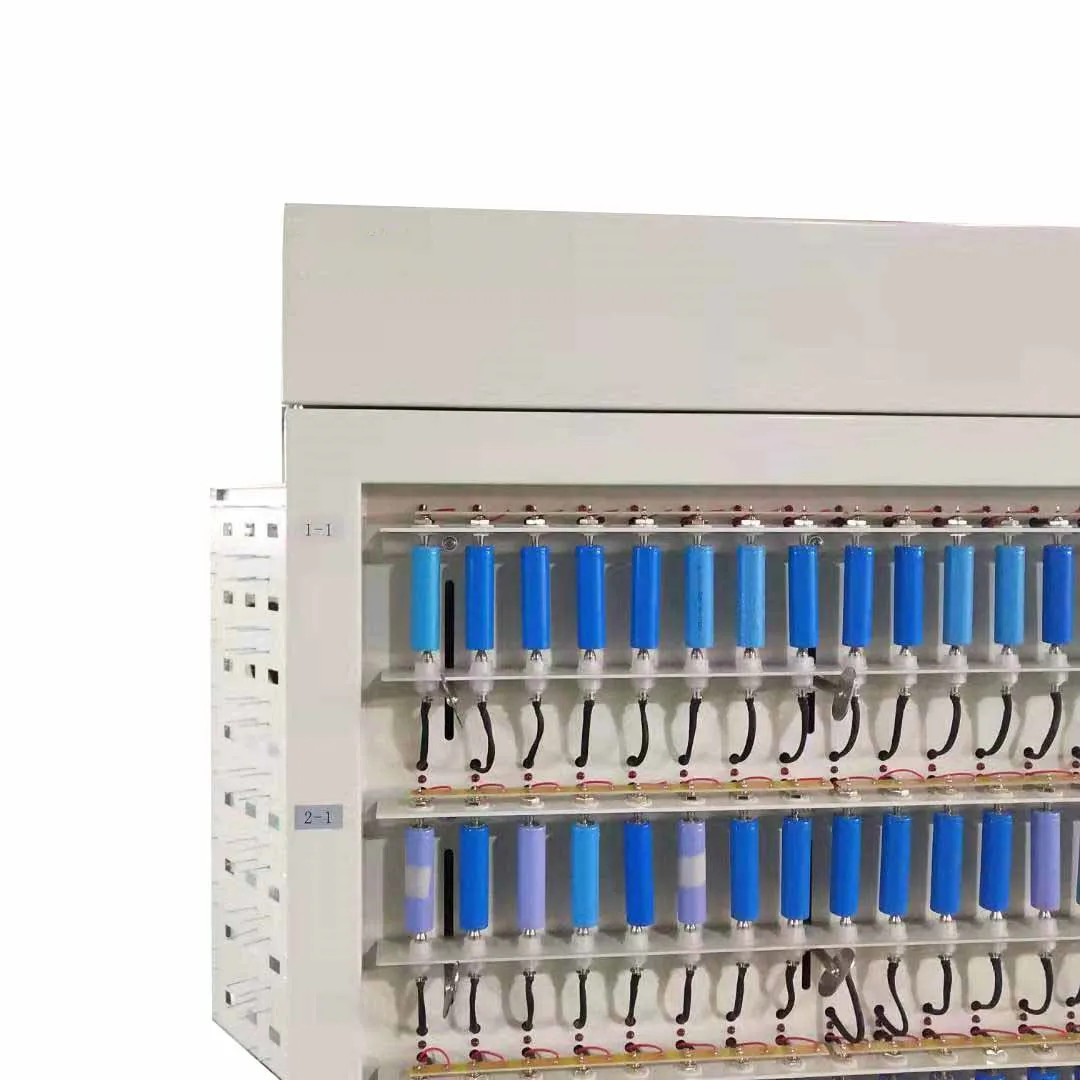

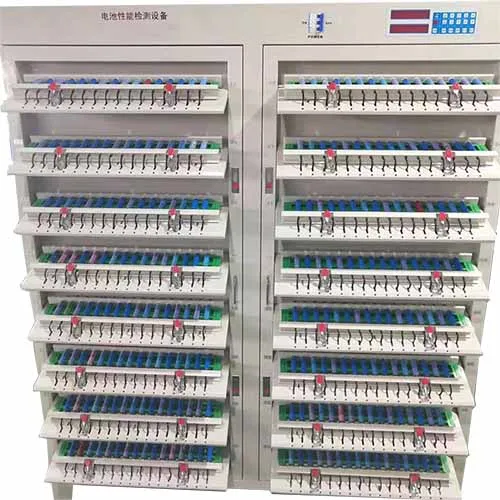

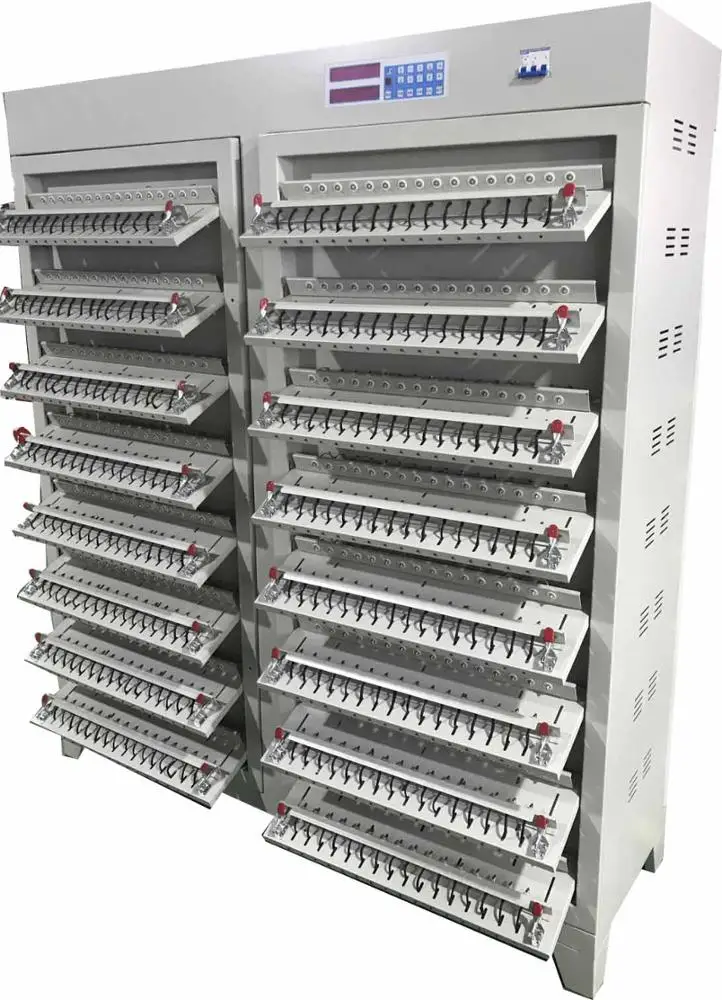

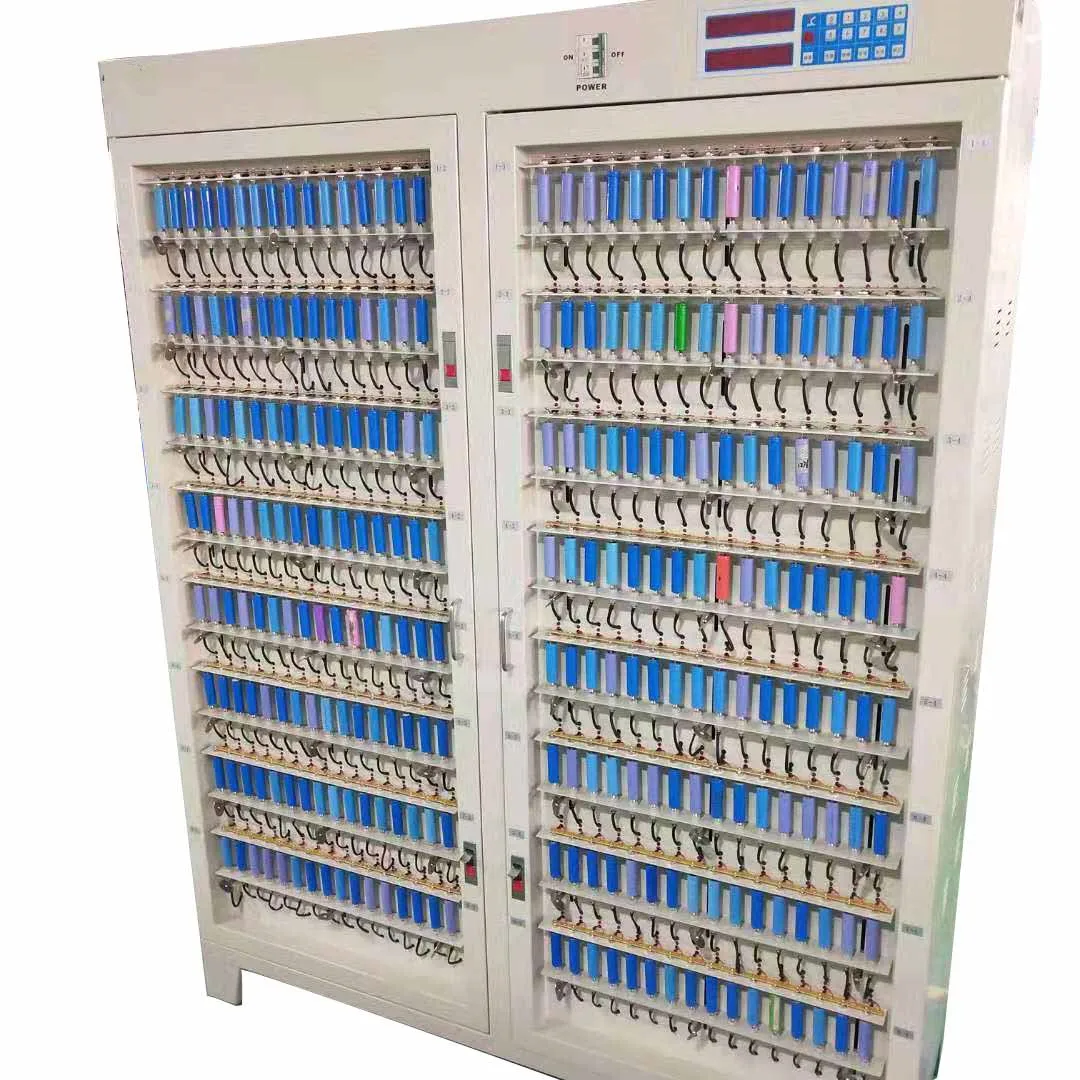

TMAX brand 18650 Lithium Cell 512 Channel Battery Capacity Tester Analyzer for Battery Charge and Discharge Testing
- Category: Battery Testers >>>
- Supplier: Xiamen Tmax Battery Equipments Limited
Share on (62258614367):
Product Overview
Description
Product Description
18650 Lithium Cell 512 Channel Battery Capacity Tester Analyzer for Battery Charge and Discharge Testing
Features
1. 5V6A-512 Battery Testing Equipment is a popular newly developed battery testing system for Li-ion cells, LIPB, Ni-MH cells, Ni-Cd cells.
2. This Equipment can be used as research machine, as cell positive /cathode pole material, battery cycle life testing etc.
3. This Equipment also can be used in pilot run period and in quality assurance department, since it has functions as formatting cells, grading capacity, testing cells group,checking battery pack, and processing test data,etc.
2. This Equipment can be used as research machine, as cell positive /cathode pole material, battery cycle life testing etc.
3. This Equipment also can be used in pilot run period and in quality assurance department, since it has functions as formatting cells, grading capacity, testing cells group,checking battery pack, and processing test data,etc.
Current range: 0.05A-2A, 0.05A-3A, 0.05A-5A,0.05A-6A optional.
Suitable for: Cylindrical cell or pouch cell.
Specifications
Project index | Parameter index |
Model | TMAX-BT0502-512-C- |
Demension | 1500*900*1900(mm) |
Working power supply | AC 220V ±5% 50HZ |
Max Power Dissipation | 7000w |
Channel no | 512 |
Support battery height range | 10-95mm( stepless adjustment) |
Clamp spacing | 35mm |
Voltage measurement range | DC100-4500mV |
Voltage accuracy | ±0.1%FS ±0.1%RD |
Voltage measurement range | DC100-4500mV |
Voltage resolution | 1mV |
Constant voltage range | DC2000~4500mV |
Minimum discharge voltage | 2000mV |
Charge discharge current range | DC5~2000 |
Current accuracy | ±0.1%FS ±0.1%RD |
Current resolution | 1mV |
Time measurement range | 999min/step |
Time measurement erro | ±0.1% |
Working temperature | 0~40 ℃ |
Relative humidity | ≤85% |
