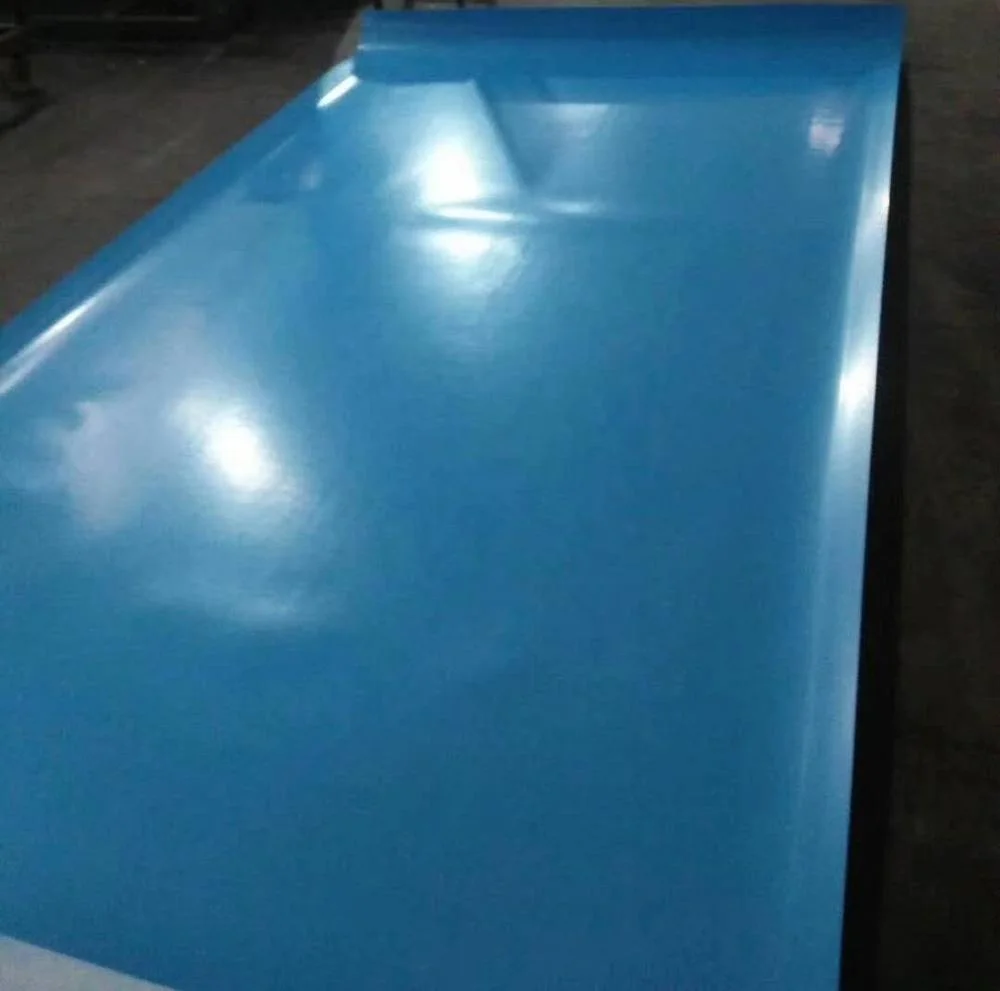

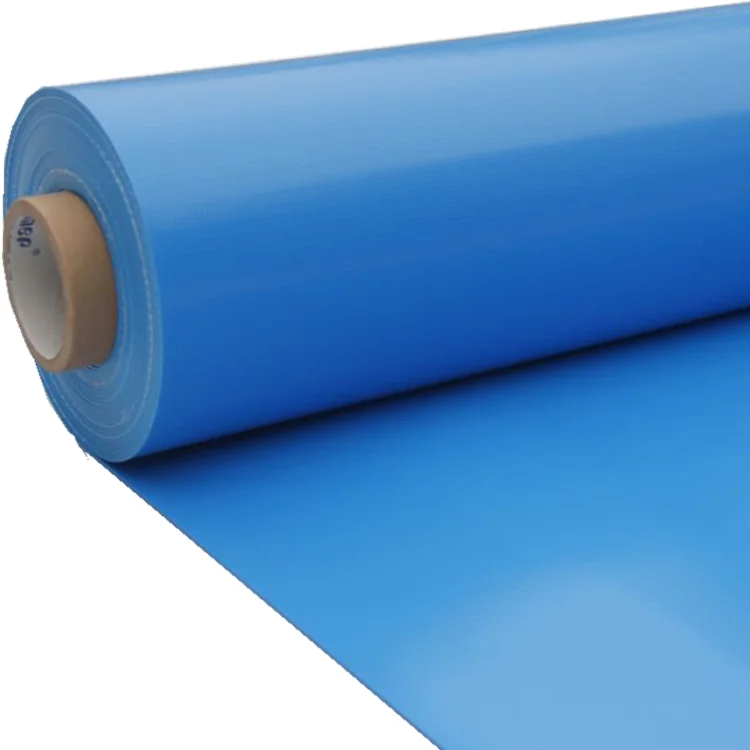

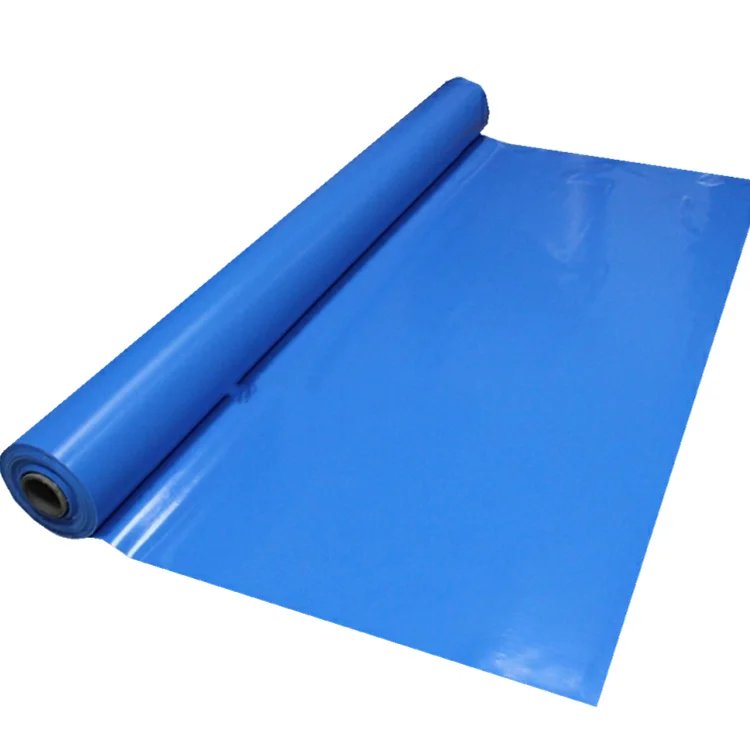

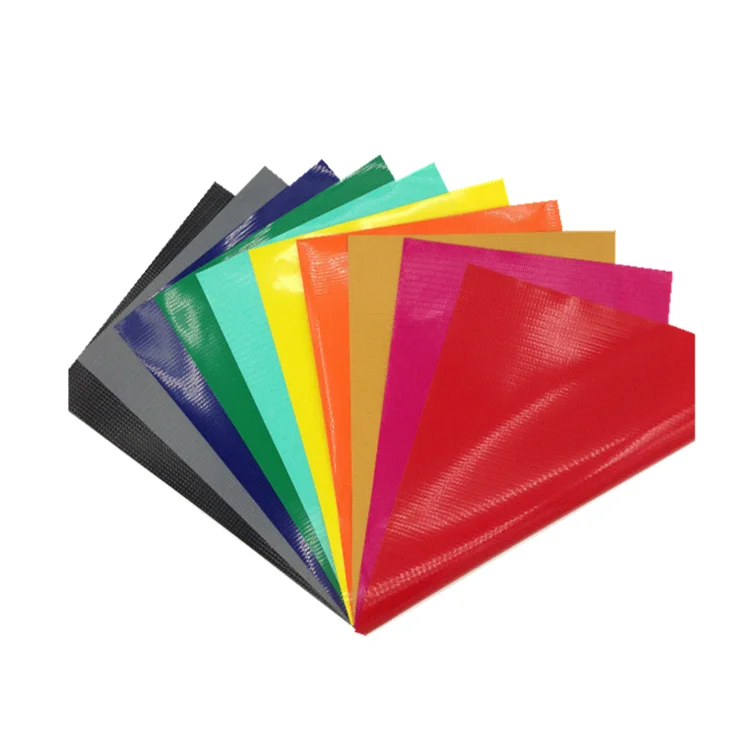

Водонепроницаемая УФ мембрана TPO для бассейна
- Category: Waterproof Membrane >>>
- Supplier: Qingdao Wenrun Holding Co. ltd
Share on (62261021441):
Product Overview
Description
Product Description
UV-resistance TPO membrane swimming pool waterproof system
TPO waterproof membrane is used for all kinds of roof waterproof projects, industrial building, civil building, public building, such as convention centers, exhibition halls, stadiums, library,airport,warehouses. Used for metal roofs, exposed concrete roofs, and green roofs.
Technical Data Index:
The following technical data is based on a testing sample, different type may have different performance.
Product appearance | ||||||||
Color | Top layer: smart white; Bottom layer: dark grey | |||||||
Visible defects | No defects, conform to EN 1850-2 | |||||||
Technical specification | PENNPLAS TPO | |||||||
Item | Standard | Unit | TP1500 | |||||
Length | EN 1848-1 | m | 20 | |||||
Width | EN 1848-1 | m | 2 | |||||
Thickness | EN 1849-1, | mm | 1.5(-5%/+10%) | |||||
Tensile strength | EN12311-2, | N/50mm ≥ | 1250 | |||||
Elongation at beak | EN12311-2, | %, ≥ | 15 | |||||
Joint peel strength | EN12316-2 | N/50mm ≥ | 300 | |||||
Tear resistance | EN12310-2, | N, ≥ | 500 | |||||
Dimensional stability | EN 1107-2, | %, ≤ | 0.2 | |||||
Cold flexibility | EN 1109 | ℃ | -40 | |||||
Static loading resistance | EN 1110 | kg | 20 | |||||
Impact resistance | EN 12691 | mm,≥ | 1100 | |||||
Watertightness | EN1928B | 10Kpa 24h | Watertight | |||||
UV-resistance | EN 1297 | 5000H | PASS | |||||
Fire-resistance | EN13501-1 | -- | Class E | |||||
SRI(Solar Reflectance Index) | ASTM E1980 | -- | 102 | |||||

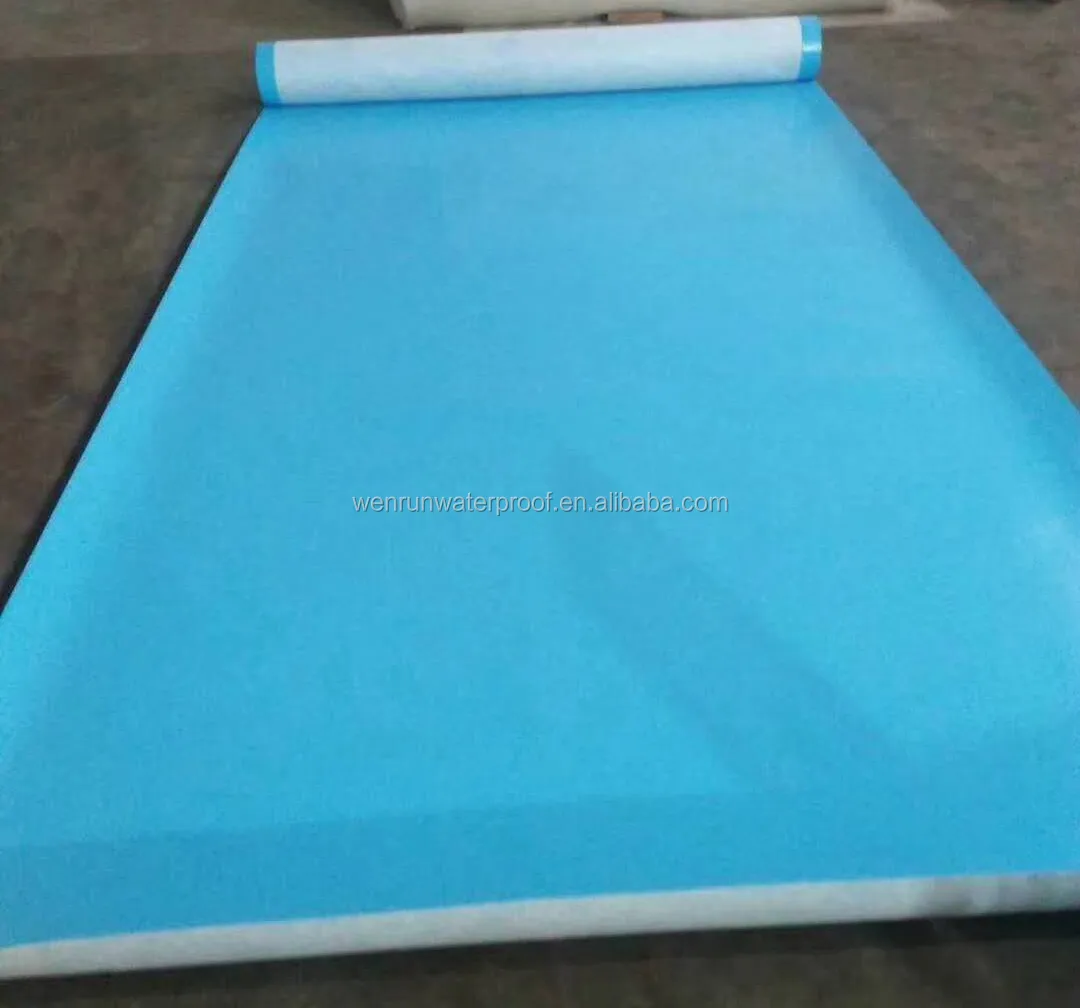

Detailed Images
Product Name | TPO waterproof membrane | |
Thickness | 1mm--3mm | |
Width | 2m or Customized | |
Length | 20m or Customized | |
Color | White/Gray or Customized | |
Standard | CE, ISO, MSDS | |
Surface | Smooth | |
ONE STOP SERVICE FROM DESIGN OF WATERPROOF SYSTEM,PRODUCTS SUPPLYING TO CONSTRUCTION DIRECTION. | ||
TPO-L:
Attached fleece back, desgined for all kind of flat roofing project.
Attached fleece back, desgined for all kind of flat roofing project.
TPO-P:
Reinforced with premium polyester mat, desgined for all kind of flat roofing project.
Reinforced with premium polyester mat, desgined for all kind of flat roofing project.
TPO-H
TPO-SA
Features:
1) Easy application.
2) Excellent tensile strength, tearing resistance and penetration resistance performance.
3) No plasticizer. No harm to creatures and environment.
4) Smooth surface, no fading and pollution.
5) White color, excellent luminous reflectance.
2) Excellent tensile strength, tearing resistance and penetration resistance performance.
3) No plasticizer. No harm to creatures and environment.
4) Smooth surface, no fading and pollution.
5) White color, excellent luminous reflectance.
Our System

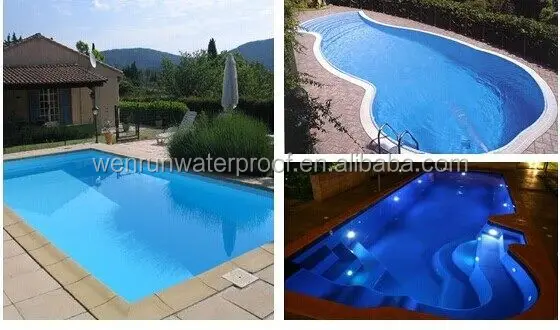

Where to apply?
TPO waterproof membrane could be applied in nearly all kinds of flat roofing projects- its excellent anti- ageing performance and large service temperature range make it a perfect choice for both new roofing and renovating projects.
*What is better, our well designed TPO roofing system with all accessories and supporting system is ready to impress you.
*What is better, our well designed TPO roofing system with all accessories and supporting system is ready to impress you.
Our Service
One stop service from drawing design,material providing to construction direction.

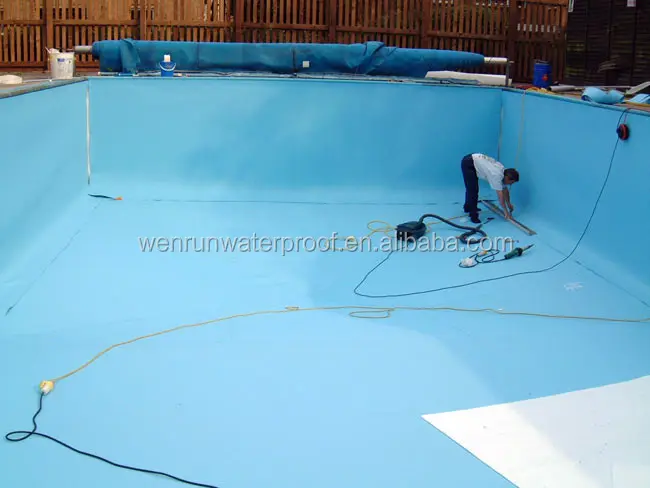

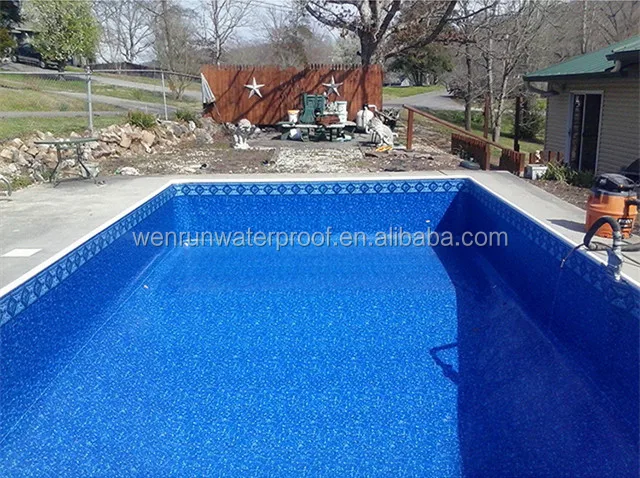

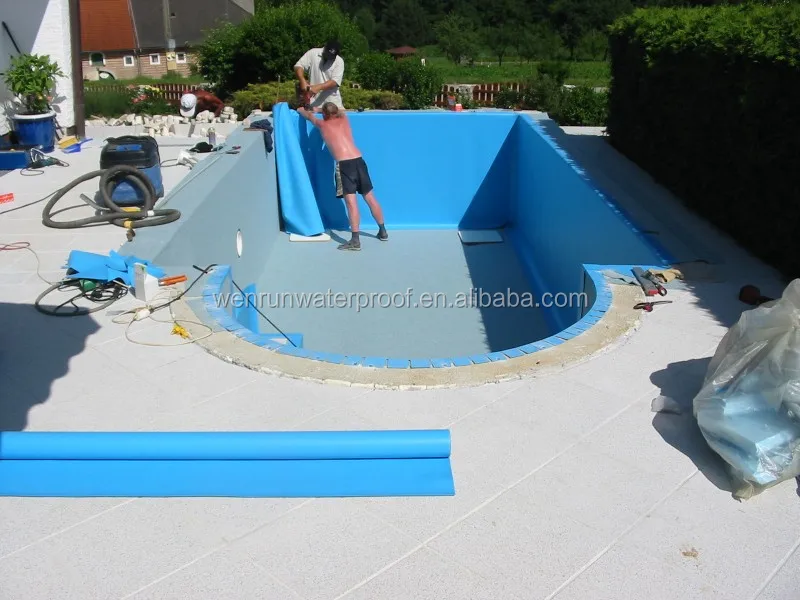

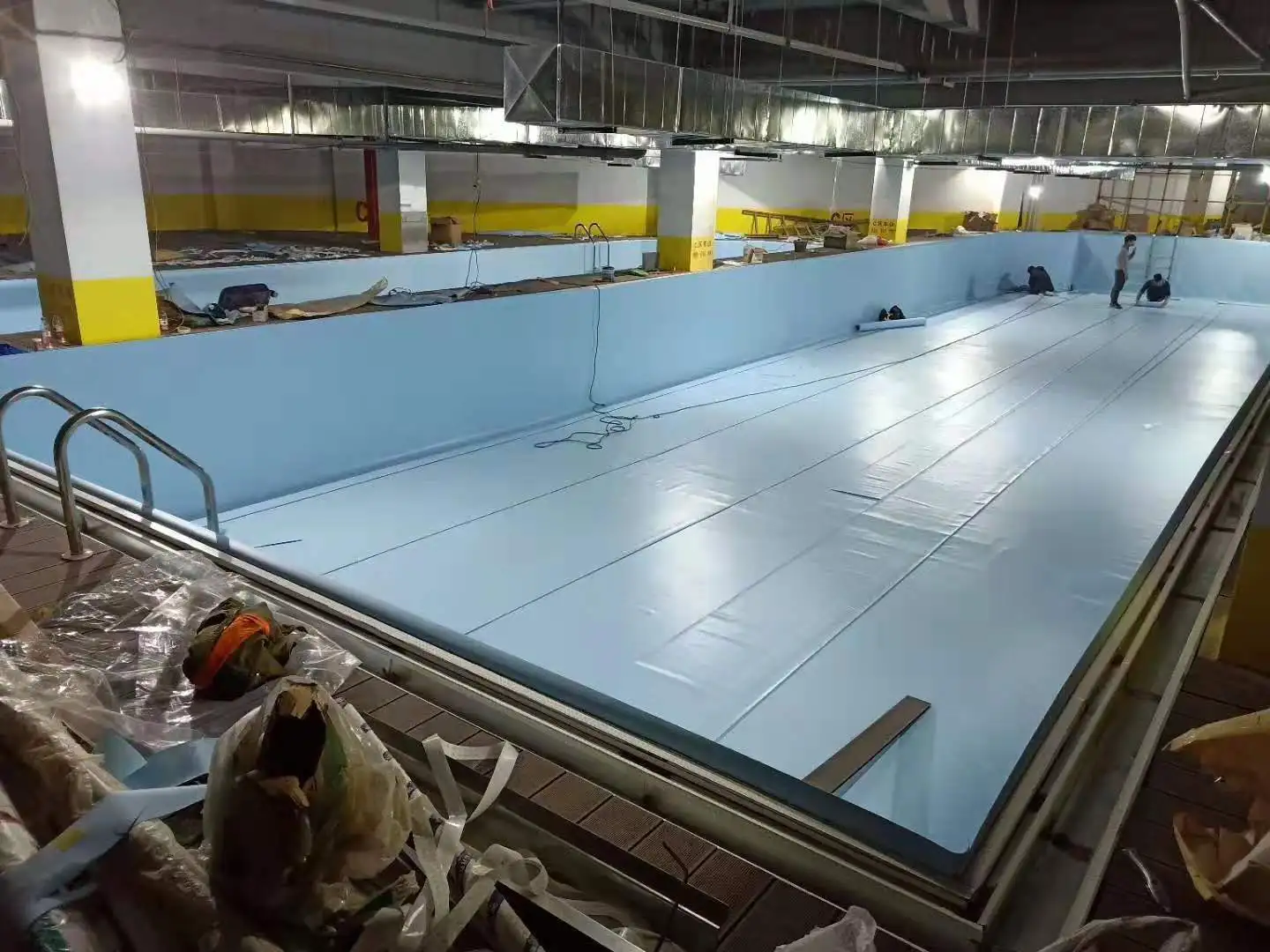

Construction Site
Certificate
FAQ
Q: What your one-stop service?
A: One stop service from design of waterproofing system,materials providing to technology support.
Q: What your advantagede?
A: Supplying most accessories of waterproofing system,such as,fastener,sealants,welder,prefabriated parts.
Q: Do you provide design and technoligies? is it free or extra ?
A: Yes, It is free for design and technology support of waterproofing system.
