Japan brand new 4x2 water and foam pump truck fire fighting truck and equipment

Name

4ton Japan truck mounted Popular Model  Water  Firefighting Truck Euro 4

Item

Specifications

Item

Specifications

Truck Parameter

Model

YZR5101GXFSG30

Chassis Model

QL11109KARY

Gross Weight (kg)

9775

Overall dimensions  (mm)

7065×2280×3140

Payload Weight (kg)

3100

Tank Volume(cbm/t)

water 4.0

Curb Weight (kg)

6300

Wheelbase (mm)

3815

Engine Parameter

Model

QL11109KARY diesel

Brand

Power/Displacement (kw/ml)

139/5193

Emission Level

Euro 4

Specification

Max speed (km/h)

90

Front Track (mm)

1680

Cab

2+3

Rear Track (mm)

1650

Leaf Spring

8/10+6

Front/Rear Overhang (mm)

1110/2050

Number of Tyres

6

Approach /  DepartureAngle(°)

21/13

Tyre Specification

235/75R17.5-16PR

Axle Load (kg)

2700/7075

Number of axles

2

Special Function

Tank Capacity (L/T)

water 4ton

Fire Monitor

Model:PS30 rate of flow:30L/S/1MPa,water range:≥50m

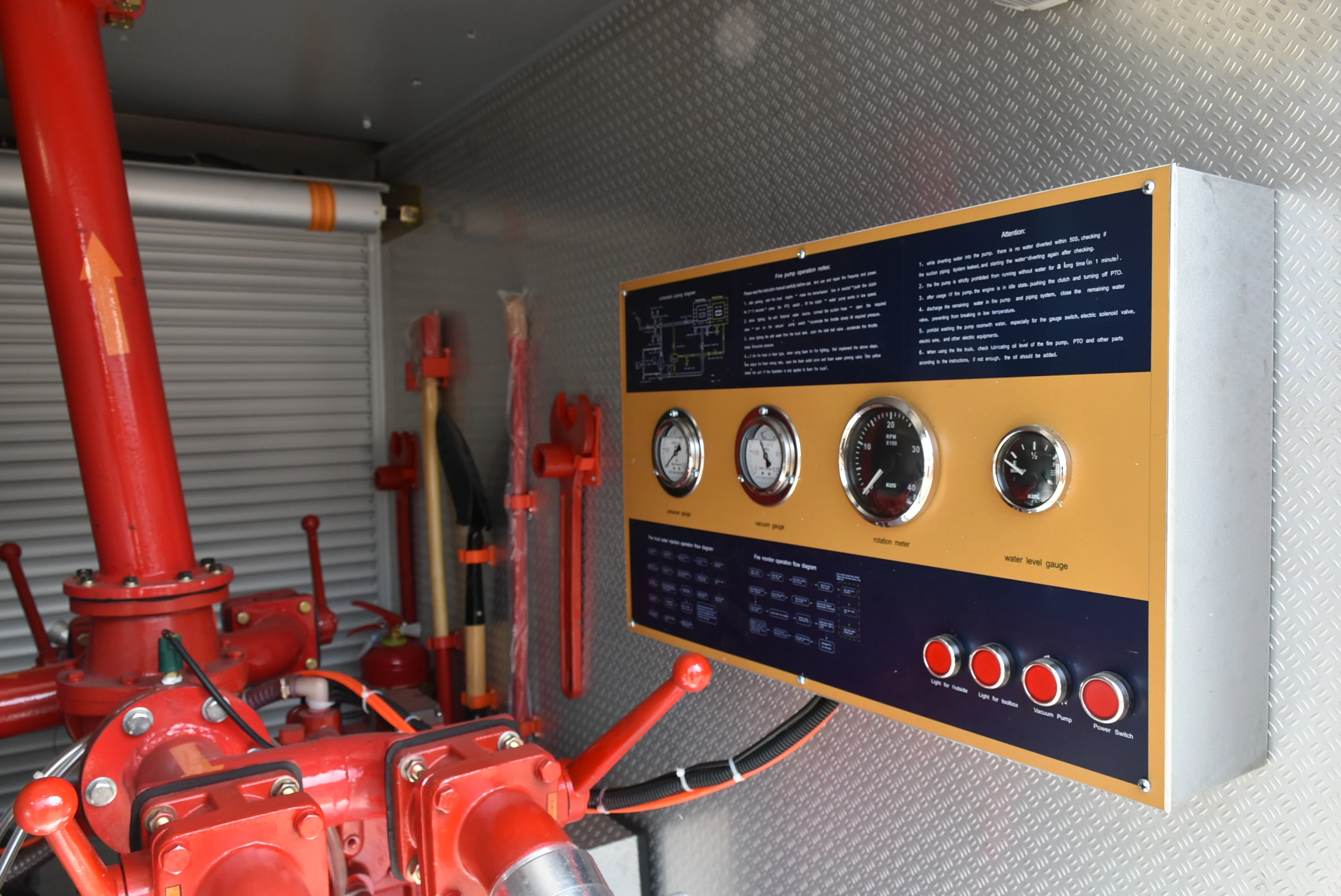

Fire Pump(Normal Pressure)middle-lower pressure is optional

1. Normal pressure model::CB10/30,rate of flow:30L/s, pressure:1.0MPa

2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO
