GLTV7S Stainless steel probe capacitive fuel level sensor
US $112.00-$361.00
Погружной Датчик уровня воды в пруд 4 20 мА
- Category: Level Measuring Instruments >>>
- Supplier: Huaibei Huadian Automation Technology Co. Ltd.
Share on (62261714593):
Product Overview
Description
4-20ma fish pond water sensor probe submersible level ammonia water sensor 4-20ma
Hot selling

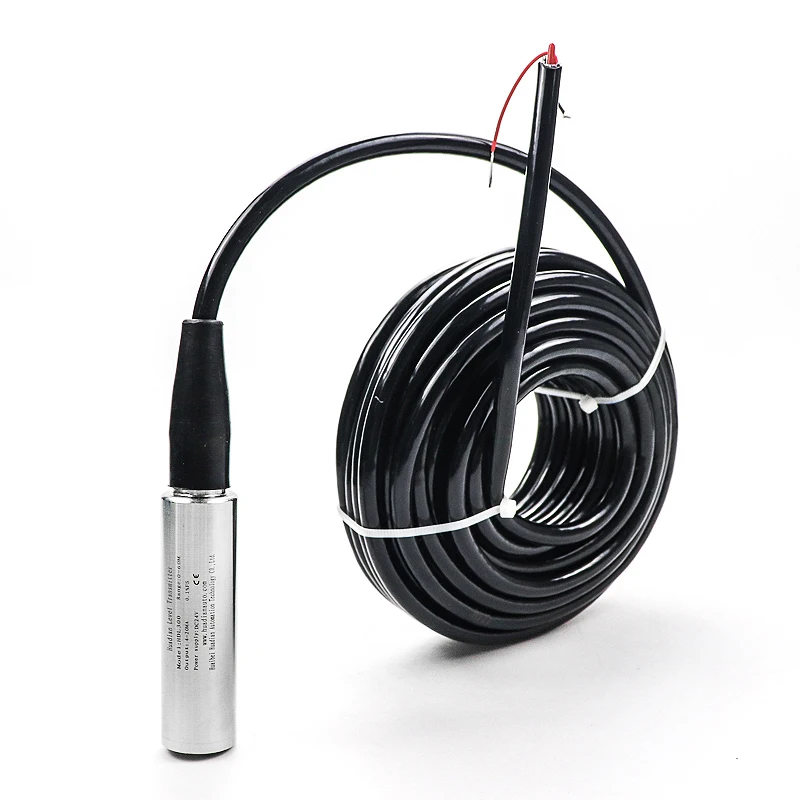

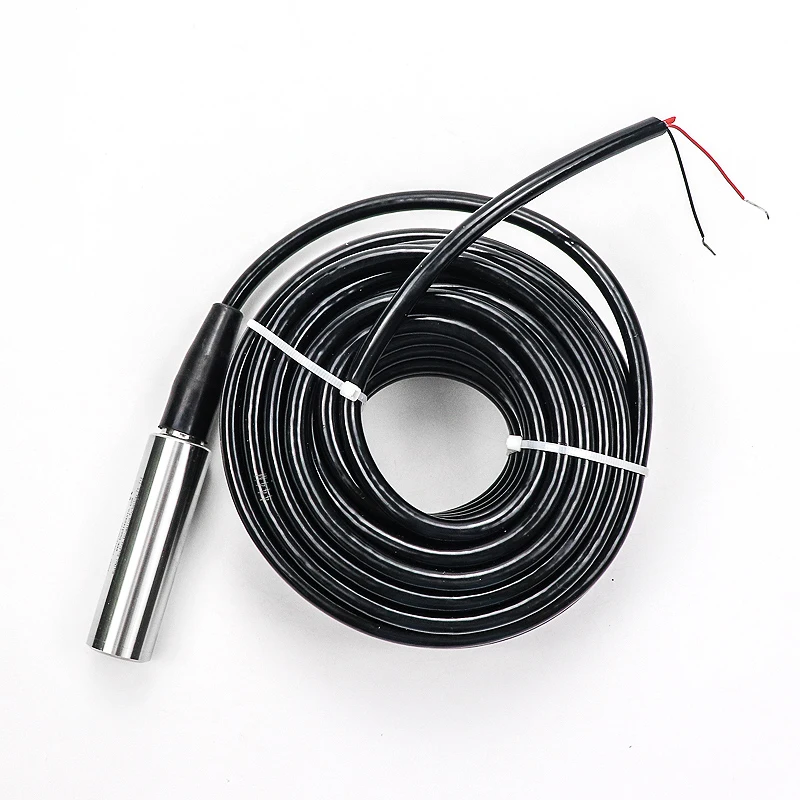

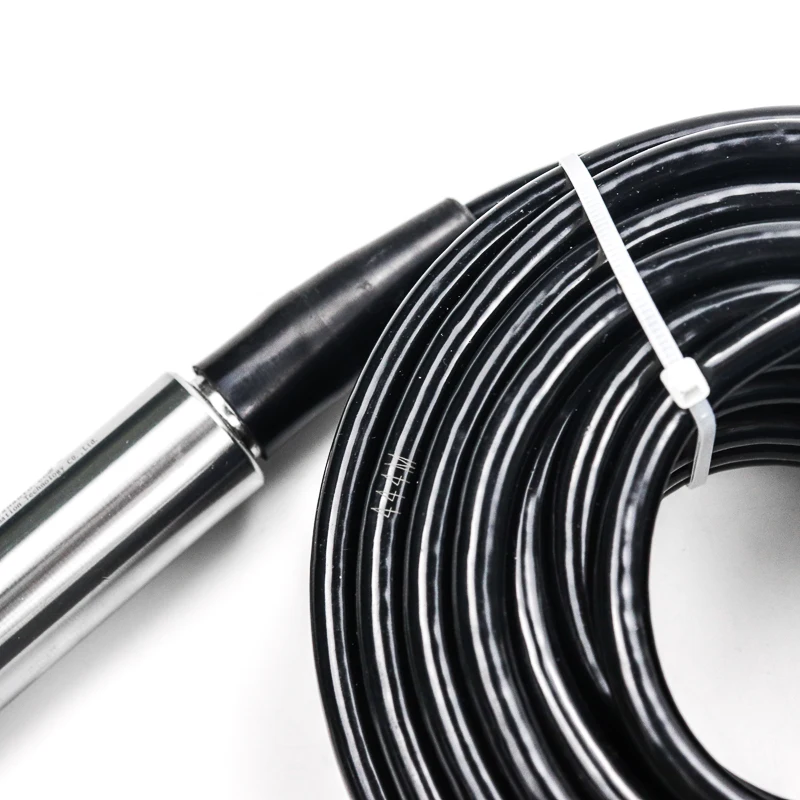

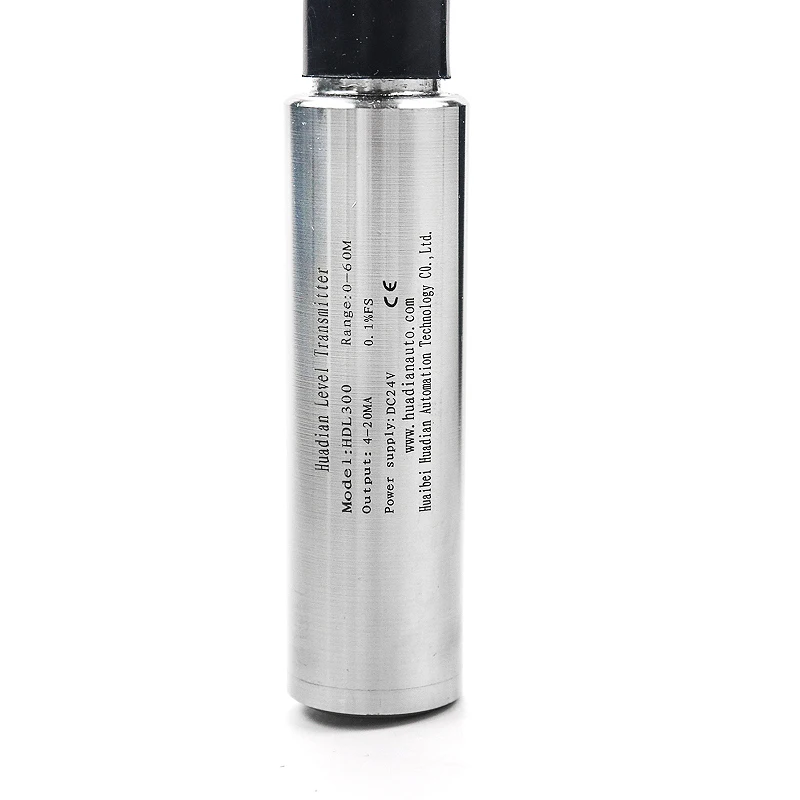

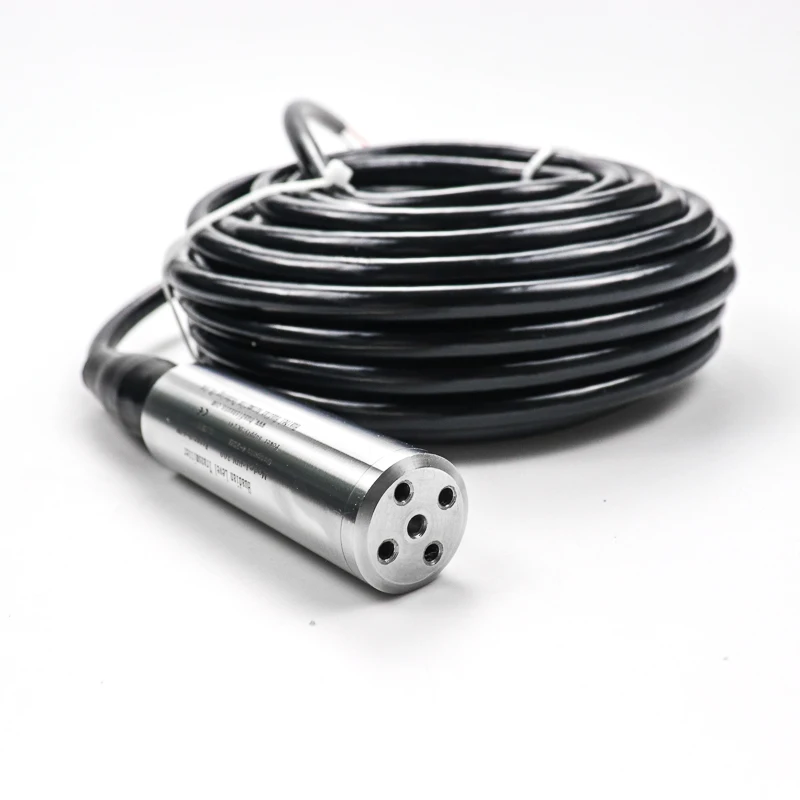

HDL300 hydrostatic submersible liquid level sensor water tank 12v dc12v dc
Product Description
This link is for parameters:
1. Output signal 0-5V
2. Power supply 24vdc
3. Cable length: <5m
Let us know your level range please~
Brief description:
HDL300 series water level transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.
Mainly technical parameters:
| Product name | 4-20ma fish pond water sensor probe submersible level ammonia water sensor 4-20ma |
| Key words | ammonia water sensor 4-20ma |
| Model | HDL300 |
| Power supply | 3-5VDC, 12-36VDC (standard) |
| Output single | 4~20mA,1~5V,0~10V,RS485 |
| Measuring range | 1-500 metre |
| Compensation temperature | -10~70℃ |
| Medium temperature | -40~80℃ |
| Environment temperature | -40~85℃ |
| Measuring media | Liquid,Water |
| Accuracy | 0.1%F.S, 0.25%F.S (standard) |
| Zero tempe drift | ±0.03%F.S/℃ |
| Sensitivity temperature drift | ±0.03%F.S/℃ |
| material | 316L core&Rubber breathable cable |
| Overload | 200%F.S |
| Long-term stability | ≤0.2%F.S/year |
| Inherent frequency | 5kHz~650kHz |
| Measurement method | The probe sinks into the bottom of the liquid. |
| Protection grade | IP68 |
Product advantages:
· 304 or 316L stainless steel shell
· Customized laser label printing
· High Precision ,Isolation circuit board
· Microamplifier, output of voltage, current and RS485 signals
· Strong anti-interference and long-term stability
· Diversification of shape and structure
· Guarantee period: 2 years
