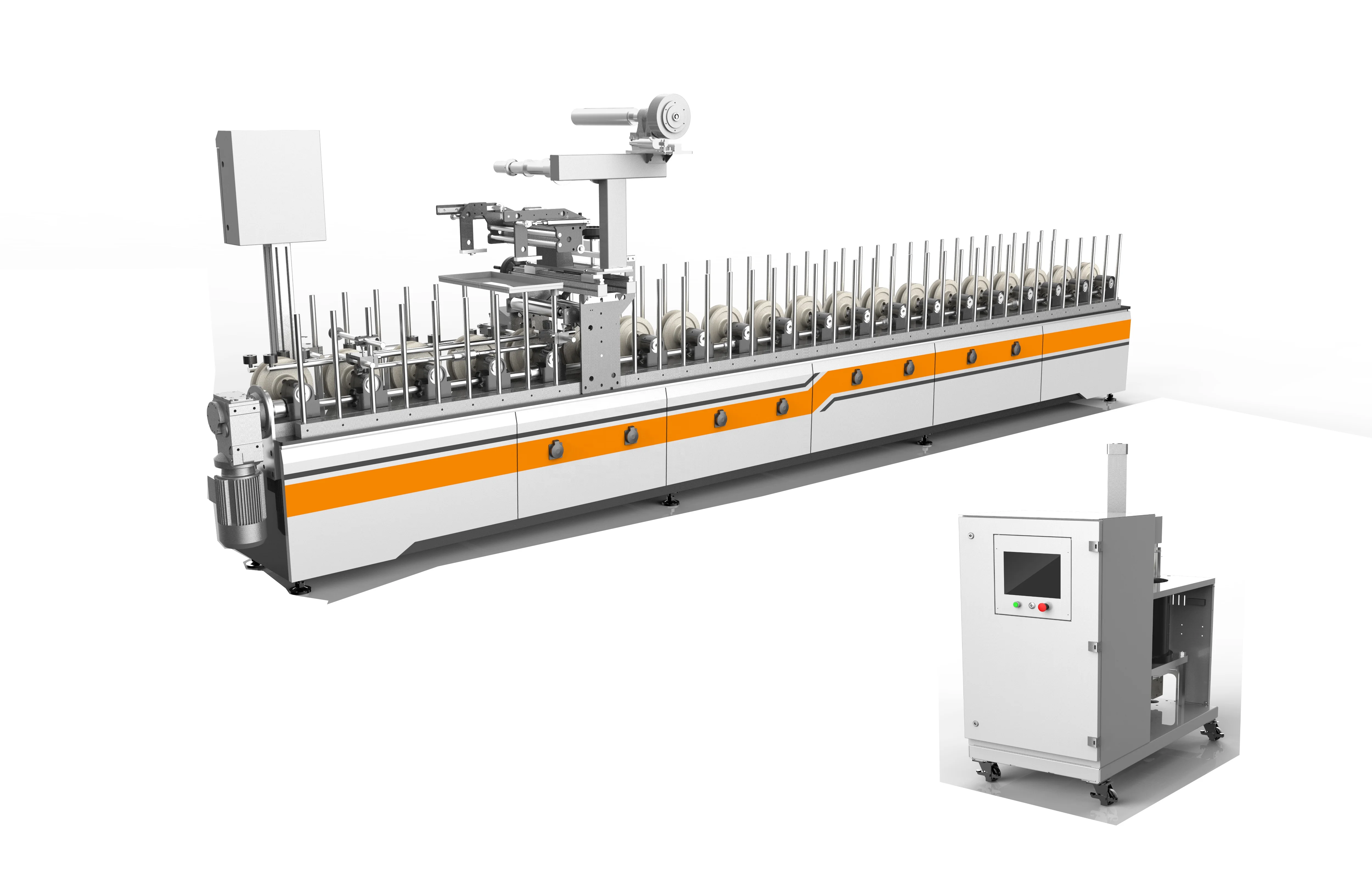

PUR profile wrapping machine for pvc paper PP

Product Overview

Description

• PUR profile wrapping machine   (length of machine body is 6 meter )



  Specification:

  --Max.process thickness               : 90mm

  --Max.film covering width             :300mm

  --Process length                      : 600mm—indefinite length

  --Feeding speed                : 0-50m/min(According to the actual production status)

  --Power of material delivery motor :     : 2.2kw

  --Max.diameter of roll cover material    : 400mm

  -- Heating power                     : 16KW

  --Weight                            :2500kg

  --Overall dimensions                  :6000 x 980 x 1600mm

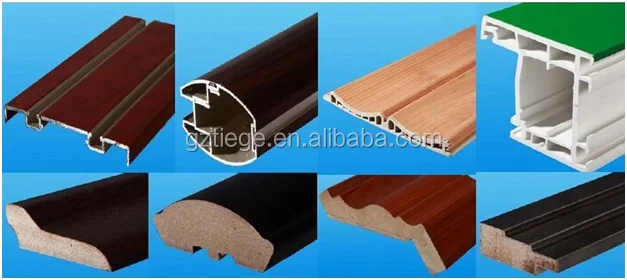

  (Wrapping PVC,paper ,high glossy ,leather, CPL, aluminum foil on MDF board , particle board, wooden line ,aluminum ,wood plastic and so on .)

  Terms and conditions:

  1.Time of delivery: 15 working days after receiving deposit from the the buyer.

  2.Terms of payment: 30% down payment at order,the balance by TT before loading the  container

  3.Packing:Foam packing,

  4.Validity of this quotation is within 30 days from the above mentioned date.

  5.The voltage :380V,50Hz





   Specification

  1)     With a 5 gallon PUR hot melt glue system.

  2)     Glue cutter , can divide and close in middle.

  3)     Stud and quick change frame can choose one of them .

  4)     Electric brand,PLC: France brand, Schneider

  Pneumatic brand: Taiwan Airtac .

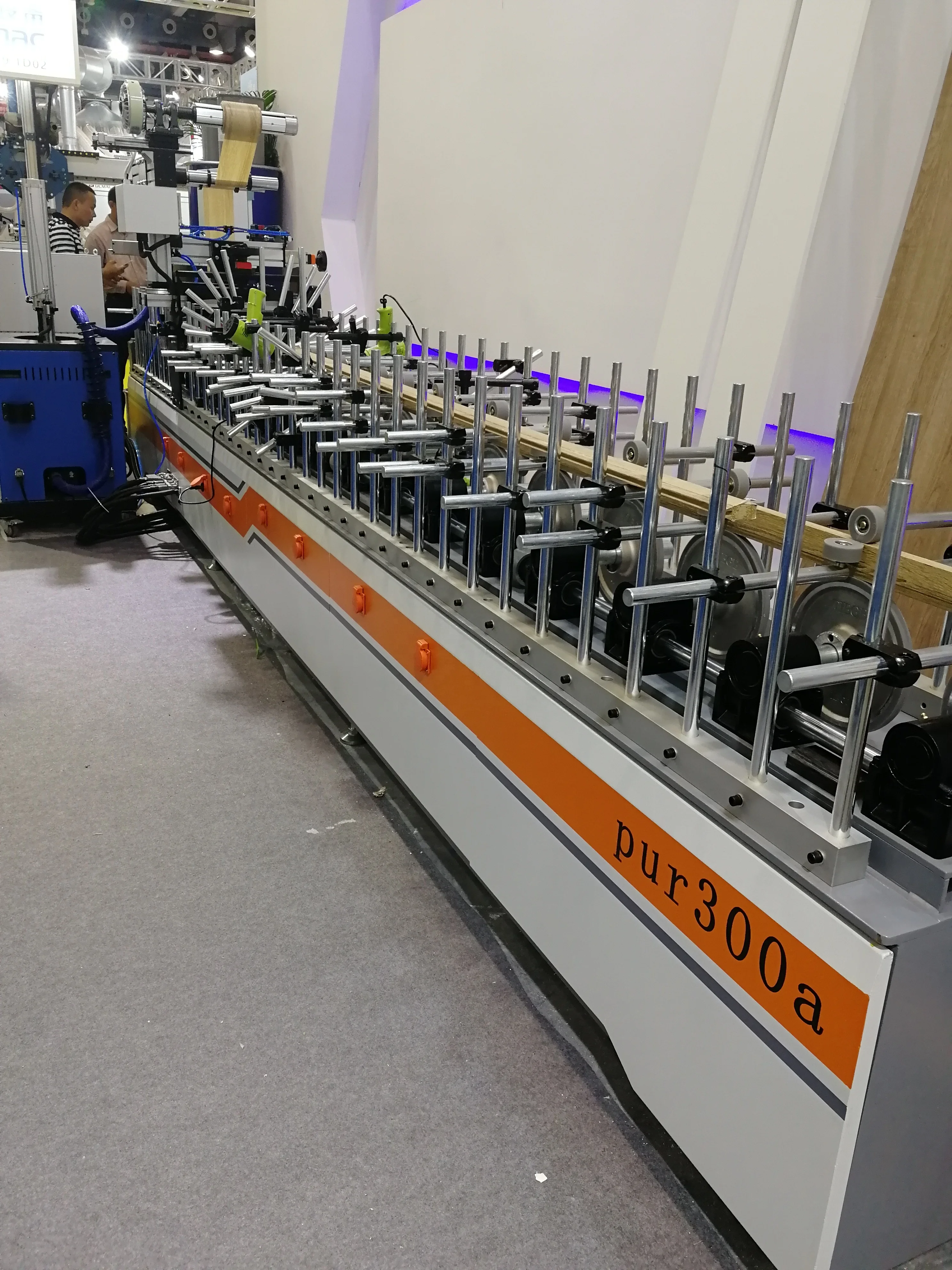

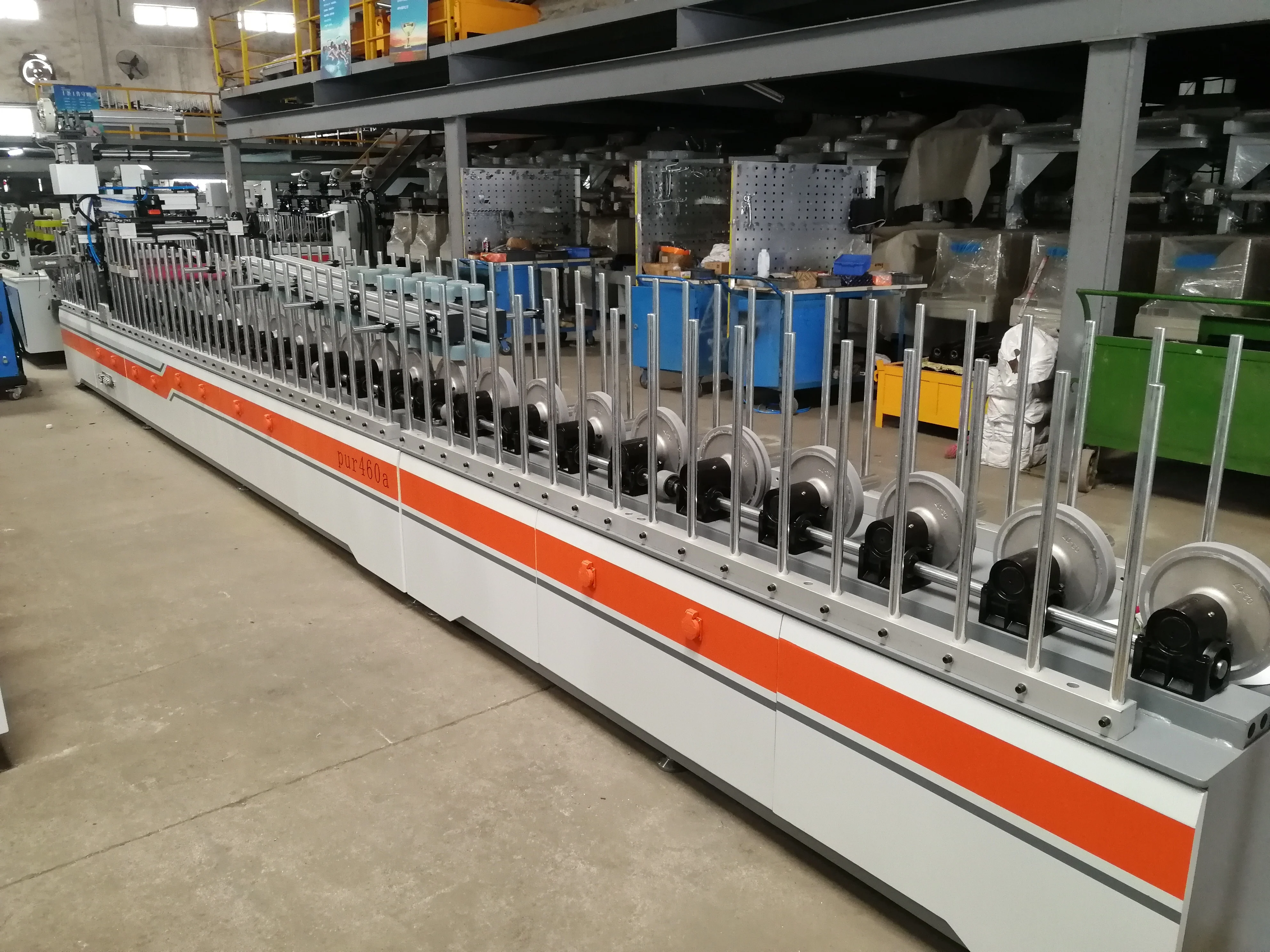

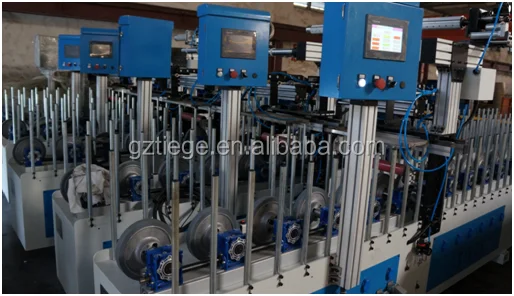

  Mechanical appearance (To design for real now):Touch screen display ,PLC system control.

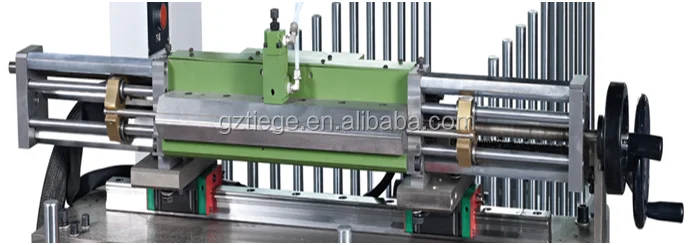

• 1,  Sealing glue cutter ,spread glue on the film ,can control the width of spread glue better, can wrap any profile , it’s easy adjust width , just need to divide from middle to both sides, after finish working need to close and sealing by scotch tape .

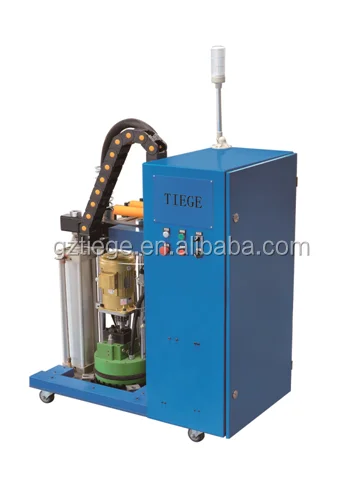

  2,5 gallon PUR hot melt glue system , this machine use PUR glue ,after glue melting through high temperature arrived to glue cutter and spread , melting speed according to the production speed of machine to automatic adjust glue output, before the glue through the glue cutter , it need to through the filter twice ,so there won’t be particles and make glue line when spread glue .

•

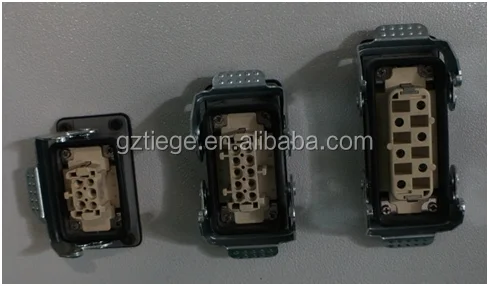

  3,The hot melt glue system and machine wire butt joint by adopt aviation socket ,it’s easy operate .



•







  4,Quick divide and close :according to the different width of profile to adjust , through the handle shaking to divide and close

•

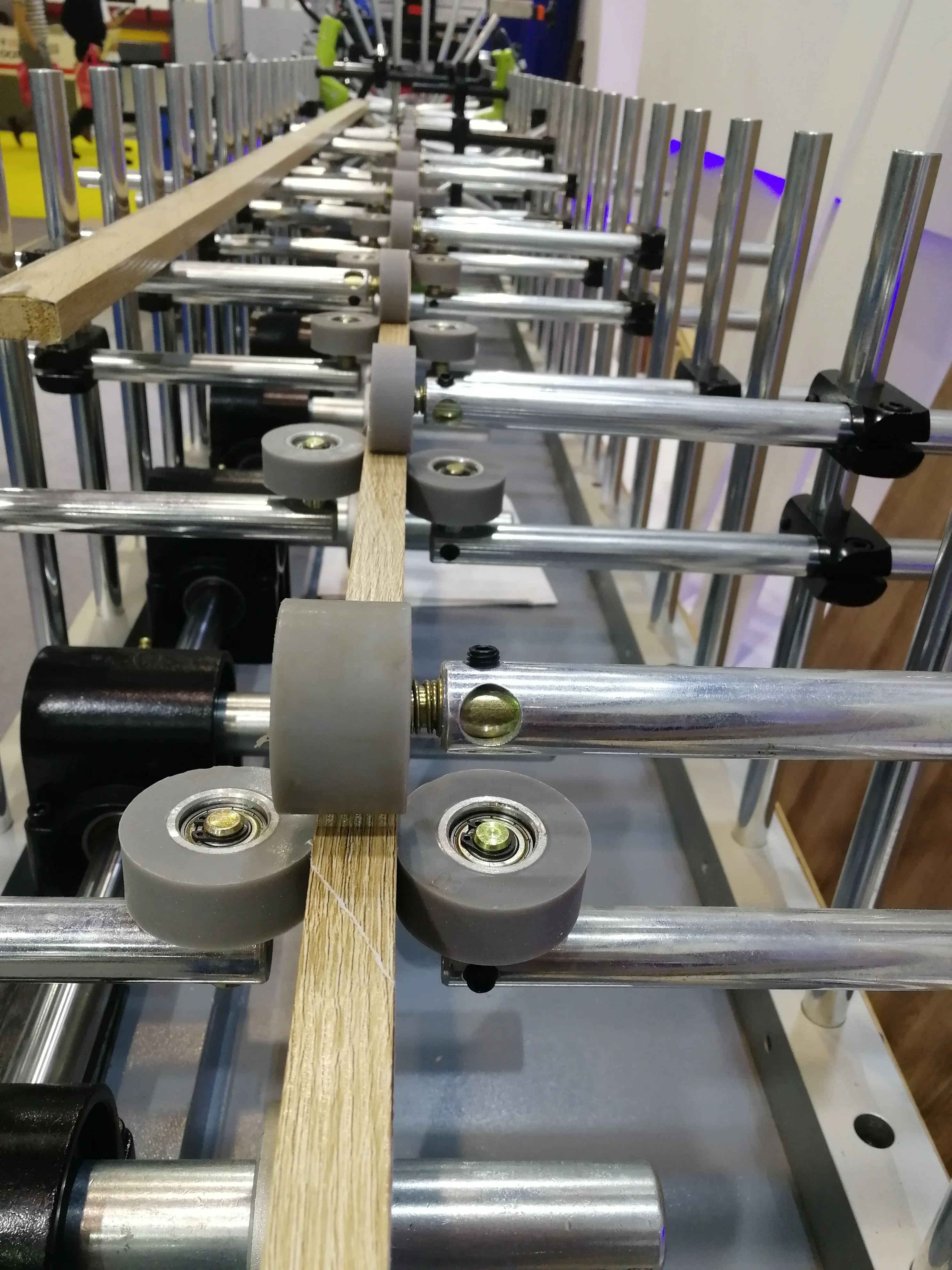

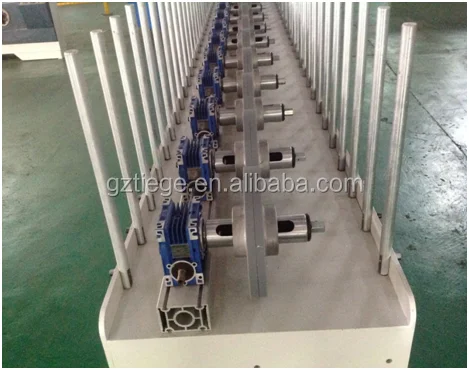

  4,Linear profile wrapping picture, according to different profile make different adjust , profile must be parallel between line and line , the max width of cover film is 300mm .

•

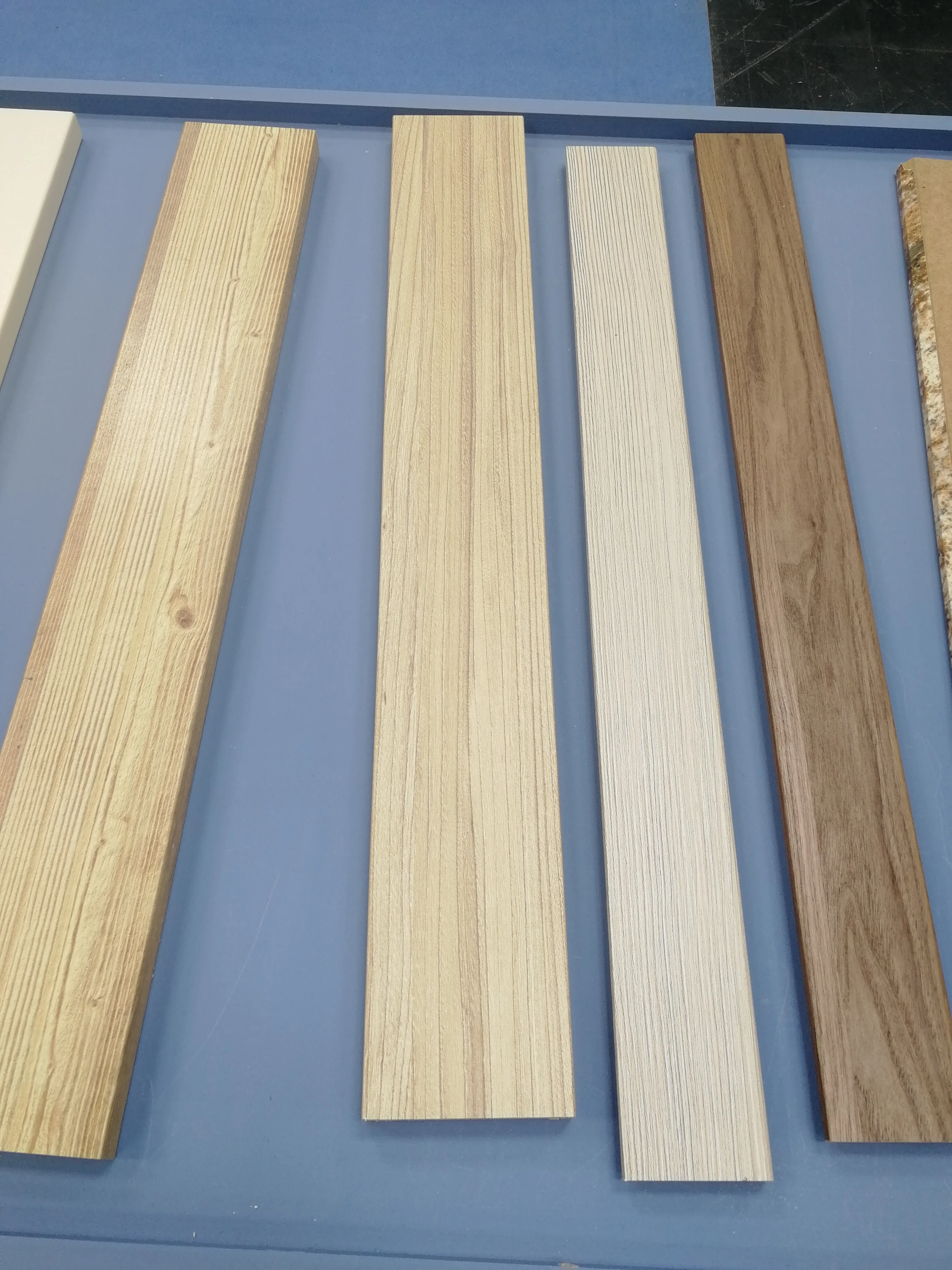

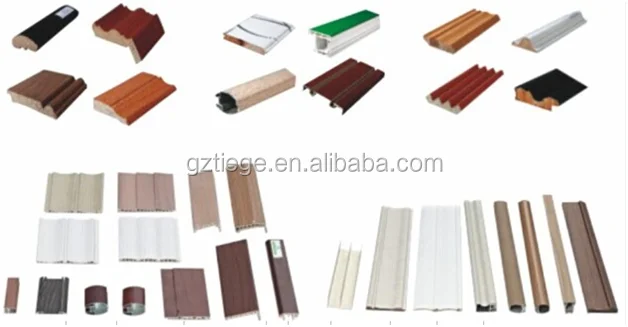

  5,Production sample .

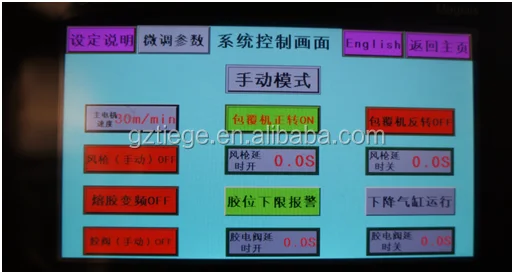

  The PLC in both Chinese and English

•

•
