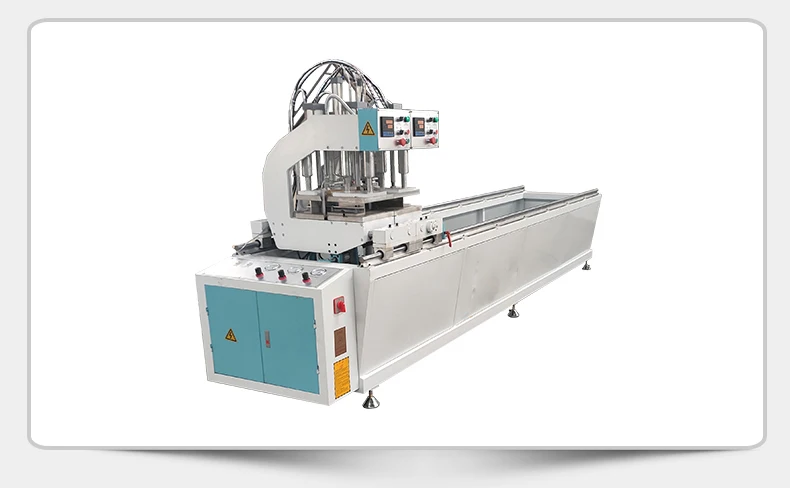

It is a special machine for welding PVC/UPVC/Plastic /Vinyl doors and windows. It can weld and the combination, programming control and pneumatic driving system are used to achieve the high reliability, easy operation and large processing range, The 2 heads can work individually, simultaneously or combinative.
Power
2.5kw
Voltage
220V/50HZ
Air pressure
0.5-0.8MPa
Welding profile
H=20-120mm, W=0-120mm
Welding length
400-3500mm
Dimension
4300x1100x1700mm
Weight
1200kg
Main Features
1,Suitable for welding common PVC profile, color coated PVC profile and laminated PVC profile（single side seamless welding optional）.
2,Adopt programmable logic controller (PLC) ensures the machine running more stable and reliable.
3,Double pressing function ensures higher welding strength.

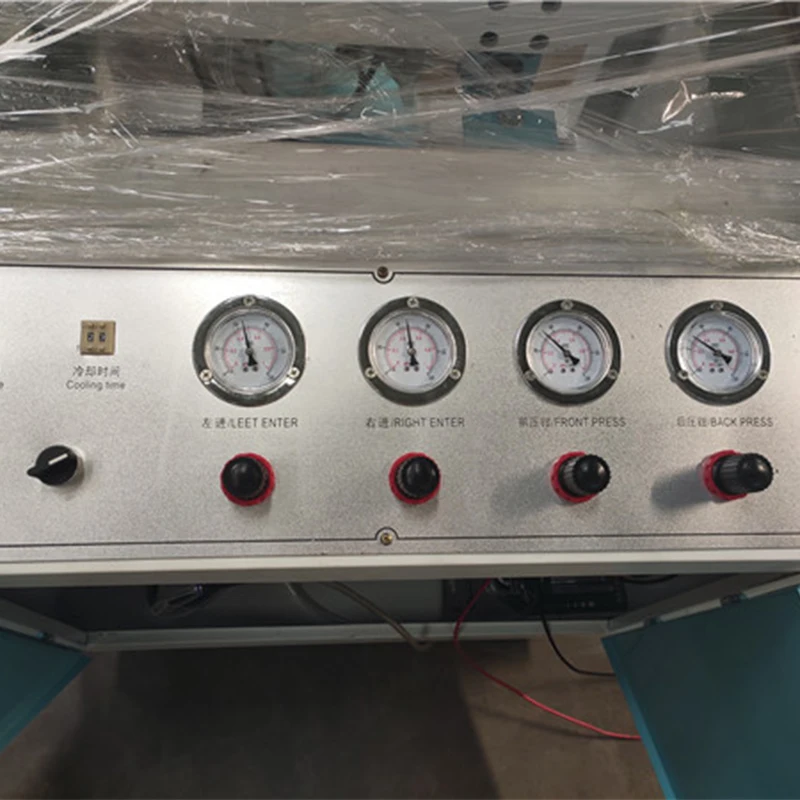

4,The pressure of front and back clamper is adjusted separately,
so as to improve the planeness of the welding corner.
5,The heads are operated individually, together.
6,Second head can move horizontally, so that realize various kinds of welding combination.
7,The Second head can be used for welding variable angle with the special mold and the angle range from 30°~180°.(optional)
8, Ultra big welding scale customization available.
