High Efficiency Hydraulic Riveting PEM Screw Nuts Fastener Insertion Machine
- Category: Riveting Machine >>>
- Supplier: Dongguan Co-Win Machinery Equipment Co. Ltd.
Share on (62267085706):
Product Overview
Description
High Efficiency Hydraulic Riveting PEM Screw Nuts Fastener Insertion Machine
Product Introduction
SUITABLE FIELD
1.Riveting ability (Nut below M12,bolt below M8 and srew below M8 carbon steel material riveting fastener)
2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)
3.Convex hull formation(formation arear diameter below 45MM techonlogy
4.No rivet screw conjunction(total thickness below 6.0MM carbon steel material no rivet screw conjunction technology)
5.Pierce out lock rivet conjunction (total thickness below 6.0MM carbon steel material pierce out lock rivet conjunction
technology)
| 1 | C type throat depth | 600MM | |||
| 2 | C type throat highth | 450MM | |||
| 3 | Upper punch inconsistent stpoke | 230MM | |||
| 4 | Decline speed od upper punch | 68MM/second | |||
| 5 | Protection press hand system | Priciple of conduction of electricity/no-conduction electricity test | |||
| 6 | Nominal pressure | 98KN(10T) | |||
| 7 | Load time expand (holding pressure) | During 6 second | |||
| 8 | Upper stroke site adjust | 10MM-230MM | |||
| 9 | Positive limiting position equipment | Control down-limit position(adjust scope 100MM | |||
| 10 | Drive model | Lower noise and high efficiency hydraulical pressure system | |||
| 11 | Machine load repeat precision | +/-1% | |||
| 12 | Die assmble replace model | Down clip screw loose quickly peplace block | |||

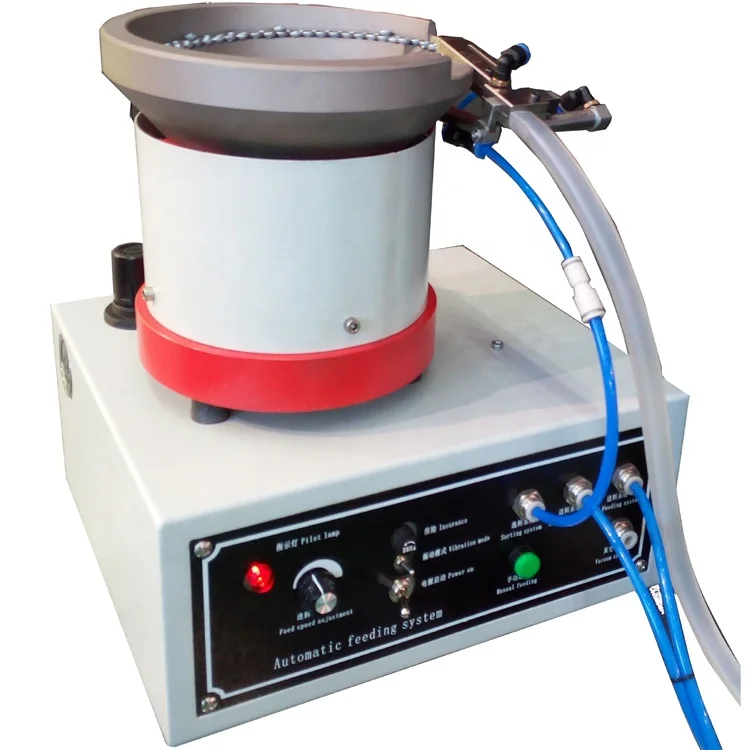

| 13 | Auto sending standoff shake plate (choice) | quickly auto-supply material system | |||
| 14 | ECO save energy apparatus | Load intelligent hydraulical pressure system,save electricity and energy & environment protection,no working no noise system | |||
| 15 | Lot pre-miss rivet system | Test miss rivet error early warning function(choice spec) | |||
| 16 | Laser positioning instruction | Quickly position | |||
| 17 | Single machine shape spec(MM) | 2100*1300*950 | |||
| 18 | Working table highth | 980MM(Can adjust scope 80MM) | |||
| 19 | Gross weight of machine | 970KG | |||
| 20 | Input power capacity/voltage | 3.75KW Three-phase 380V | |||
