Machine Relay Infrared 24V Digital Autonics Light Curtain Area Safety Sensor 12v DC Light Sensor
- Category: Sensors >>>
- Supplier: Shenzhen ESPE Technology Co. Ltd.
Share on (62270859068):
Product Overview
Description
For machine relay infrared 24V digital autonics light curtain area safety sensor12v dc light sensor
Products Description

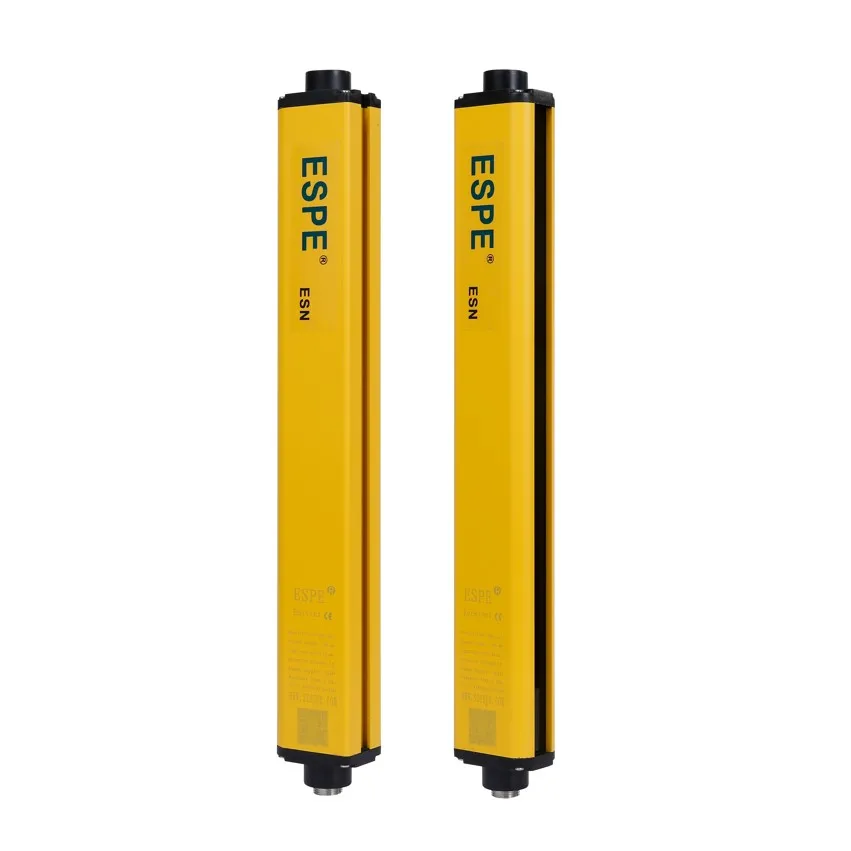

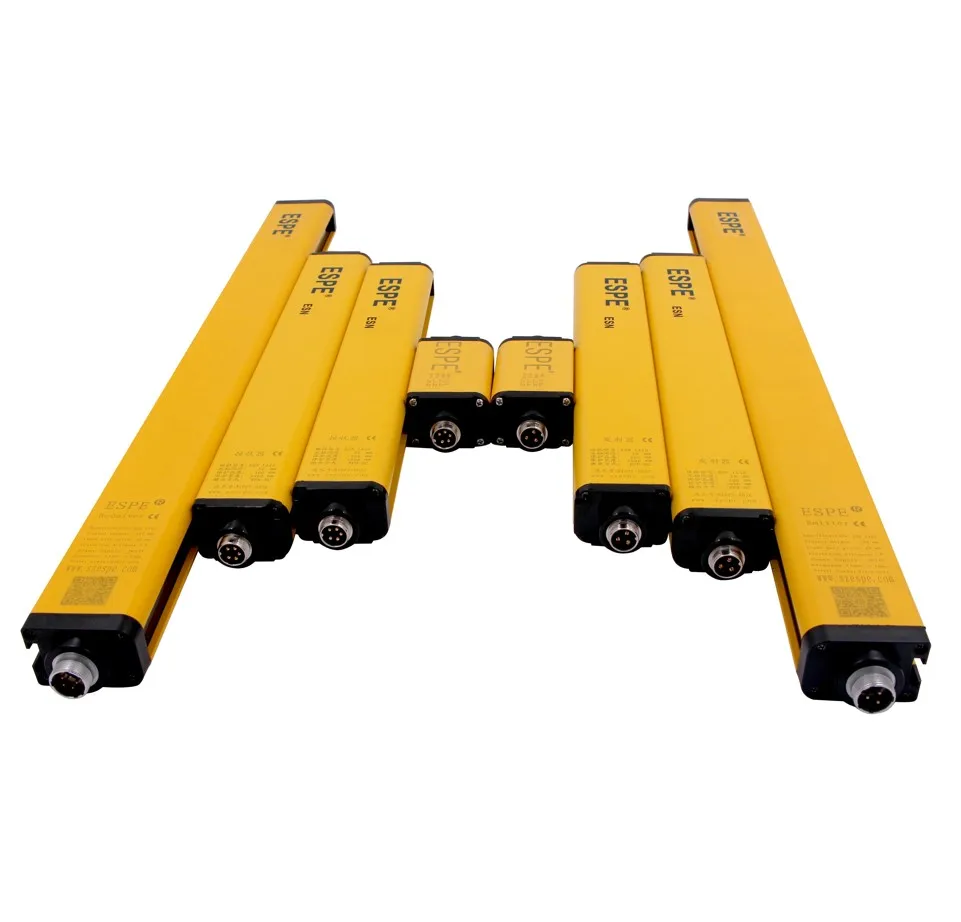

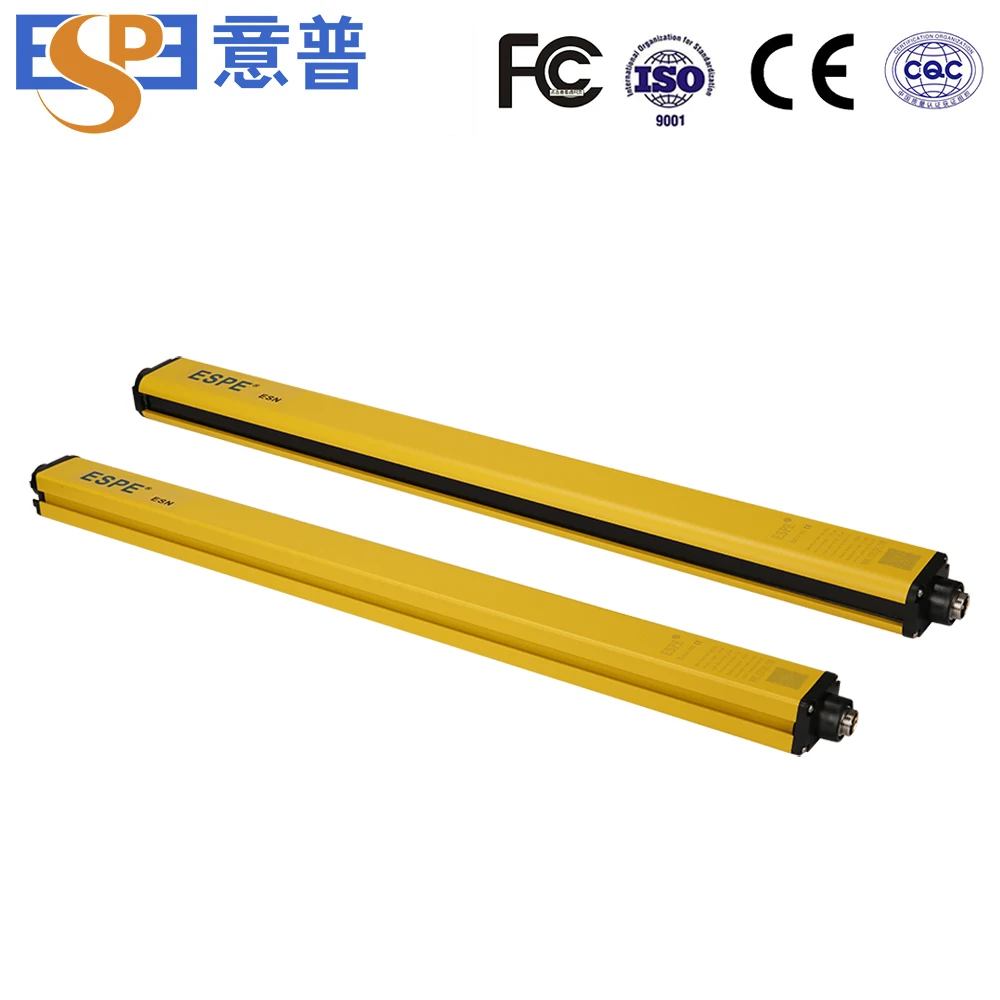

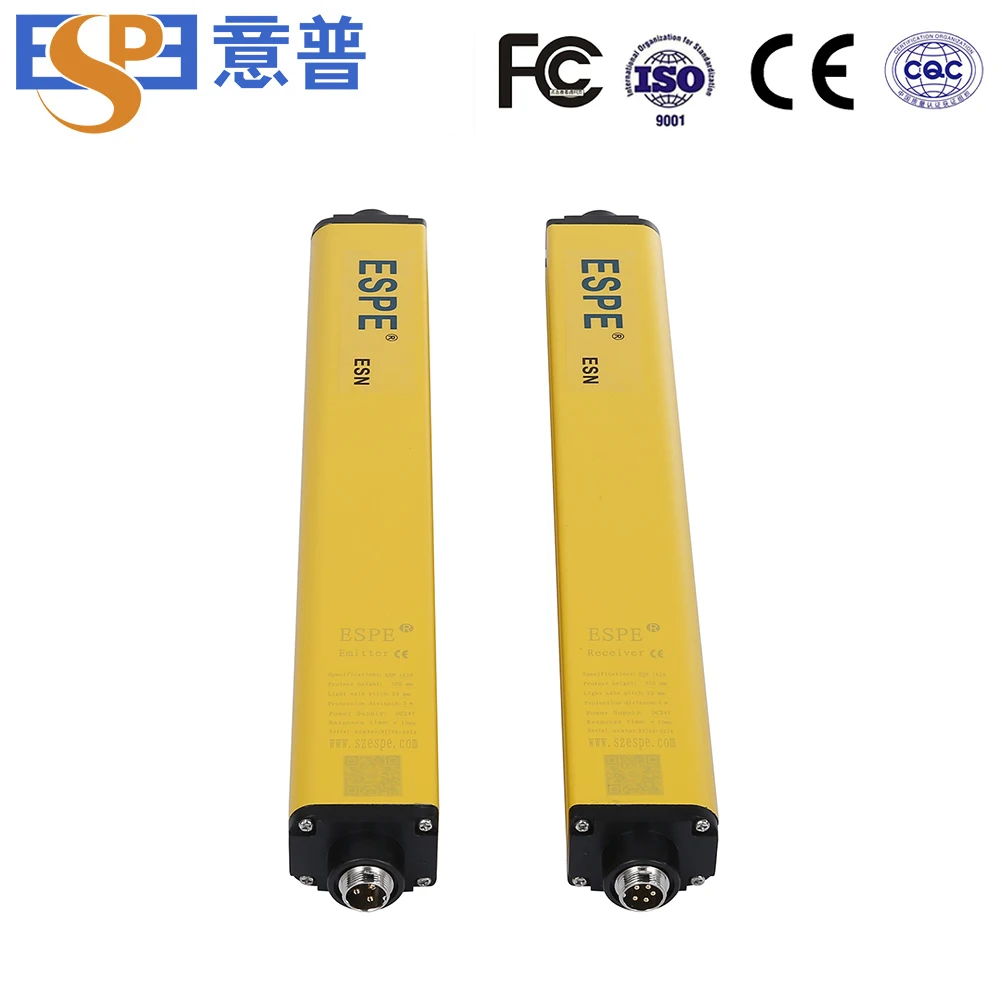

ESN series safety light curtain
Long sensing distance between emitter and receiver, suit for general machines and area protection
MOQ:1 set The shortest delivery time:1 working day
Certification:FCC and CE
Warrenty:1 year
Shipping:Support Express（DHL，Fedx，TNT etc.）, Air freight and Sea transportation

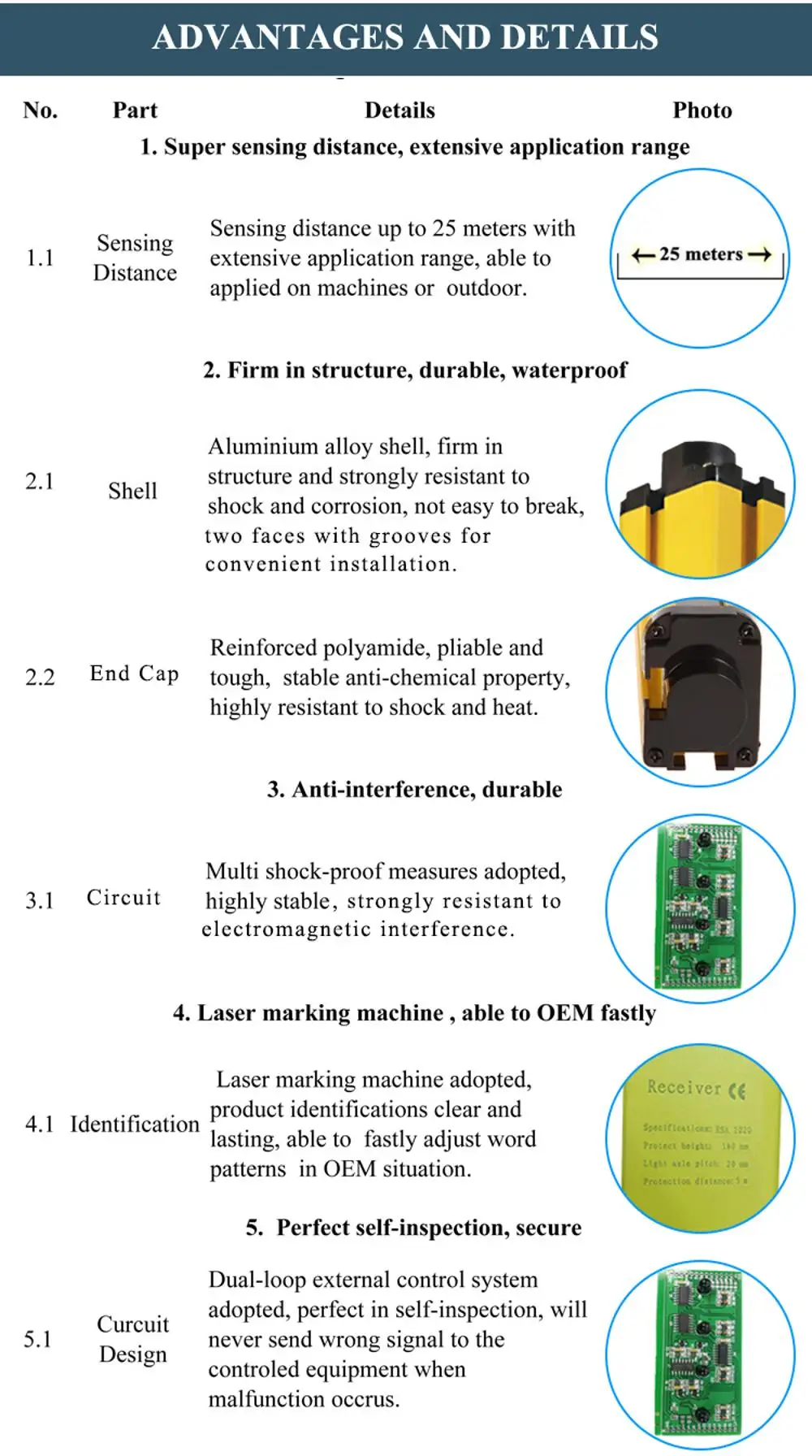

Products Advantages

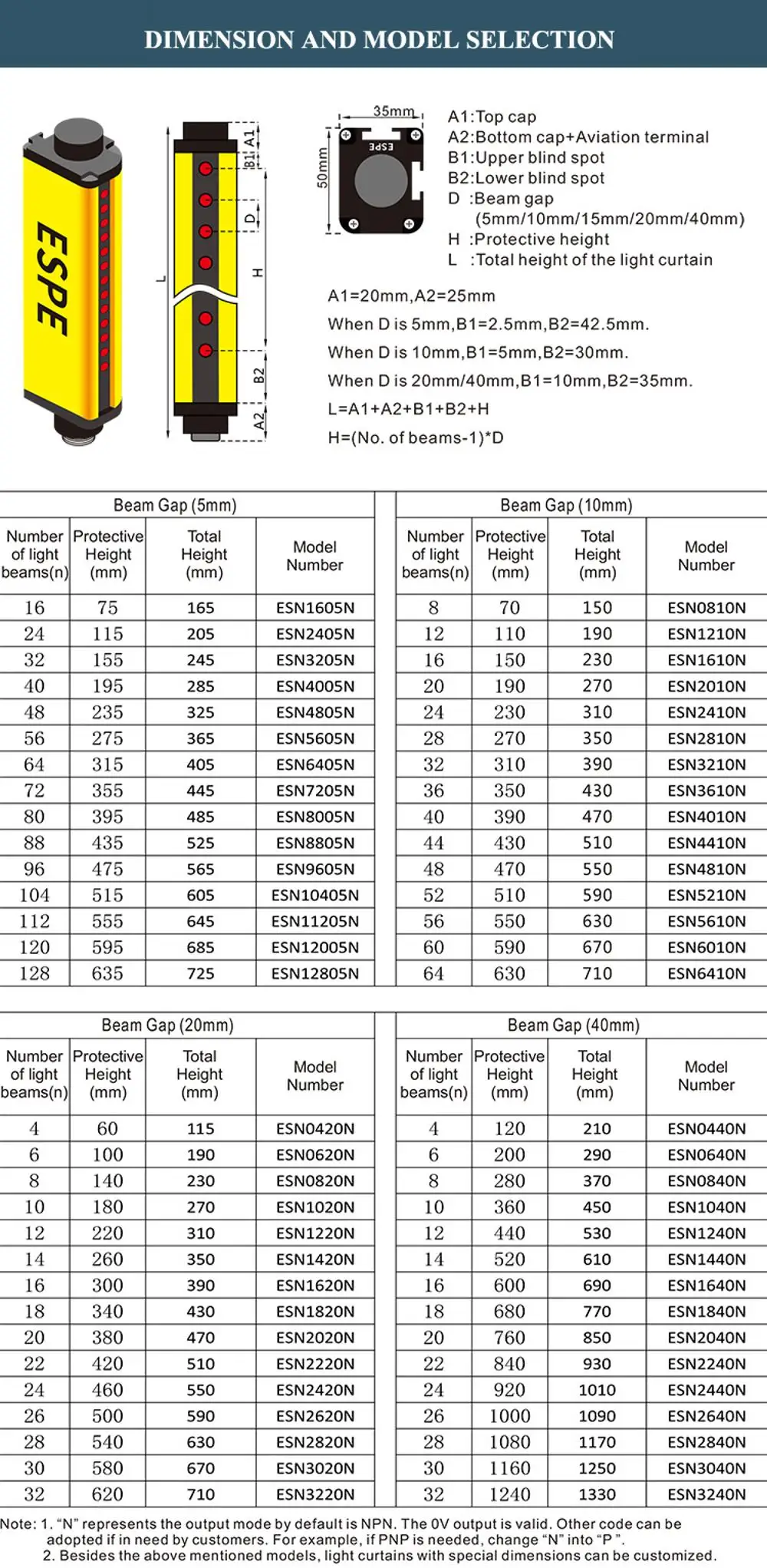

Product Paramenters
Protective Height | 300mm | Working Tmeperature | -10℃-55℃ | ||
Beam Gap | 20mm | Resolution | 25mm | ||
Power Voltage | DC24V±20% | Output Current | ≤200mA | ||
Watts | ＜5W | Response Time | ＜10 ms | ||
Insulation Resistance | ≥100 MΩ | Deploy form of Infrared | Oppposite type | ||
Sensing Distance between emitter and receiver | 5 meters (Standard),others can be customized | Sectional Dimension | 35*50mm | ||

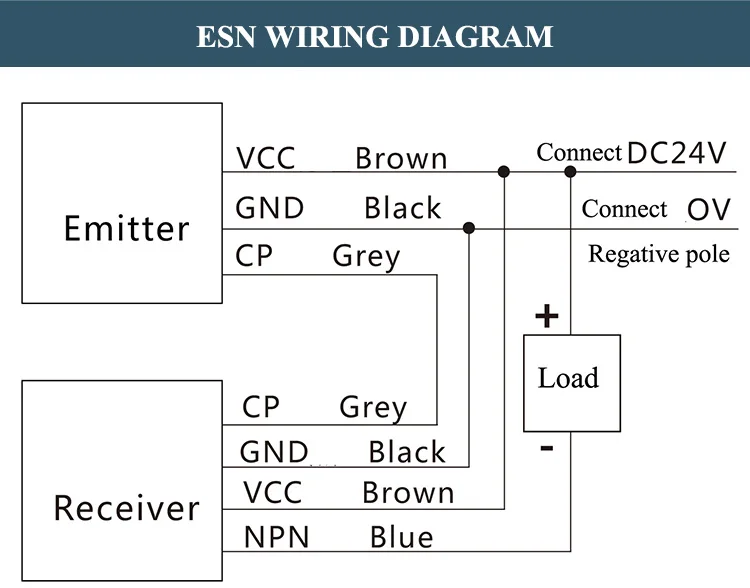

Output Mode | (Standard)NPN NC. ,others can be customize,such as PNP ,Relay | ||||

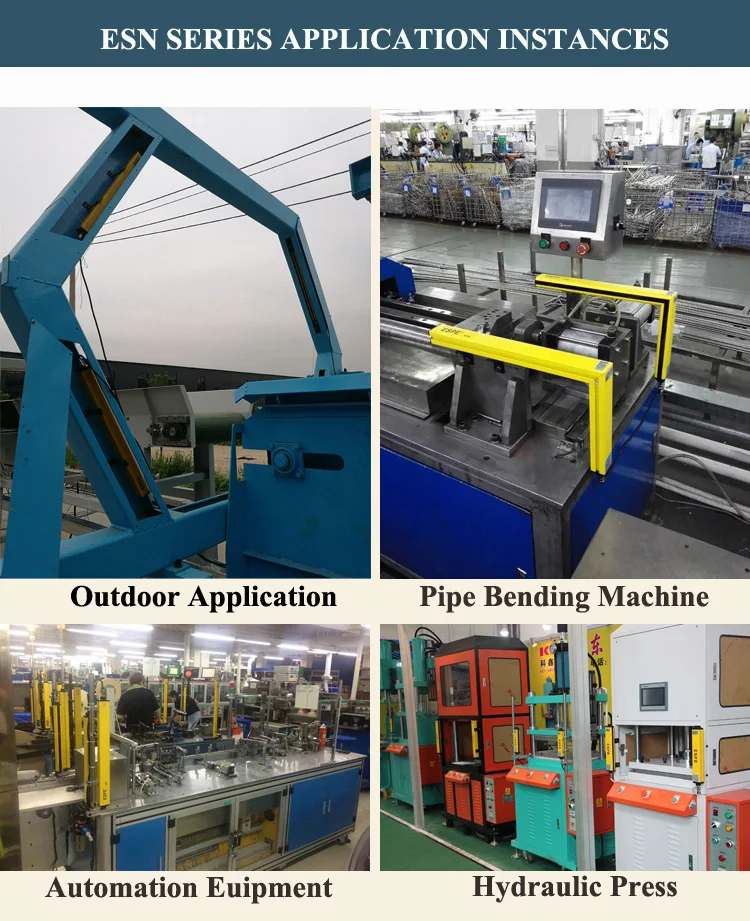

Application Instances

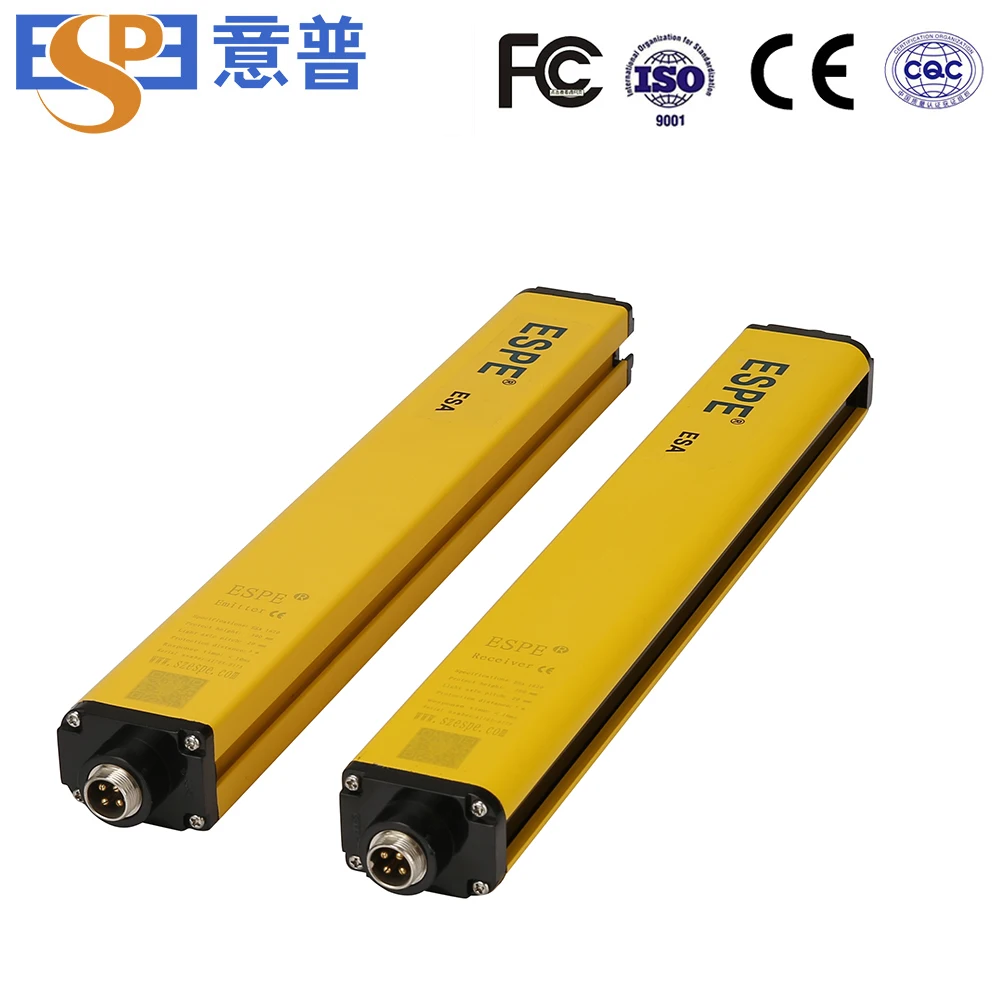

Recommend Products
Company Profile
Shenzhen ESPE Technology Co.,ltd is a Hitech manufacturer, which specializes in R&D and production of infrared safety&measuring&detection light curtains.
As China's pioneer since 2003,we became one of the three co-drafters of National Safety Standard of Machinery Industry,China.
Package&Freight
Support Express and Air freight and Sea transportation
Each set of safety light curtain will be paking into one carton
FAQ
FAQ
1.The products voltage
AC: working voltage is DC24V , other requirements can be customize.
2.What the max accuracy ?
AC: 2.5mm
3.Is the light curtain waterproof?
AC: The waterproof level of the safety sensor is IP65. If you wanna IP67 or more,you can customize the exterior enclosure.
4.How long will you take once a order placing?
AC: We are MFR of safety light curtain, having a large inventory, for the standard products,the leading time is 2-3 days.
5.Do you have the QA?
AC: We provide one year warranty.
