Jewelry gold silver pendants ring necklace bangles laser engraving marking cutting machine jewelry laser engraving machine

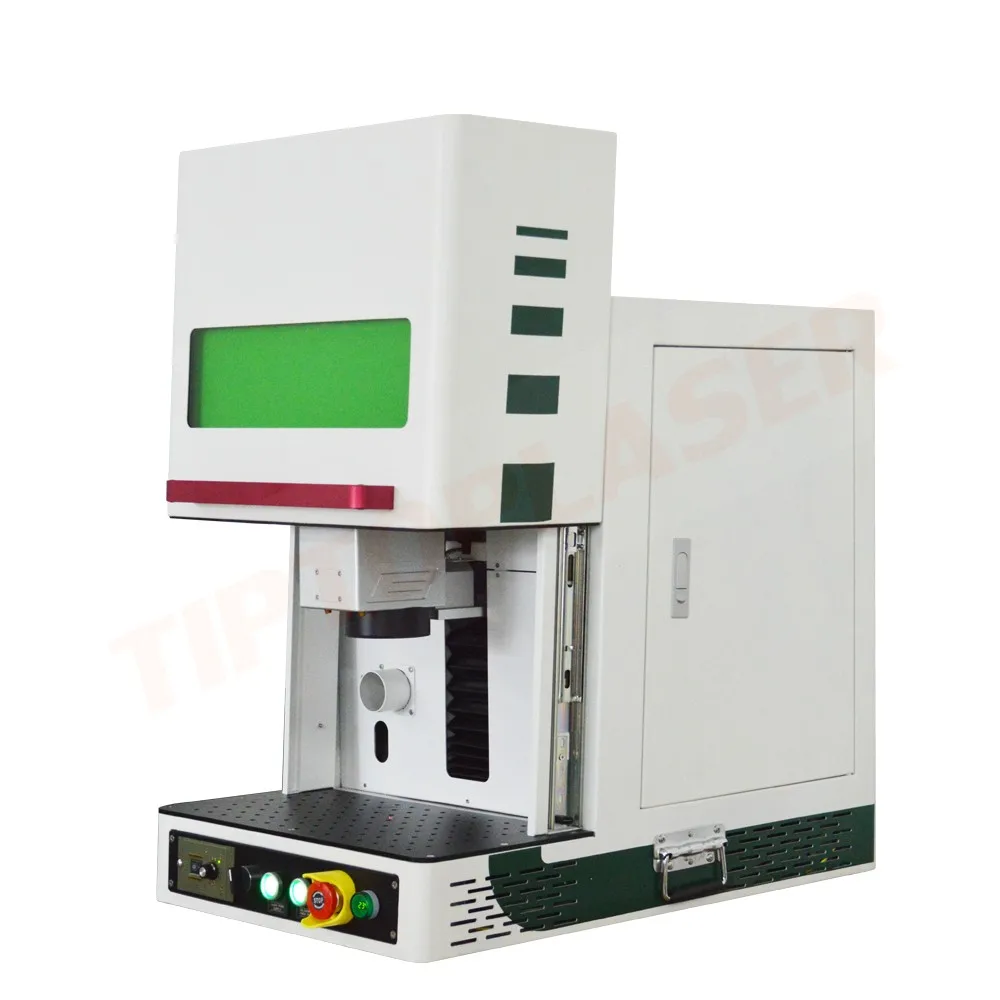

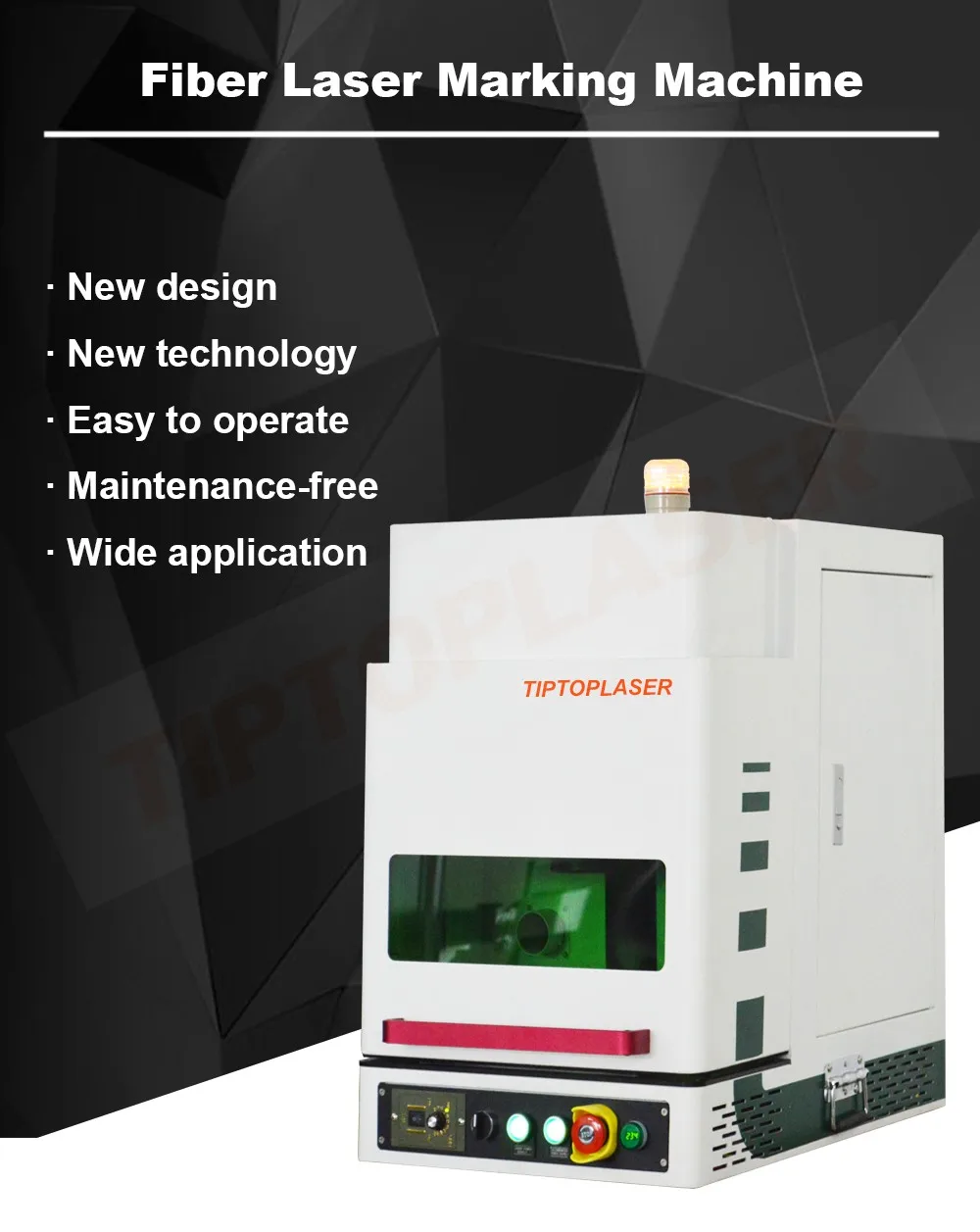

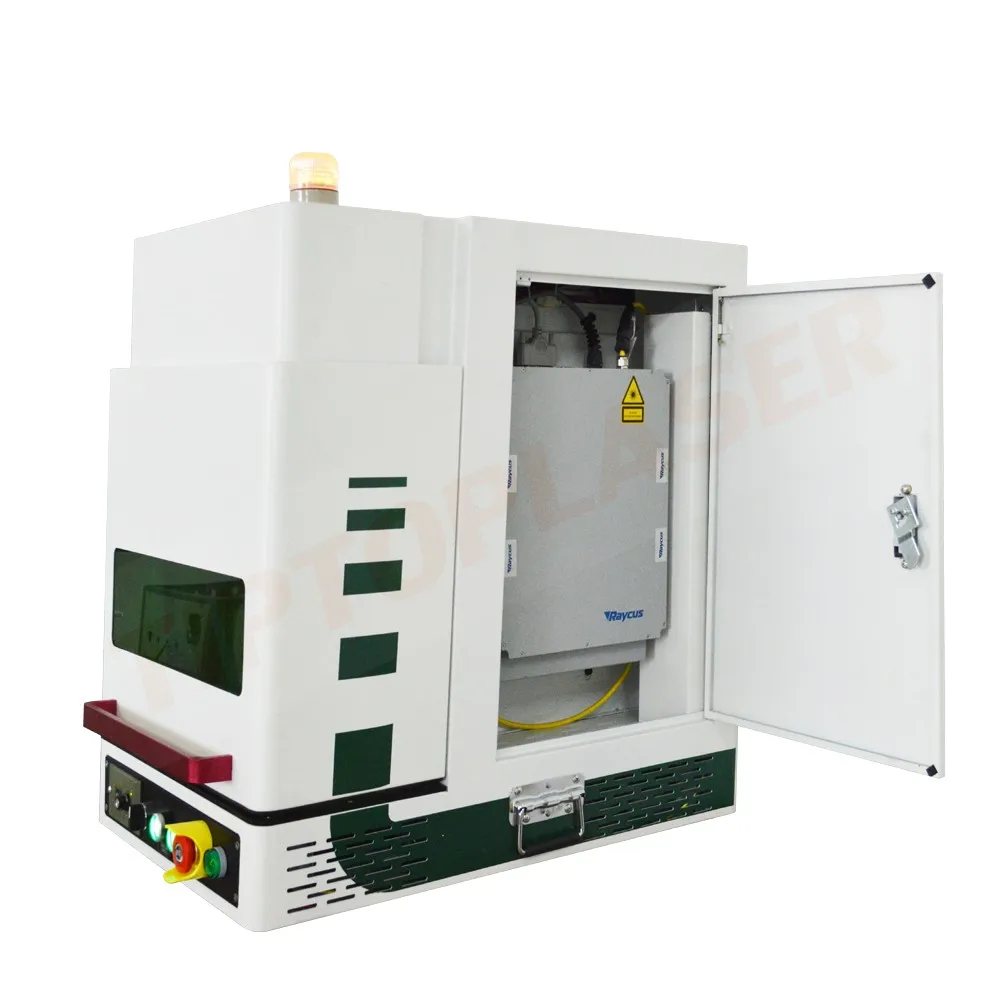

| TIPTOPLASER fiber laser marking machine adopts the best quality fiber laser source in the world. We have 20w, 30w, 50w, 60w, 70w and 100w for optional. The estimated life for laser source will be around 100,000+hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source. This desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice. |
Product Description
| Model | TPF-20w/30w/50w/60w (Optional) |
| Laser Source | IPG/Raycus/JPT Mopa (Optional) |
| Max Marking Speed | 300characters/s, the height of character 1mm |
| Graphic Format Supported | PLT,BMP,JPG,PNG, TIP,PCX,TGA,ICO,DXF,etc |
| Power Stability(8h) | <±1%RPM |
| Pulse Repeat Frequency | 20-60KHZ |
| Whole Machine Power | <800W |
| Mini Line Width | 50um |
| Mini Character | 1mm |
| Laser Wavelength | 1064mm |
| Working area | 110*110mm(optional150*150mm /200*200mm/300*300mm) |
| Cooling Way | Air cooling |
| Working Voltage | 110v/220V±10%/50HZ |
| Working Temperature | -20°C-40°C |
| Weight | 120 KG |
| Package | Strong veneer case |

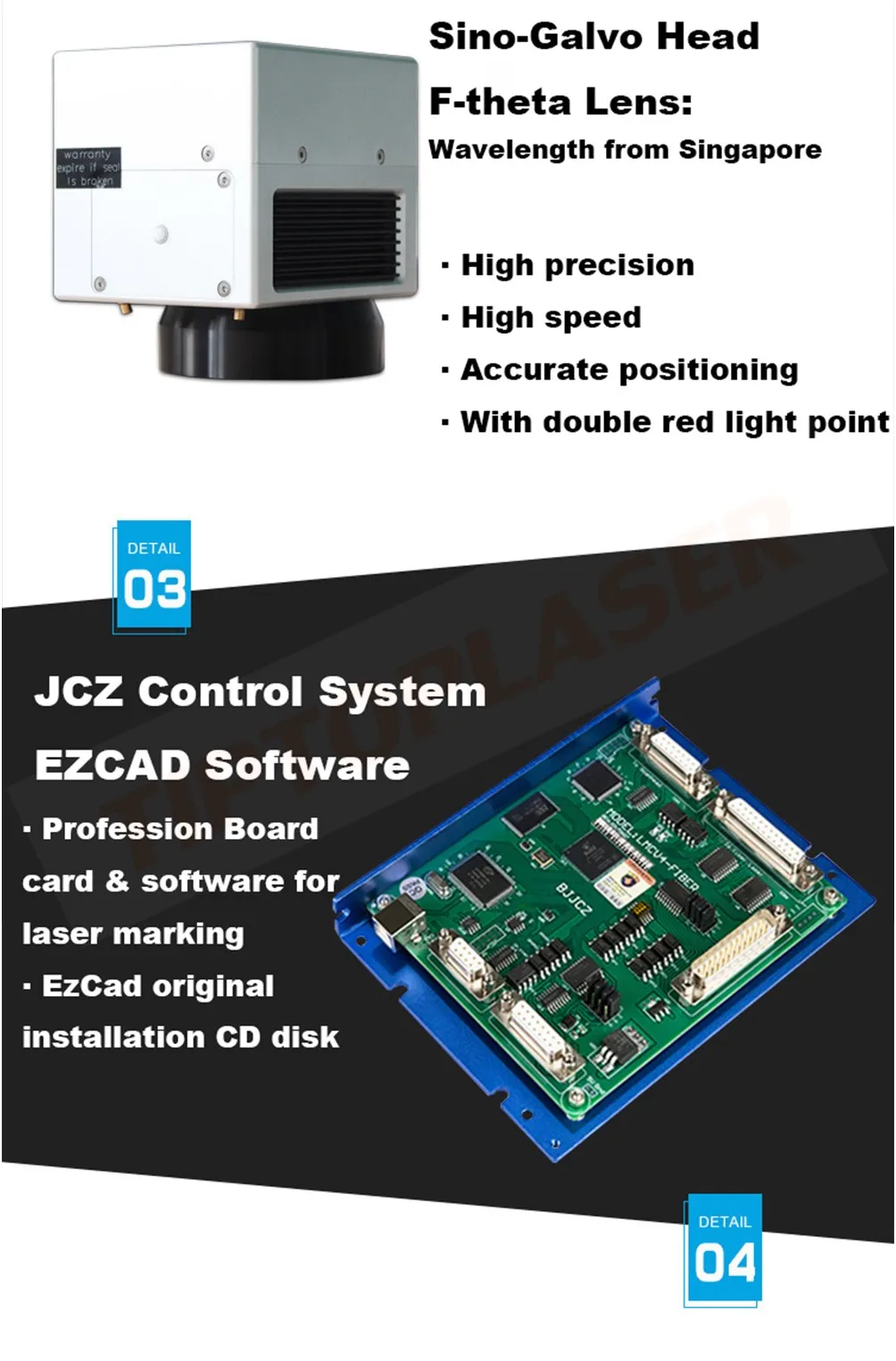

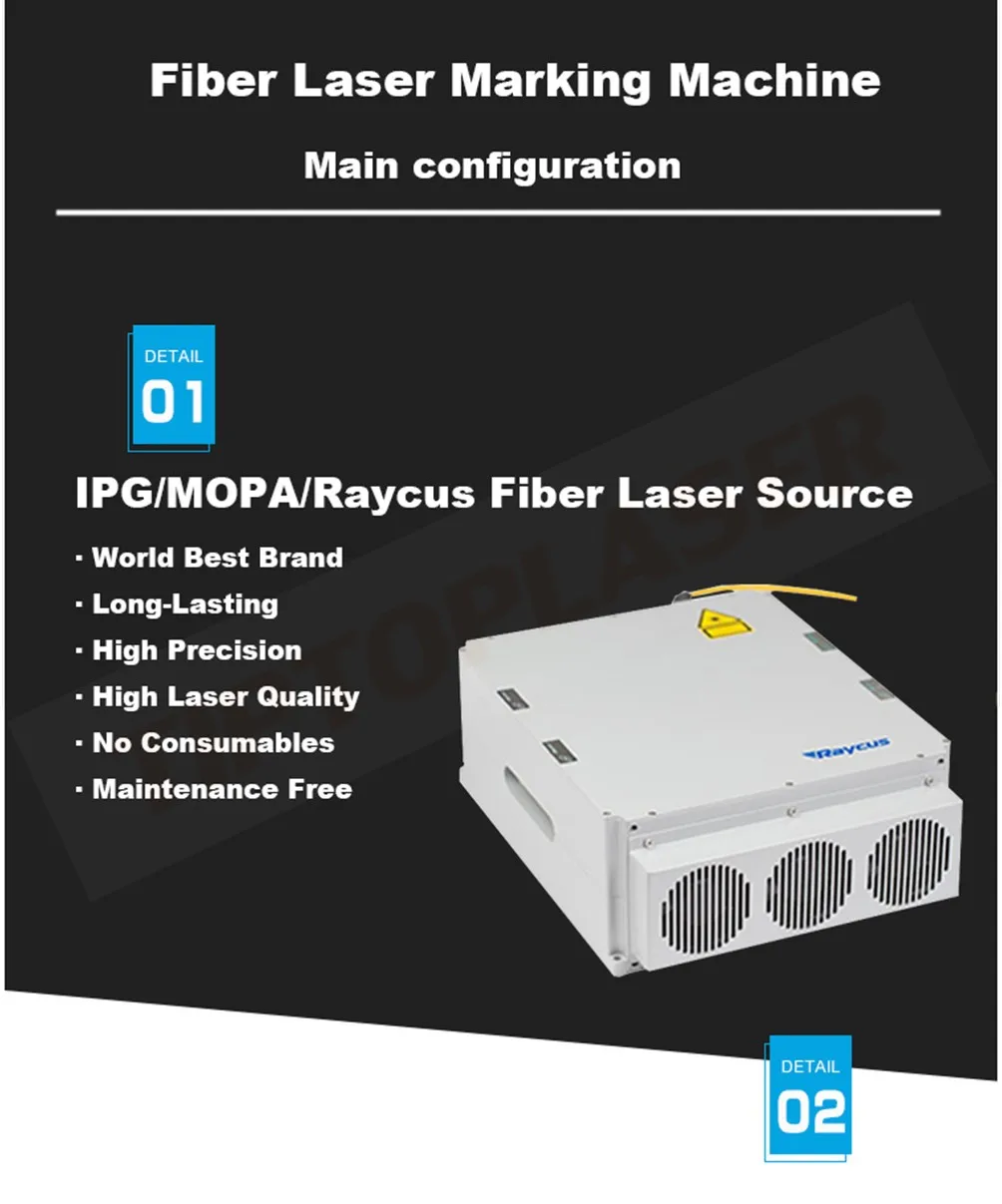

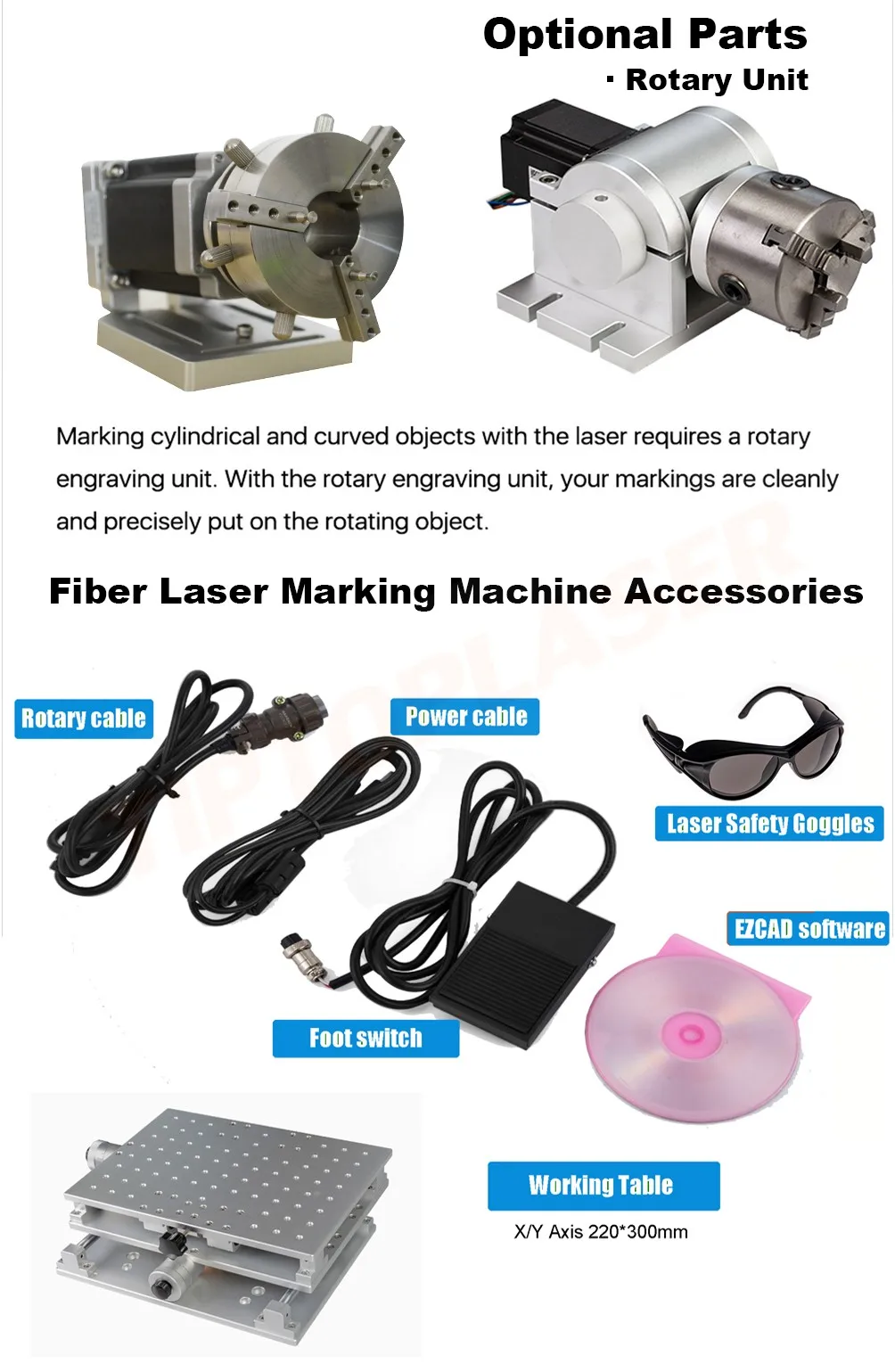

| 1.Fiber laser: German IPG fiber laser or China fiber laser Optional (different price); NO maintenance laser source; fiber laser working time is 70000 to 100,000 hours. 2.High-speed galvo scanner. German or USA Galvometer or China made Optional (different price) 3. Easy Operate without route maintenance 4.Higher precision, faster speed 5.Air cooling: Small size, low power consumption 6.Red light preview: show the marking position before marking 7. Up and Down Lifter laser head(desktop) and up and down worktable easy to marking engraving different workpiece 8.Rotary attachment optional: Engrave and mark inside and outside ring jewelry. 9.High-temperature resistance: perfect for marking medical equipment etc that requires sterilization 10. The durability & Finer Marking quality: optimize it for use in jewelry, mobile phones, and other items of value. 11. Computer Installed with Free Powerful software 12. User-friendly interface, easy operation set and deal different layers graphic in separate. Support PLT, PCX, AL, DXF, BMP, JPG formats file compatible AutoCAD, CorelDraw, Photoshop, etc software Automatic serialization, date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement, and amendment. |

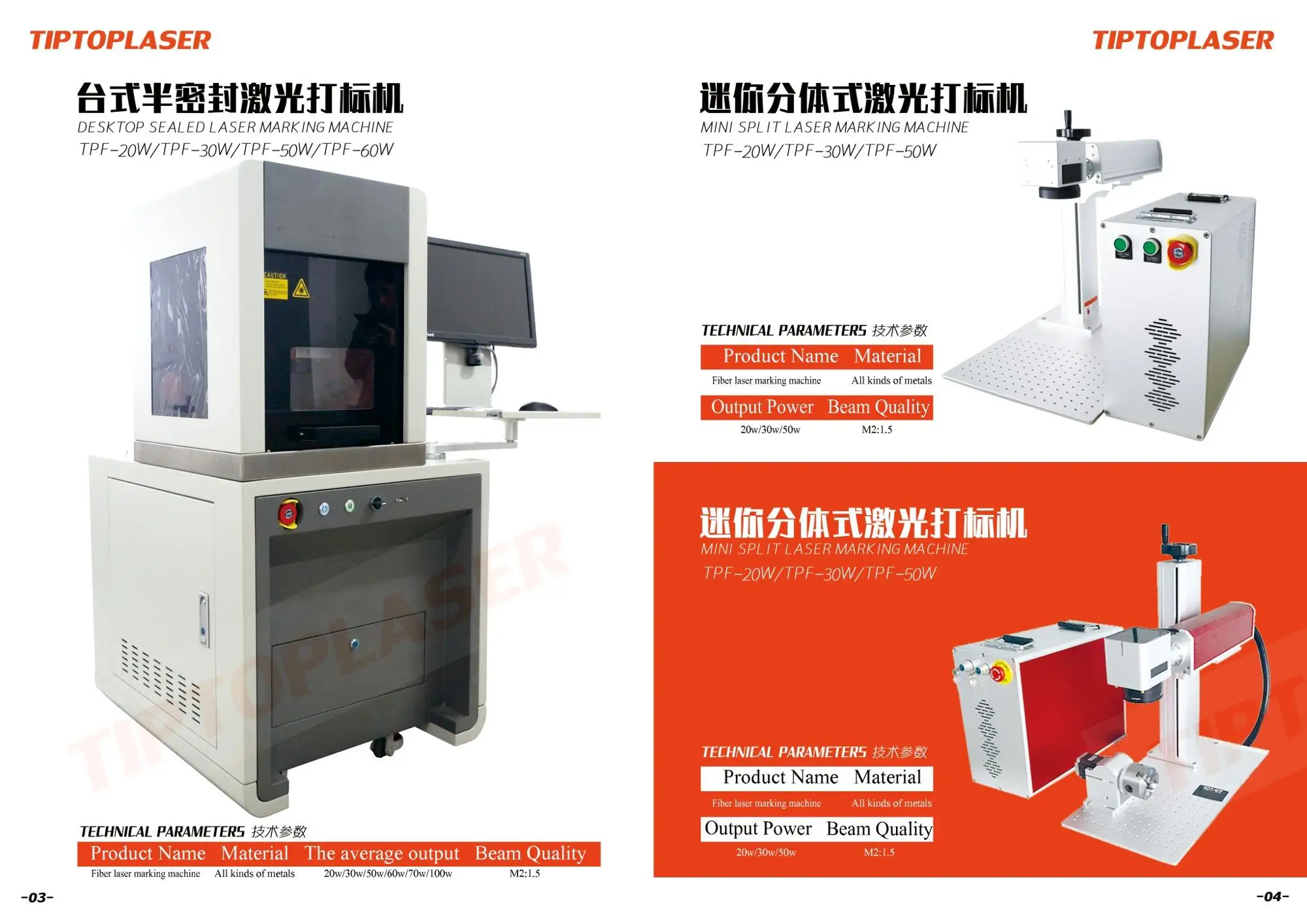

Other type
