ZH-800g Factory price High Productivity lock bottom folder gluer
US $11500-$13000
Хорошее качество, низкая цена, барабан Jingtai, пур плавник, 5 галлонов, термоплавкий аппликатор от производителя
- Category: Gluing Machines >>>
- Supplier: Fujian Jingtai Equipment Co. Ltd.
Share on (62272155085):
Product Overview
Description
Product Description

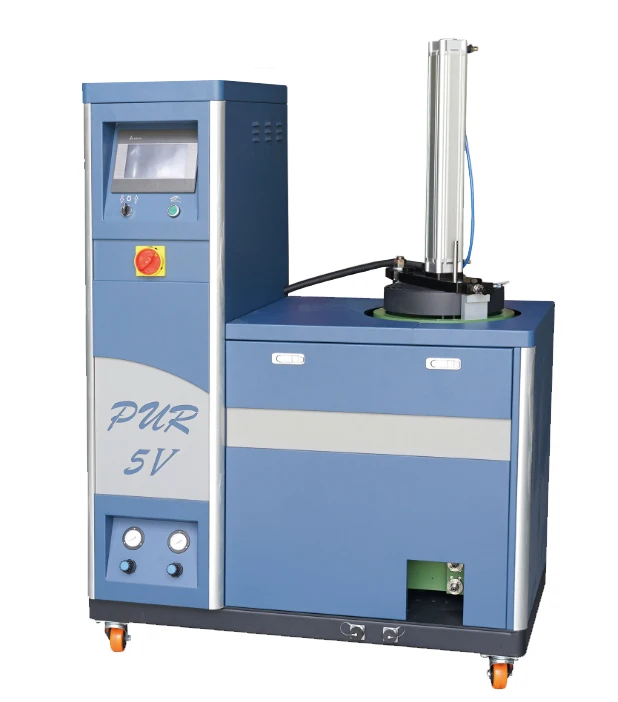

SPECIFICATIONS FOR PUR 05, PUR 55, PUR 5V MELTER | ||||||
MODEL | PUR 05 | PUR 55 | PUR 5V | |||
TANK CAPACITY | 5 gallon | 55 gallon | 5 gallon | |||
PUR PACKAGING | Barrel Packaging | Barrel Packaging | Aluminum Foil packaging | |||
TANK INSIDE DIAMETER | 280/286mm | 571.5±2mm | ||||
OPERATION TEMP. | 30℃-180℃ | 30℃-180℃ | 30℃-180℃ | |||
VISCOSITY | 1000-50000cps | 1000-50000cps | 1000-50000cps | |||
SETS OF HOSE & GUN | 1-2pcs | 1-2(3-4 customized) | 1-2(3-4 customized) | |||
SETS OF MOTOR | 1pc | 1pc (2pcs customized) | 1pc (2pcs customized) | |||
TYPE OF TEMP. CONTROL | Touch Screen | Touch Screen | Touch Screen | |||
TOTAL POWER | 4.4kw | 27kw | 8.4kw | |||
WEIGHT | 150kg | 432kg | 155kg | |||
DIMENSION | 1300*600*1600mm | 1580*800*2000mm | 1090*680*1550mm | |||
POWER DEMAND | AC220V/50HZ | AC380V/50HZ | AC380V/50HZ | |||
Main Features
1. Different melter tank capacity can be chosen, you can choose as according to your requirement;
2. 2-4 sets glue gun can be equipped, Improve work efficiency and reduce costs;
3. Large displacement gear pump can be chosen to meet your large PUR adhesive quantity requirement;
4. 1-15m hose can be chosen, large working area;
5. Manual or automatic glue gun can be supplied here. meet your different working situation;
6. Accept the OEM service, welcome to contact us.
Detailed Images
PUR 05 MELTER
Name: PUR 05 PUR Hot Melt Applicator
Brand: JINGTAI
Original: China
1. The glue output is stable;
2. The max. operation temperature is 180℃;
3. High quality and good price;
4. It can be equipped with 1-2 sets of heated hose & glue gun.
Glue gun
Name: Glue Gun
Brand: JINGTAI
Original: China
1. Manual glue gun or automatic glue gun can be chose;
2. Glue output way: bead spraying, strip spraying, mist spraying, scrape spraying.
Heated Hose
Name: Heated Hose
Brand: JINGTAI
Original: China
1. Customized hose length, min. length is1 meter;
2. The color can be chose, black or blue.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Testing support.
* View our Factory.
After-Sales Service
* Technology support.
* Specification and video direction.
Packing & Delivery
Packaging | ||
Size | 1400mm (L) * 650mm (W) * 1800mm (D) | |
Weight | 150-200kg | |
Packaging Details | 1. The packing is confirmed to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm. 2. In order to be waterproof, we usually use bubble film to wrap machine. 3. In order to avoid the machine being damaged in transit, the foam will be full filled between the machine and wooden carton. | |
Related Products
JT101-500
91.8% Response Rate
JT108
94.8% Response Rate

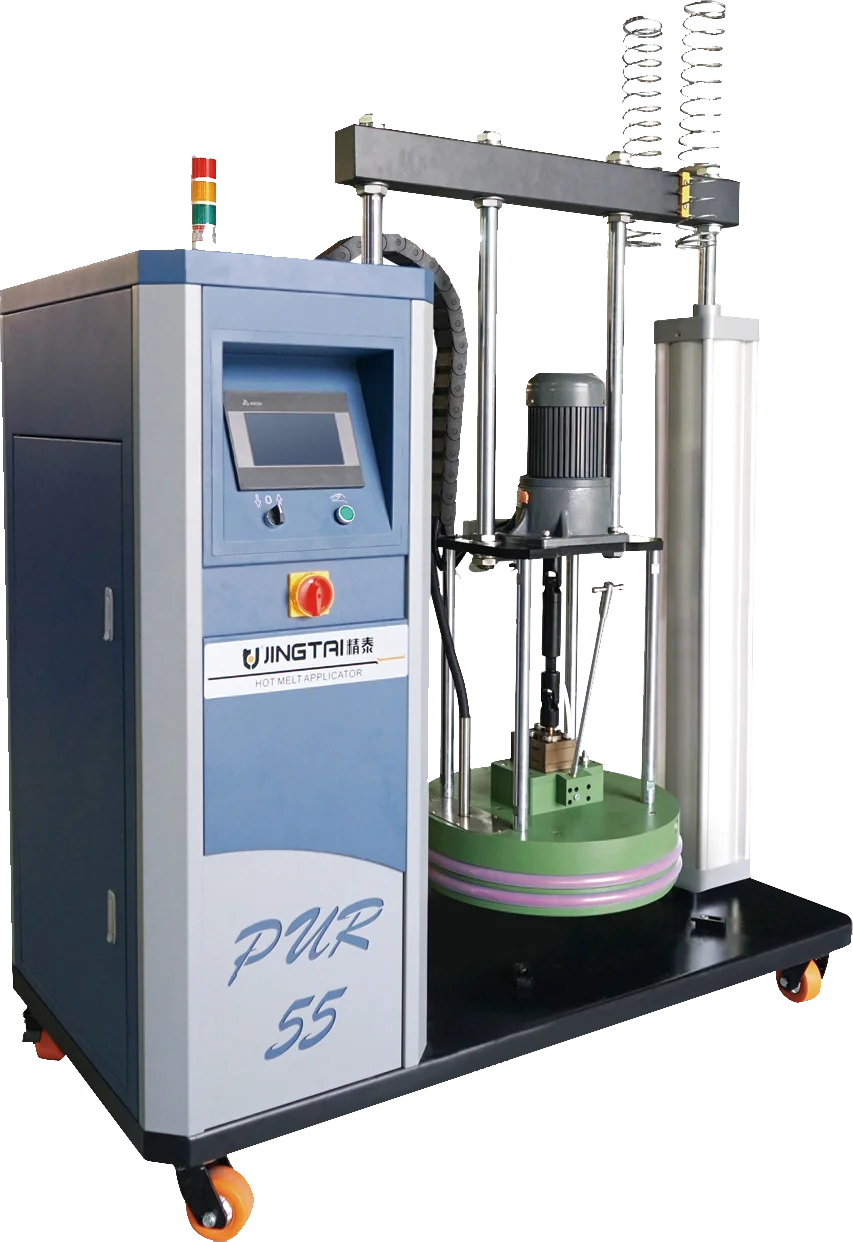

PUR 55
