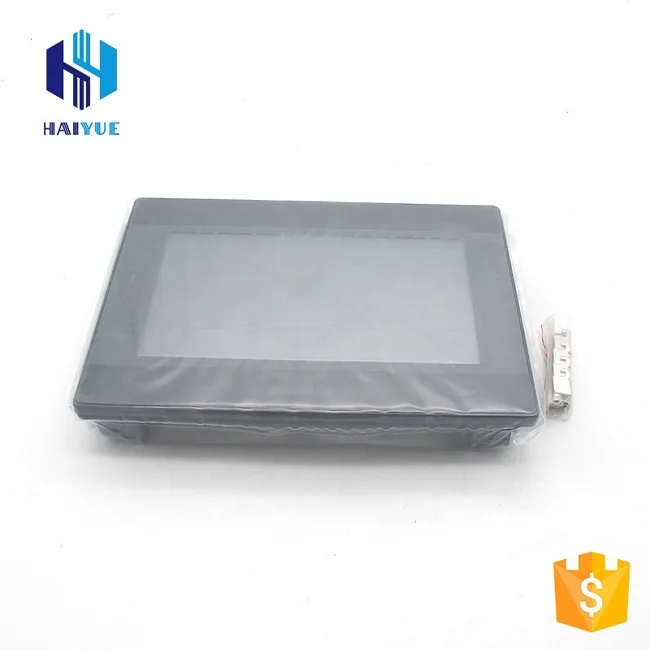

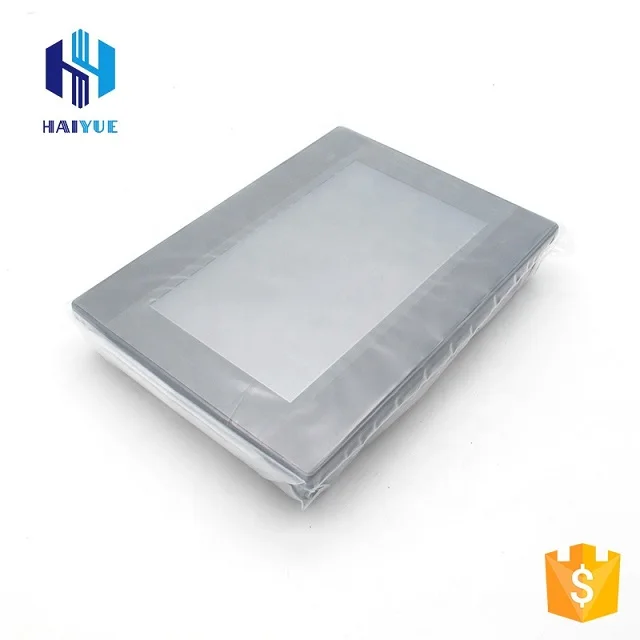

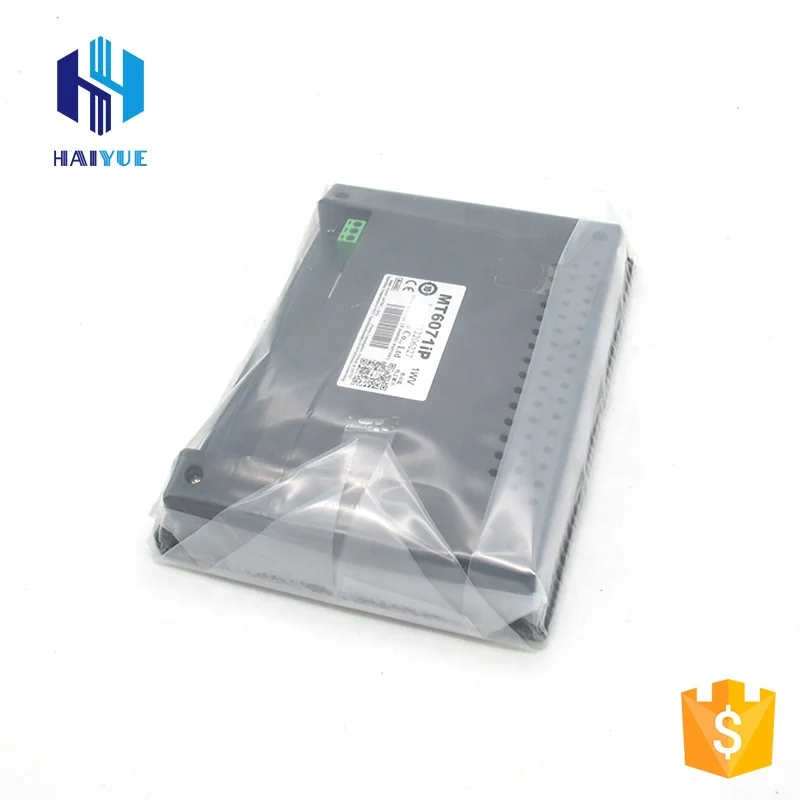

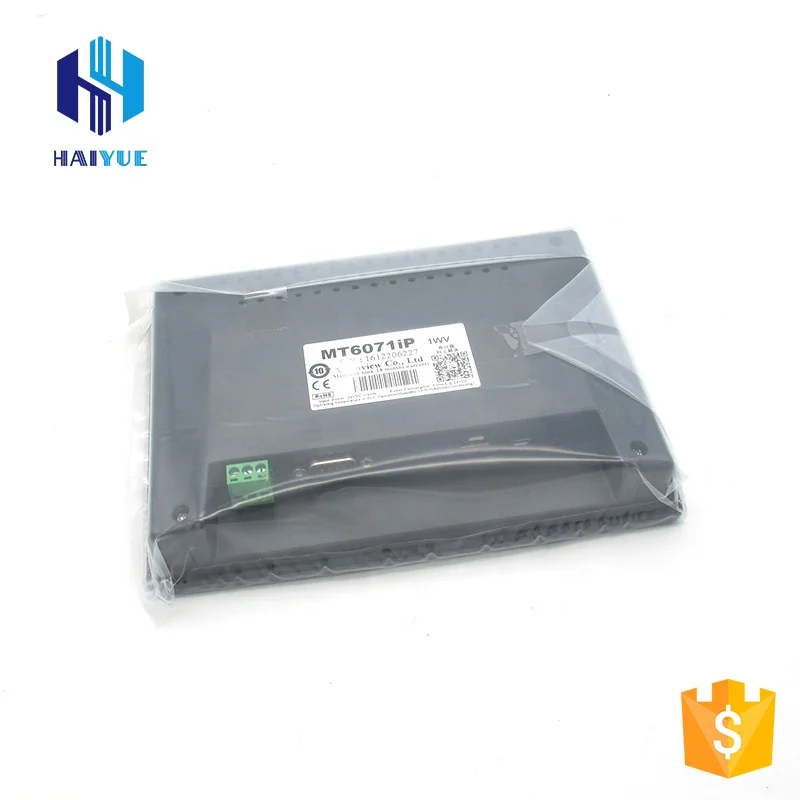

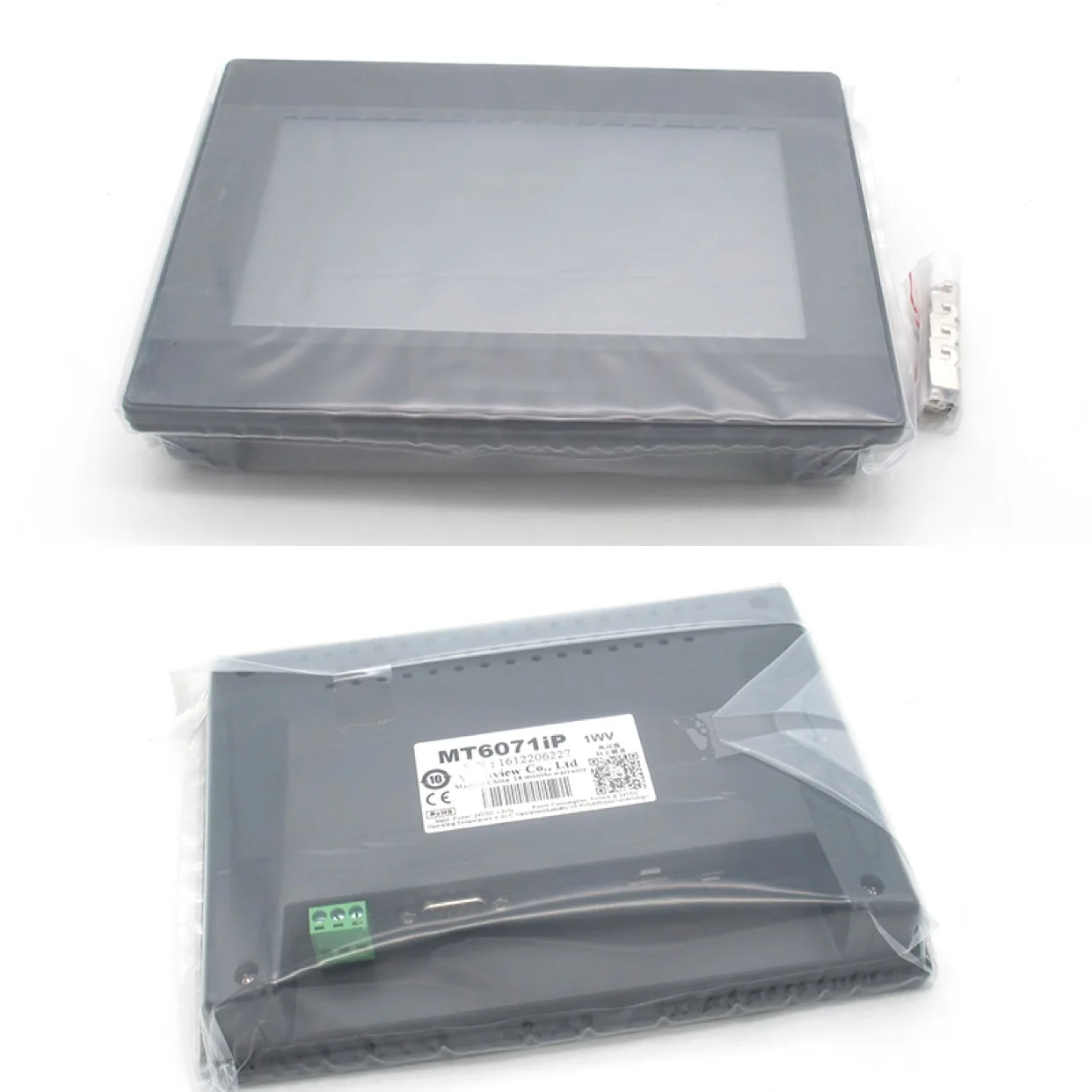

MT6071iP Weinview with Integrated Human Machine Interface Low Plc Hmi
Product Description
Display | display | 7” TFT LCD |
| Resolution | 800 x 480 |
| Brightness (cd/m2) | 300 |
| Contrast | 500:1 |
| Backlight type | LED |
| Backlight life | >30,000 hour |
| Display color | 16M |
| LCD viewing angle (T/B/L/R) | 70/50/70/70 |
Touch panel | type | four wire resistance |
| Touch accuracy | action area length (x) ± 2%, width (y) ± 2% |
Memory | flash memory (Flash) | 128 MB |
| internal memory(RAM) | 128 MB |
processor |
| 32 Bits RISC Cortex-A8 600MHz |
I/O port | USB Host | USB 2.0 x 1 |
| USB Client | USB 2.0 x 1 (Micro USB) |
| Ethernet | NO |
| serial interface | COM1: RS-232, COM2: RS-485 2W/4W |
| RS-485 Double isolation protection | NO |
permanent calendar |
| built-in |
Power supply | input power supply | 24±20% VDC |
Click here for More Information
