2021 машина для пескоструйной обработки без пыли на заказ с тележкой

No.

Items

Specification

Model

MD-MS03

1

Overall size (mm)

1200*1000*1700(L*W*H)

2

Working room size (mm)

1000*1000*580( L*W*H)

3

Dust Remove Room Size(mm)

430*380*1500(L*W*H)

4

Pressure

2-7Bar

5

Spray Gun

1 SET

6

Cart

1 SET

7

Rotated Table

1 SET

8

Lighting

13w/ LED ,explosion proof

9

Loading Weight

50-150KG

10

Machine Weight

250KG

11

Window

1 SET

12

Side Door Size (mm)

820(L)*720(W)

13

Power

0.6kw

14

Dust Remove Bags

700mm*180mm

15

Fan

8.5m3/min

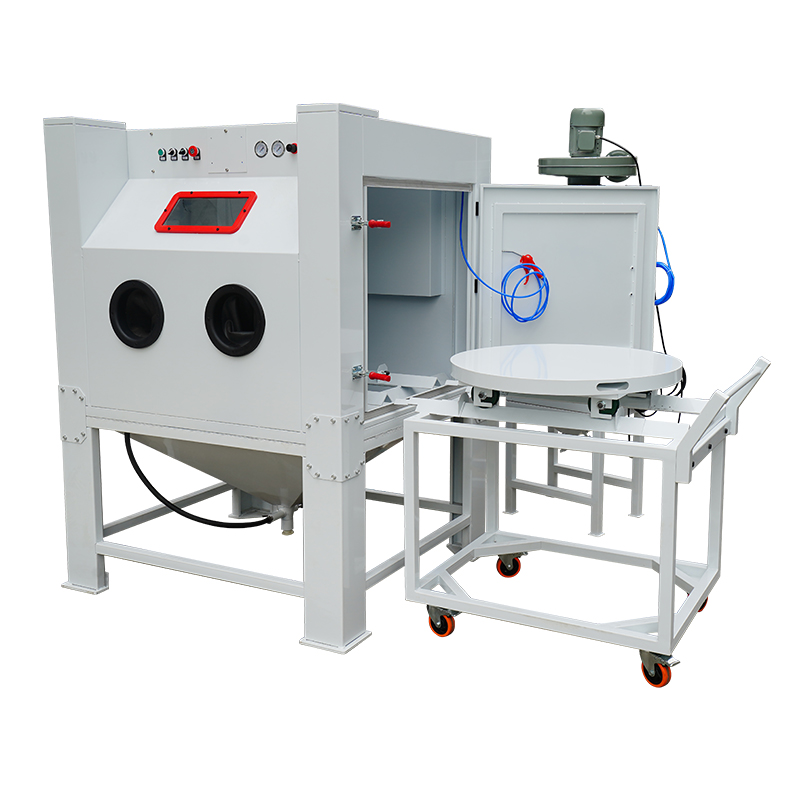

1. This model is for touch or large-scale heavier workpieces.

2. Install the activity trolley and change the disk. Only the workpiece should be placed on the trolley turntable during operation. Then, the turntable is pushed into the machine to engage in sandblasting operation, which is simple and labor-saving.

3. Window glass replacement is very convenient and quick, and the line of sight is very clean.

4. the machine uses powder baking paint, beautiful

5. sand material: alumina sand, carbonized sand glass brick, walnut sand, resin sand, plastic grain, ceramic sand

6.he metal parts of the sand blasting machine are basically not damaged, the dimensional accuracy will not change.

7. the surface of the part is not polluted, the abrasive will not chemically react with the material of the part

8. sand blasting machine can easily handle difficult parts such as grooves, abrasives of various sizes can be used

9. the processing cost is greatly reduced, mainly reflected in the improvement of the working efficiency of the sand blasting machine, can meet a variety of surface smoothness requirements

10. sand blasting machine does not pollute the environment, saves environmental protection costs

No.

Model

Size (L*W*D)mm

1

MD- MS01

Standard Sandblasting Machine

2

MD- MS02

Sandblasting Machine with Rotated Table

3

MD- MS03

Sandblasting Machine with Movable Cart

We can design it with different size
