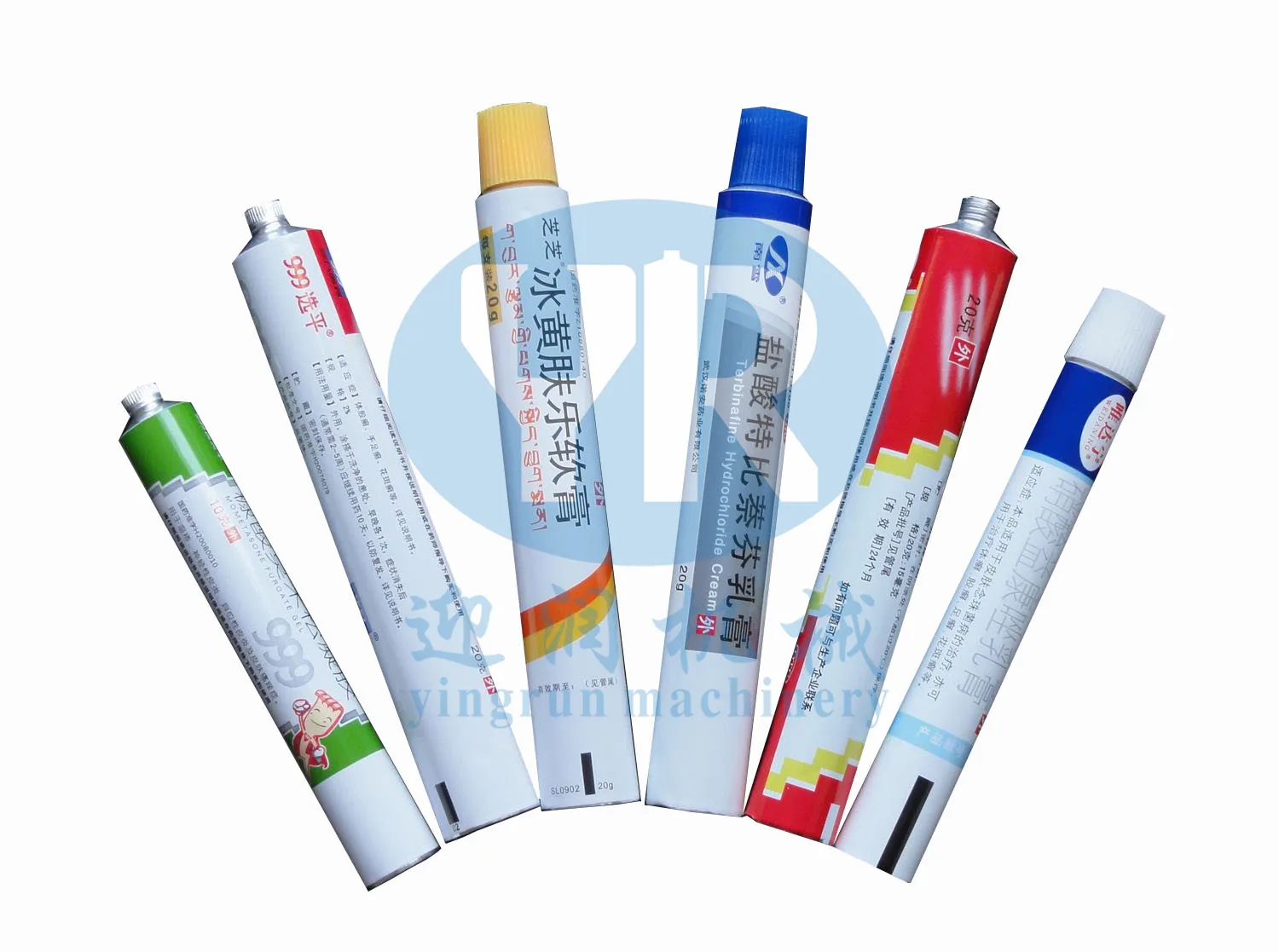

8-color printing machine is suitable for printing the surface of metal tubes like aluminum tubes and cans. It can realize polychrome printing of patterns in eight colors.
Base coated and dried germ tubes move into the tube slot and are inserted with printing mandrel by push rod. The ink is transferred to printing plate through ink fountain, ink roller, middle roller, oscillating rollers and rubber roller. The printing plate then transmits the pattern to the blanket cylinder with appropriate pressure and prints tubes with desired patterns. The manipulator takes tubes away from the mandrel and sends them to the transfer chain towards the drying oven. Aluminum tube printing adopts “circle presses circle” to realize polychrome printing.
Main features
1. It adopts SIEMENS PLC and Pro-face color touch screento displayinfor ation of speed and production. The machine has self inspection system. If tubes are not well inserted into mandrels, the machine will stop working. No tubes, no printing. Printing mandrel rotates automatically and can change frequency and speed. The printing units adopt Branch and R plate structure which is easy for replacement.
2. Point-moving regulating handle makes it easy to regulate printing.
3. Draw-out type printing components are convenientfor replacement.
4. Mandrel components adopt integral replacement, which is suitable for different types of aluminum tubes and convenient for changing mandrel.
Related Products
Aluminum soft tubes line

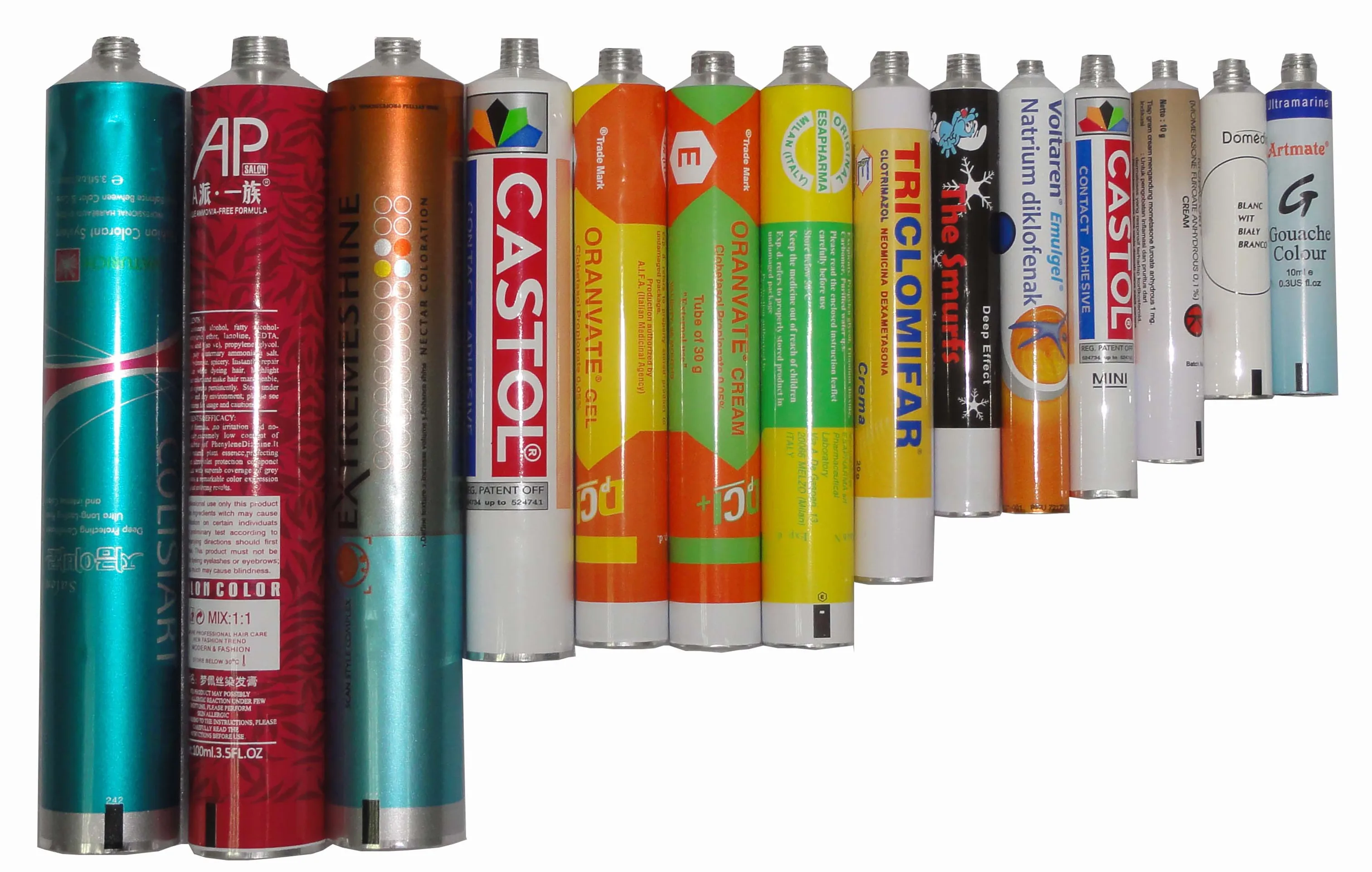

Aluminum soft tubes line or collapsible tubes line is a set of machines to produce tubes to pack products like ointment, artistic pigment, cosmetics, sealant, toothpaste, shoe polish, AB glue, hair dye, tomato sauce, chocolate sauce, instant adhesive, pen barrel, cigar, etc.

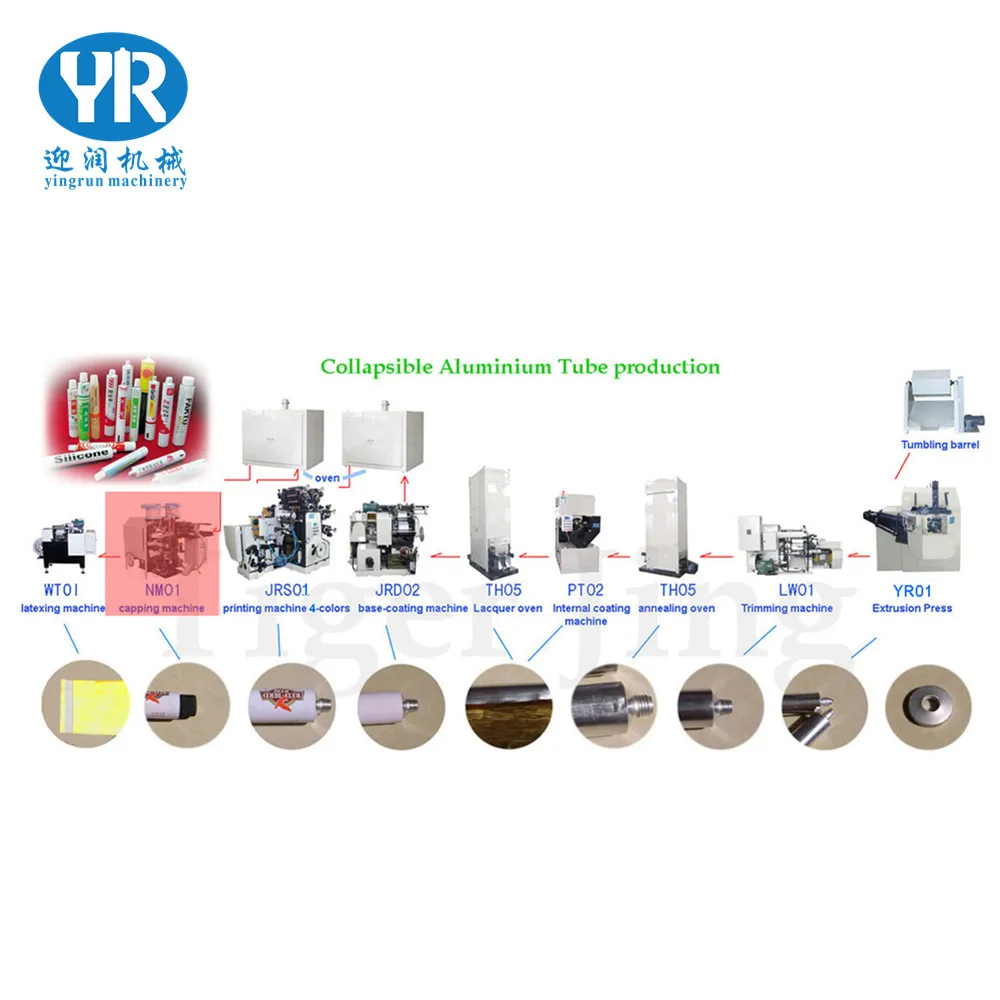

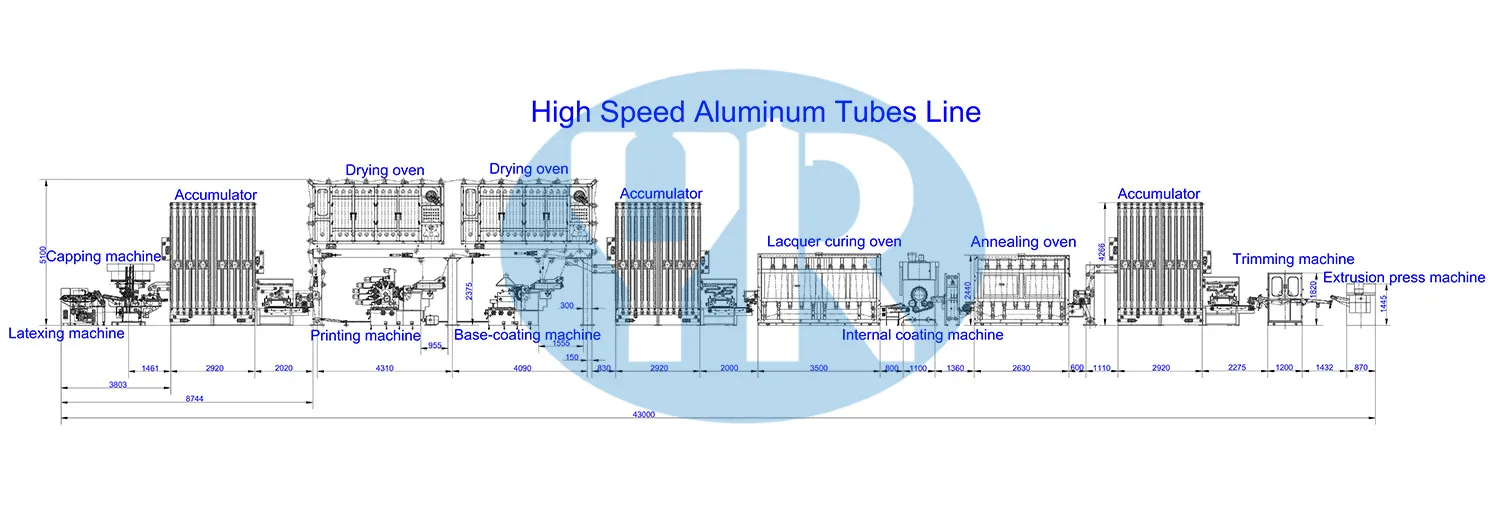

The YR series aluminum tubes lines produced by us are fully automatic. Each equipment of the series can work alone or form an automatic production line partially or fully, according to client’s needs. The machines include Extrusion press, Trimming , Annealing oven, Internal lacquering machine, Lacquering curing oven, Accumulator, Base-coating machine, 6-color and 8-color printing machine, Drying oven, Capping machine, Latexing machine and Packaging machine.
Other Machines
Extrusion Press Machine
Horizontal extruder is also called horizontal extrusion press machine. This is a specialized equipment which extrudes aluminum and other non-ferrous slugs into germ tubes or cylindrical objects and other shapes.
1. Nominal pressure: 1500kN
2. Tube diameter range:
φ16mm-φ25mmOr φ25mm-φ35mm
3. Tube length range: ≤200mm
4. Production speed: 90-120tubes/min
5. Motor power: 57Kw
6. Intake pressure: 0.6Mpa
7. Net weight: 6500 kg
8. Dimensions: 3287*1435*1450mm

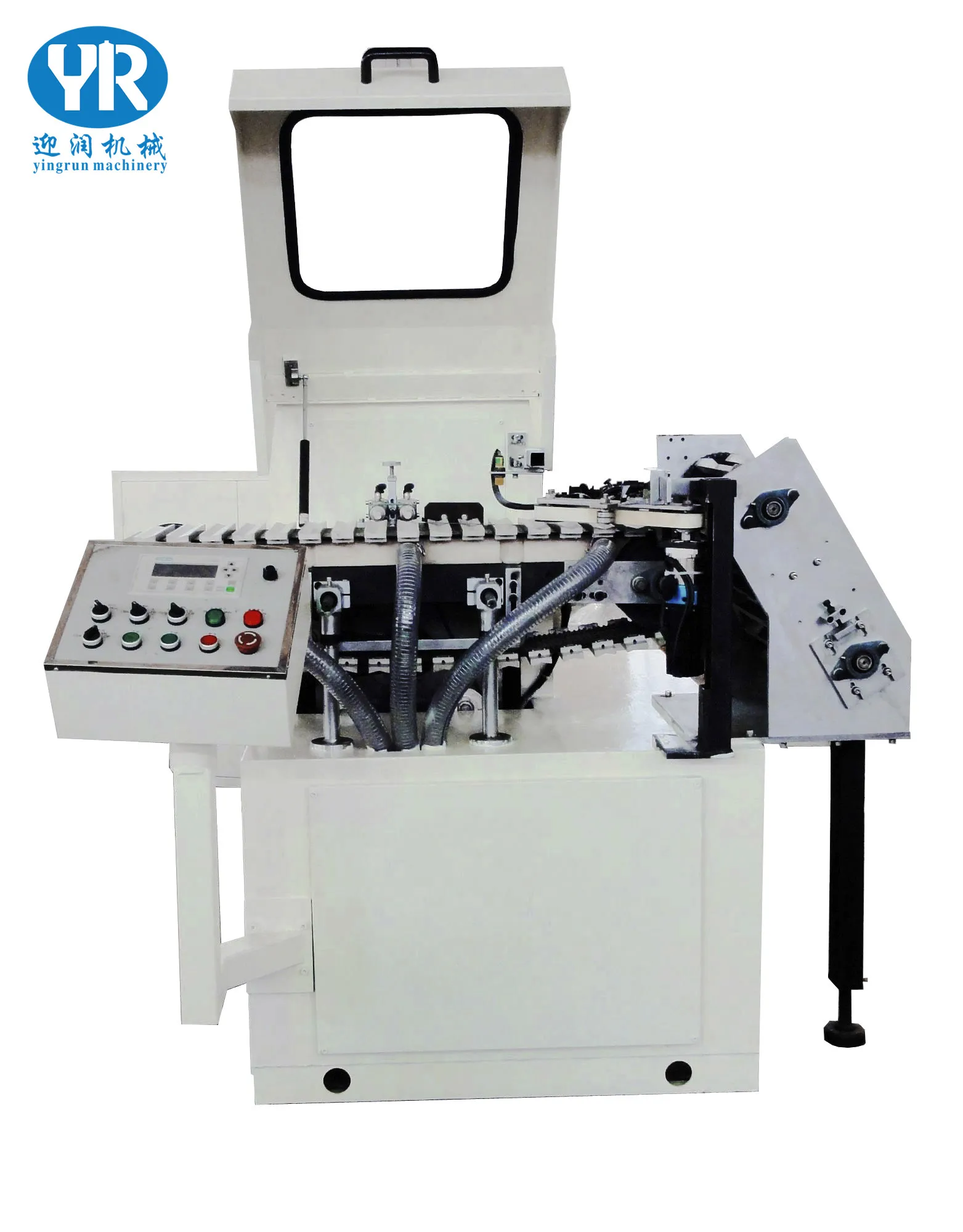

Trimming Machine
Trimming machine is also called aluminum tube trimming machine. This multi operation machine can work alone or form a production line by connecting with other machines. The operation includes trimming and sizing of the tube nozzle, thread forming, shoulder finishing, and trimming the tube to required length.
1. Tube diameter range: φ16mm-φ40mm
2. Tube length range: 200mm
3. Production speed: ≤120tubes/min
4. Motor power: 35KW
5. Dimensions: 2800*2500*1900mm
6. Net weight: 2800KG
7. Extruded thread range: ≤φ14mm (outer diameter)

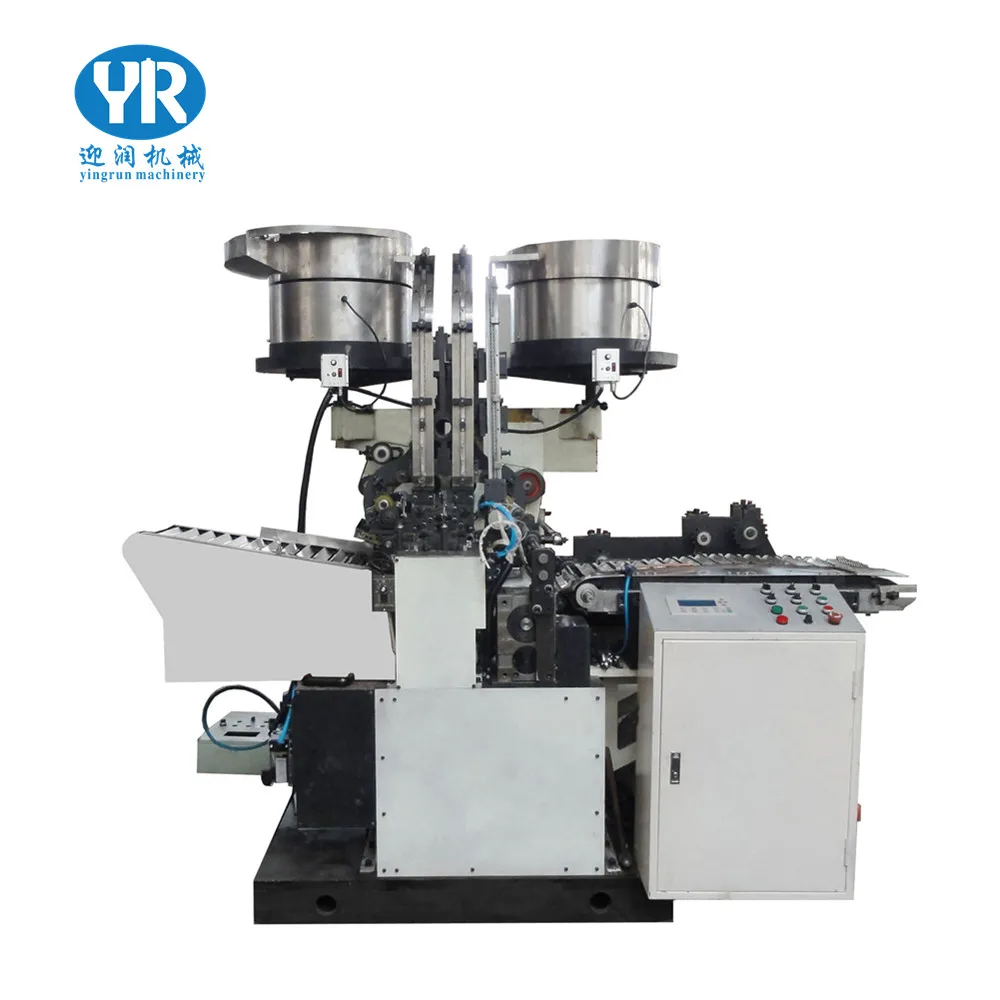

Capping Machine
Capping machine is used to cap aluminum tubes. Some products equipped with cleaning tops can have the cleaning function. The machine has a wide range of application and can cap various tubes.
1. Tube range: φ16-φ25mm or φ25-φ35mm
2. Tube length: ≤200mm
3. Production speed: 90-120 tubes/min
4. Motor power: 6.6KW
5. Dimensions: 2250*2200*2140mm
6. Weight: about 3200KG
7. Intake pressure: 0.6Mpa
Latexing Machine
Aluminum tube latexing machine is also called end spraying machine. It is supporting equipment for aluminum collapsible tube production line. The equipment can work alone or part of automatic production line by connecting with other aluminum manufacturing devices.
1. Tube range: φ16-φ25mm or φ25-φ35mm
2. Tube length: ≤200mm
3. Production speed: ≤120 tubes/min
4. Burning power: 6.3KW
5. Dimensions: 1600*1300*1280mm
6. Weight: about 1200KG
7. Intake pressure: 0.6Mpa

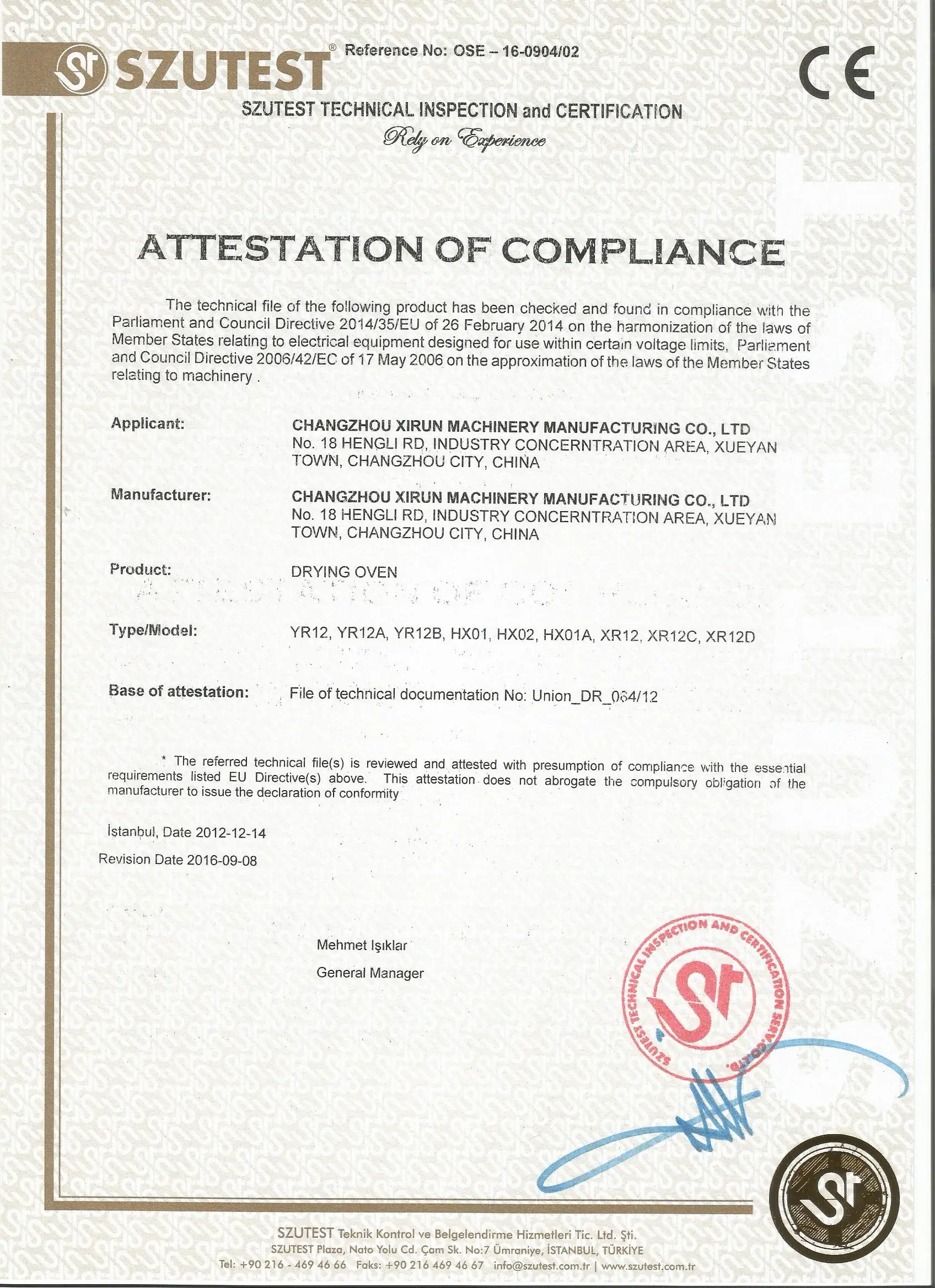

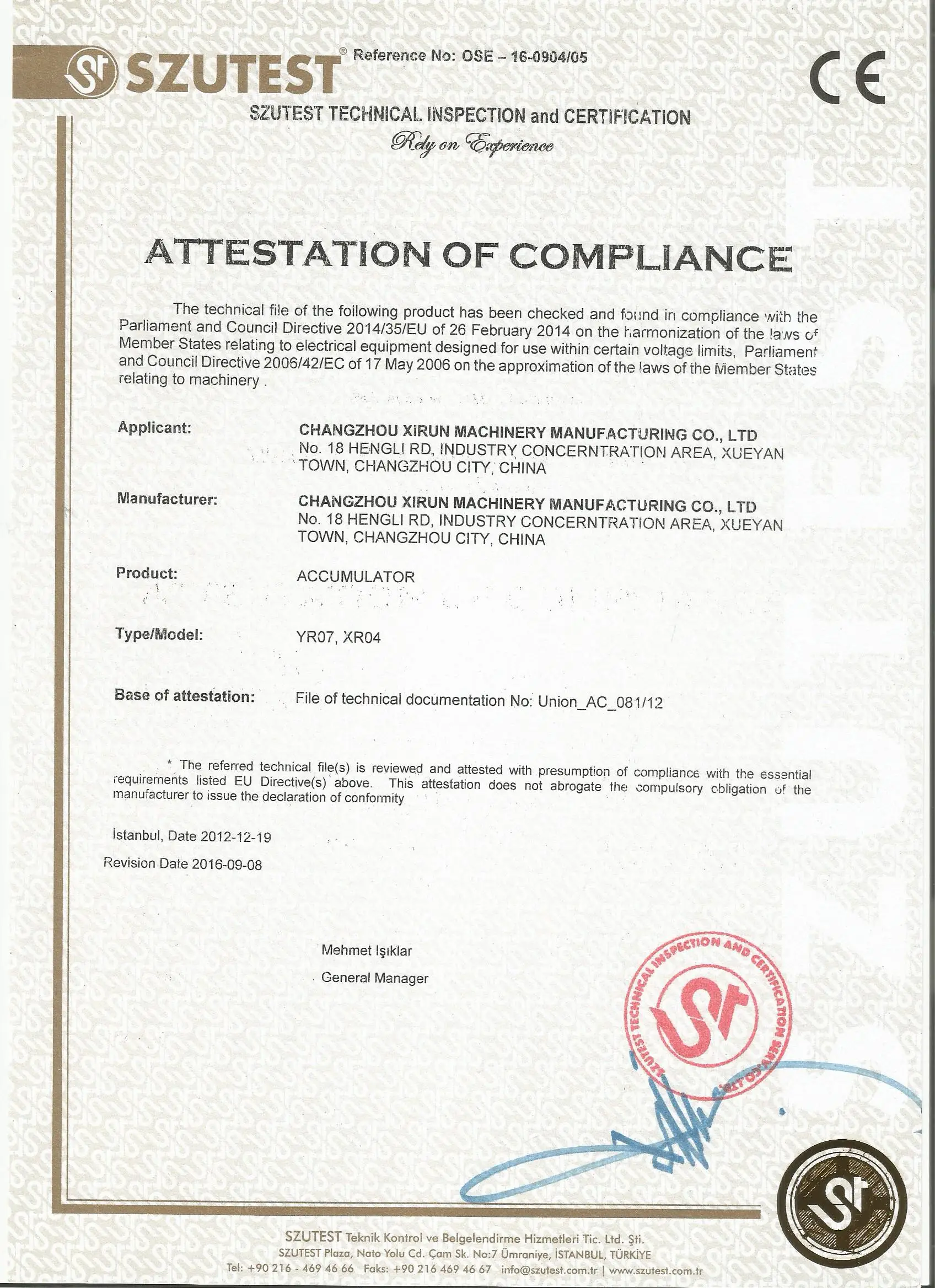

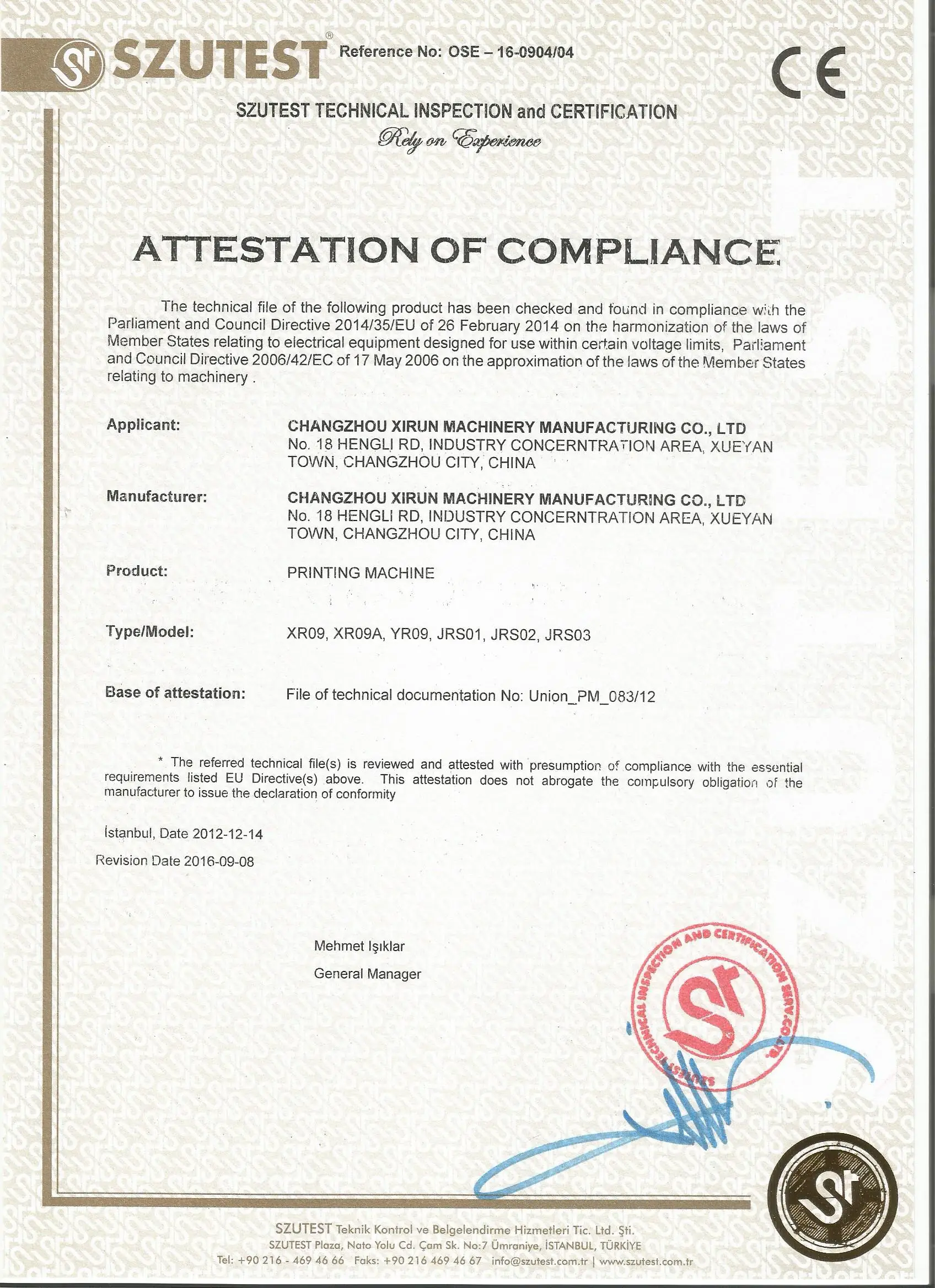

Certificate

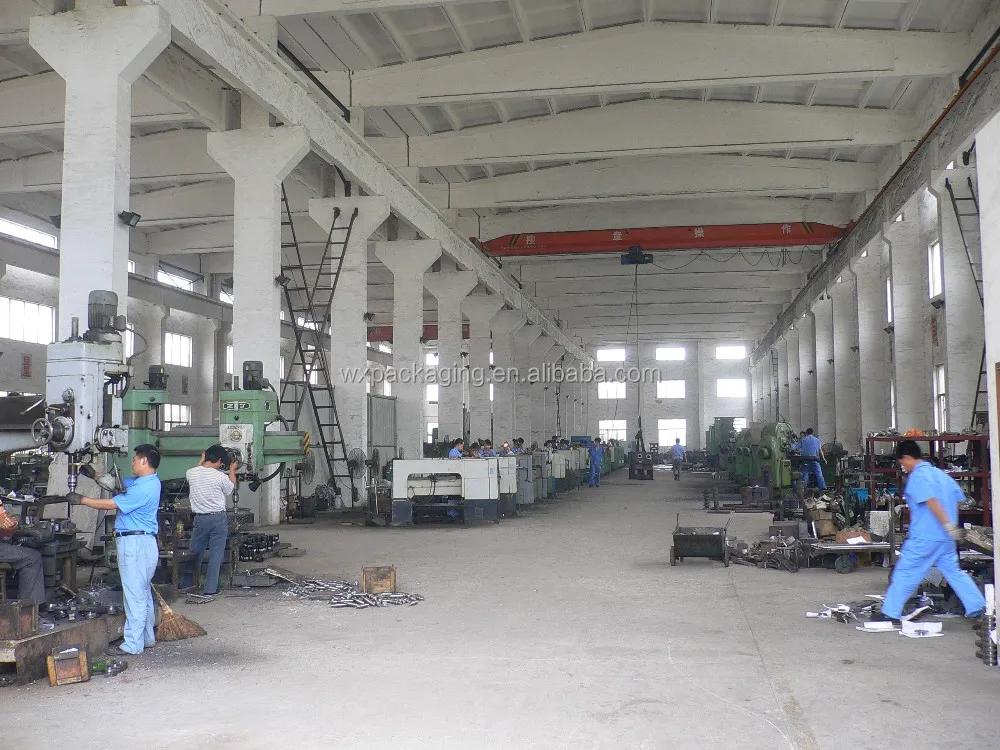

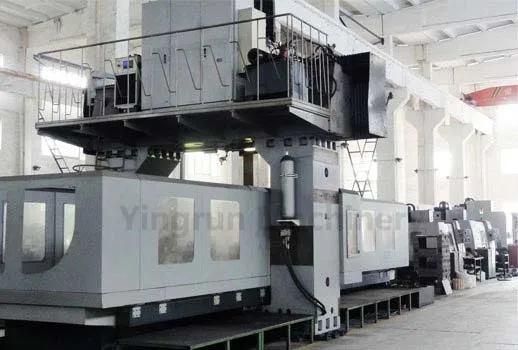

Company Introduction
Wuxi Packaging Technology Co.,Ltd is located in Wuxi city, which is 150km away from Shanghai.
The company is mainly focus on producing and selling machines for aluminum collapsible tubes line, aluminum aerosol cans line and toothpaste line, has taken part in this field for 20 years. Our machines have passed the European CE certification. We also provide professional consultation and service for clients.
Our machines are widely used to produce aluminum collapsible tubes, aluminum aerosol cans and bottles, fill toothpaste and other paste products.
“Create value for clients by professional service” is our forever company tenet. We are looking forward to cooperating with friends from different countries and creating the brilliancy together.
Customer Photos
FAQ
Q: What’s the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What’s the warranty time?
A: One year start from installed.
Q: How to use?
A: We offer paid installation, commissioning and training.
