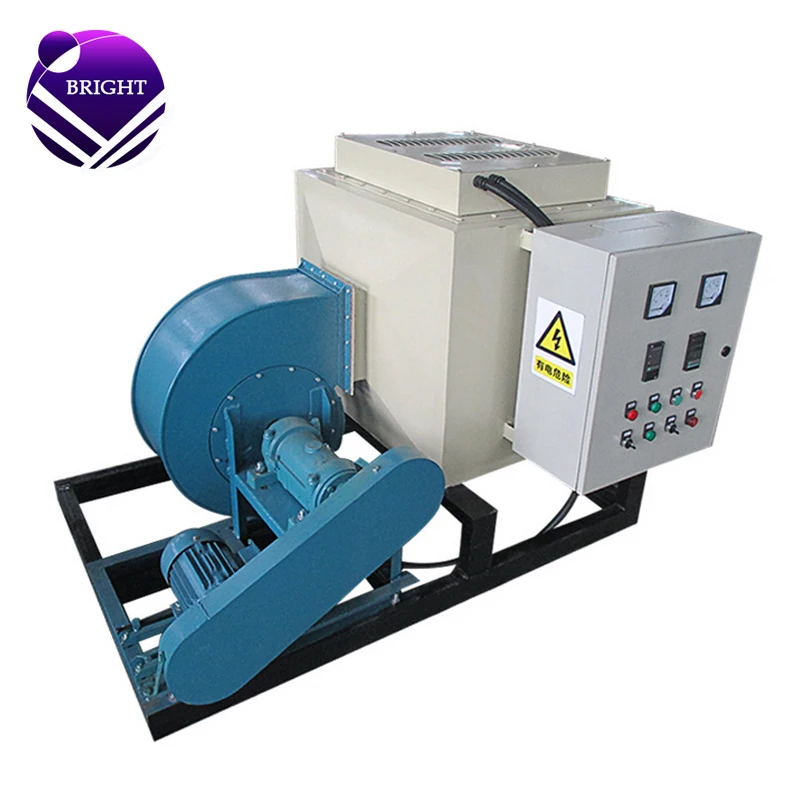

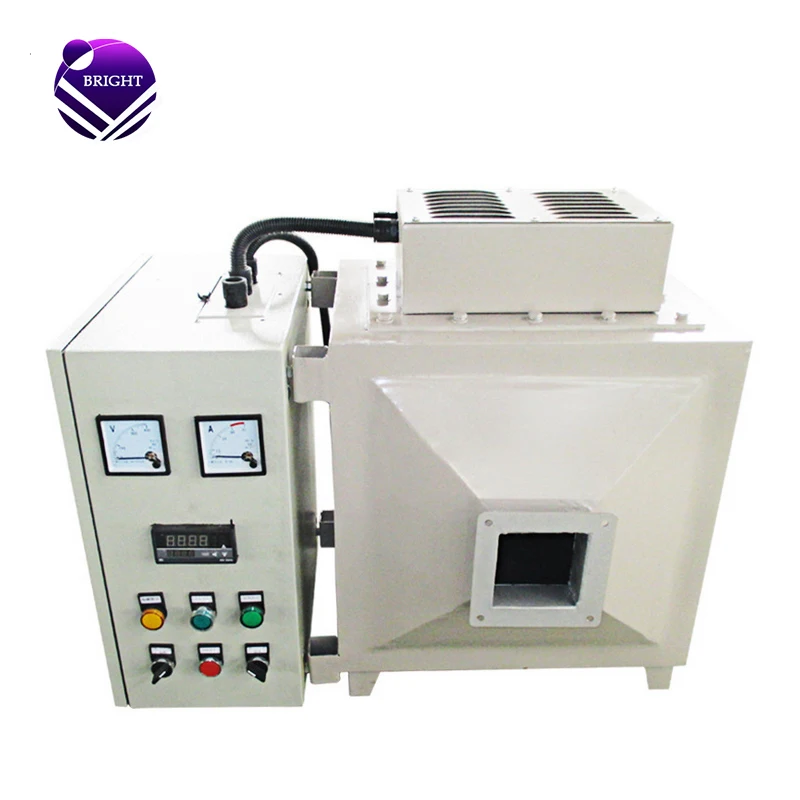

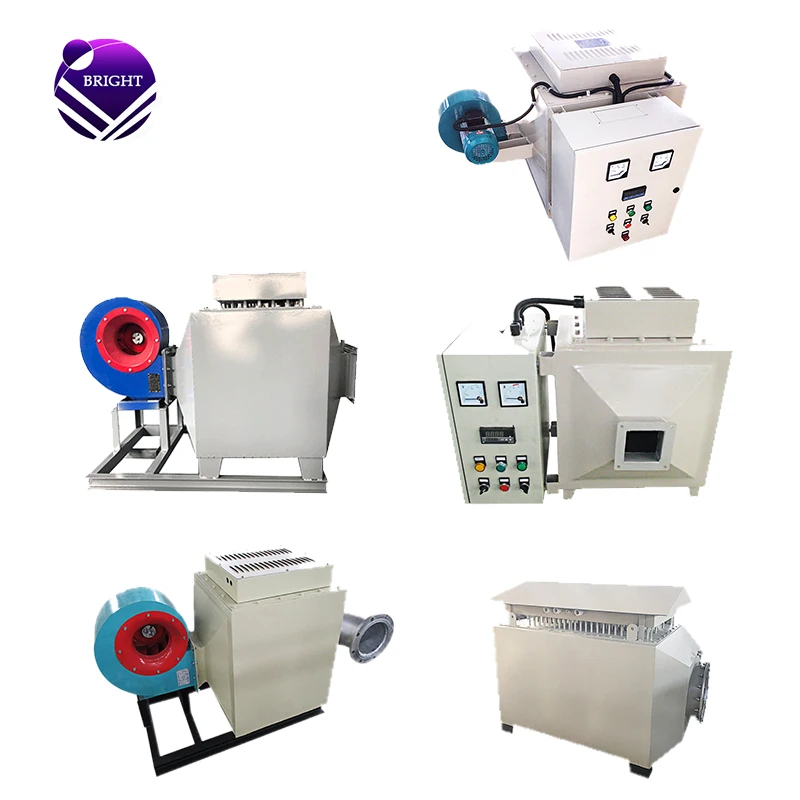

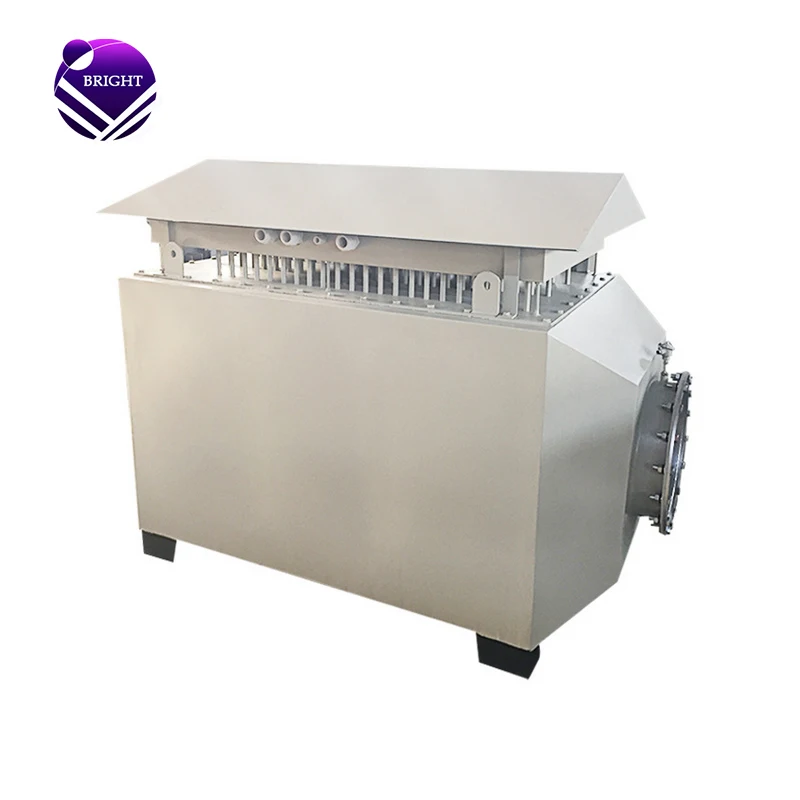

Industrial Electric Fast Heating Air Duct Heater with Blower for Paint Baking Room

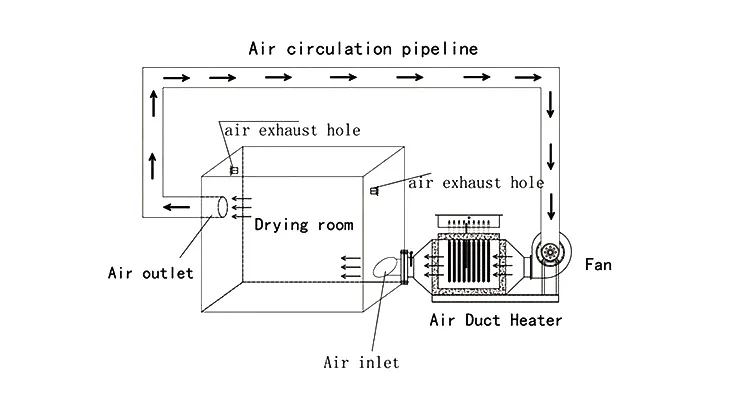

Electric Air Duct Heaters uses electric power as energy to convert electric energy into heat energy via electric heating element. Hot Air is circulated in the system through Air Blower, and circulating Air heating is used. Electic Air Duct heaters are energy efficient alternative to conventional Wood/Coal/Gas heaters.

Conventional Wood/Coal/Gas heaters need large storage space for heating equipment, manual labor area and large storage area (for wood or Coal) whereas Electric Air Duct Heaters are smaller in size and can be implemented/used in small spaces.

Conventional Wood/Coal/Gas heaters require additional equipment's to reduce pollution and be compliant with local pollution policies. Electric Air Duct Heaters doesn't pollute the environment and therefore environment friendly.

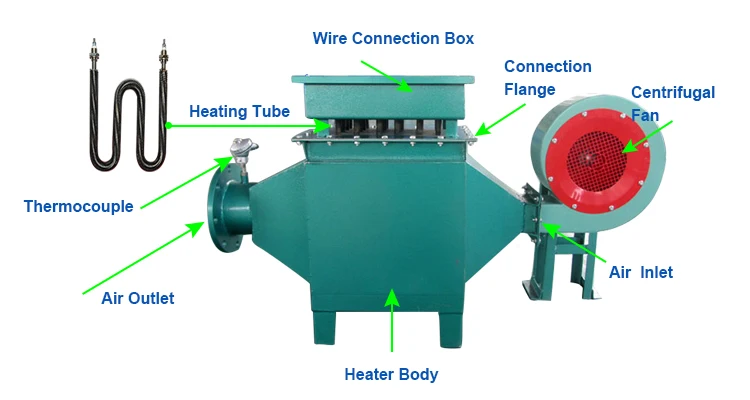

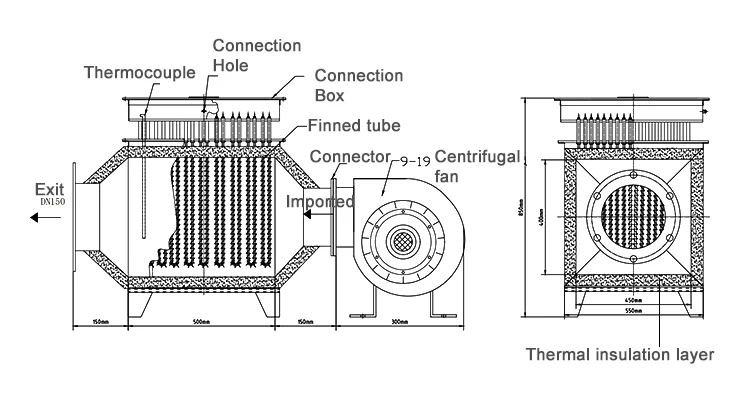

Composition structure:

Sheath house ( steel alloy, stainless steel ,or other material as your design)

Finned heating elements

Thermal insulators for keeping air temperature

Wire connection box

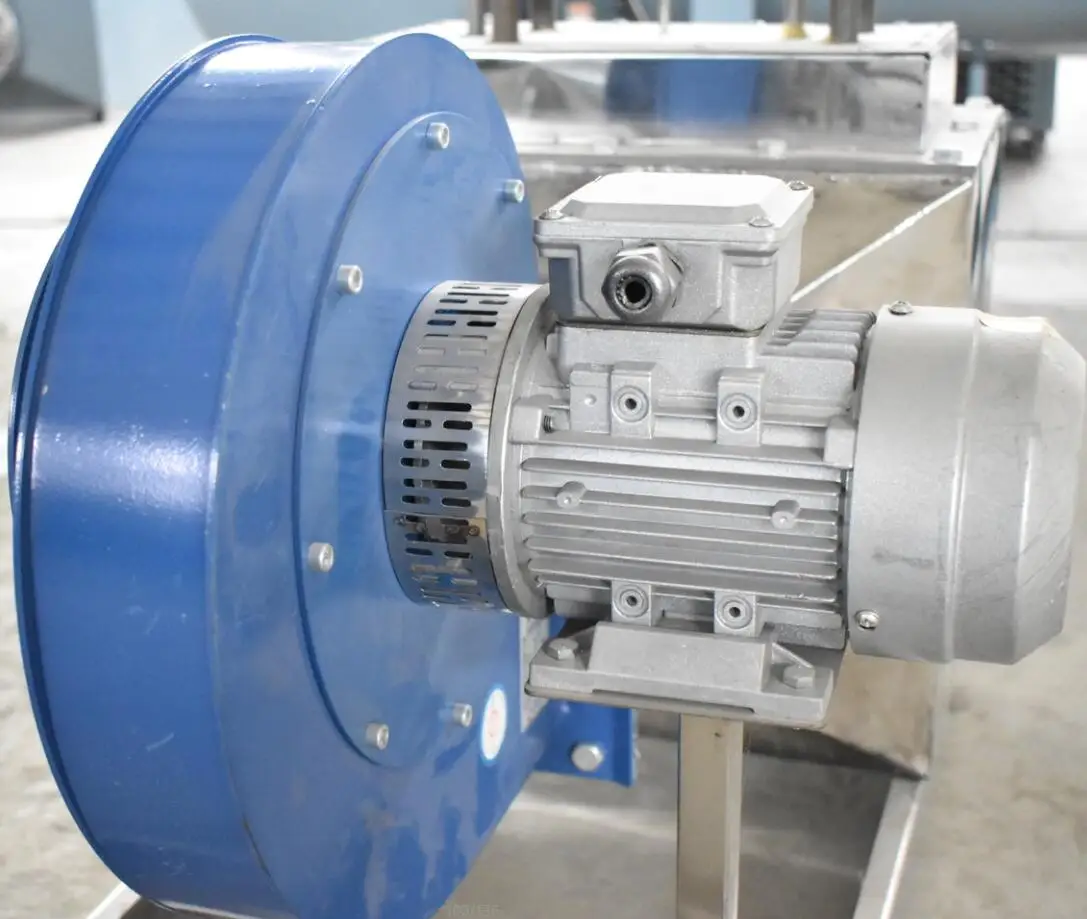

Centrifugal fan

Thermocouple

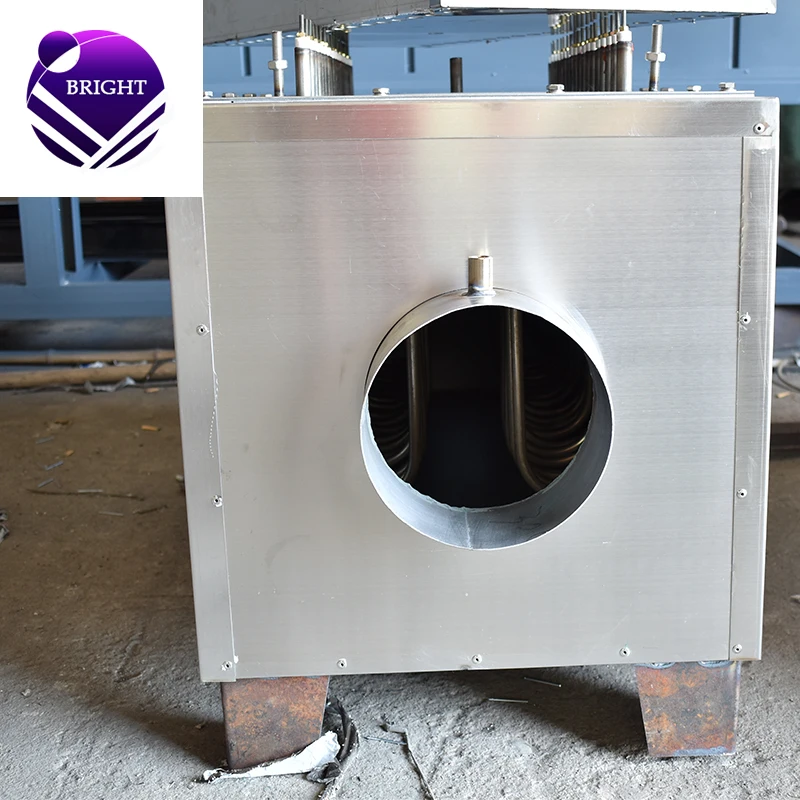

Inlet/Outlet hole

Temperature controller

Fuse

1)\tDuring heating, air max temperature can reach 500 degree Celsius or higher temperature, but the surface temperature of the sheath is just around 50 degree Celsius
2)\tHeat efficient is more than 95%
3)\tTemperature raise rate : 10 degree Celsius per second during working
4)\tThe heating elements is made of high temperature alloy with good mechanical character
5)\tUsage time: standard more than 10 years
6)\tClean air, small volume
7)\tMade as client design (OEM)
8)\tAfter reached the max temperate, the working wattage can reduce to half

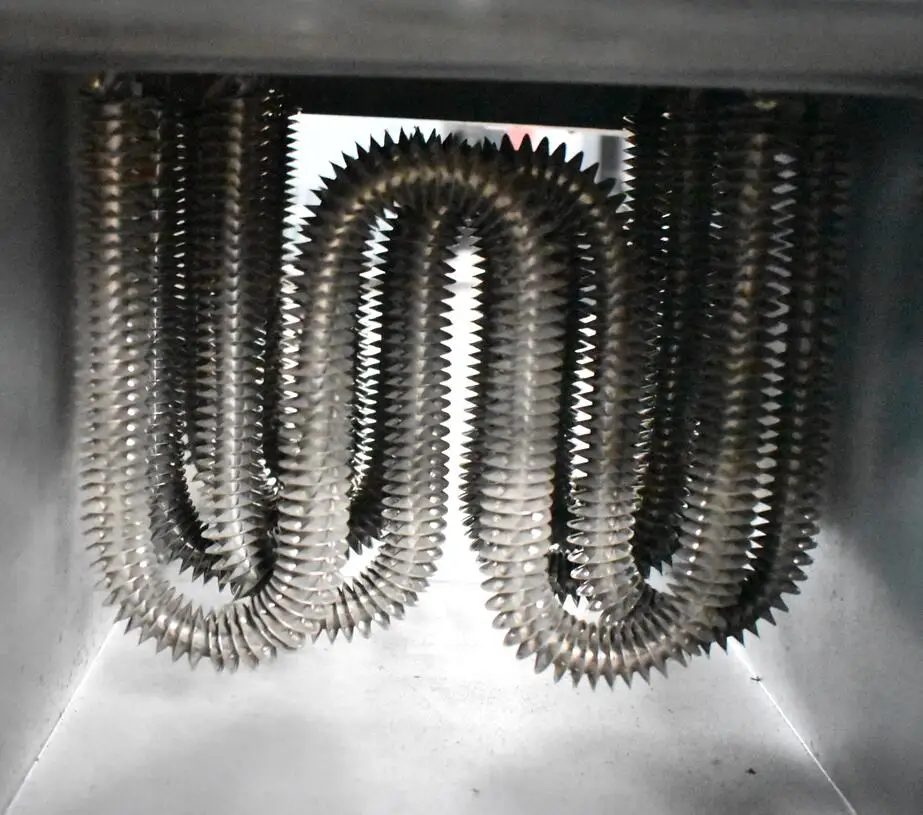

9)\tThe electric heating pipe is made of corrugated stainless steel strip, which increases the heat dissipation area and greatly improves the heat exchange efficiency.
10)\tReasonable design of heater, small wind resistance, uniform heating, no high or low temperature dead angle.
11)\tDouble protection, good safety performance. Temperature controllers and fuses are installed on the heater, which can be used to control the temperature of the air in the air duct and work without wind, so as to ensure that there is no mistake.

1)\tHeat treating
2)\tAir drying operations
3)\tAir handling equipment
4)\tForced air comfort heating
5)\tCore drying
6)\tFan coils
7)\tBooster air heater
8)\tAir pre-heating
9)\tTerminal reheating
10)\tMultizone reheating
11)\tHeat pump auxiliary systems
12)\tReturn air heating
13)\tResistor load banks

14)\tAnnealing
15)\tIn Air Handling Units
16)\tHeat treating
17)\tForced air comfort heating
18)\tBooster air heater
19)\tAir drying operations
20)\tCore drying
21)\tAir pre-heating
22)\tAir handling equipment
23)\tTerminal reheating
24)\tMultizone reheating
25)\tHeat pump auxiliary systems
26)\tResistor load banks
