Вращающаяся Центробежная сушилка горячим воздухом машина для сушки горячим воздухом вращающаяся цилиндрическая сушилка для сушки горячим воздухом
- Category: Metal Electroplating Machinery >>>
- Supplier: Linyi Guangcai Metal Surface Technology Co. Ltd.
Share on (62278627555):
Product Overview
Description
Product Description
Hot air centrifugal dryer features:
1. The principle of centrifugal drying is adopted, and the drying efficiency is high.
2. Using the foot brake device, the drum can be stopped quickly.
3. The container is made of stainless steel and has a long service life.
The dryer uses a centrifugal and hot air convection principle to dry the workpiece. Specifically, the motor is driven by a belt to drive the stainless steel cylinder to rotate, to remove most of the water, and then to heat the air by means of an electric heating tube installed on the cylinder cover, and to form a hot air circulation heating part, thereby achieving the purpose of rapidly drying the parts. . When the parts are completely dry, if you need to stop as soon as possible, you can use the pedal brakes to complete the production efficiency. The machine is also equipped with a leakage switch, a thermal overload relay, protection against leakage and protection of the line and motor overload or short circuit protection.
2. Using the foot brake device, the drum can be stopped quickly.
3. The container is made of stainless steel and has a long service life.
The dryer uses a centrifugal and hot air convection principle to dry the workpiece. Specifically, the motor is driven by a belt to drive the stainless steel cylinder to rotate, to remove most of the water, and then to heat the air by means of an electric heating tube installed on the cylinder cover, and to form a hot air circulation heating part, thereby achieving the purpose of rapidly drying the parts. . When the parts are completely dry, if you need to stop as soon as possible, you can use the pedal brakes to complete the production efficiency. The machine is also equipped with a leakage switch, a thermal overload relay, protection against leakage and protection of the line and motor overload or short circuit protection.
Product Name | Centrifuge dryer |
Material | PP raw material |
Size | Full specification |
Application | Rapid dehydration drying |
Heating source | Electricity |
Instructions:
1. Before starting the machine, check the connection of the power supply, whether the fixed position of the drum is
correct, connect the power supply, open the upper cover, turn on the motor switch, let the drum run idly, and the steering should be indicated with the arrow inside the housing. To the same, turn on the heating wire switch. After a few minutes, hot air can be discharged. If the heating wire has been working for 5 minutes, there is still no hot air exhausted. Check whether the heating wire exhaust port is blocked.
2. The lid should be put down during the drying work. The workpiece should be stopped when loading and unloading. Note that the workpiece should be evenly distributed in the drum. Otherwise, the centrifugal force will not be parallel, and the dehydration opportunity will be shaken violently. The workpiece of the drum can not be overloaded, and it should not be overfilled. If the dry workpiece is small in density or easy to store liquid, first centrifuge and dry for 1-2 minutes, take out the drum, turn the workpiece to the position, and heat and centrifuge to achieve satisfactory Effect.
3. To use the drum to stop, first stop the electric machine, then use the foot to brake the brake plate, but remember to stop the motor without braking. The dehydrator can be separately centrifuged without heating, but the motor cannot be shut down and heated separately for drying.
4. Before using the dehydrator, read the instructions
2. The lid should be put down during the drying work. The workpiece should be stopped when loading and unloading. Note that the workpiece should be evenly distributed in the drum. Otherwise, the centrifugal force will not be parallel, and the dehydration opportunity will be shaken violently. The workpiece of the drum can not be overloaded, and it should not be overfilled. If the dry workpiece is small in density or easy to store liquid, first centrifuge and dry for 1-2 minutes, take out the drum, turn the workpiece to the position, and heat and centrifuge to achieve satisfactory Effect.
3. To use the drum to stop, first stop the electric machine, then use the foot to brake the brake plate, but remember to stop the motor without braking. The dehydrator can be separately centrifuged without heating, but the motor cannot be shut down and heated separately for drying.
4. Before using the dehydrator, read the instructions

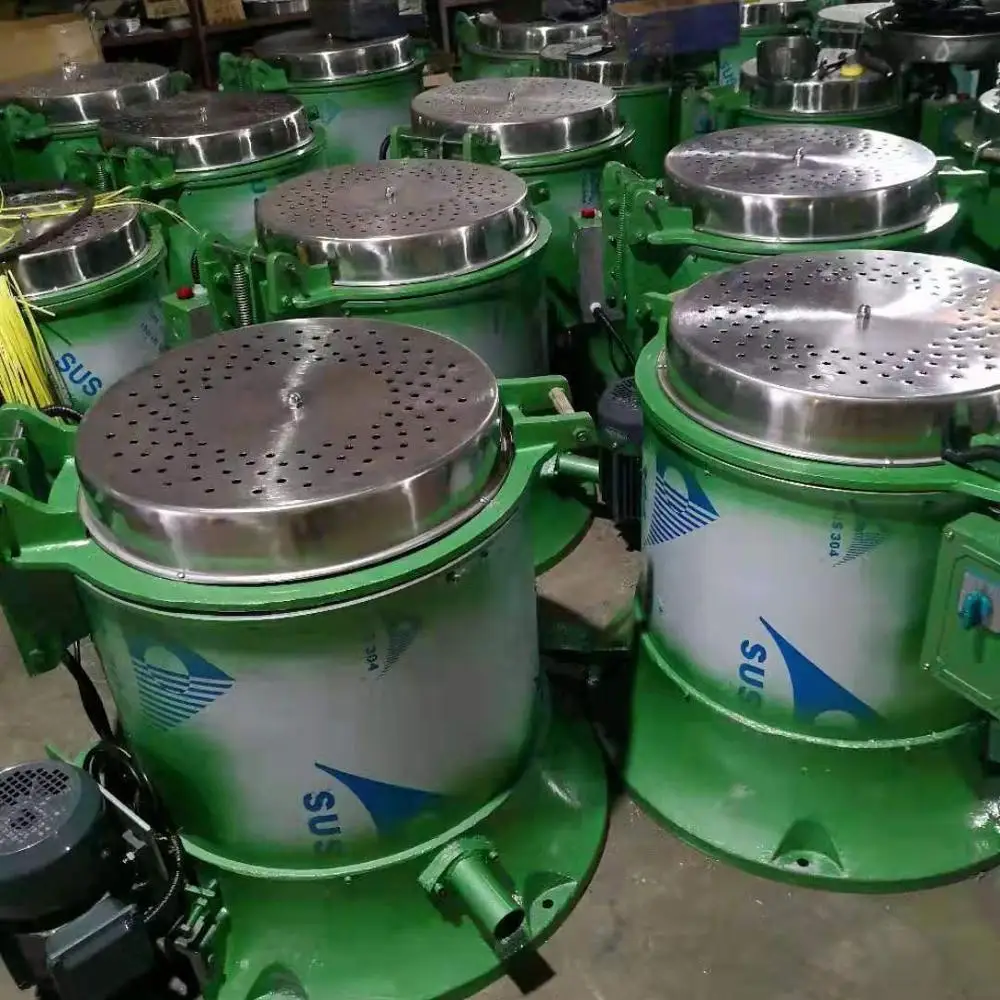

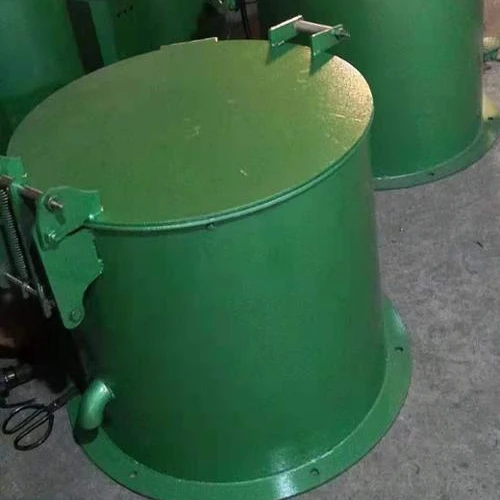

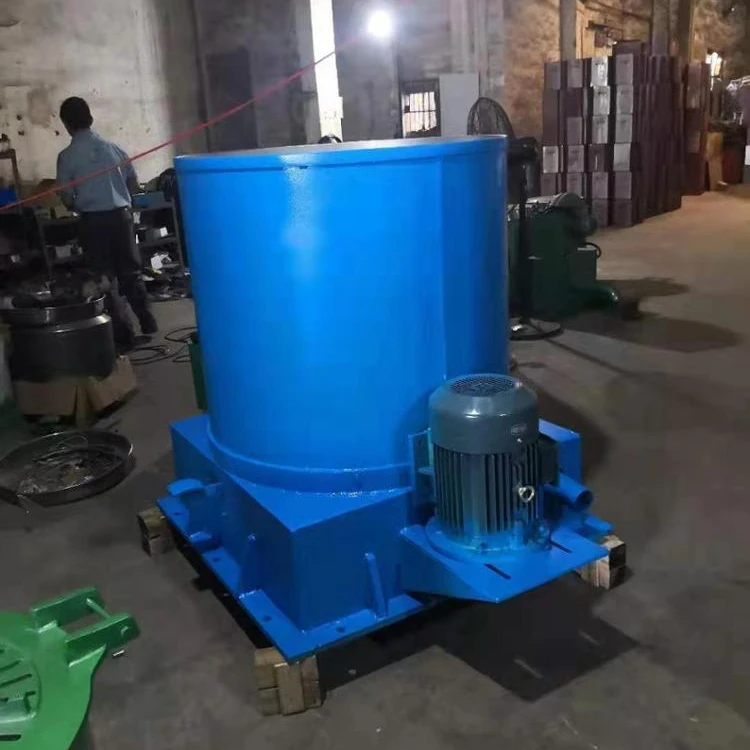

Products Show
Equipment shipment
Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What's the lead time for one project?
A: It usually would take about 15-30days for production and the time is based on specific projects.
Q: We need plating machine for ×××, could you send me a quotation?
A: Because plating machine is always customized for different products, we'd like to send you quotation and make the design for you based on knowing detailed information from you first.
Q: What is the necessary information you need for design?
A: The plating prosess you have had, The capacity of your per products, The material, weight, size, and surface area of your per product, The thickness of plating layer, Your working hours per day, Type of salt spray test and time, Workshop dimension and so on
