Industrial Steel MIG CO2 Gas Shielding Welding Robotic Arm
Industrial Steel MIG CO2 Gas Shielding Welding Robotic Arm
Industrial Steel MIG CO2 Gas Shielding Welding Robotic Arm
Industrial Steel MIG CO2 Gas Shielding Welding Robotic Arm
Industrial Steel MIG CO2 Gas Shielding Welding Robotic Arm
Industrial Steel MIG CO2 Gas Shielding Welding Robotic Arm
Industrial Steel MIG CO2 Gas Shielding Welding Robotic Arm

Industrial Steel MIG CO2 Gas Shielding Welding Robotic Arm

Share on (62279450953):


Price:$8,500.00

Quantity:


Product Overview

Description







6 axis MIG welding robot


Model
BR-1510




Motion Range
J1
±170°




Motion Speed
J1
133.9° /s
Axis
6
J2
±155° ~-42°
J2
124° /s
Reach
1500mm
J3
±80°
J3
173.6° /s
Max Payload
6KG
J4
±150°
J4
228° /s
Repeatability
± 0.08mm
J5
±105° ~-130°
J5
223.5° /s
Power Capacity
2KVA
J6
±220°
J6
737° /s
Protection Class
IP65
Installation Method
Ground
Robot Weight
172KG
Use Environment
0-45°C,20-80%RH(No condensation)
Function
Welding
Input Voltage
Single-phase 220V±10% 50/60Hz

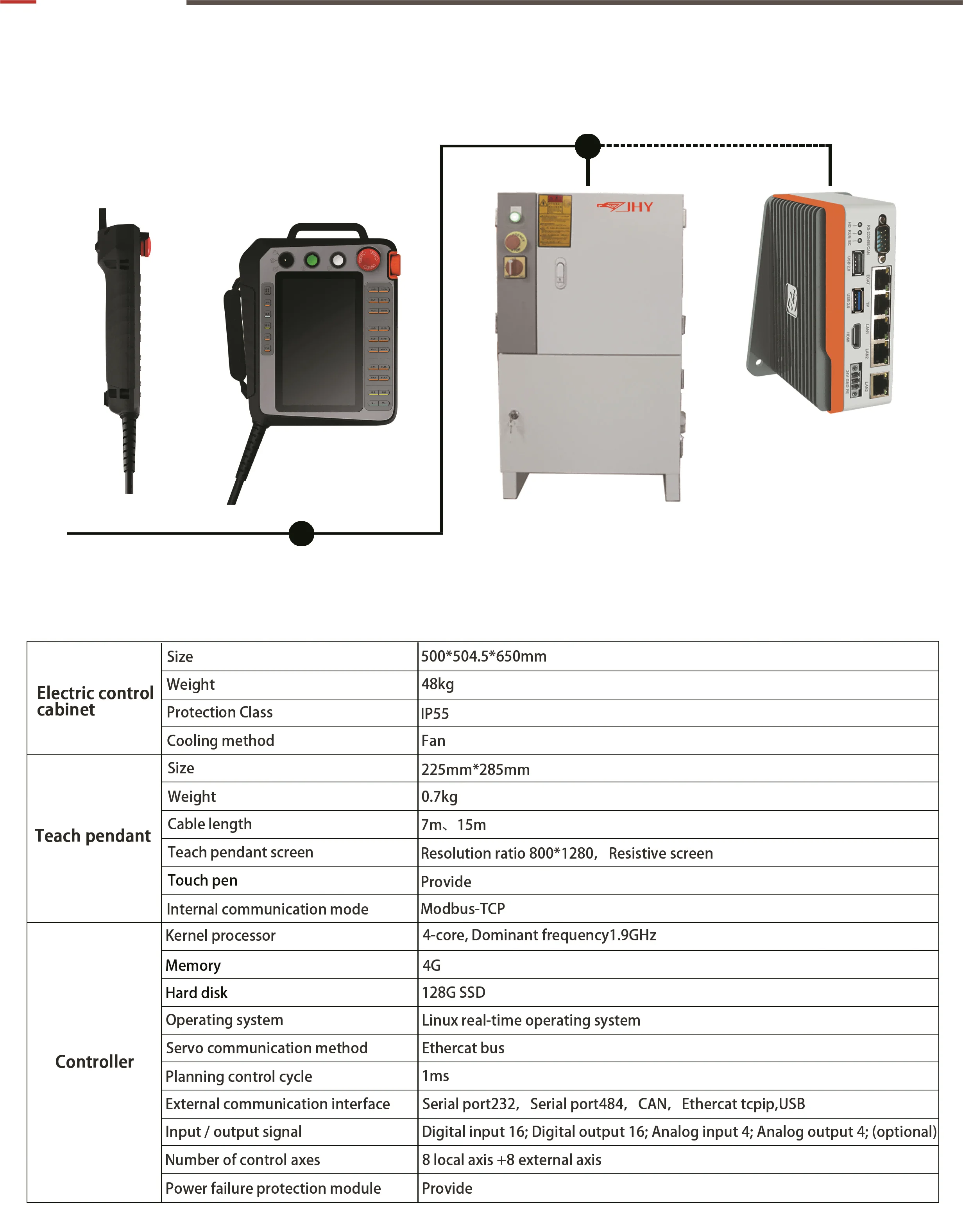

Smart Control system


The features of JHY control system
1. Multi-external axis linkage system
It support control up to 14 axis at the same time;
2.The richest welding process package
Flexible welding machine selection and configuration;
Support advanced welding functions such as flight arcing, arc tracking, laser tracking, swing welding;
Dynamically modify the welding parameters.
3.Friendly interactive interface
presentation based on pictures

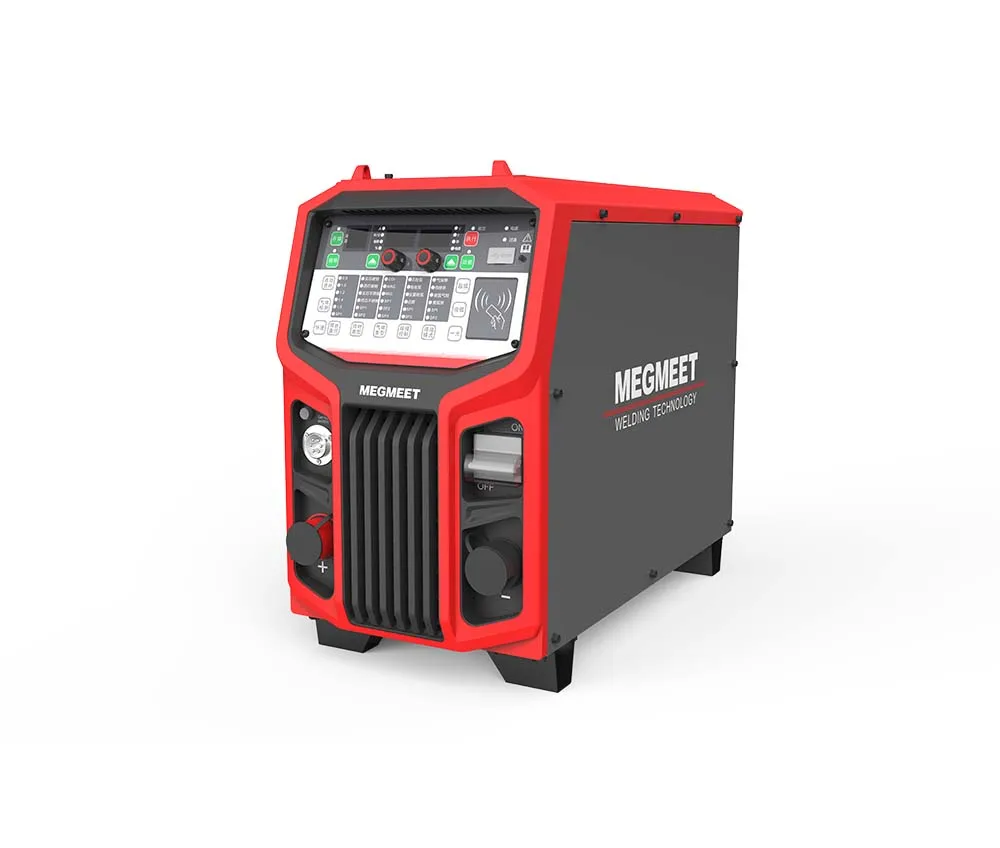

MEGMEET EHAVE CM350R welding machine
Model: Ehave 2 CM350R
Input voltage:3PH, AC380V±25%,50-60Hz
Input power:13.1KVA/12.4KW
Control mode: Full digital

Description:
This series is an all-in-one welding machine, supports CO₂/MAG/MIG/TIG/MMA/Arc Gouging and other processes, meeting different kinds of welding condition.
















1. Q:Which welder brand can you offer?
A:We can offer AOTAI,MEGMEET,LORCH,and other mainstream brands.

2.Q:Which Sea Port are you near?
A:We are near ShangHai Port.

3.Q:Can you offer training?Is it free?
A:We offer free training at our factory.Usually it needs about 3 days to learn all the necessary skills.

4.Q:Which operation system do you use on your robot?
A:We use LNC,It comes from Taiwan, has a long history, mature technology, stable structure, and easy to use.

5.Q:Can you offer operation instructions?
A:Yes, we can offer it.

6.Q:I’m a trader, how can I be your distributor?
A:We require our distributor to be familiar with welding process and has rich experience of installation and debugging, which can serve customers well.If you can make it,welcome to contact us.

Any other questions, please click "Send Now"

If you want to know more about us, please click here.
