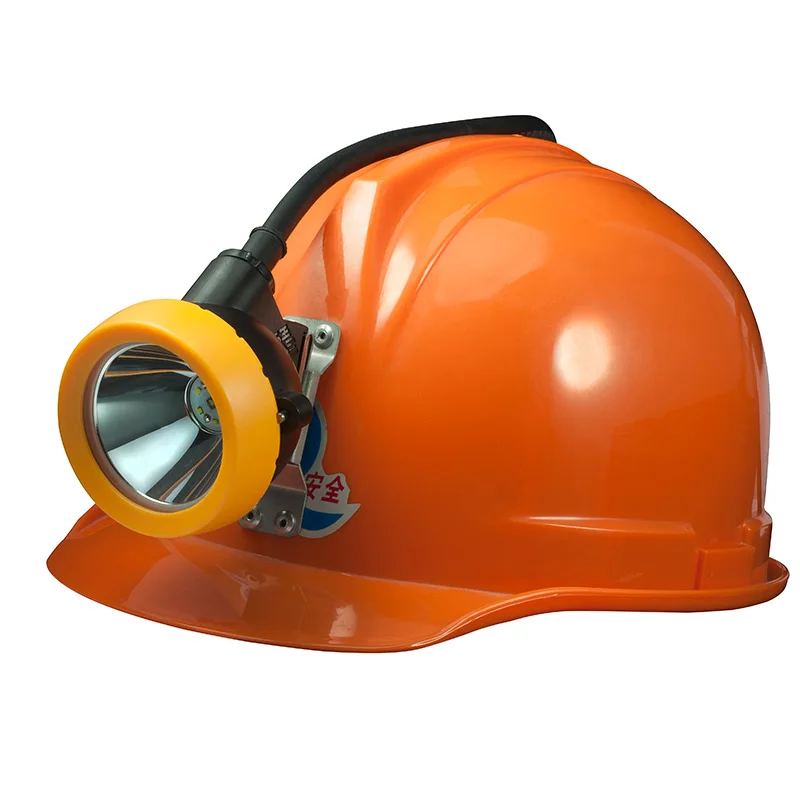

LED Miner Head Lamp Mining Lighting Underground Cap Lamp is the brightest cord cap lamp with 15000lux output. It has low power indication to remind the user to recharge it when the power is not enough. It adopts 7800mAh rechargeable li-ion battery (LG brand) and advanced LED technology with bulletproof PC housing and Toughened glass lens, and also MCU control charging system charger, charging time is only 6 hours
Technical data of LED Miner Head Lamp Mining Lighting Underground Cap Lamp
Light source
LED Power
1W
Luminous flux
>120LM
Life time
>100,000 hours
Li-ion battery
Rated capability
7800mAh
Rated voltage
3.7V
Continuous working time
>15 hours
Charging time
within 6 hours
Life time
1000 circles
lamp lighting degree
>15000lux
charger
Aluminum charger with MCU system
Weight (with battery)
550g
IP Class
IP68
EX MARK
1M1 Exia llC T6 Gb
How to charge for LED Miner Head Lamp Mining Lighting Underground Cap Lamp
Advantage of LED Miner Head Lamp Mining Lighting Underground Cap Lamp
(1) Super bright
The main light LED of

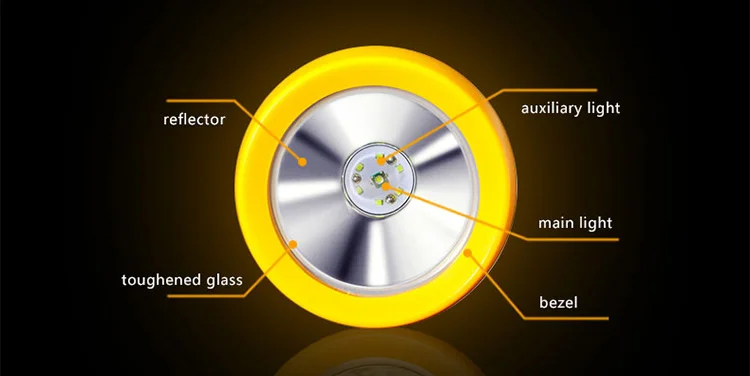

LED Miner Head Lamp Mining Lighting Underground Cap Lamp is American CREE LED, which can gives more than 150 lumens output, and the lighting degree is 15,000 lux in full lighting time (tested with 1 meter away from the lamp head) .The full charged KL5LM mining cap lamp will provide more than 15 hours continuous lighting.
(2) MCU charging system

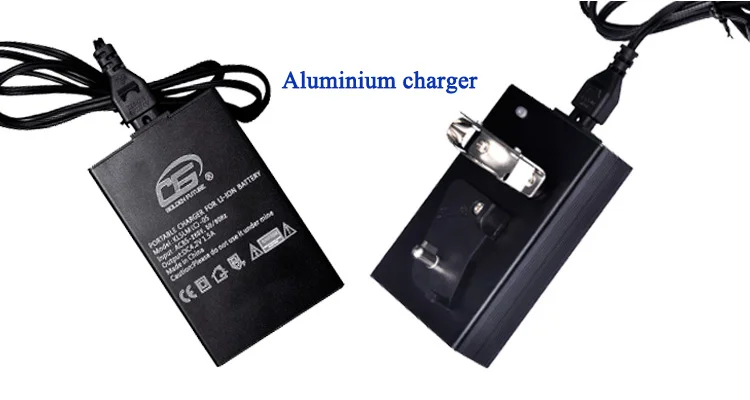

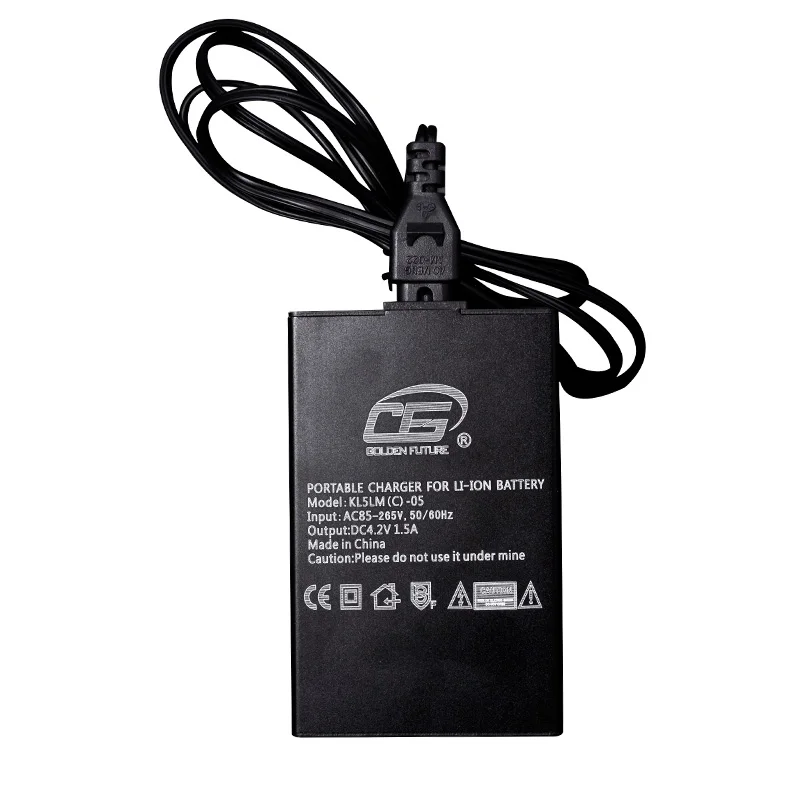

The charger with aluminum alloy housing and MCU control system to charge the battery much more quickly and safely, and with precondition charging to protect the battery when the battery voltage is too low.
(3) Short-circuit protection

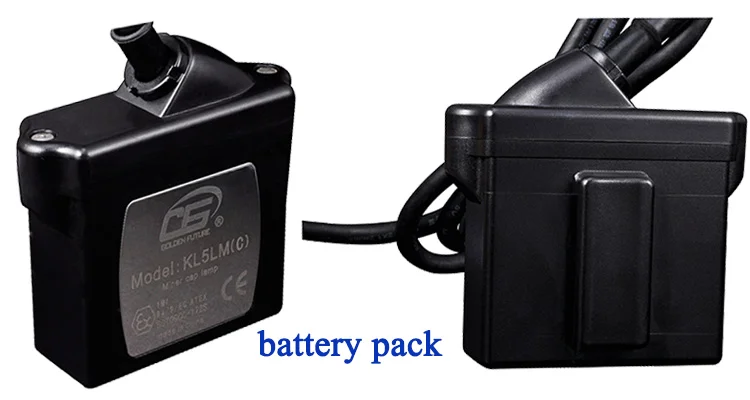

Contained in a sealed battery case, the product has a short-circuit protection, LED light head lamp and anti-static housing which makes it explosion proof, waterproof and dust-proof. The miner's lamp is ATEX Certified for use in explosive atmospheres such as coal mines.
(4) Over-charge and over-discharge protection system
The durable Li-ion battery has an over-charge and over-discharge protection system to protect the battery from over charge or over discharge. And the charger has precondition charging to prevent the battery damaged with high current when the battery voltage is too low. The cap lamp is suitable for operation under harsh mining conditions.
(5) Portability
Small in size, light in weight, ergonomically designed, maintenance free, simple charging, easy operation. The cap lamp has received praise from many miners and major mining companies.
(6) Environmental
LED Miner Head Lamp Mining Lighting Underground Cap Lamp is made from environmentally friendly Li-ion battery and other non hazardous materials. The KL5LM led mining cap lamp is an environmentally friendly product as per ROHS Directive.

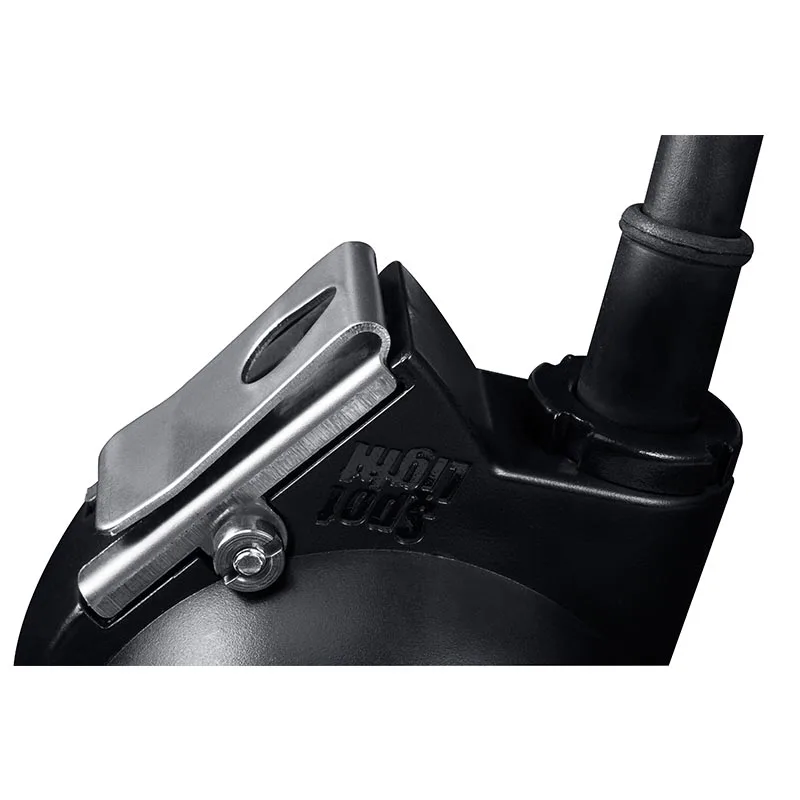

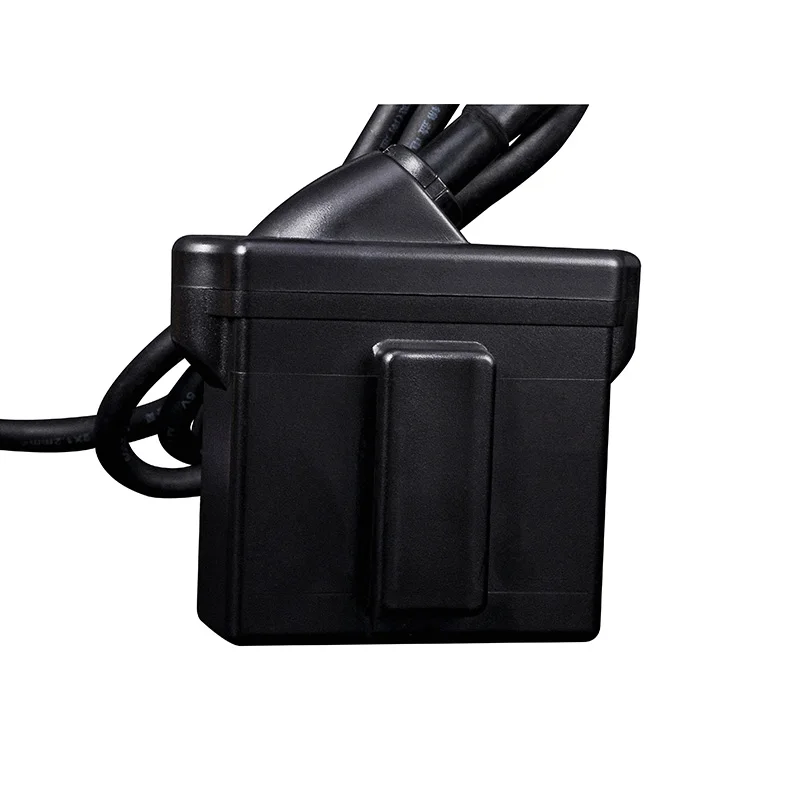

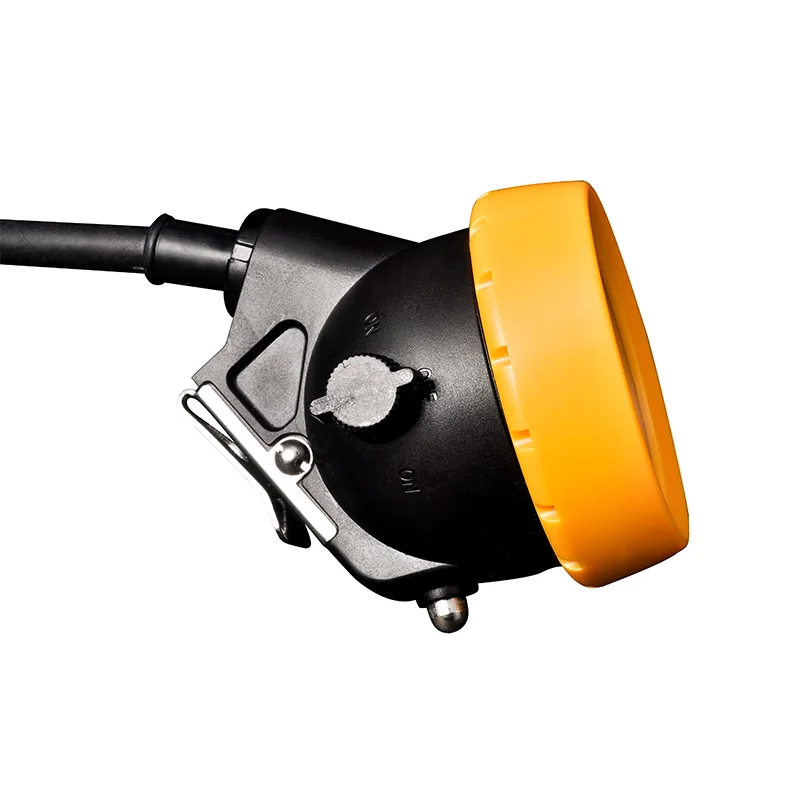

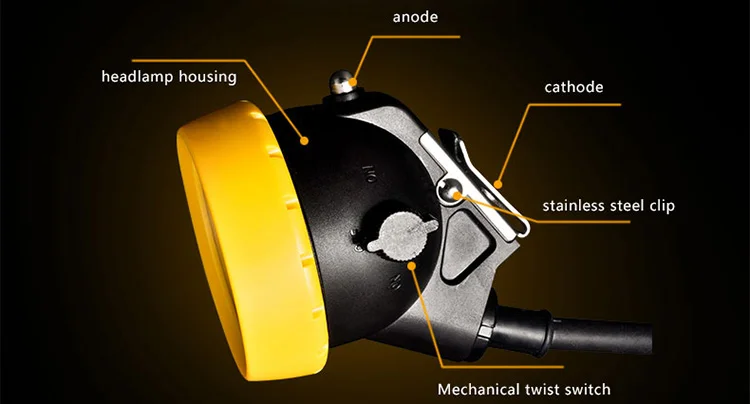

Detailed Images

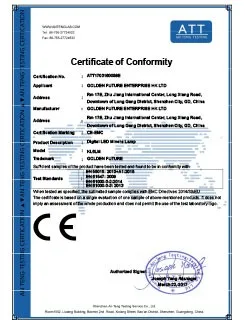

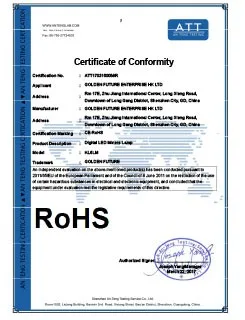

Certifications
Application
Packing & Delivery
Package details of LED Miner Head Lamp Mining Lighting Underground Cap Lamp
Each miner lamp is packed in one inner box, each charger is packed in one inner box. 20 pc lamps and 20pc chargers are packed in one carton. gross weight :20kg/ctn; Carton size : 46*36*36

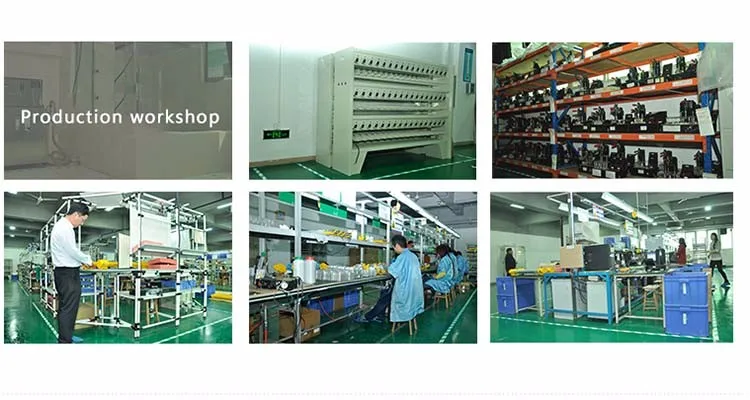

Factory shows
FAQ
Q: 1. What is the lead time? A:Sample needs 7-10days, mass production time needs 25-30days.
Q: 2. Do you have any MOQ limit? A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: 3. How do you ship the goods and how long does it take arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q: 4. How to proceed the order when customer order products? A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 5. How to make this payment? A: TT, Paypal, Western Union.
Q: 6. Do you offer guarantee for the products? A: Yes, we offer one year guarantee for the products.
Q: 7. Do you accept OEM/ODM? A: Yes, it's available
