Egg carton mold factory for machine making egg trays
US $300.00-$1000
Leizhan 2400 50tpd машина для производства крафт бумаги
- Category: Paper Production Machinery >>>
- Supplier: Zhengzhou Leizhan Technology Paper Machinery Co. Ltd.
Share on (62282128993):
Product Overview
Description
Leizhan 2400 50tpd Kraft Manufacturing Machine Kraft Paper Making Machine
Product Description
This paper machine uses waste apper & wood pulp as raw material to make craft paper.
1. Trimmed width:2400mm
2. Raw material: Virgin Pulp, recycled paper, De-inked pulp.
3.Finished products:Kraft paper,Craft paper
4.Production capacity:50tpd
6.Basis weight:60-220gsm
7.Operation speed:90m/min
8.Design speed:100m/min
Process Flow Diagram
Raw materials (waste paper)——chain conveyor——pulper——hign density cleaner——pressure screen——fiber separator——reject separator ——low density cleaner——inflow pressure screen——paper making machine——the big finished jumbo paper
Structure of paper machine:
1. cylinder mould section:φ1000mm×1450mm stainless steel cylinder mould 1set, φ 300mm×1450mm couch roll 1set,coated by rubber, rubber shore hardness 38°C±2.
2. dryer section: φ 1500mm×1450mm alloy dryer can 1 set, 1group scraper knife. φ 350mm×1450mm touch roll 1set, coated by rubber, rubber shore hardness 90°C±2.Mechanical loading device

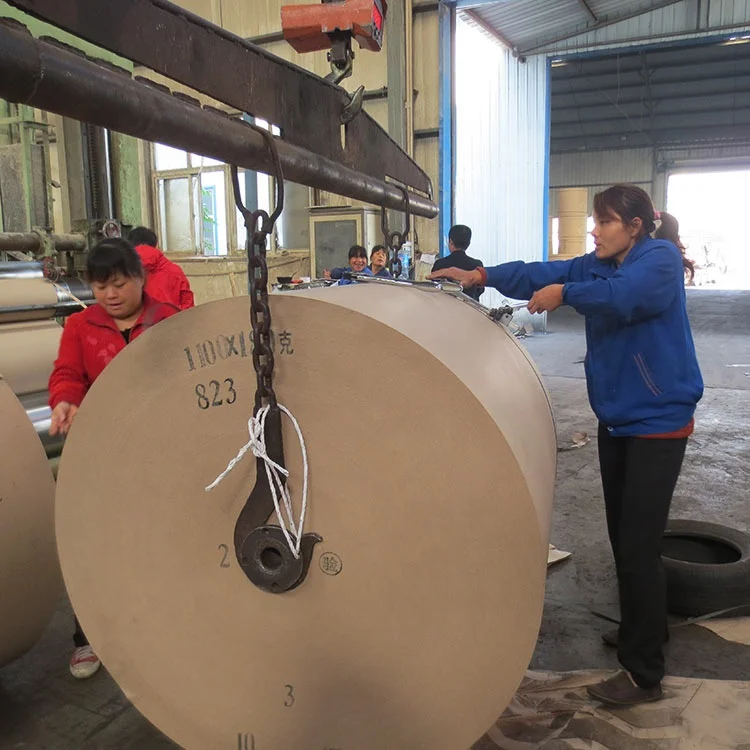

Final Products
Installation
Company Information
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 40 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
