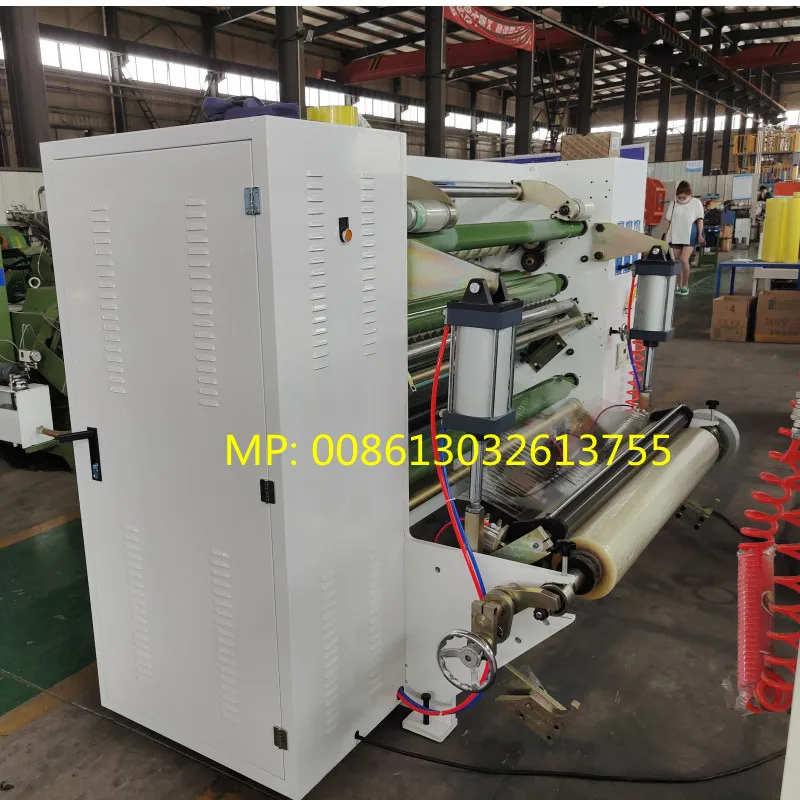

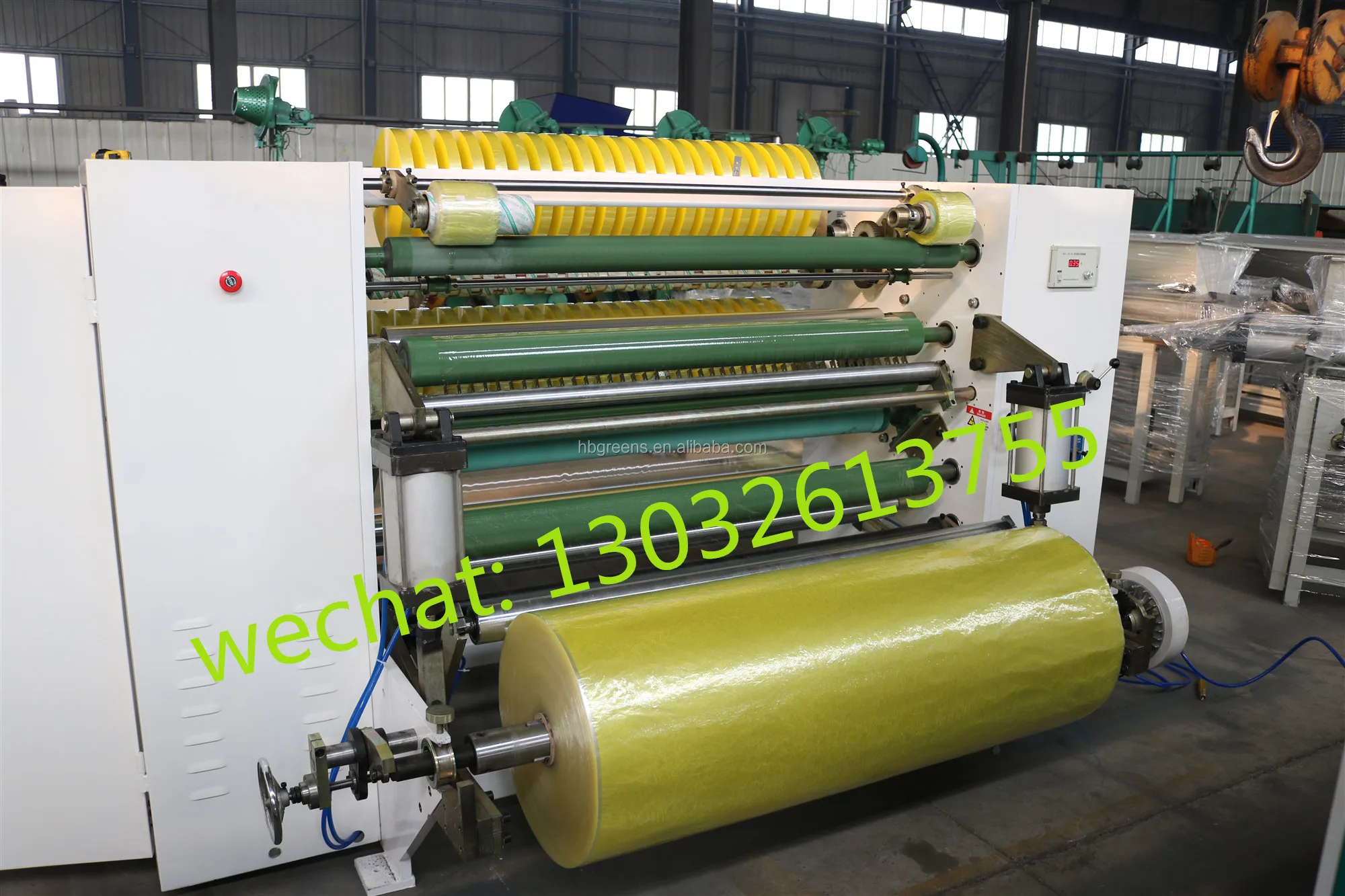

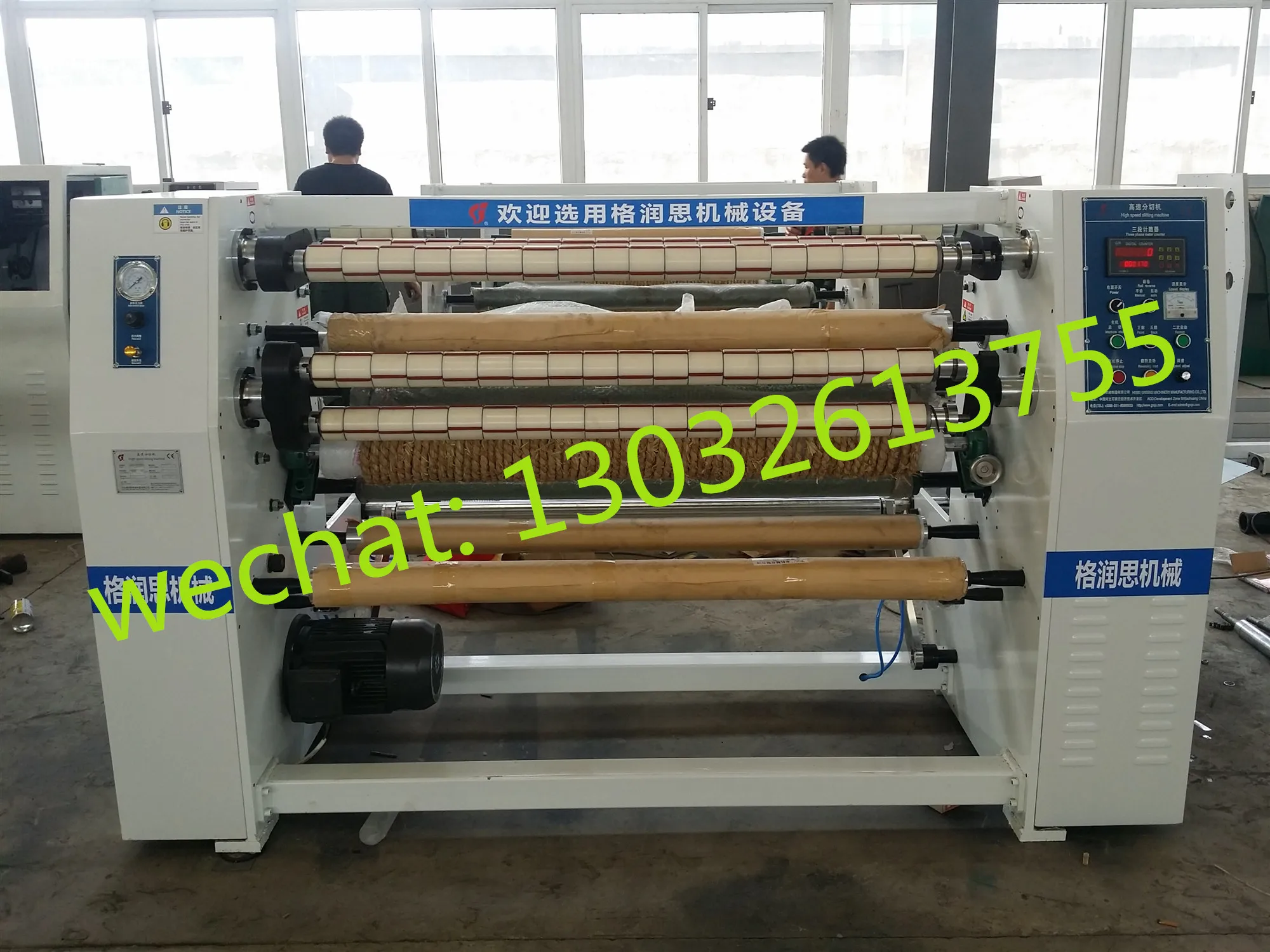

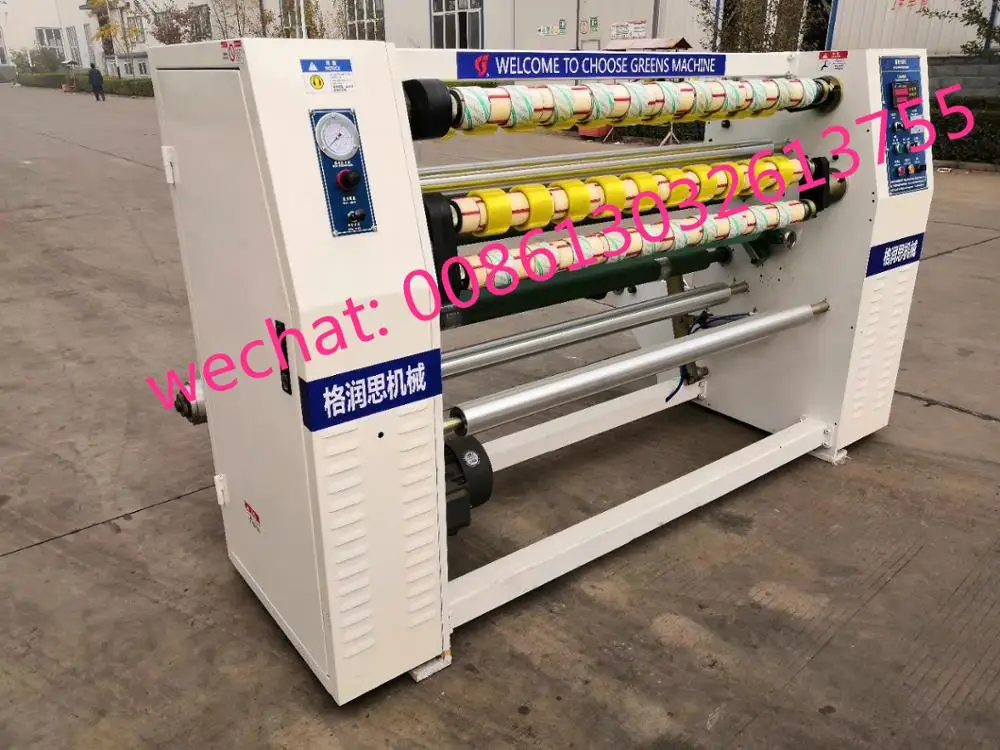

high quality China Made bopp tape slitting rewinding machine with 4 shafts

Product Overview

Description



high quality China Made bopp tape slitting rewinding machine with 4 shafts







Application:

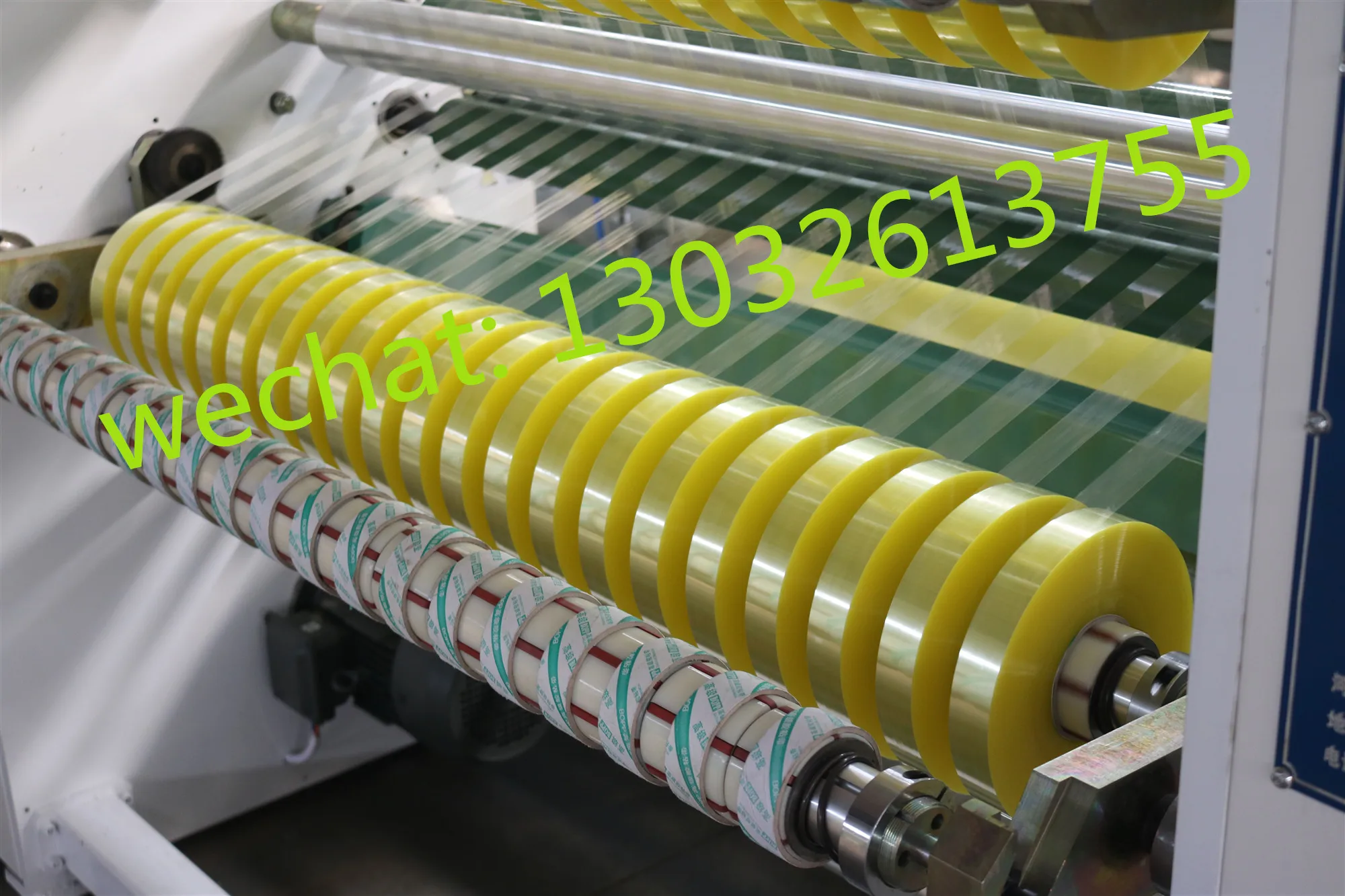

Used for slitting bopp adhesive tape jumbo roll.



Technical parameters:

Effective width	1300 mm	1600 mm
max. unwind diameter	800mm	800mm
min. slitting width	12mm	12mm
max. rewind diameter(shaft1") exchange 4 shafts	75mm	75mm
max. rewind diameter(shaft3") exchange 4 shafts	150mm	150mm
max. rewind diameter(shaft3") exchange 2 shafts	300mm	300mm
machine speed	0-2600m/min	0-260m/min
slitting blade	0.2×22×60mm	0.2×22×60mm
main power	4KW	5.5KW

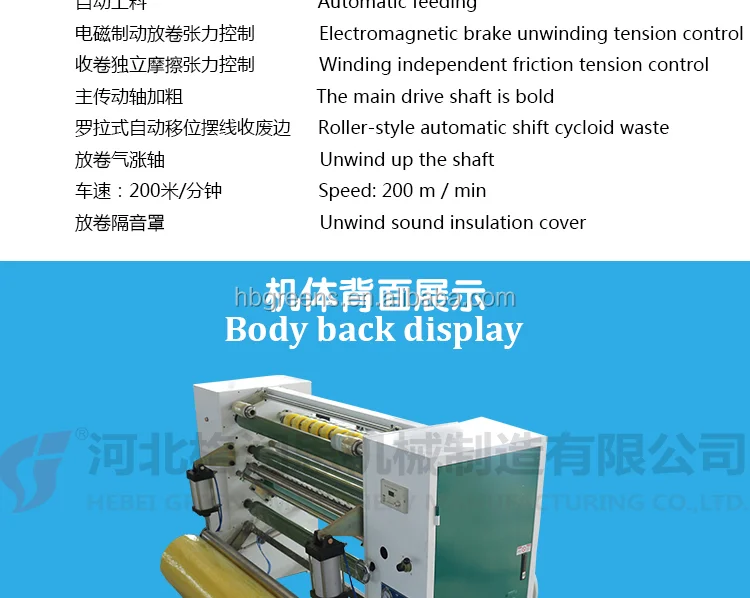

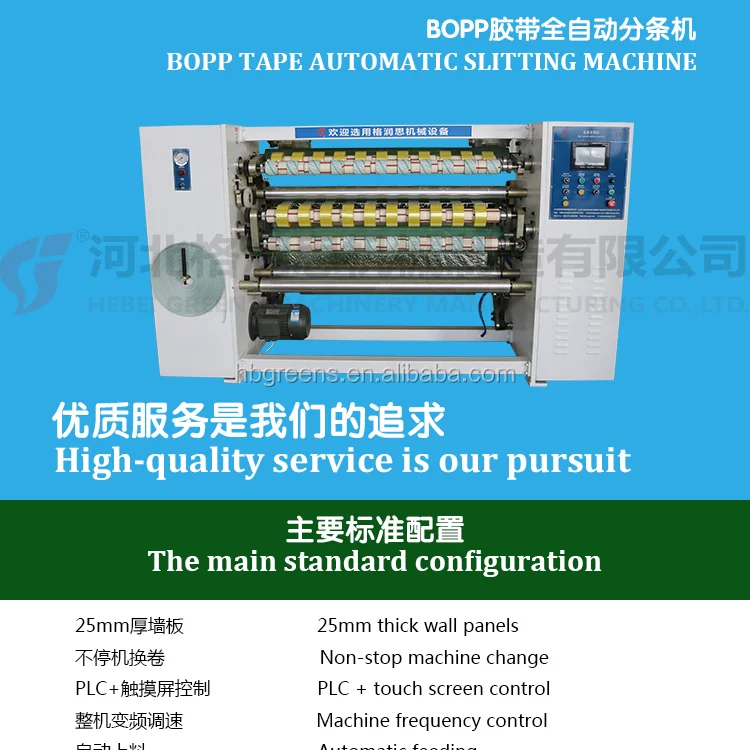

Main features:

1). Individual automatic rewinding section

2). Rewinding shaft automatic positioning

3). Coil winding edge collection

4). Large diameter drive shaft roller

5). Synchronize belt drive optional

6). Individual unwind section

7). PLC+touch screen

8). Rewinding with pressing roller device optional

9). Automatic labeling function optional

10). Automatic loading material optional

11). Automatic cutting function optional

12). Thicken machine body structure

13). Automatic stopped at designed legth

14). Automatic exchange roller at designed length

15). High strength chain link drive

16). Rewinding axis adopts high strength aviation aluminum alloy material

17). Knurl roller by teflon anti-sticking processing

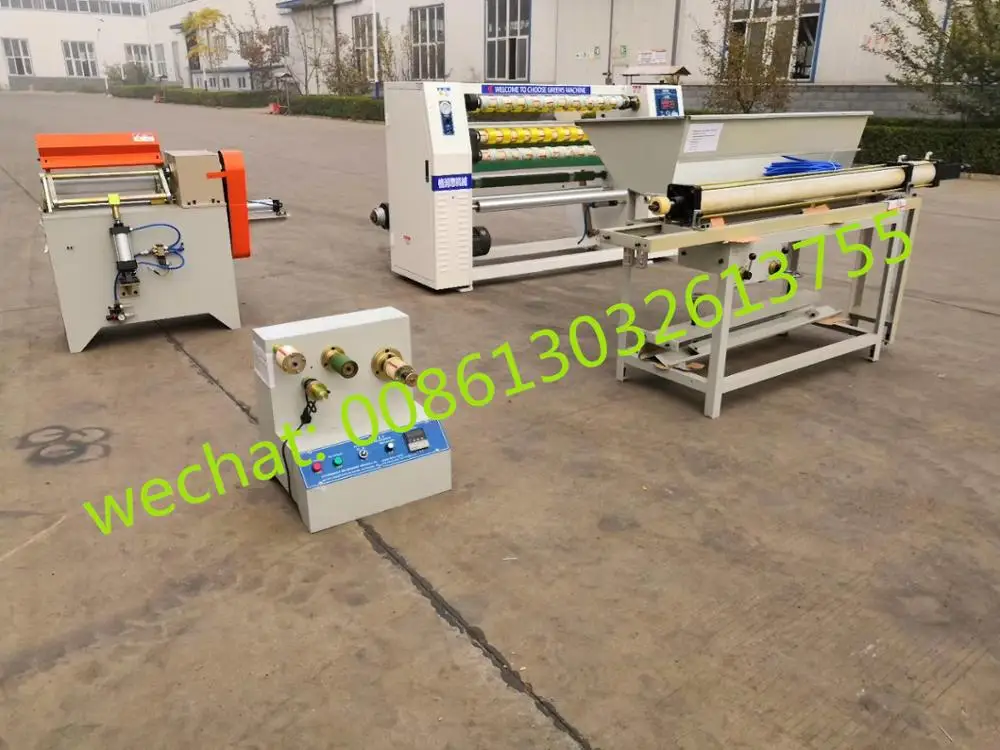

Auxiliary equipments:

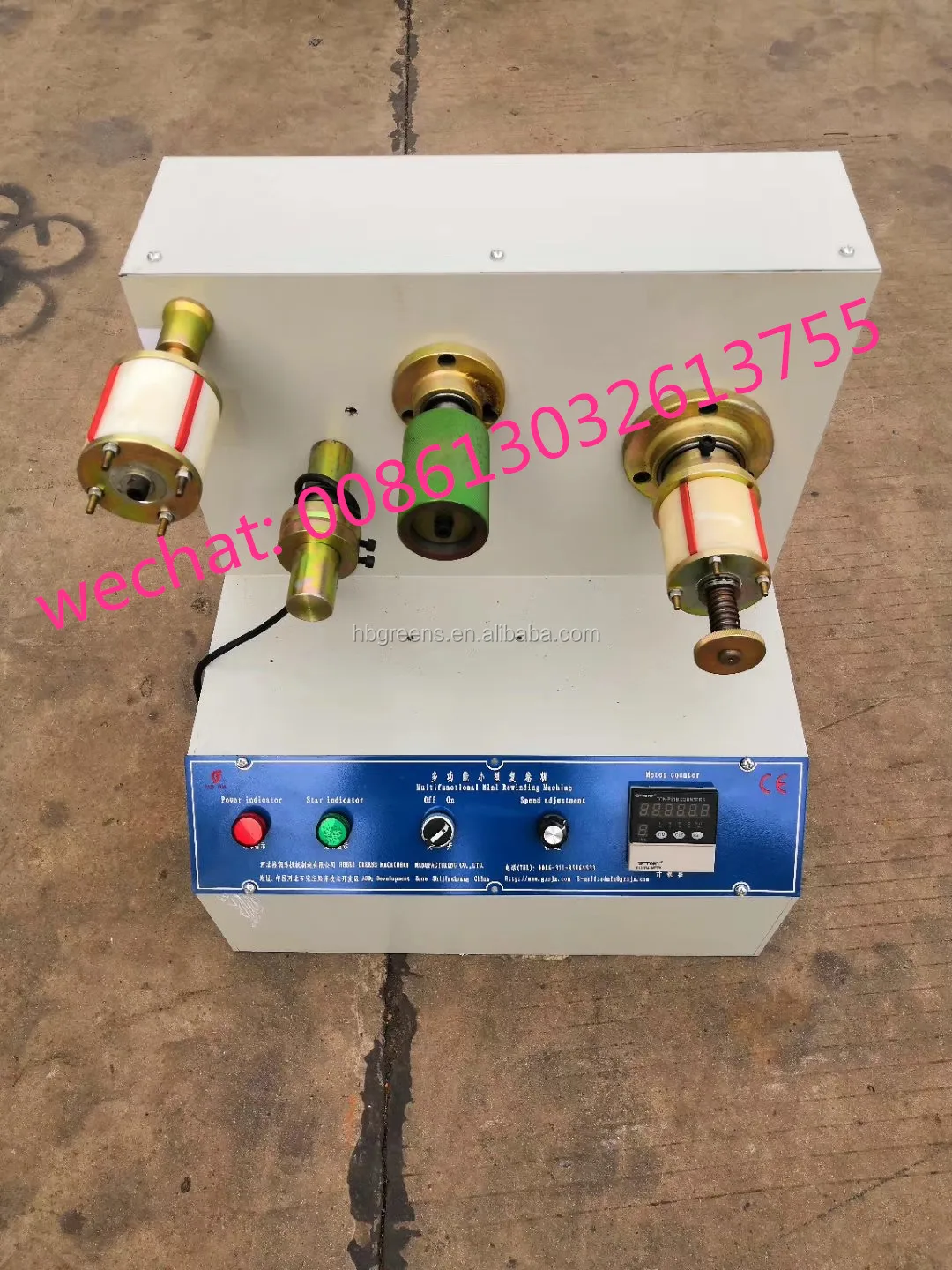

mini type rewinding machine:

Usage:

Used for rewinding imperfect finished product of BOPP adhesive tape.

To ensure the quality of the products.

Reference:

Max rewinding diameter (mm)	300
max rewinding width (mm)	100
Core ID(mm)	76.2
speed of rewinding (M/min)	0-100
Size (L*W*H mm)	600*600*700

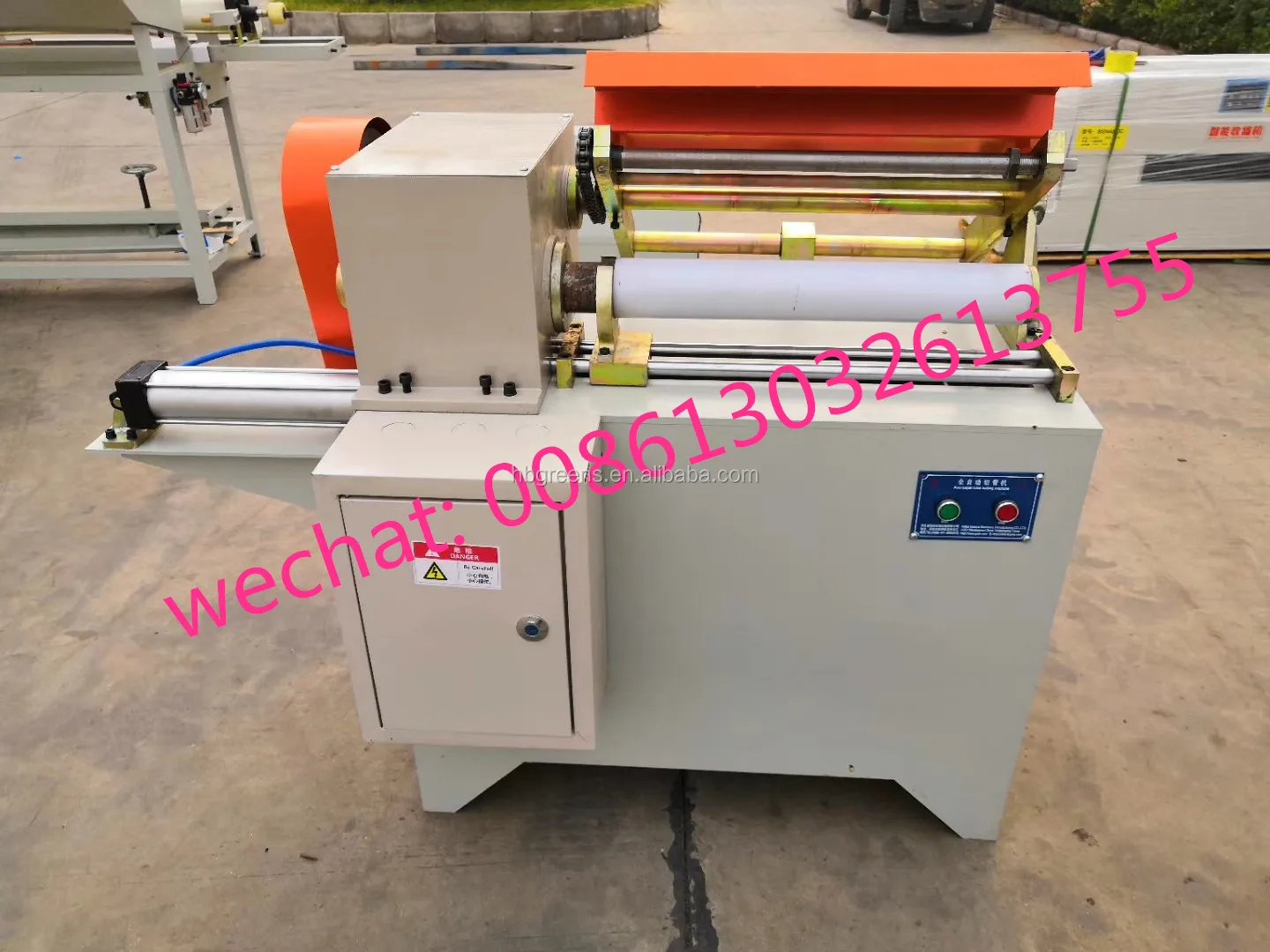

paper core cutting machine:

Usage:

Used for cutting adhesive tape paper cores.



Reference:

Max cutting diameter (mm)	500
Min cutting width (mm)	12
Paper core thickness (mm)	3-10
Core ID(mm)	76.2
Air pressure(kg/cm2)	5
Power (kw)	1.5
Size (L*W*H mm)	1310*700*1140

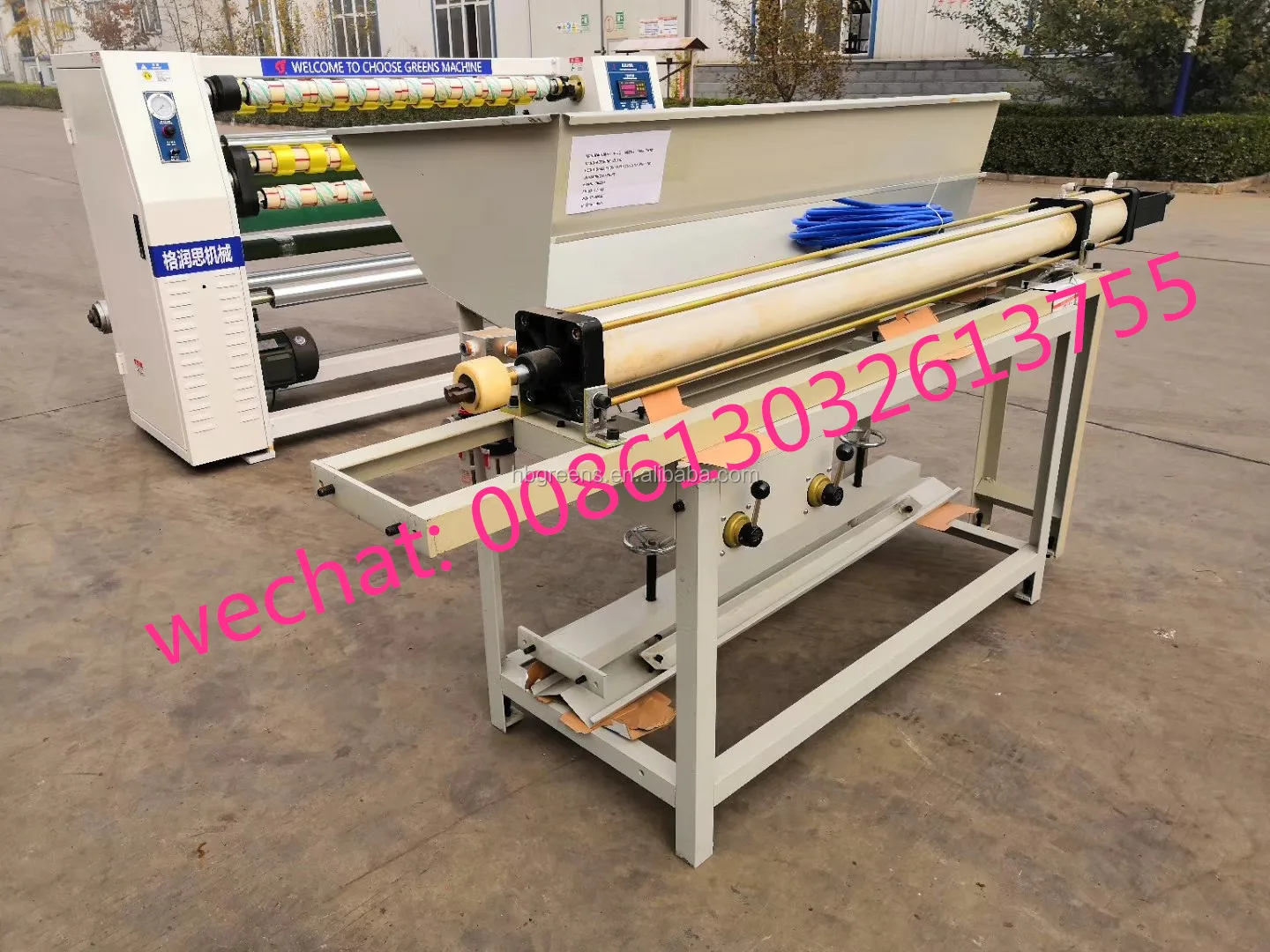

 paper core loading and unloading machine:

Usage:

Used for the loading and unloading paper core of finished adhesive tape automatically.

Reference:

specification (mm)	1300
operation width (mm)	1300
Core ID(mm)	76.2
Air pressure(kg/cm2)	5
Size (L*W*H mm)	2700*750*1450 (1300type)

















oversea customers:





Company information:

ebei GREENS Machinery Manufacturing Co.,Ltd(Hebei LVJOE Machinery Manufacturing Co.,Ltd) was established in 1998, it’s a diversified development enterprises with researching,designing,manufacturing,project equipment integration. We are a strong company nationally of comprehensive strength in the adhesive tape machinery manufacturing. GREENS had won a lot of national awards, such as high-tech enterprise certificate, many self-patent certificates, the European Union issued CE quality system certification, and ISO9001 quality system certification. We are praised as a municipal civilization group inHebeiProvince; the contract and promise keeping group.

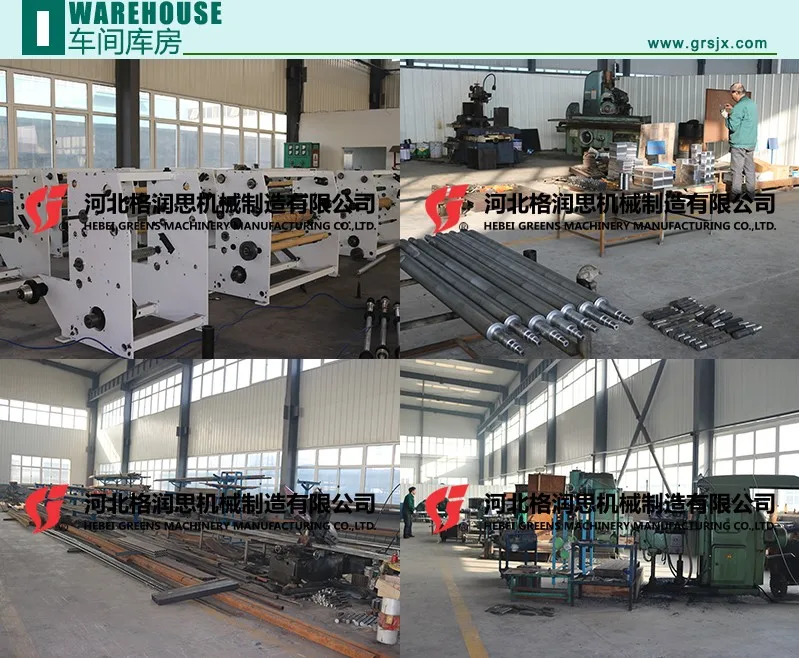

Our company got equipment manufacturing base, adhesive tape making base and machinery importing and exporting company. Our machineries are sold far to Asia, Europe,Africaand other place internationally. We got more than 300 workers, from which, 6 are professor level senior engineers, 40 are intermediate and senior technicians. We mainly undertake varies of adhesive tape making machines, slitting machines, and other whole set of production lines. Depending on our own strength and design, research experience, we can put the new technology from abroad and domestic into use promptly. We got advantages of integrated design, manufacturing and operation till output style to undertake the projects of great difficulty in technology. That’s also why we can ensure the project design quality, raw material saving, cost reducing and to improve the entirety profit of the engineering project.
