PP Woven bag fabric Sack making machine 4/6/8 shuttles high speed circular loom weaving machine for Jumbo bag production line
- Category: Weaving Machines >>>
- Supplier: Linyi Lianheng International Trading Co. Ltd.
Share on (62285035993):
Product Overview
Description

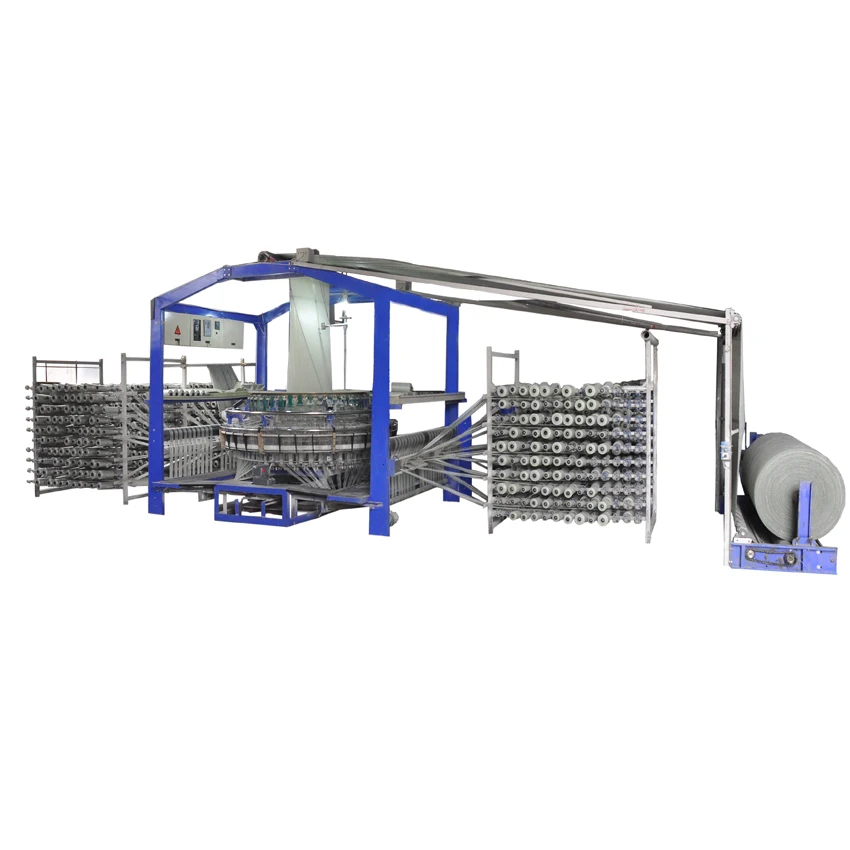

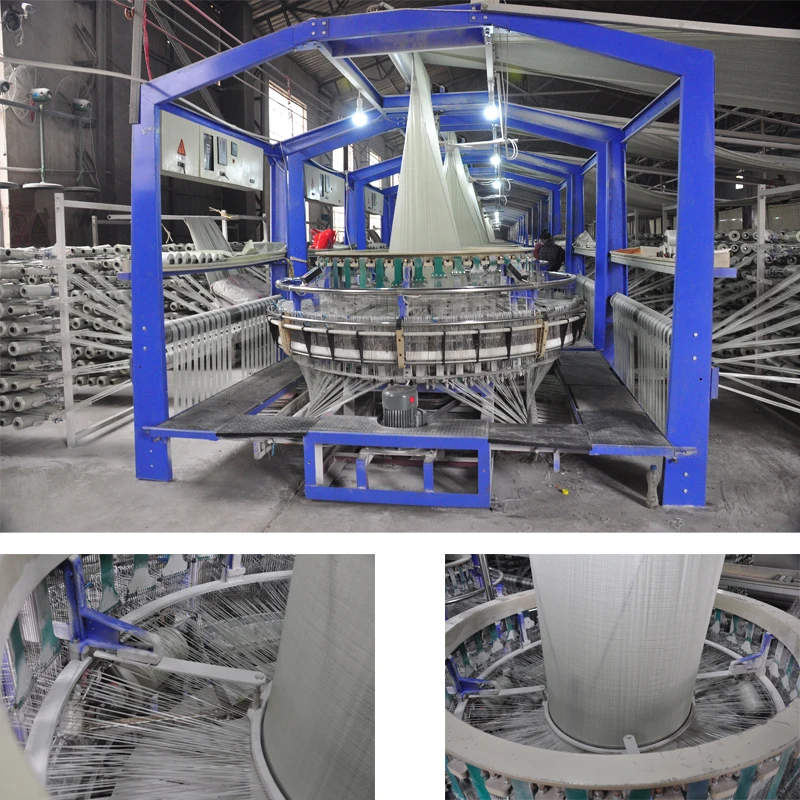

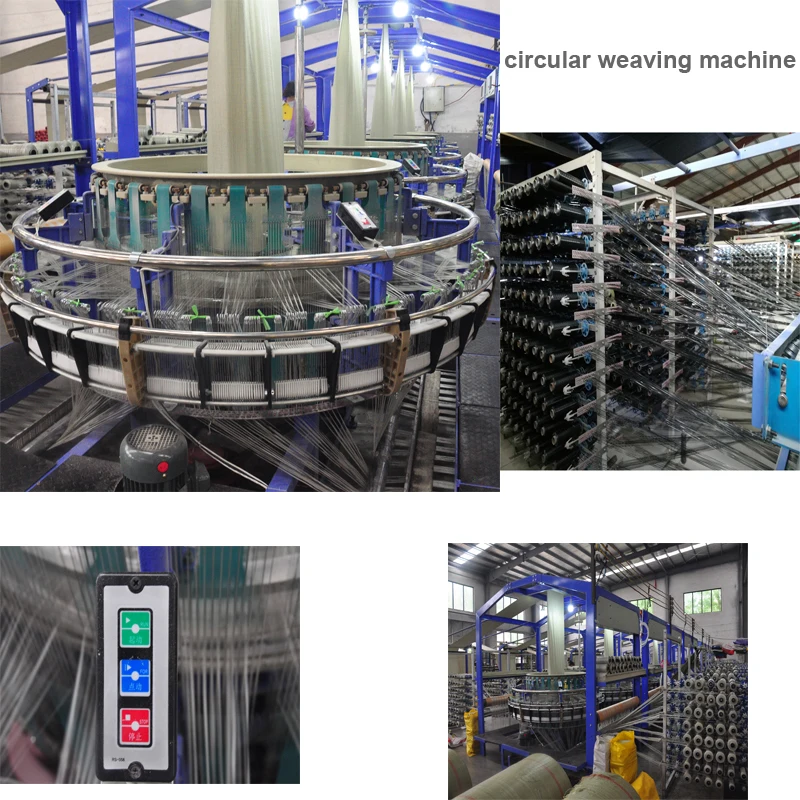

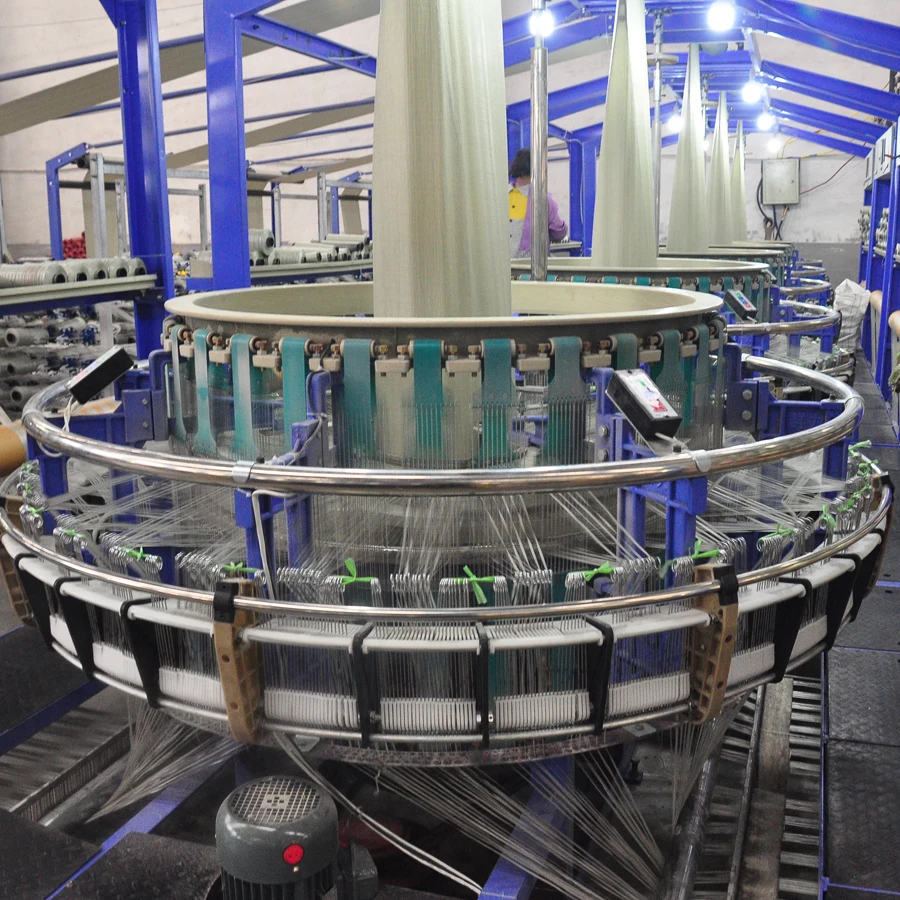

circle loom machine
Introduction:
This circle loom weaving machine can make pp flat yarn to woven rolls for woven bags or Jumbo bags .
With the scroll transmission by little cam and sewing-arm wheel, the machine runs easily and stable.
Rolling transmission is adopted in entire structure instead of slide block and slide rod, which doesn’t need lubricant and decreases the wearing part.
With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable.
It adopts the latest energy saving synchronous motor and the intelligent micro-computer controlling system can be instead if required. It can adjust the weft density and compensate the weft density in case of weft-braking, which can improve the evenness of woven fabrics.
Main Technical Parameters ( 4/6shuttles ) :
Type | Number of spindle | Lay-flat width (mm) | Max. Warp (pcs) | Rotational speed of main body (r/min) | Power of main motor (kw) | Total Power (kw) | Production (m/min) (10-24warps/100mm) | Installing dimensions | weight |
YZJ-4/800 | 4 | 350-750 | 768 | 140-180 | 2.2 | 3.5 | 1.4-1.8 | 8400X2200X2650 | 1500 |
YZJ-4/1000 | 4 | 550-950 | 768/ 896 | 140-180 | 2.2 | 3.5 | 1.4-1.8 | 8400X2200X2650 | 1800 |
YZJ-4/1200 | 4 | 1000-1100 | 896/ 1020 | 120-160 | 2.2 | 4.5 | 1.2-1.6 | 8900X2350X2650 | 2000 |
YZJ-4/1500 | 4 | 800-1400 | 1040 | 90-125 | 4.0 | 5.5 | 0.9-1.25 | 9800X2500X2650 | 2300 |
YZJ-6/850 | 6 | 350-850 | 720 | 120-180 | 3.0 | 3.5 | 1.8-2.7 | 8700X2410X2650 | 2000 |
YZJ-6/1500 | 6 | 850-1450 | 1100 | 120-180 | 3.0 | 4.5 | 1.8-2.7 | 9100X2610X2650 | 3000 |
YZJ-6/1800 | 6 | 1450-1750 | 1440 | 120-180 | 4.0 | 5.5 | 1.8-2.7 | 9700X2810X2650 | 3500 |
Main Technical Parameters ( 8/10shuttles ) :
Model | YZJ-2000X8S | YZJ-2250X10S |
Number of Shuttles | 8 | 10 |
Rotation Speed of Main Body | 60-65r/min | |
Power of Main Motor | 7.5KW | |
Lay-flat Width | 1500mm-1900mm | 1800mm-2200mm |
Production Capacity | 40m/h-120m/h | |
Max warps | 2280pcs | 2880pcs |
Diameter of Warp Yarn | Max 130mm | |
Diameter of Weft Yarn | Max 110mm | |
Yarn Disc Diameter | 136mm | |
Max Roll Diameter | 1500mm | |
Machine Size(L*W*H) | 15.5mX3.5mX4.65m | 17.5mX3.7mX4.85m |
Machine Weight | 7.5T | 8.5T |
