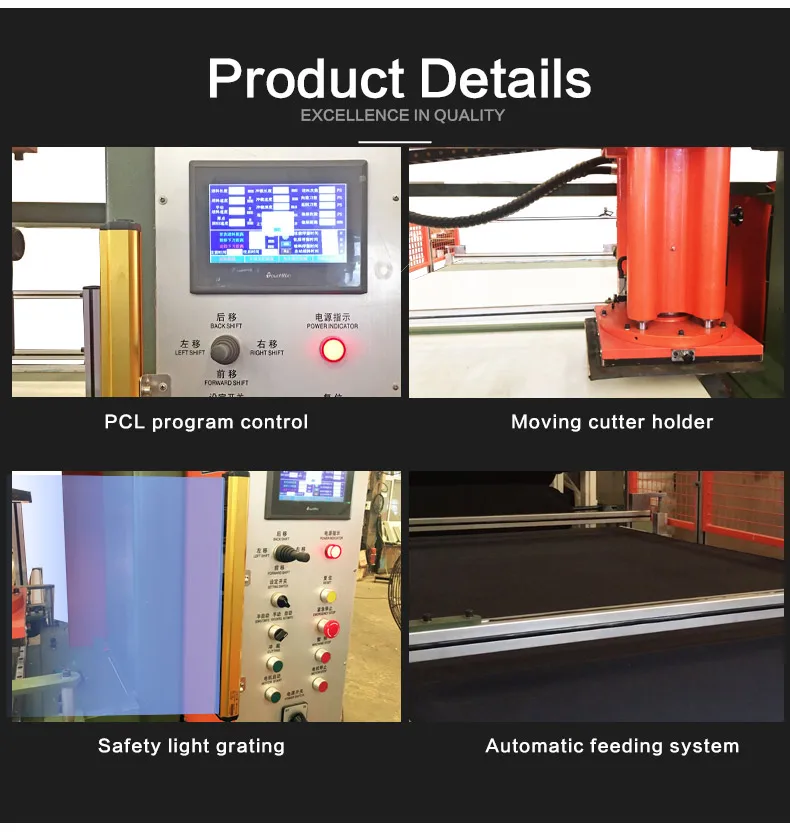

1. This machine is suitable for die cutting of various non-metallic materials, such as sheet material, roll material, plastic, pearl cotton packaging, rubber, printing and other industries. 2, PLC system: automatically walk the die cutting, set the angle of each knife, each knife position, set cutting speed, cutting depth, the hardware connection is normal, can row multiple knife mold, improve work efficiency. 3. The main frame is made of Longmen steel frame structure with high strength and no deformation. 4, the input and output of materials are transported on the push plate, and the die cutting and punching of the material is also done automatically on the push plate. 4, the machine's cutting area has a safe and light screen to ensure the safety of workers.

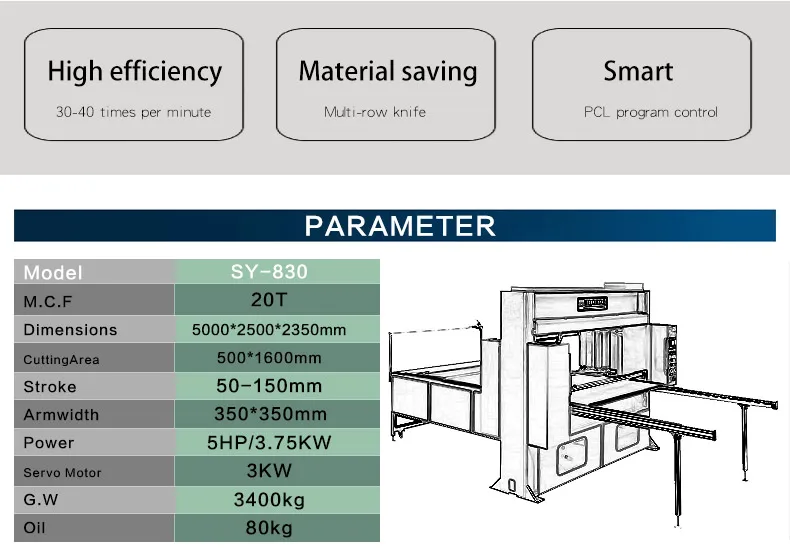

Main parameters:
Model
Maximum cutting pressure
Mechanical size
Trip
Size of electronic control box
Motor power
Cut area
Servo motor
Moving head size
weight
SY-830
30T
5000*3000*2350mm
5-130mm
710*610*1820mm
3.75kw
500*16000mm
3kw
350*350mm
3200kg
Company Information
Shenzhen JENYEE Technology Co.,Ltd was established in 1997 .At Jingyi, who always persist in notion of based on science and technology development, never forget to offer his own endeavor for industrial development of the Chinese nation. Along with years of hard investigation, the company now has grown into a comprehensive enterprise whose business as a integrationincluding design and development, manufacture, sales and service. The company been awarded with tittles of The National high Technology Enterprise ,The Shenzhen City high Technology Enterprise, andThe Drafting Unit og National Standard of shoe industry in 2017.
Certifications
.About Factory
Packing & Delivery
EXHIBITION
Customer case
FAQ
Q1: Are you the factory or trading company?
A1: We are the direct factory with 22 years experience in producing shoe machines.
Q2: What is your MOQ of your Product? A2: MOQ is 1 set.
Q3: What's your payment term? A3: 30% deposit in advance, 70% will be balanced before shipping. Other payment terms can be discussed case by case.
Q4: What's your after-sales service? A4: For repairing or spare parts pls contact me by mail, WeChat, whatsapp or call, we will reply you in 8 hours.
Q5: How long does your product warranty? A5: one year.
Q6: What is the product package? A6: Our products package are wooden case, carton and so on, we also accept customer's requirements about the package.
Q7: Do you test all your goods before delivery? A7: Yes, we have 100% test before delivery.
