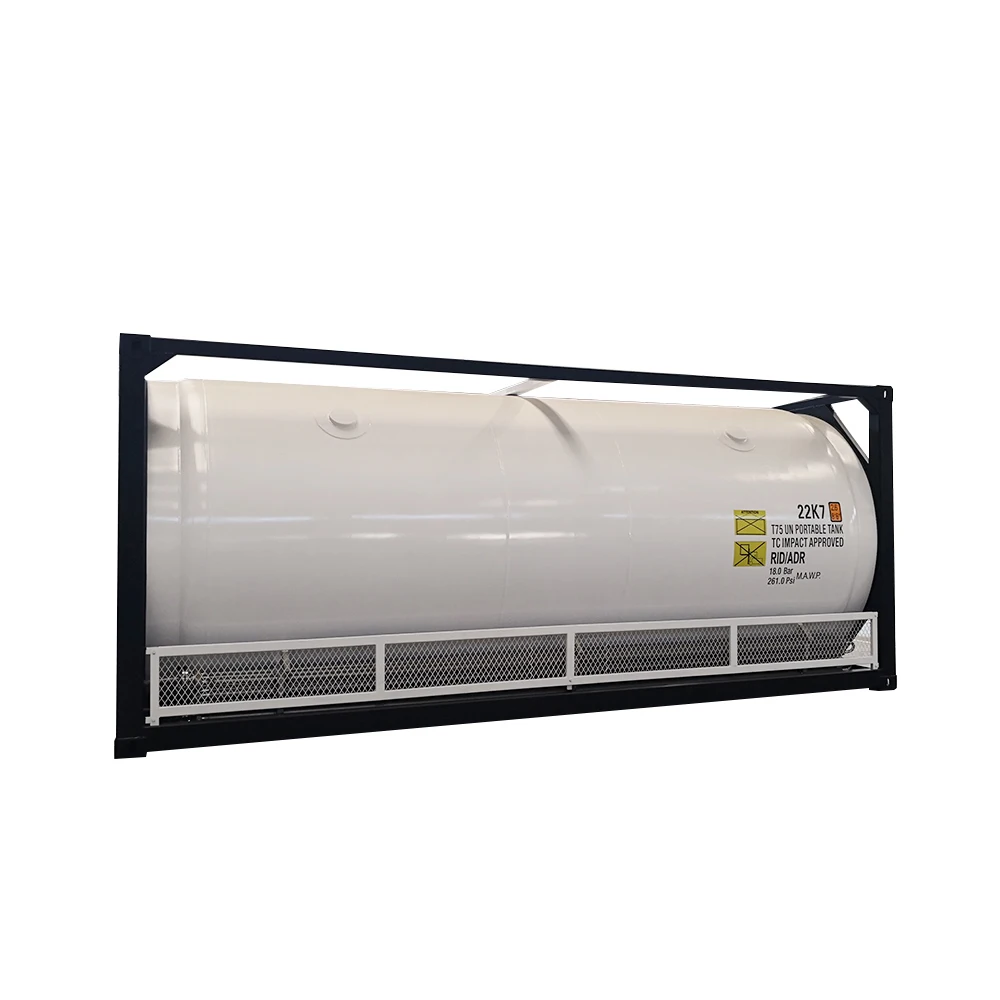

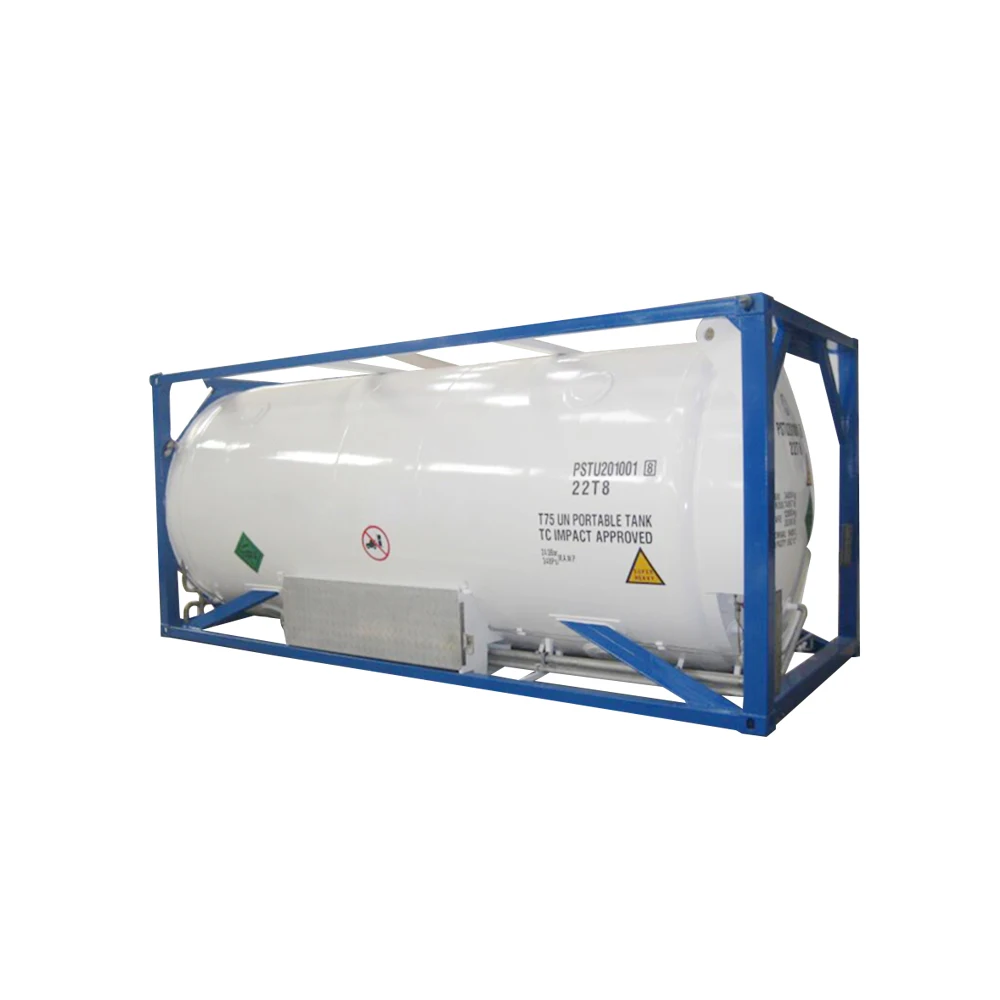

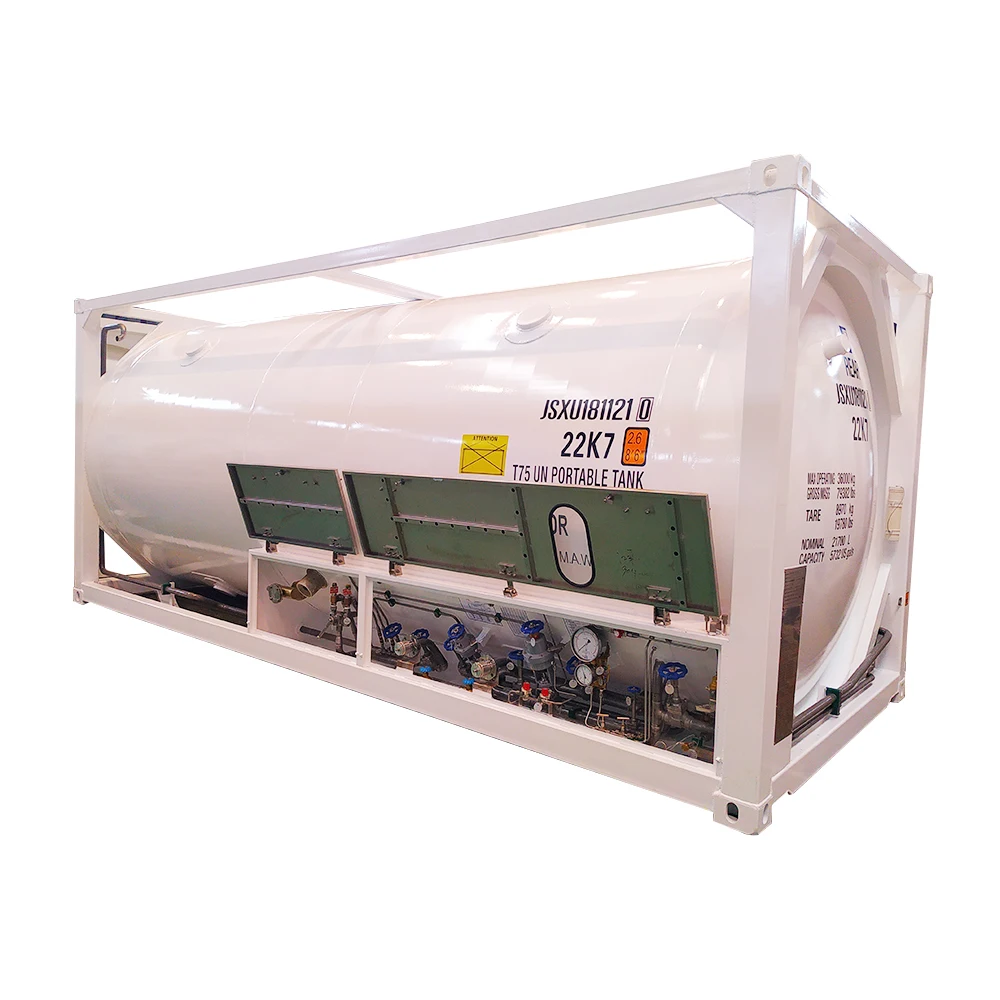

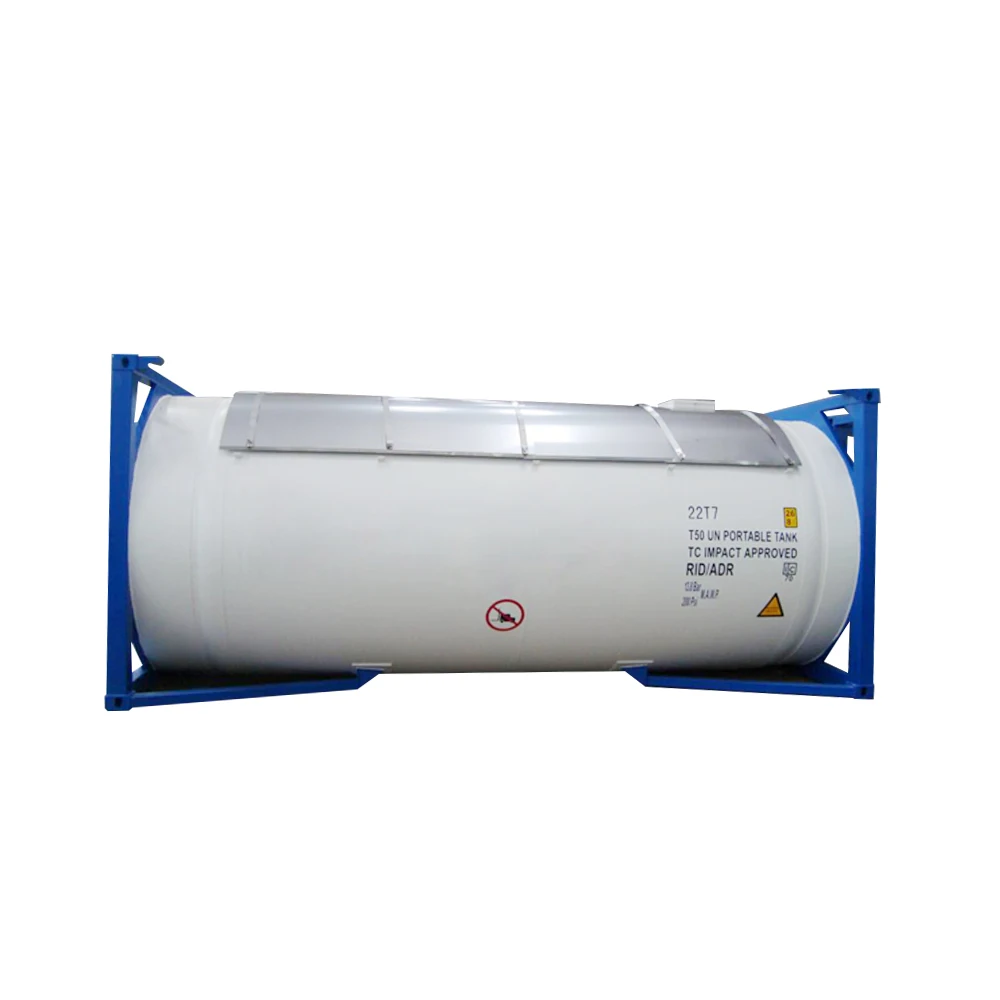

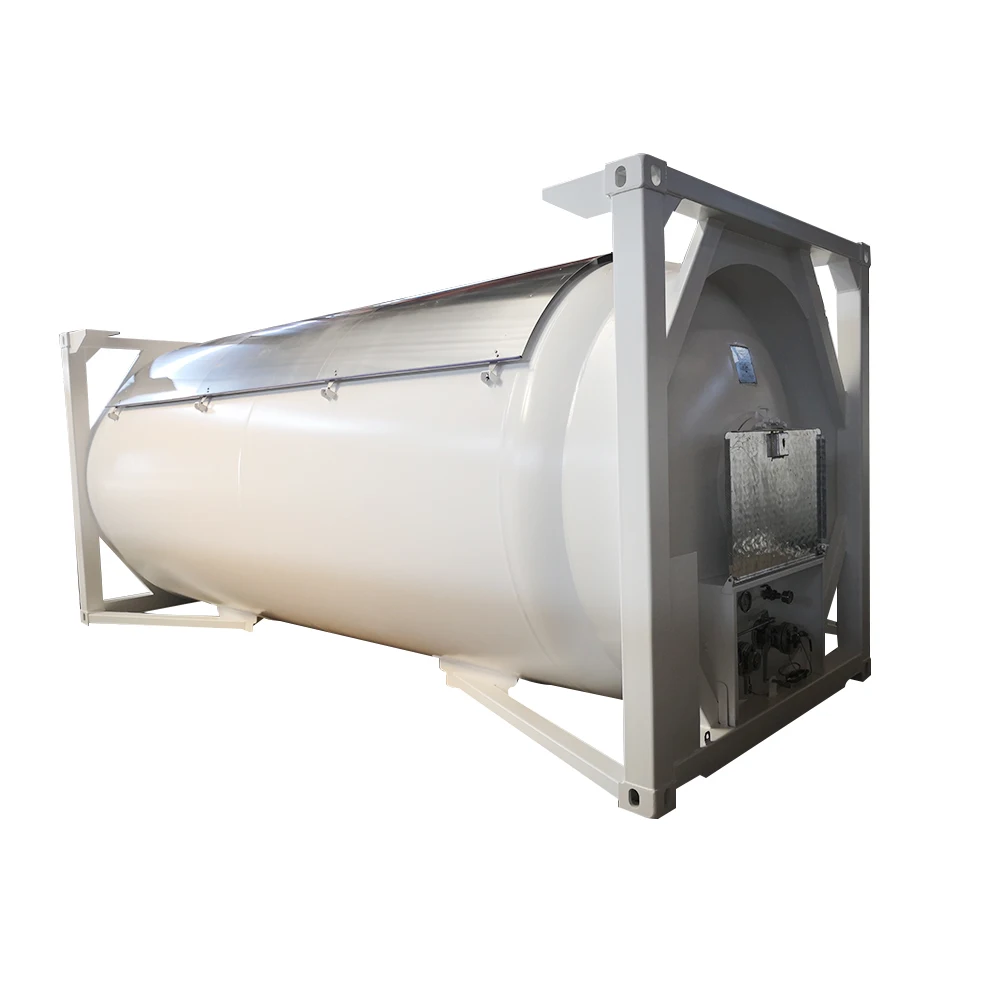

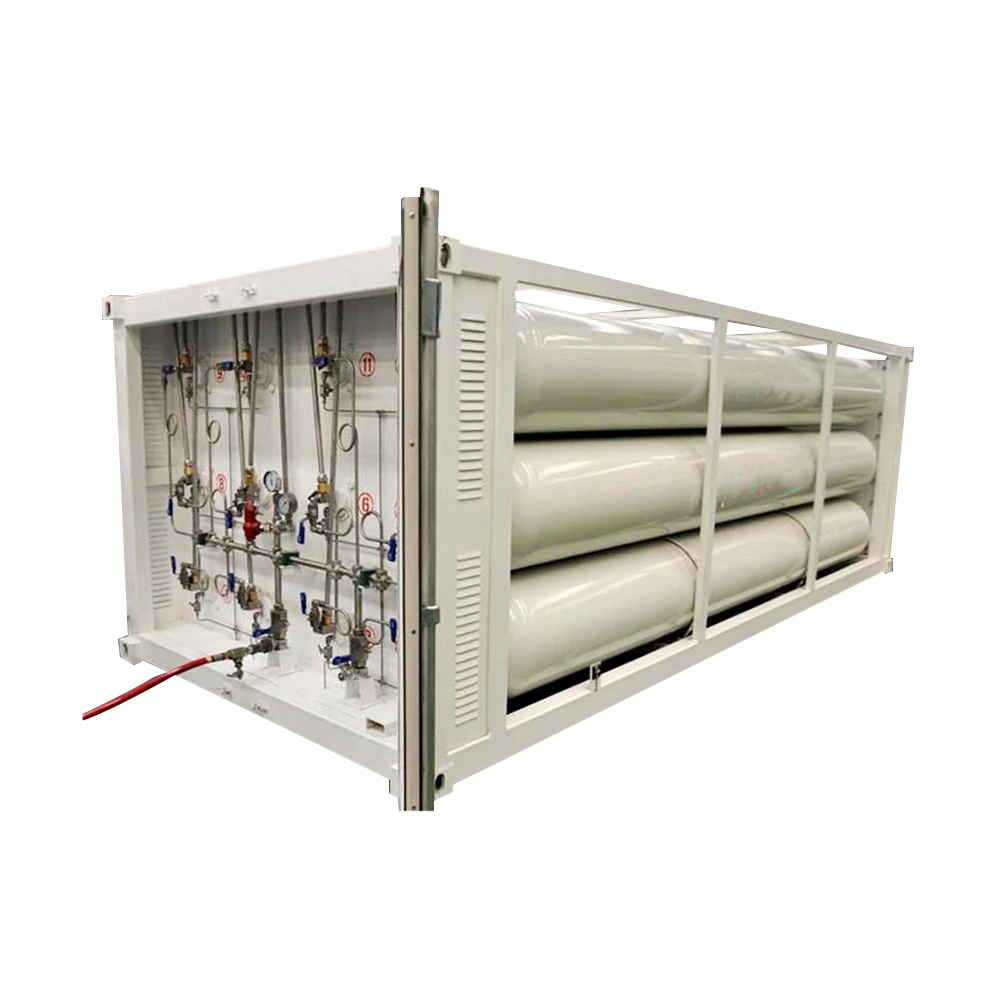

20Ft криогенный танкер LOX,LIN, Лар, LCO2,LN2O,LC2H4 в таких областях, как производство оборудования и 40ft ISO танк контейнер с Ллойд кгс сертификаты

Description and Specification of Commodity

Codes and regulations

IMDG-CODE. GB150-98 ASMI 5-1 JB/T4781-2005

UN code.

1977

Design Standards

CCS,  Basis: IMDG. CSC. TIR. UIC. RID

Approval and inspection org

Lloyd's Register(EN standard)

Loading Medium

LNG,LCO2,LN2,LO2,LAR,LN2O,LC2H4

Tolerances

on volume 1%,on weight 2%

Tare

7750 KG(Maximum tolerance 3%)

Max. Allowed Working Pressure

16Bar

Design Pressure

22Bar

Test Pressure

20Bar (Hydraulic Pressure test)

Corrosion Degree

0

Max. Outside Pressure(Mpa.)

0.1

Baffles of the inner vessel

Two transvers baffles

Surface treatment of the inner vessel

Pickling

Material of the inner vessel

Stainless Steel

Material of the out jacket&Frame

Low alloy steel

Surface treatment of the out jacket

Shot blast SA2-1/2"

Outer Vessel

Design Temperature(°C) of the out jacket

-20 to 50

Design pressure

-1 barg(full vacuum)

Outer Diameter

2420mm(not protruding over the frame members)

Overall length

6000mm(not protruding over the frame members)

Vacuum Test Pressure(Mpa)

0.1

External Tank thickness(mm)

6

Inner Vessel

Max. Allowed working pressure

16bar

Pressure vessel code

AD2000-Regelwerk

Test and calculation pressure

20bar

Design temperature(℃)

-196 to 50

Working Temperature(℃)

-196 to 50

Outer Diameter

2200mm

Inner Tank thickness(mm)

16

Number of baffles

2

Corrosion Degree

0

Gastight Test Pressure

14.4Bar

Type of insulation

High vacuum multi-layer

Static evaporation rate

Ln2  0.35%/d

Welding Joint Efficiency

1

Radiographic Inspection

100%X-RAY

Vacuum

≤0.1pa(Warm)

Net evaporation rate

≤0.33%/d (Ln²)(ambient condition:100kpa and 15°C

Inner End Enclosure(mm)

18

External End Enclose(mm)

8

Piping material

Stainless Steel type 340(L)

Valve types for cryogenic tanks

cryogenic valves

Safety Valve

DN25   PN2.5    DAH-25A1

Vaporator

DN25

Hose and Hose box

YES

Top inlet pipe

DN40

Bottom inlet/outlet pipe

DN40

Reflux tube

DN40

Liquid level gas phase tube

DN10

Liquid level liquid phase tube

DN10

Monitoring tube

DN10

Valve box

1

Guardrail of Ladder(mm)

W=400

Allowable stacking weight

192000

PBC

120NM³

DP gauge

6 inch dial(Range:0~4000mmH2O)

Pressure gauge

DV-6R Thermocouple probe

Inner tank material:

SA-240  ASME Certification

Outer vessel:

SA-516M   ASME Certification

Overall Size(Frame)/L*W*H/mm

6058*2438*2591

ISO-cornercastings

20'x8'x8'6" ISO dimensions
