0.00mA 600A(50/60 Гц) Высокий/низкий напряжение переменного тока в переменный ток утечки клещи

Range

AC 0.00mA~600A (50/60Hz automatic)

Resolution

0.01mA

Current Accuracy (23℃±3℃, below 80%RH)

AC 0.00mA~100A        ±1%±5dgt

AC 101A~600A           ±2%±5dgt

Power Supply

6V DC(LR03×4 alkaline dry batteries)

Weight

Detector: 570g (with battery); receiver:330g;the total weight: 3670g (include insulation rod and battery)

Dimension

Tester:68mm×245mm×40mm; Receiver: 75mm×165mm×42mm

Clamp Dimension

33mm

Insulation Rod Dimension

32mm   1m×5 piece

LCD Dimension

47mm×28.5mm

Sampling Rate

2 times/s

Transmission Mode

Wireless transmission, the maximum distance of straight line transmission is about 30m

Data Hold

In usual testing mode, press HOLD key to keep data, “HOLD” symbol display, press HOLD key again cancel.

Data Memory

99 sets, memory process is shown by  MEM , full storage is shown by blinking “FULL”

Data Access

“MR” indication, can access to all storage data

Overflow Display

Over-range overflow function: shown in “OL  A”

No Signal Indication

“no- -” symbol will dynamic display when receiver does not receive the signal transmission

Automatic Shutdown

15 minutes after boot up, the meter shuts down automatically to reduce battery consumption

Battery Voltage

When battery voltage is lower than 4.8V, battery voltage low symbol “” will display and remind replace battery.

External disturbance

Without 315MHz and 433 MHz interference

Line Voltage

Below 60kV current test with insulated skin wire; below 35kV bare wire test (operate with insulation rods)

Shift

0.00mA~600A automatic shift

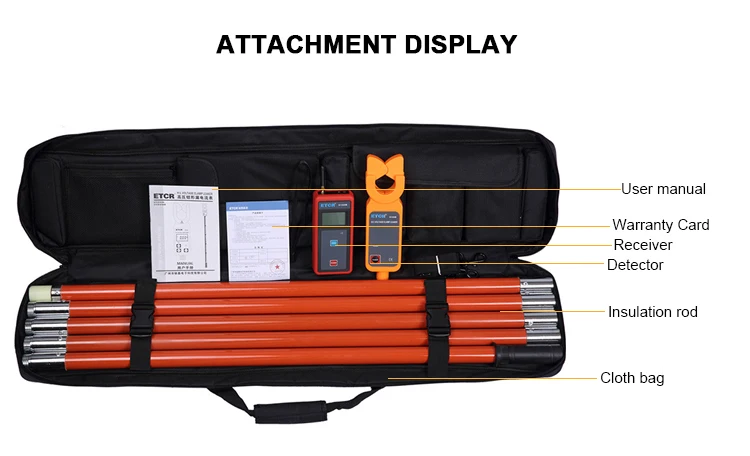

Accessories

Meter: 1 piece; receiver: 1 piece; insulation rod (1M): 5 pieces; meter box: 1 piece
