Product Overview
Description
Product Description

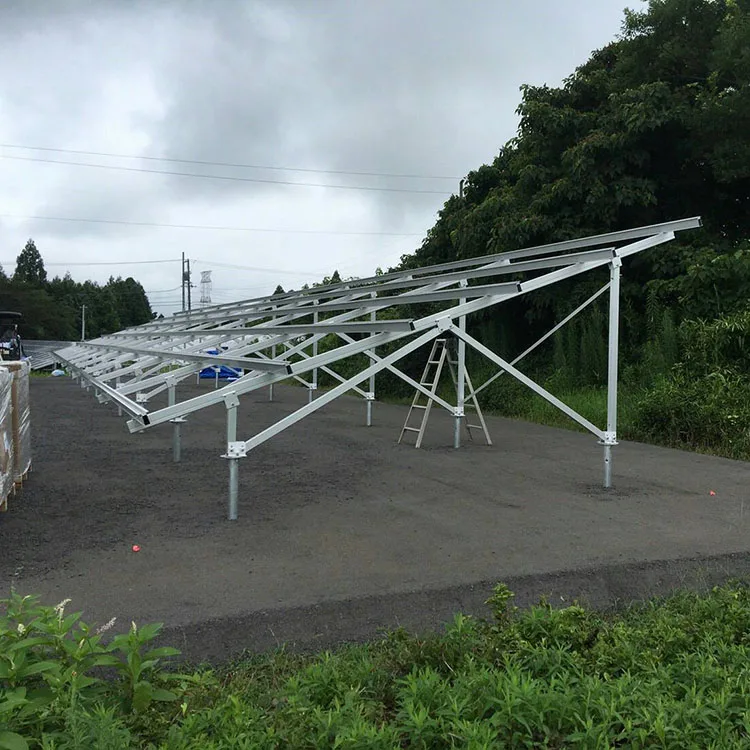

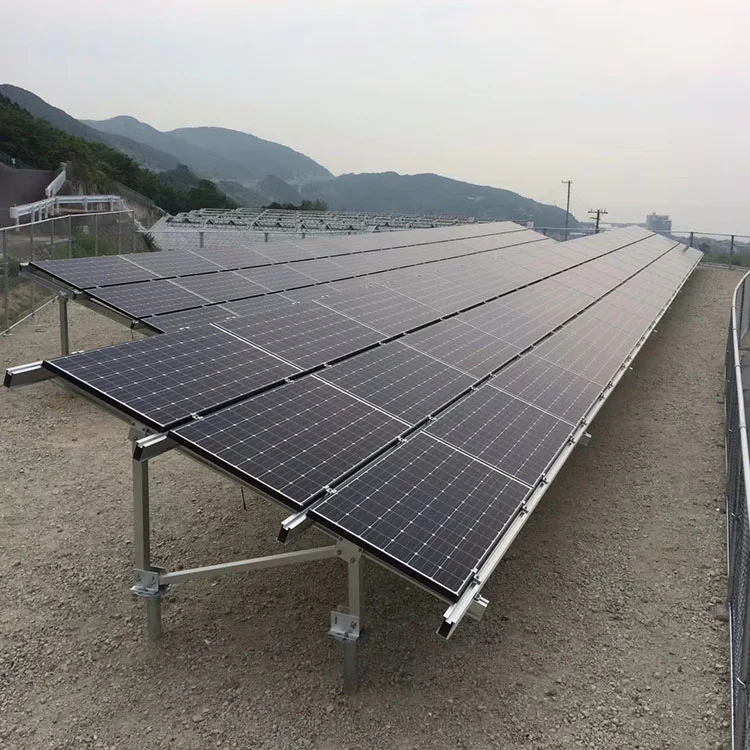

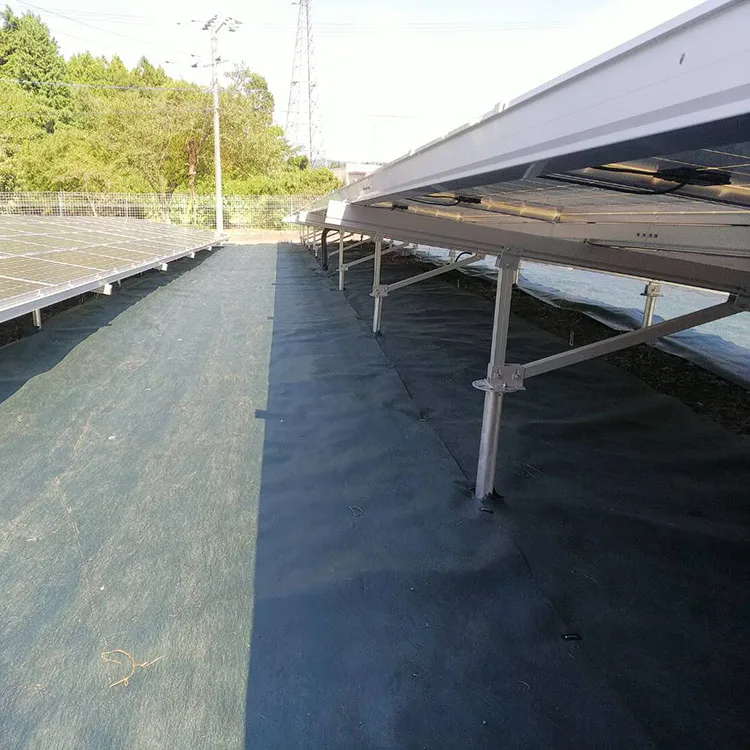

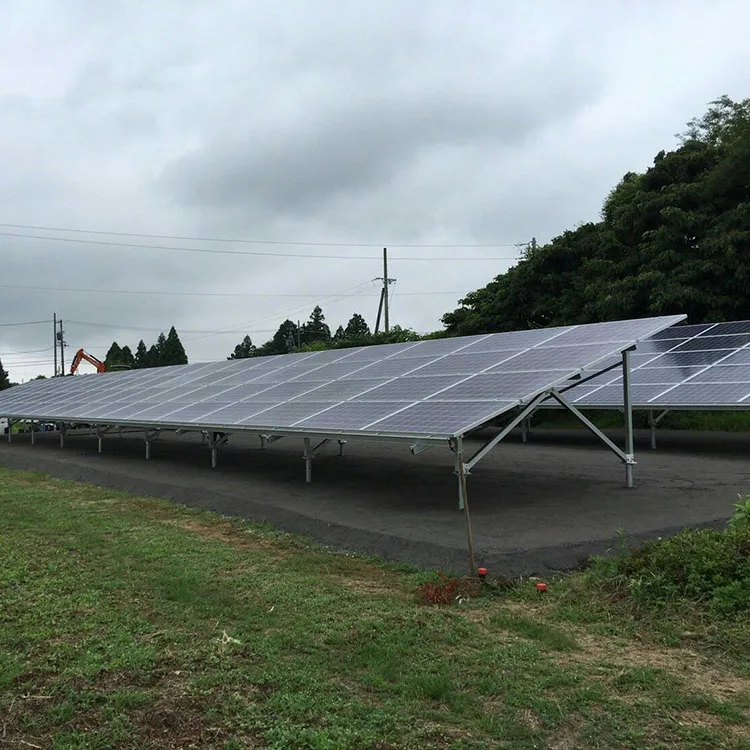

The ground mounting system is developed for large commercial and utility solar projects on open areas and some flat roofs.
The mounting design can be modified according to different conditions of project, and different foundation solutions are available.
Solar Energy Panel Stand Ground Mounting Set
| Installation site | Open field |
| Foundation | Concrete block or ground screw |
| Tile angle range | 5-45 deg or customization |
| Solar panel | Frame or frameless |
| Max wind load | Up to 60 m/s |
| Max snow load | Up to 1.5 KN/m2 |
| Main part Material | Al6005-T5 |
| Treatment | Anodizing |
| Fastener material | High-grade steel SUS304 |
| Color | Natural |
| Warranty | 12 years |
| Service life | 25 years |
| Advantage | High pre-assembly in factory |
Features: 1.The beams and legs are pre-assembled in the factory to save on-site labor cost and time.
2.The system is made of recyclable AL6005-T5, and can work more than 25 years.
