DC AC Hybrid Wall Mounted Split Solar Air Conditioning Solar Air Conditioner//

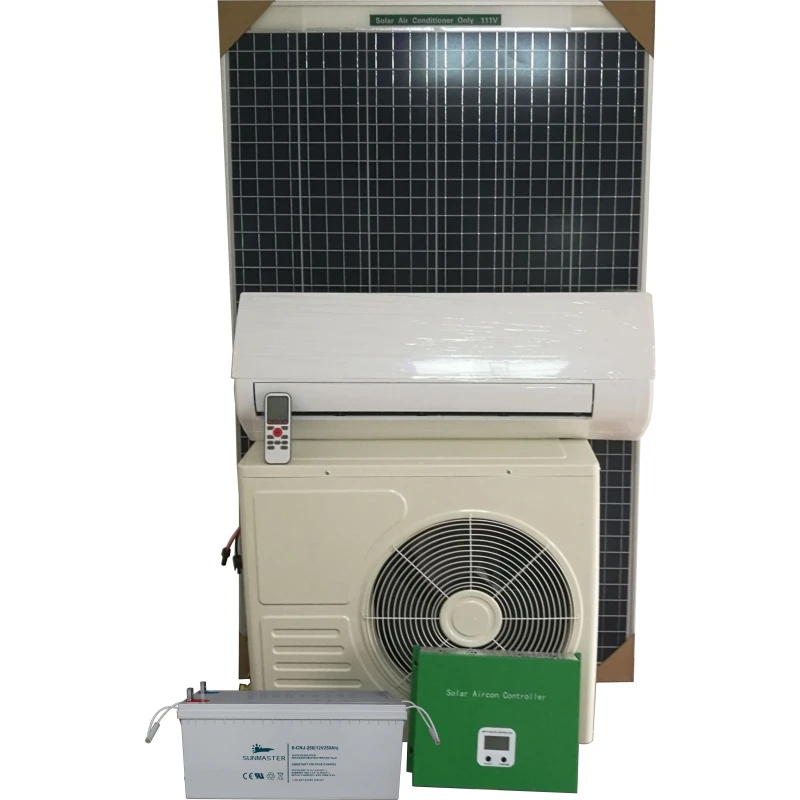

Product Overview

Description

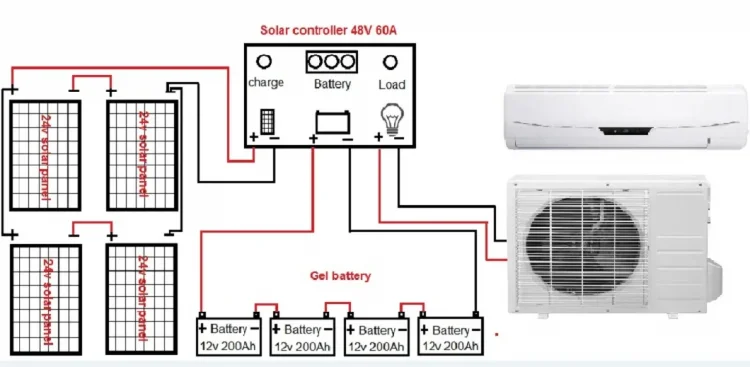

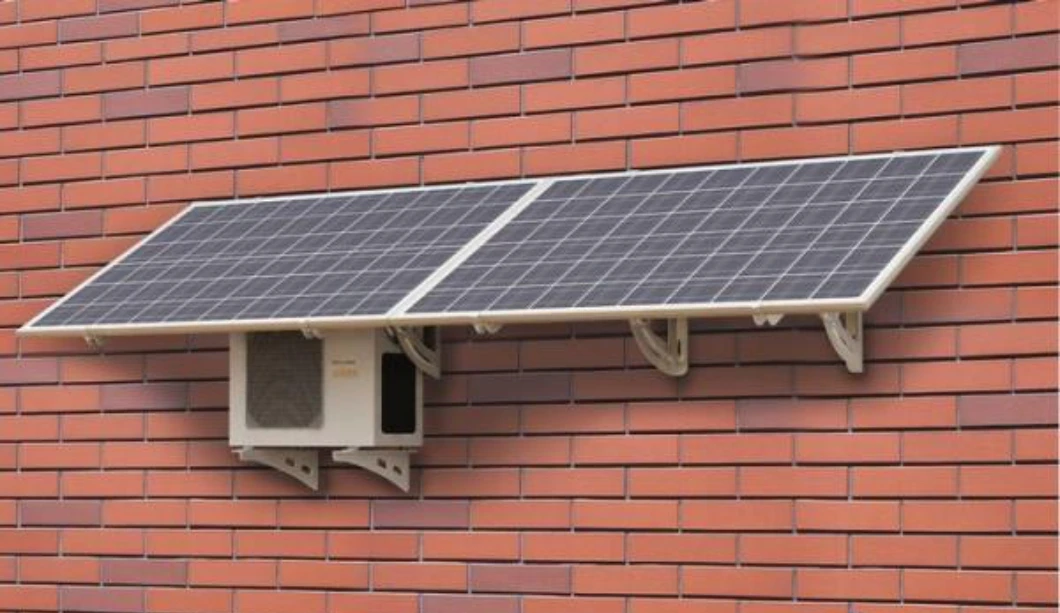

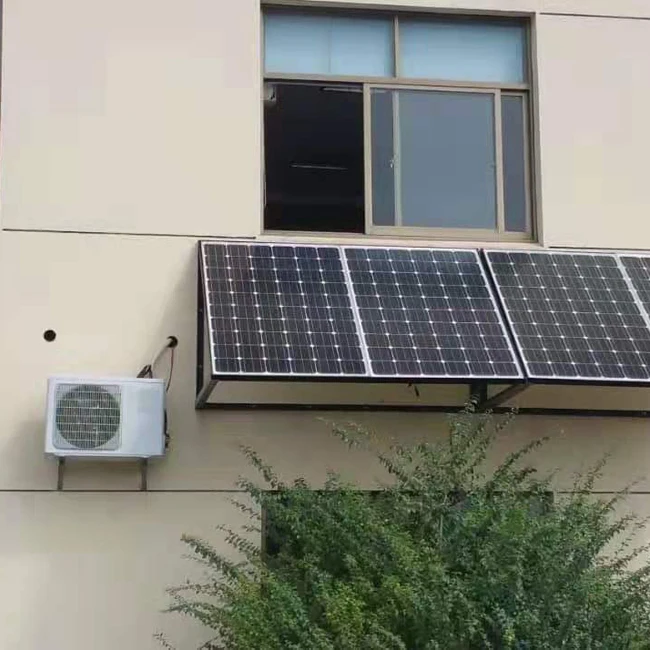

Connecting Diagram

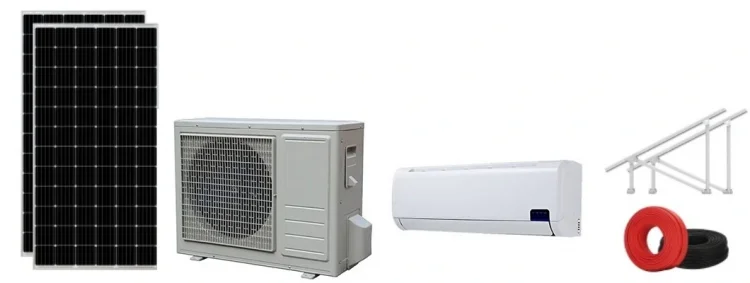

Configuration List

Item	Certification	Description	Q'ty	Warranty
Solar panel	TUV / IEC / EC	Mono or Poly 250W	4 pcs	20 years
Air Conditioner	CE	9000BTU	1 set	5 years
Batter	CE	12V 150Ah	4pcs	5 years
Mounting system	CE	Slant roof bracket/ Cement Ground bracket/ Soil ground bracket	1set	10 years
PV cable	TUV/ UL	DC port PV1-F 1*6mm²	10m	10 years
		AC port YJV-3*6mm²	10m	10 years
Charge controller	CE	48V 30A	1pc	5 years

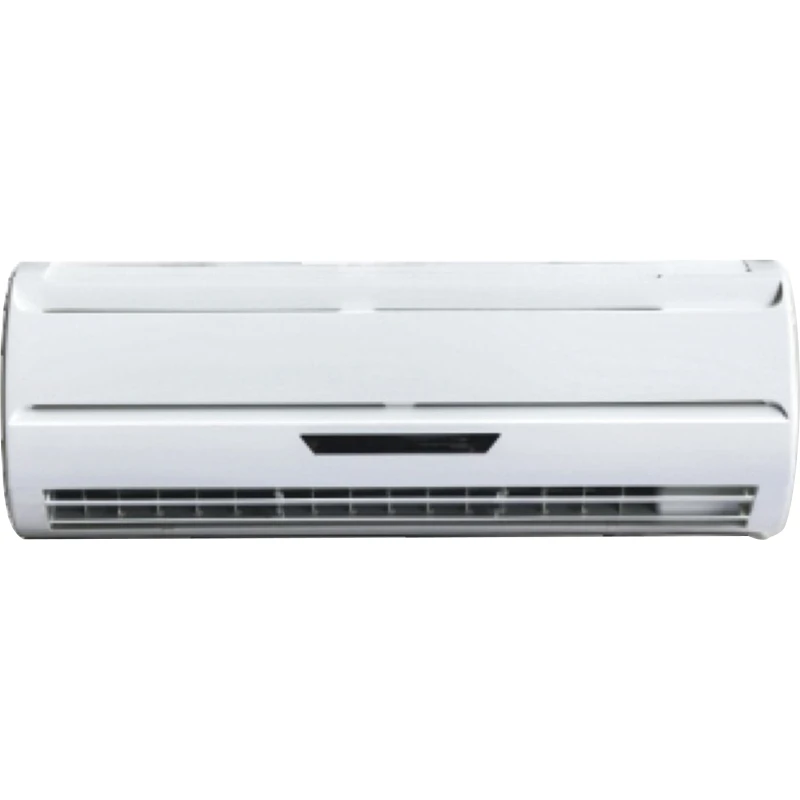

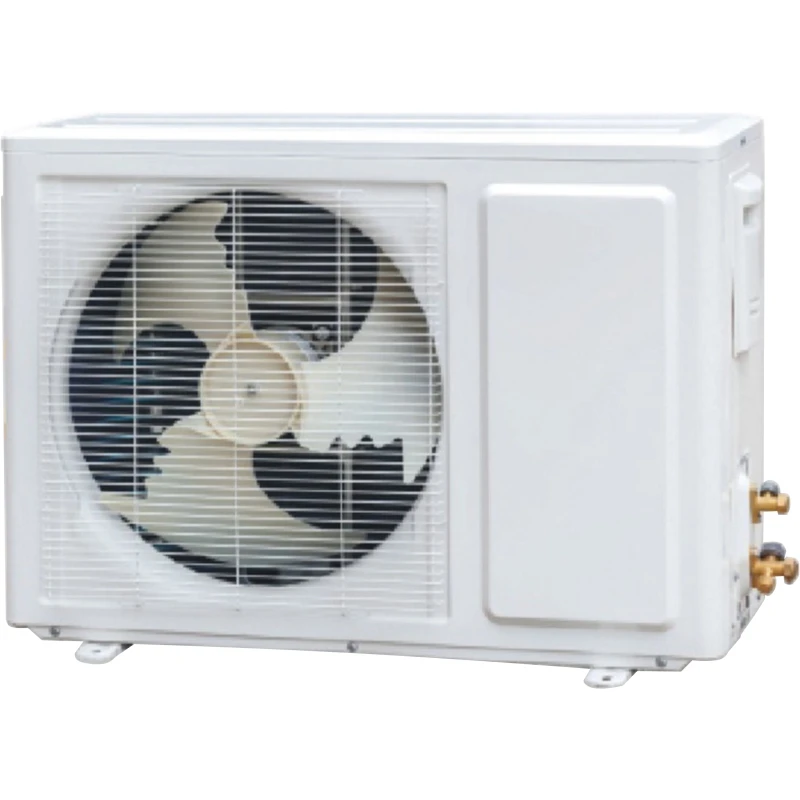

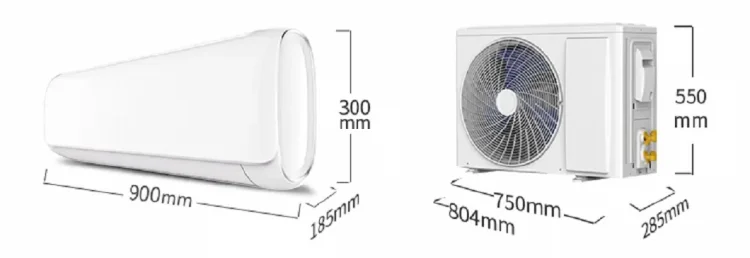

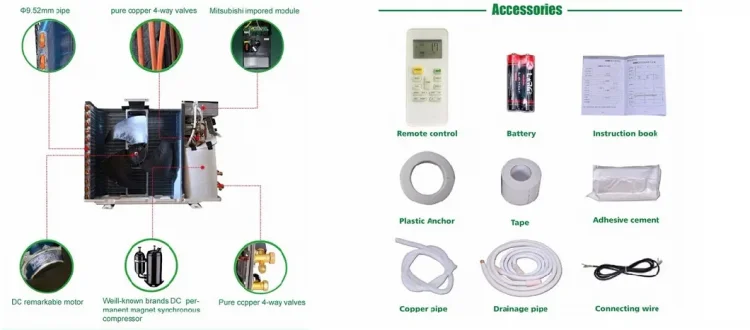

Air Conditioner Specification





Power Suypply	DC48V
Capacity	9000Btu/h
Input	475W
Rated Current	9.89A
EER	5.35 W/W
Max.input Consumption	1050W
Max.Current	21.87A
Compressor	Rotary TOSHIBA(GMCC)  9037 Btu/h
Indoor noise level	<40/33/28 dB(A)
Design pressure	4.3/1.5Mpa

Solar Panel Specification

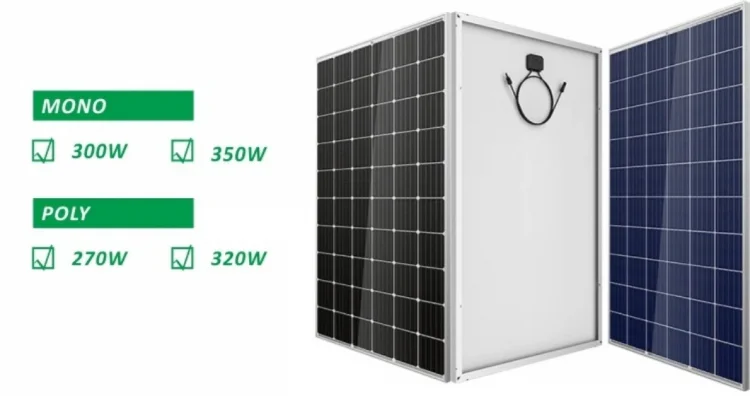

Type	MONO		POLY
Power class	280W	335W	270W	320W
Open Circuit Voltage (Voc)	43	44	43	43.8
Short Circuit Voltage (Isc)	8.35	9.92	8.23	9.42
Max power Voltage (Vmp)	36	36	36	36.5
Max Power Current (Imp)	7.78	9.3	7.35	8.76
Efficiency	≥17.1%	≥17.2%	≥16.5%	≥16.4%
Dimension (mm)	1650x991x35	1960x991x35	1650x991x35	1960x991x35
Weight (kg)	18±5%	22.5±5%	18±5%	22.5±5%

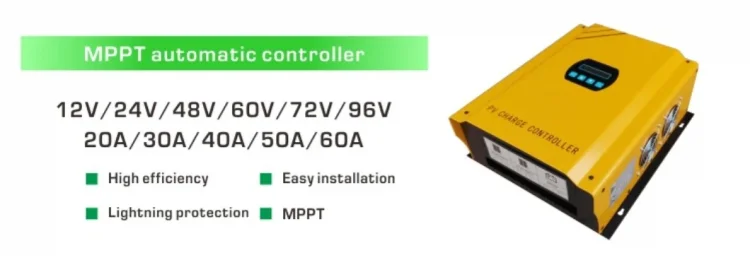

Solar Controller



Rated Charge current(A)		120A
Rated DC voltage(V)		24/48 automatic identification
Solar input  Max voltage(V)		42/84
Battery	Over charge protective voltage(V)	28.6/57.2
Battery	Over charge recover voltage(V)	27.4/54.8
Battery	Constant charge voltage(V)	27/54
Battery	Over discharge alarm voltage(V)	20/40
Environment Humidity  and temperature		0-90%  No condense,55ºC
Protective Functions		Protection against anti-charge at night,battery over charge, over discharge protection,Joint-reversed of solar modules

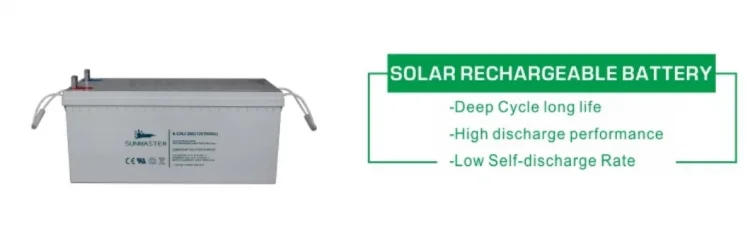

Solar Battery

Nominal Voltage	12V
Nominal Capacity	250Ah(10hr,1.80V/cell,25ºC)
Approximate Weight	67.3 kg
Internal Resistance	4.5 mΩ (Lead terminal)
Terminal	Lead wire (6.0mm²×1.8m)
Maximum Charge Current	62.5 A
Ambient Temperature	-35~55 ºC
Dimension	Length	520mm(±2 mm)
	Width	269mm(±2 mm)
	Container Height	220mm(±2 mm)
	Total Height	245mm(±2 mm)
Case	ABS

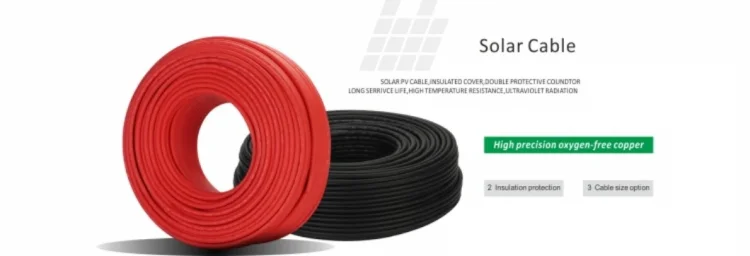

Solar Cable



Conductor	Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
Insulation	Polyolefin Copolymer electron-beam coss-linked
Sheath Jacket	Polyolefin Copolymer electron-beam coss-linked
Nominal Voltage	Uo/U=600V/1000VAC, 1000V/1800VDC
Test  Voltage	6500V, 50Hz, 5Min
Temperature Rating	-40°C-125°C ,More than 25 Years  (TUV)
Fire Performance	IEC 60332-1
Smoke Emission	IEC61034, EN 50286-2
Low Fire Load	DIN 51 900
Certification	TUV 2PFG 1169/08 2007 PV1--F
