Swing arm slipper sole cutting machine

Share on (62293632376):


Price:$2,200.00

Quantity:


Product Overview

Description




Product Description


Swing arm slipper sole cutting machine




A machine that is suitable for cutting shapes out of rolls of non metal soft material, such as fabric, rubber, cork, cardboard, or leather, using a metal tool called a die. Click presses are widely us

Product details







































After-sales Service ProvidedEngineers available to service machinery overseas
Product namepress machine for leather
Applicationall soft non metal materials
cutting force12t 20t 25t
working table size1000*500mm
Product Keywordsswing arm slipper sole cutting machine




How the clicker press works


Using a clicker press to cut materials is very simple process, called die cutting. You have a die in the desired shape you want to cut, you place the material you want to cut on a cutting surface, normally this will be a polypropylene cutting board, then you place the die on top of the material and then lower the head down on top of the die, via two safety switches, pressed simultaneously, This will force about 10 to 27 tons of pressure depending on the type of machine you have, on the die to cut through the material, once the head reaches the has retracted you will have the desired shape.











swing arm slipper sole cutting machine






Working principle



Working principle:


Using a clicker press to cut materials is very simple process, called die cutting.  You have a die in the desired shape you want to cut, you place the material you want to cut on a cutting surface, normally this will be a polypropylene cutting board, then you place the die on top of the material and then lower the head down on top of the die, via two safety switches, pressed simultaneously, This will force about 10 to 300 tons of pressure depending on the type of machine you have, on the die to cut through the material, once the head reaches the has retracted you will have the desired shape.


How to choose the suitable machine for your business?


1)material: nonmetal soft materials


2)your size of dies need to smaller than the swing arm size.


3)Feeding system depends on your material style ( rolls or sheets).


4)The force depends on the perimeter of the die blade.


Welcome to contact us for select the right model.


Clicker press application:


swing arm slipper sole cutting machine












About Us

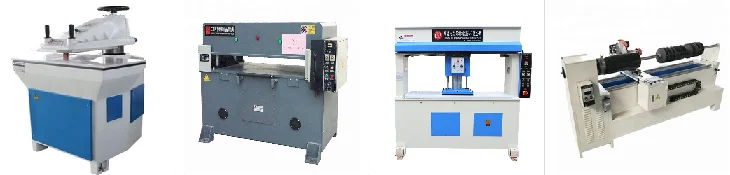

Jiangsu Atong Machinery Manufacturing Co., Ltd is located in Dagang Town, Yancheng City, Jiangsu Province --- the Hometown of Chinese Shoe Machinery known as a national intensive area of spark plan technology. The company is a scale enterprise specialized in producing series precision machinery and general machinery products such as hydraulic die cutting machines, strip cutting machine , hydraulic hole punching machine, laminating machine and etc.


swing arm slipper sole cutting machineswing arm slipper sole cutting machineswing arm slipper sole cutting machine






swing arm slipper sole cutting machine

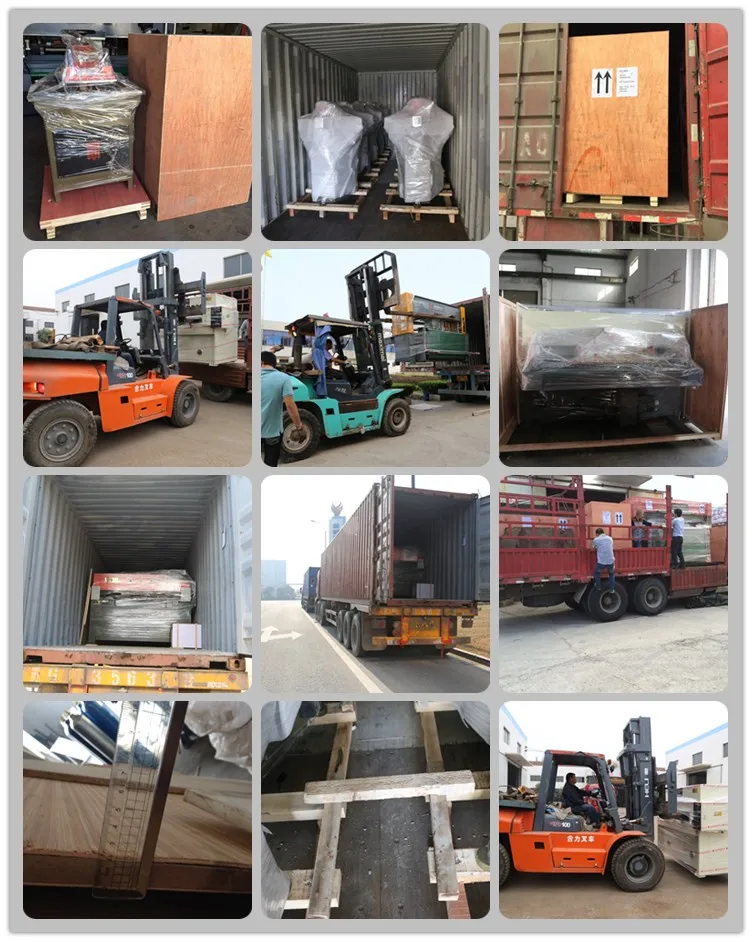

Packaging & Shipping of hydraulic  die cutting clicker press machine:


Inner Package: Protective Film, etc


Outside Package: Plywood Case


Hydraulic clicker press well packed with protective film and loaded in plywood case or export container;


English version operation manual and technical data;


One-Year-Period wear parts;


Tool kit
