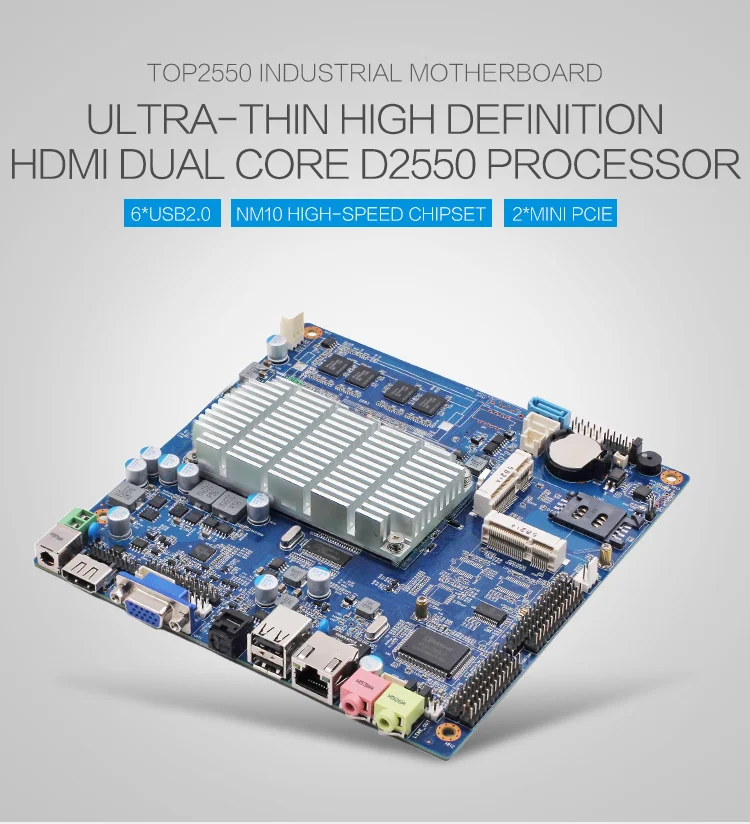

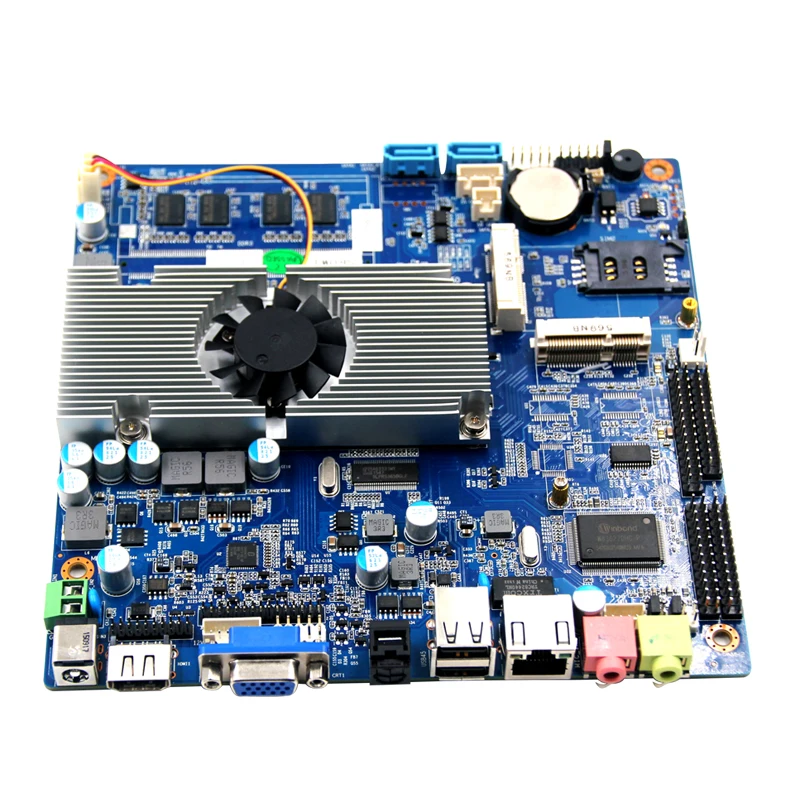

Atom D2550 N2600 N2800 processor fanless mini ITX motherboard with HD MI VGA LVDS display

Model

No.

TOP2550

Processor

CPU

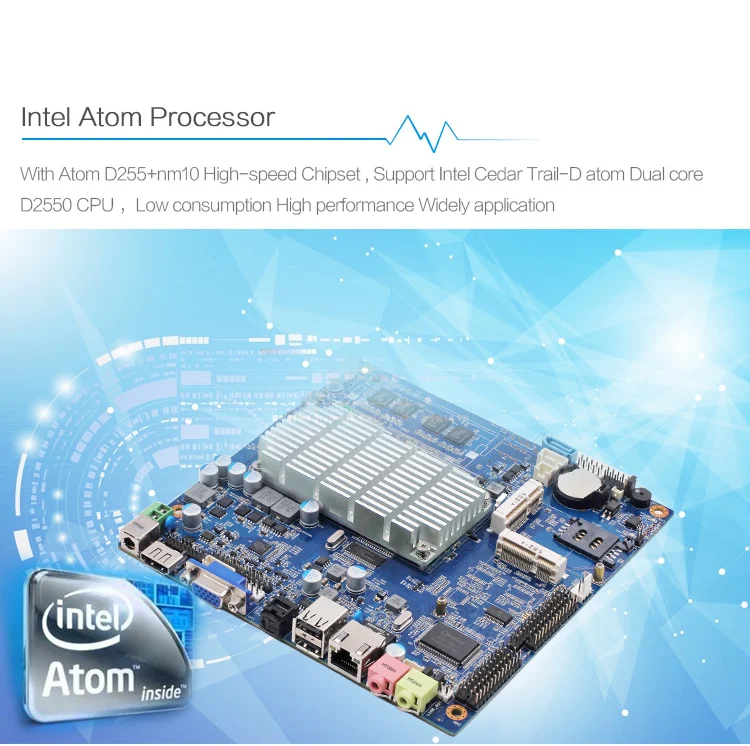

Intel® Atom D2550/N2600/N2800 dual core processors

CPU Package

BGA559

Chipset

Intel NM10 Express Chipset (Intel CG82NM10 PCH)

BIOS

AMI EMI 16MB SMT/DIP-SPI Flash ROM

RAM

Technology framework

single Channel DDR3 1066/1333 MHz, up to 6 GB

Capacity

2GB/4GB onboard

Video

Graphic controller

Intel GMA3650 Graphics Core(DVMT Max 384MB)

LVDS

24bit Single Channel LVDS

VGA

Resolution maximum:1366*768

HDMI

Resolution maximum:1366*768

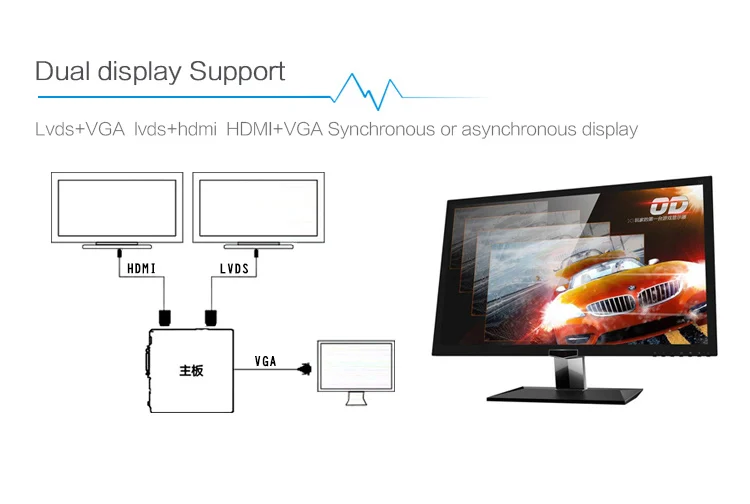

Double display support

VGA+HDMI/VGA+LVDS/LVDS+HDMI, Synchronous or asynchronous display

Network

Controller

RTL8111EL LAN,support RTL/PXE diskless booting

Radio

Controller

Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic)

Hardware monitor

Watchdog & Timer

0~255 timer  (Watchdog code optional)

Cooler

Aluminum alloy heat sink with fan

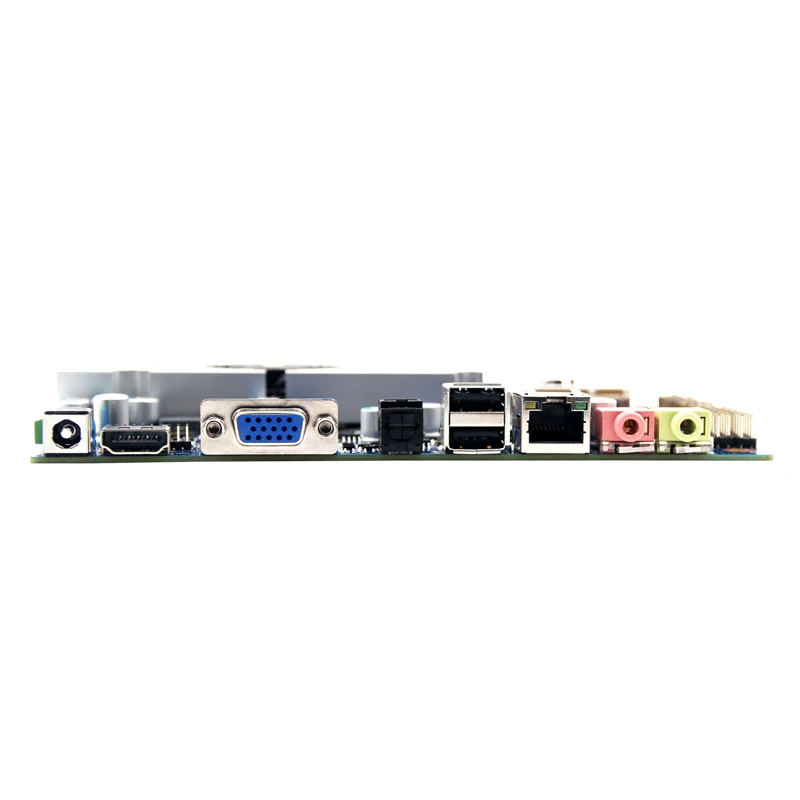

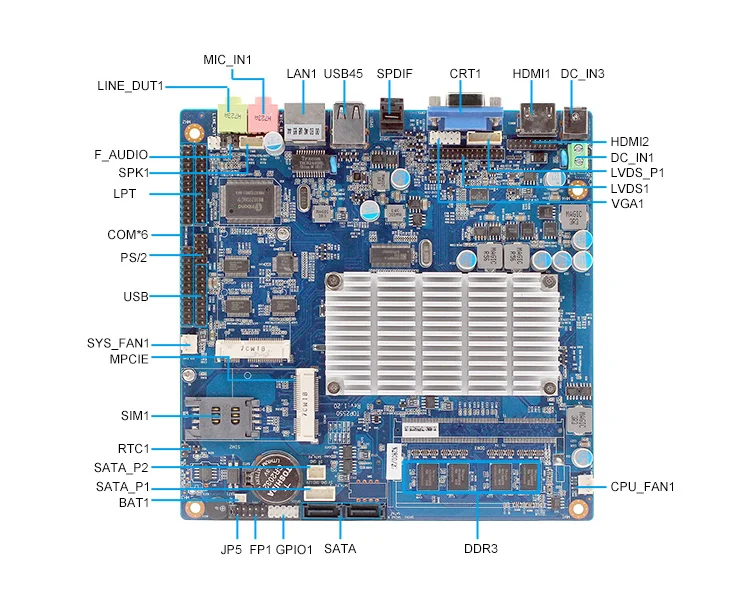

Input/Output Interface

USB

2*USB2.0 (compatible USB1.1)  6*USB2.0, Max. Current supported 5V/1A

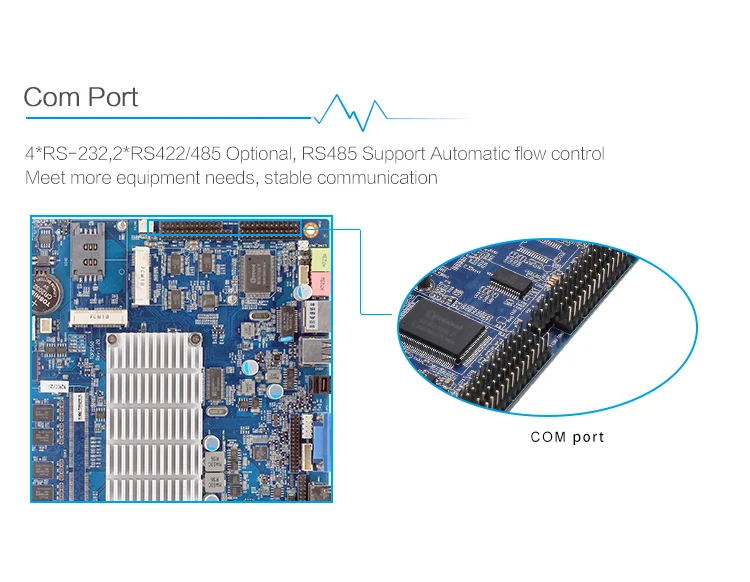

Series

5*RS232 ,1*RS232/485 optional, RS485 supported automatic flow control

PS/2

1*PS/2 expansion header

GPIO

8bit (4pin in/4pin out)/ 3.3V@24mA / Sample code optional/Free definition of input/output

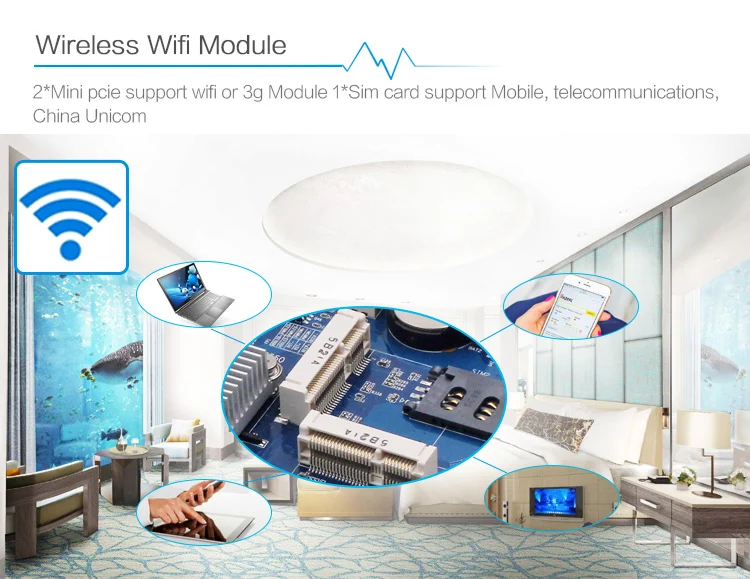

Extended bus

mini-PCle

2*mini-PCIe socket, supported PCIE and USB device

SMBUS

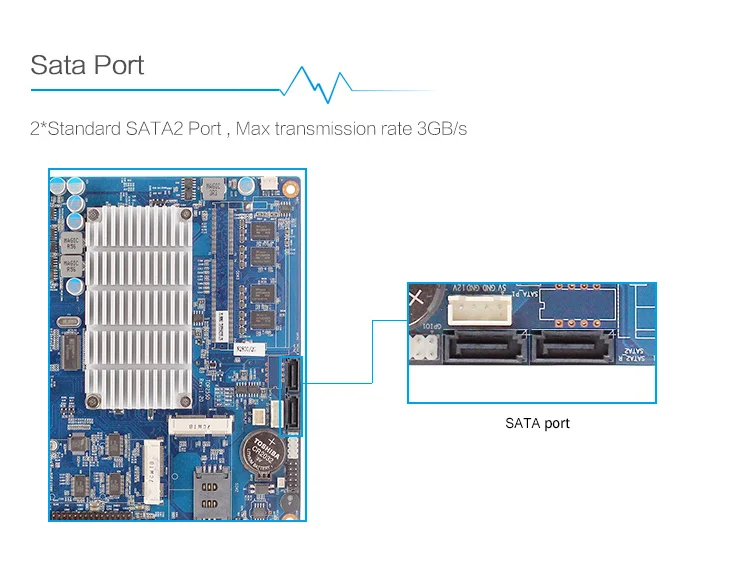

Storage

SATA

2*SATA2.0 Maximum transmission rate 3Gb/s

M-SATA

1*mSATA socket, Supported SANDISK protocol ,Max. transmission rate 3Gb/s

Power Supply

Power Type

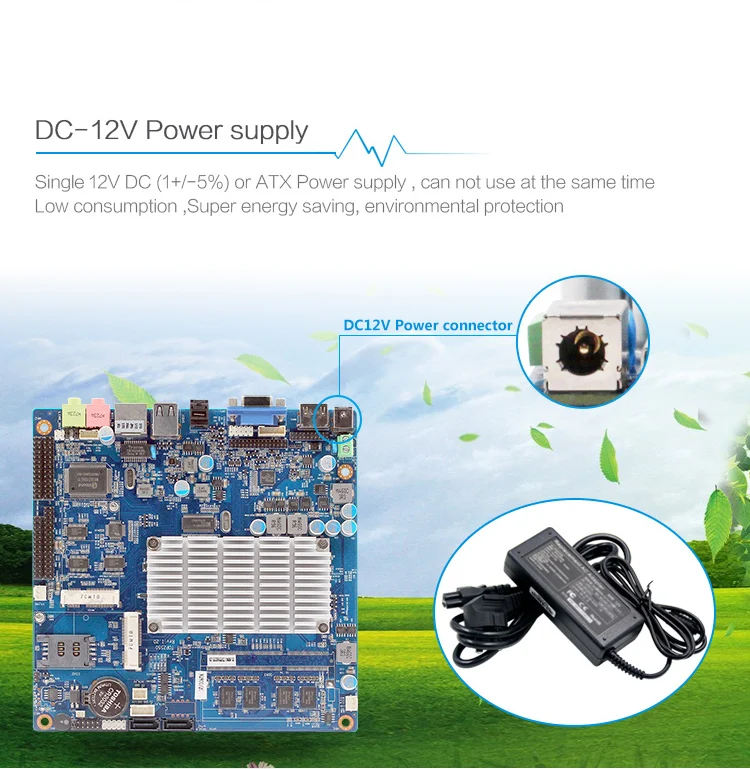

Single input DC power supply, DC12V 5A/7A

Power consumption

35W

Work environment

Working temperature

-20°C~60°C (-32°F~140°F)

Storage temperature

-40°C~85°C (-104°F~185°F)

Working humidity

10%~90% (non-condensing)

Storage humidity

10%~90% (non-condensing)

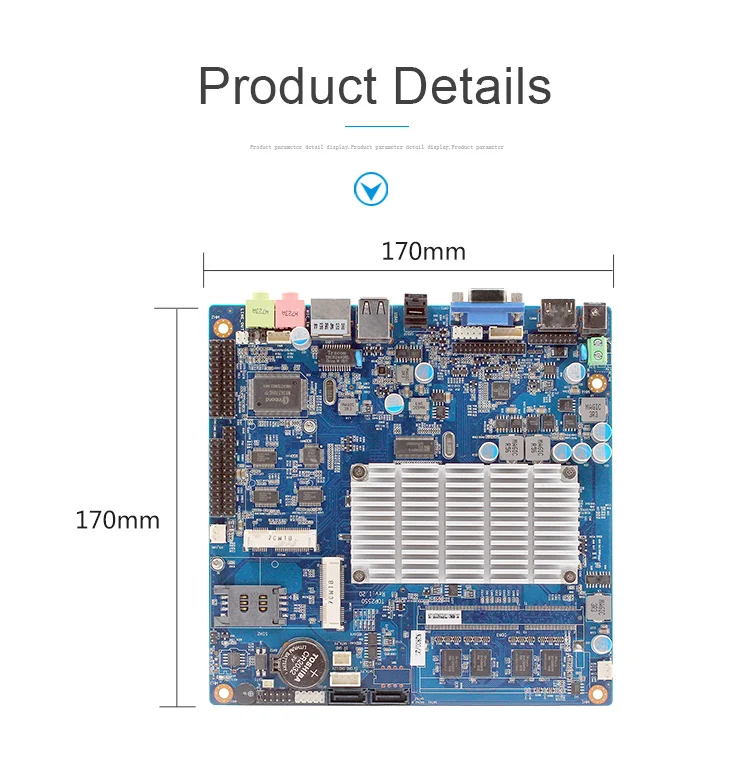

Measure

Size

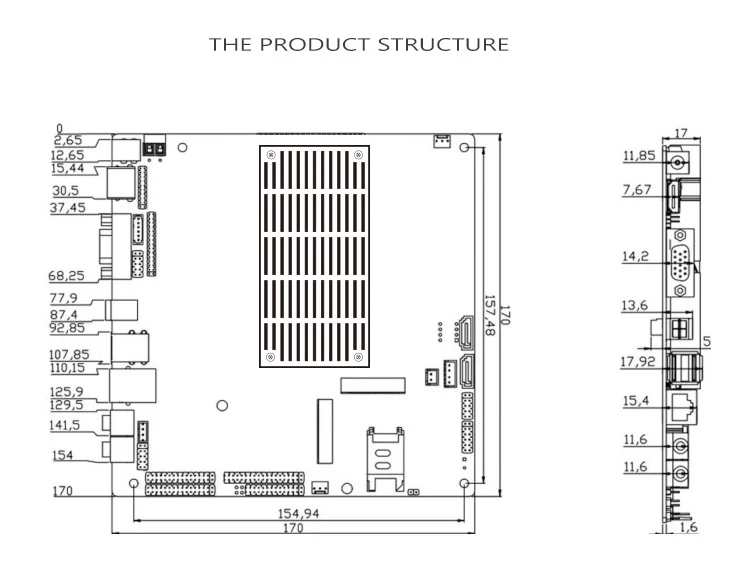

170 x 170 mm

Weight

 0.5 KG
