Wensui промышленный PET осушитель воздуха wensui VMD 3 в 1 сушилка
- Category: Plastic Raw Material Machinery >>>
- Supplier: Wensui Intelligent Equipment Inc.
Share on (62296224513):
Product Overview
Description
Product Description
HoneyComb Dehumidifier Working principle:
VMD All-in-one PET dehumidifier is especially suitable for drying material with high hygroscopicity such as PA, PC, PBT, and PET. Drying, dehumidifying and two-stage conveying into one unit makes it a compact design dehumidifier.
Product Features:
> Integrated dehumidifying, drying and feeding into one unit.
Standard configuration is 1 to 2 feeding:1 reed switch hopper and 1 photoelectric hopper.
Optional configuration is 1 to 3 feeding:1 reed switch hopper and 2 photoelectric hoppers.
Up to 1 to 4 feeding:1 reed switch hopper and 3 photoelectric hoppers.
> Controlled by microprocessor with P.I.D. temperature control.
> Consists of LCD display and keyboard.
> Double-condenser provides lower return air temperature and dew point below -40°C (-50°C is realizable with chilling water).
> Easy to operate system and to understand warning messages.
> Insulating drying hopper with European standard allows better heat preservation and drying efficiency.
> Fully sealed feeding system to prevent dried material from contacting open air and being re-damped.
> Discharge valve ensures no residual materials in hopper tubes.
> Small footprint and moveable.
> PLC control with enhanced configuration is optional for feeding up to 5 molding machines.

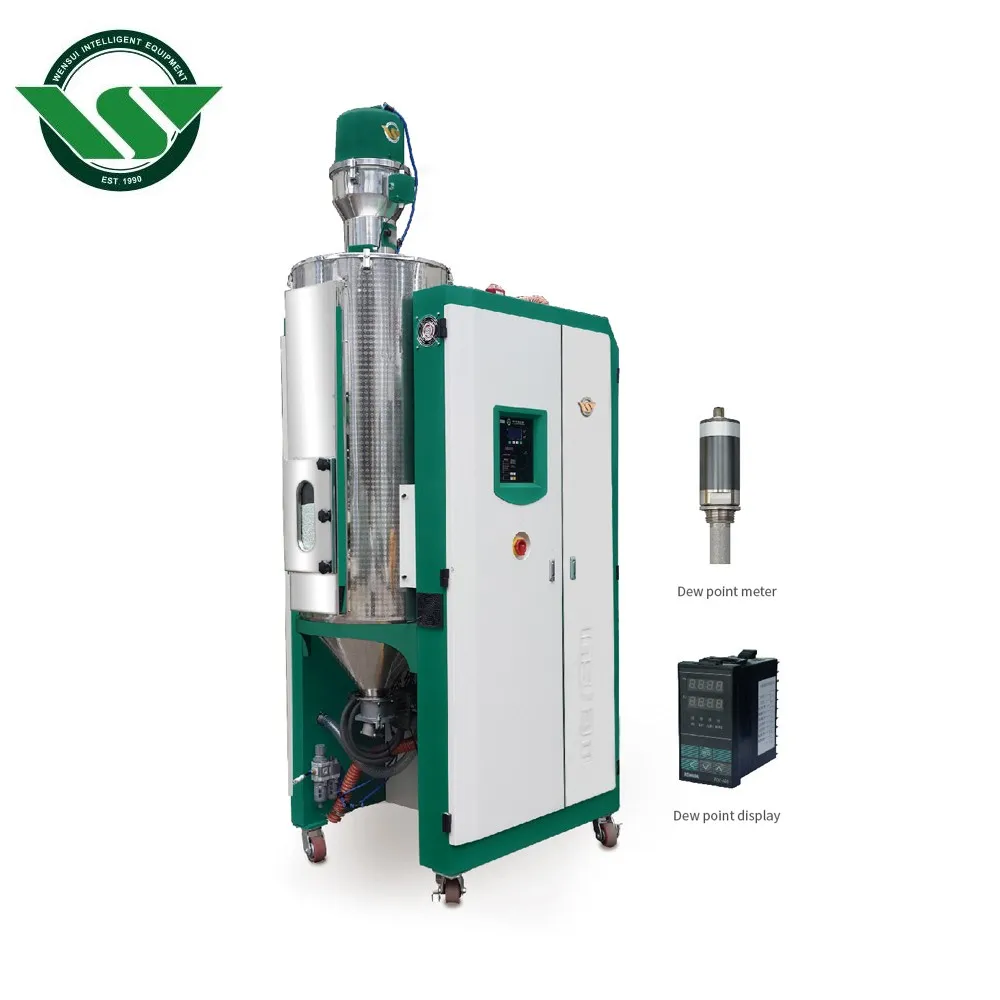

> Dew-point monitor is optional.
Standard configuration is 1 to 2 feeding:1 reed switch hopper and 1 photoelectric hopper.
Optional configuration is 1 to 3 feeding:1 reed switch hopper and 2 photoelectric hoppers.
Up to 1 to 4 feeding:1 reed switch hopper and 3 photoelectric hoppers.
> Controlled by microprocessor with P.I.D. temperature control.
> Consists of LCD display and keyboard.
> Double-condenser provides lower return air temperature and dew point below -40°C (-50°C is realizable with chilling water).
> Easy to operate system and to understand warning messages.
> Insulating drying hopper with European standard allows better heat preservation and drying efficiency.
> Fully sealed feeding system to prevent dried material from contacting open air and being re-damped.
> Discharge valve ensures no residual materials in hopper tubes.
> Small footprint and moveable.
> PLC control with enhanced configuration is optional for feeding up to 5 molding machines.
> Dew-point monitor is optional.
Products Show

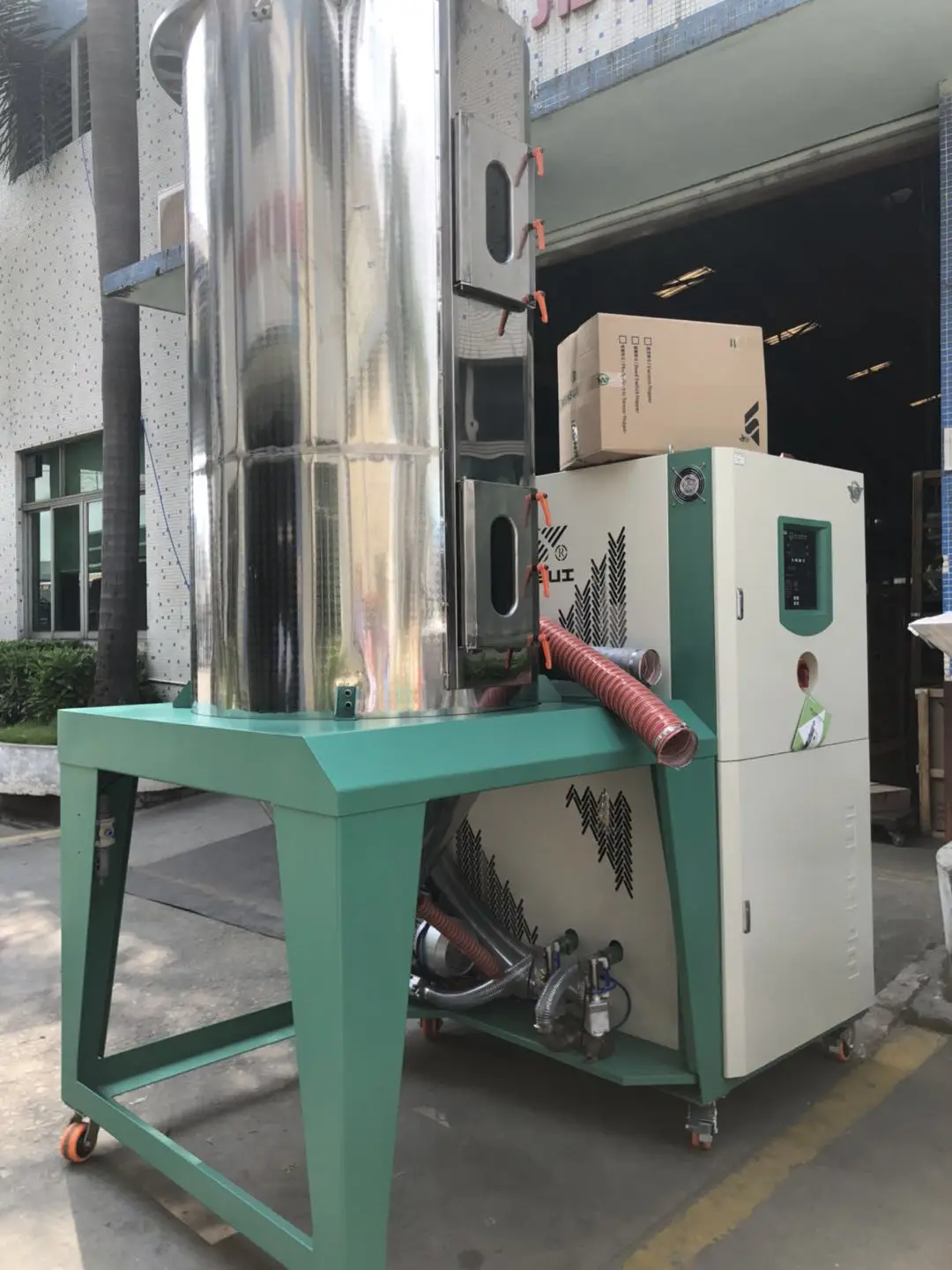

VMD450L/300A
Support Frame for Hoppers above 450L. Very compact unit for PET drying and feeding.

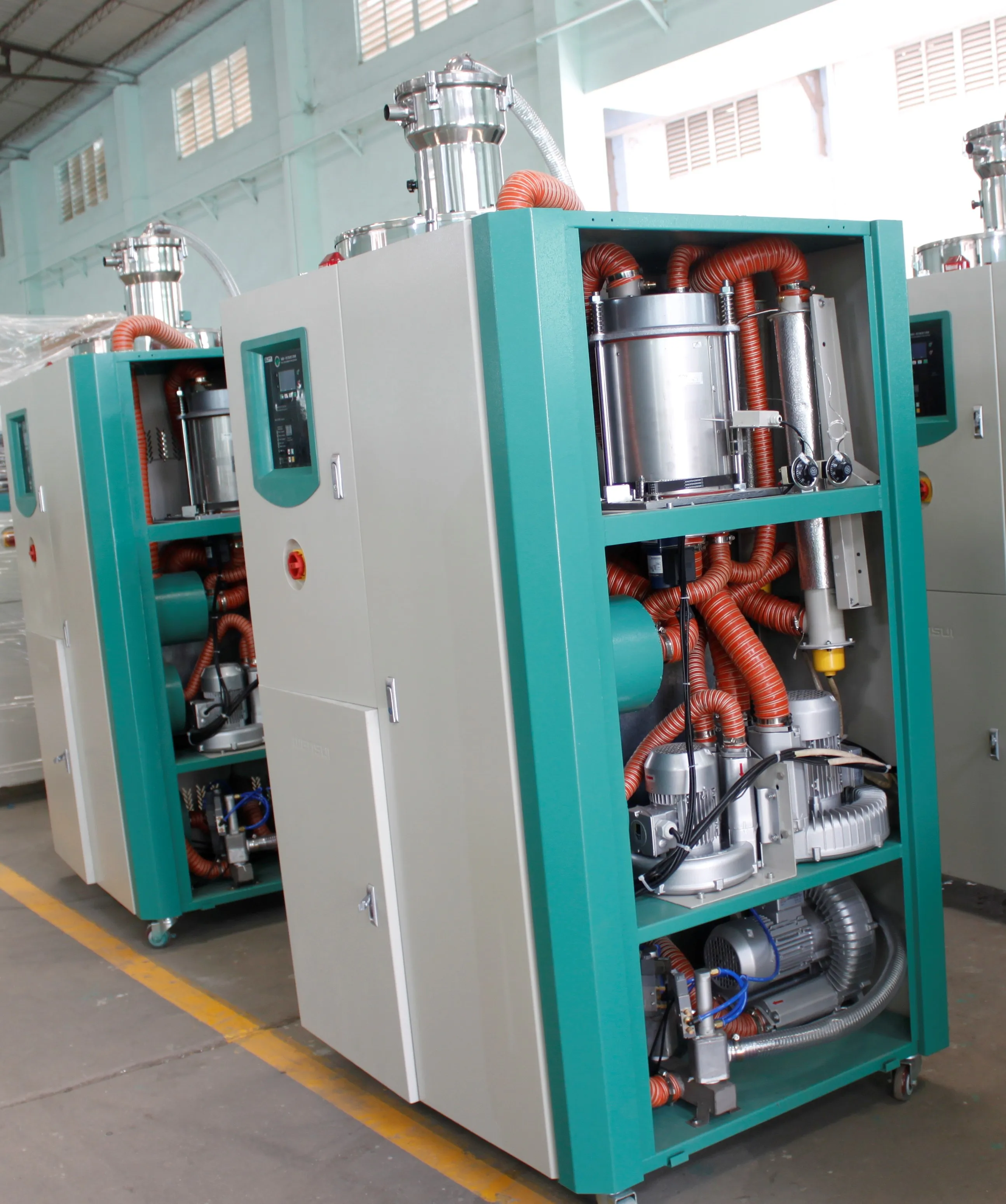

3 Pumps in VMD series, for Drying, Regeneration and Feeding
Honeycomb Rotors to Eliminate Moistures
Electric Cabinet, Main Parts Schneider Brand
Specification
Model | VMD90L/80A | VMD160L/130A | VMD230L/160A | VMD300L/220A | VMD450L/300A | VMD750L/400 | VMD900L/500A | VMD1200L/800A | |||||||||
Hopper | Capacity (L) | 90 | 160 | 230 | 300 | 450 | 750 | 900 | 1200 | ||||||||
Insulating Matrials | Fiberglass and casing | ||||||||||||||||
Dry air dew point | -40℃ | ||||||||||||||||
Drying Temp. | 80-160℃ | ||||||||||||||||
Air flow(m³/h) | 80 | 130 | 160 | 220 | 300 | 400 | 500 | 800 | |||||||||
Blower Power(kW) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 5.5 | 7.6 | |||||||||
Regeneration Blower(kW) | 0.25 | 0.25 | 0.55 | 0.55 | 0.75 | 0.75 | 2.2 | 2.2 | |||||||||
Drying Heater(kW) | 3.9 | 5.4 | 7.2 | 12 | 14 | 18 | 21 | 21 | |||||||||
Regeneration Heater(kW) | 3.9 | 3.9 | 5.4 | 5.4 | 7.2 | 7.2 | 14 | 14 | |||||||||
Pipe Dia-meter | Drying (mm) | 51 | 51 | 63 | 63 | 76 | 76 | 100 | 100 | ||||||||
Cooling (inch) | 3/4" | ||||||||||||||||
Regenera-tion(mm) | 38 | 38 | 51 | 51 | 51 | 51 | 63 | 63 | |||||||||
Conveying Blower(kW) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | 3.7 | 3.7 | |||||||||
Conveying Distance(m) | Stage 1 | 10 | |||||||||||||||
Stage 2 | 10 | ||||||||||||||||
Hose Diam(inch) | 1.5 | ||||||||||||||||
Sensor Hopper Capacity(L) | 6 | 6 | 6 | 6 | 10 | 10 | 10 | 10 | |||||||||
Vacuum Hopper Capacity(L) | 6 | 6 | 6 | 6 | 10 | 10 | 10 | 10 | |||||||||
Net Weight(kg) | 310 | 360 | 420 | 550 | 600 | 750 | 830 | 900 | |||||||||
Our Company
About Wensui
Wensui is a Manufacturing and Selling Combo based at Guangzhou, specialized at Plastic auxilliary machinery for 30 years. Now Wensui is a famous brand in Asia. We produce and stock full range of products for you injection workshops: Autoloader, crusher, Chiller, Dehumidifier and recycling solution...Welcome your inquiry and visit!
Certifications
Exhibition
Packing & Delivery
Protective Foam in Wooden case
Wooden case finished
Container loading
FAQ
Q: How long is your delivery time?
A: It's 7-9 days if in stock. If not in stock, 30-35 days depending on quantity.
Q: Are you a manufacturer or trading company?
A: We are manufacturer of all auxilliary machinery and plastic recycling lines.
