Mini toggle switch 6 Pin 250V 6A 125V IP67 waterproof toggle switch

Share on (62296406952):


Price:$1.27 - $1.72

Quantity:


Product Overview

Description


Mini toggle switch 6 Pin 250V 6A 125V IP67 waterproof toggle switch

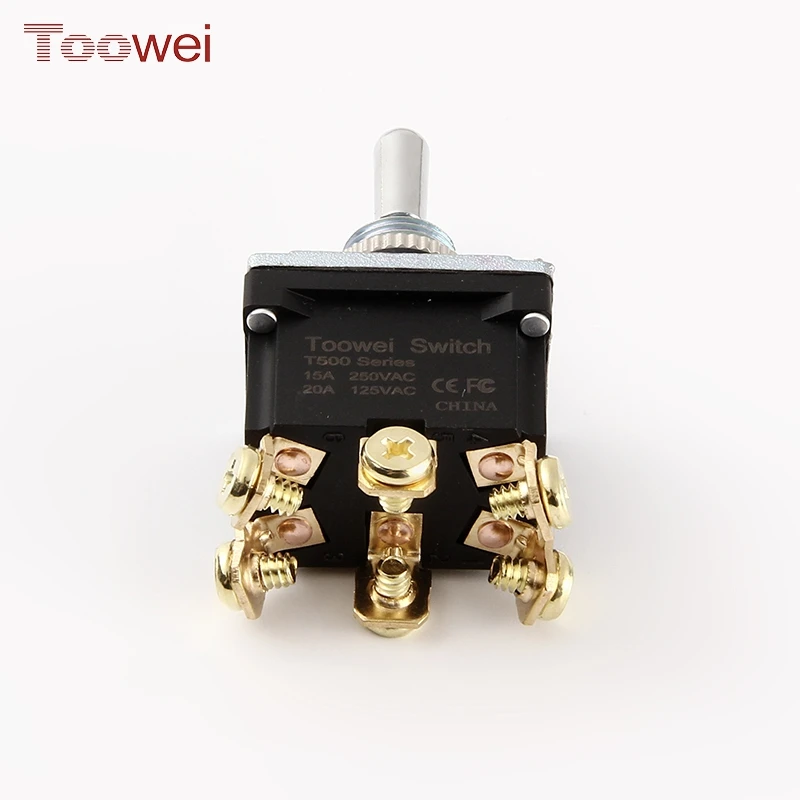

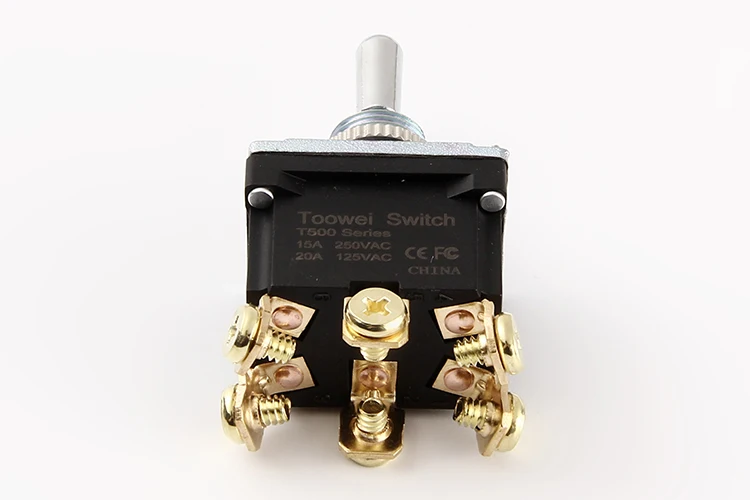

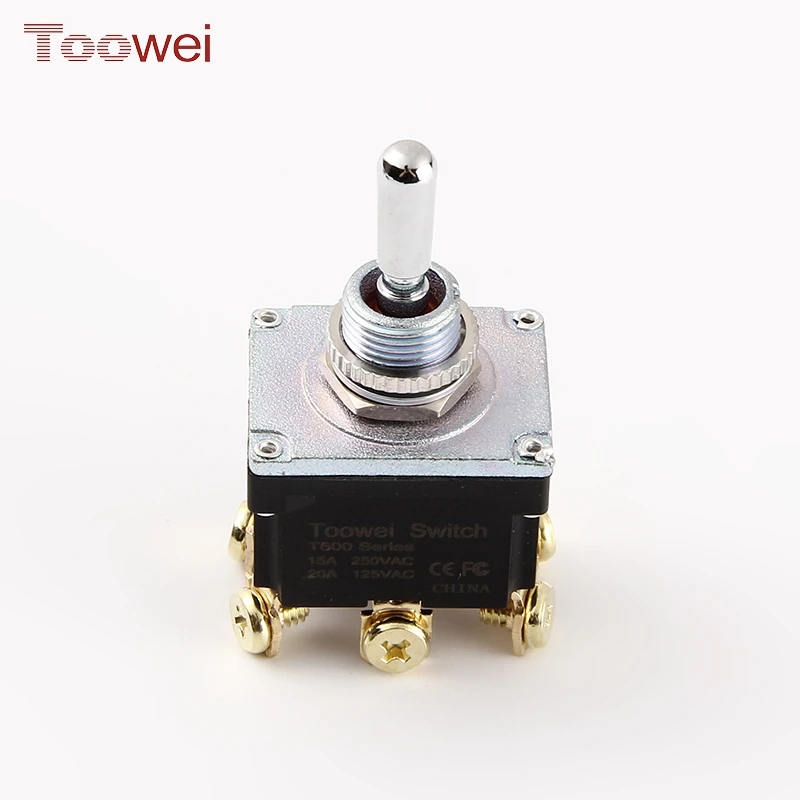

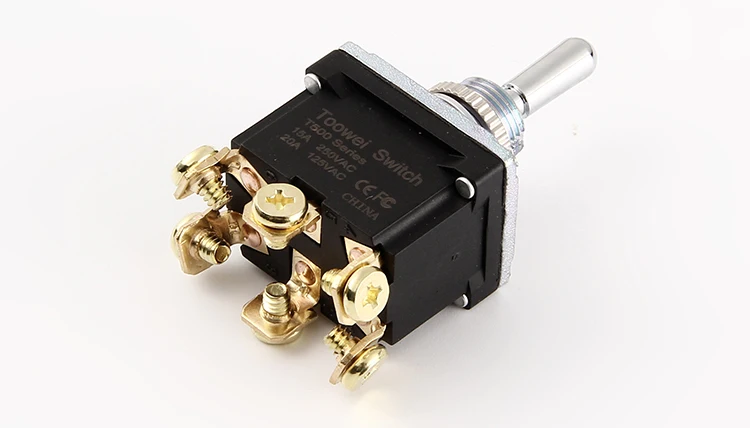

Product display



Technical Parameters
Rating value 15A 250VAC 20A 125VAC 1/2HP 125-25
Ambient temperature -25℃~+80℃
Mechanical life 50000 times
Humidity Below 85%Rh
Operating Force 8N-24N
Withstand voltage 1500VAC 50/60hz
Leakage current 5mA
Insulation resistance ≥100mΩ
Electrical life 20,000 times
Terminal form

 Soldering terminal

 Solderable soldering iron: 345±5° 1~2S
 Solder resistance soldering iron:345±5° 3~5S

Installation size 12mm
Protection degree IP67



Model and meaning
T50Pole codeFunction codeTerminal form
T500Serial code1: single group
2: double group

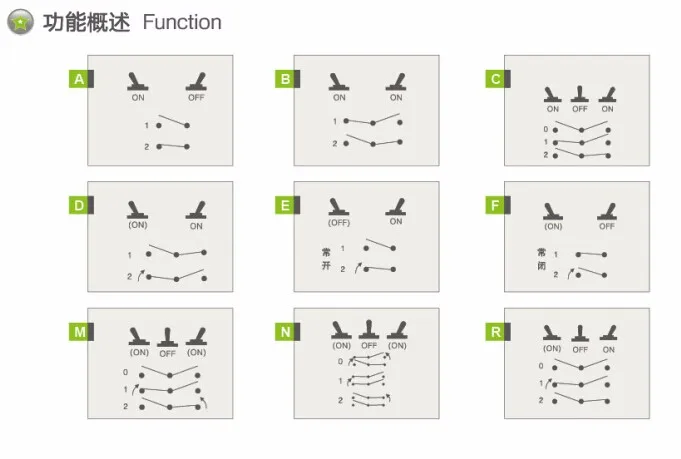

A:ON-OFF
B:ON-ON
C:ON-OFF-ON
D:(ON)-ON
E:(OFF)-ON
F:(ON)-OFF
M:(ON)-OFF-(ON)
R:(ON)-OFF-ON

W-type terminal (Screw)
T-type terminal (6.3*0.8)
U-shaped terminal (Welding)
