Ultra small bubble Aero Tube dissolved oxygen aeration tube

Share on (62297421887):


Price:RUB 37.17

Quantity:


Product Overview

Description

Product Application

Ultra-small bubble Aero-Tube dissolved oxygen aeration tube

The semi-automatic extruder is used to produce rubber composite oxygen-enhanced hoses of various diameters. Widely used in aquaculture,  fish farming,fish pond,shrimp pond,prawn pond, river water treatment .etc

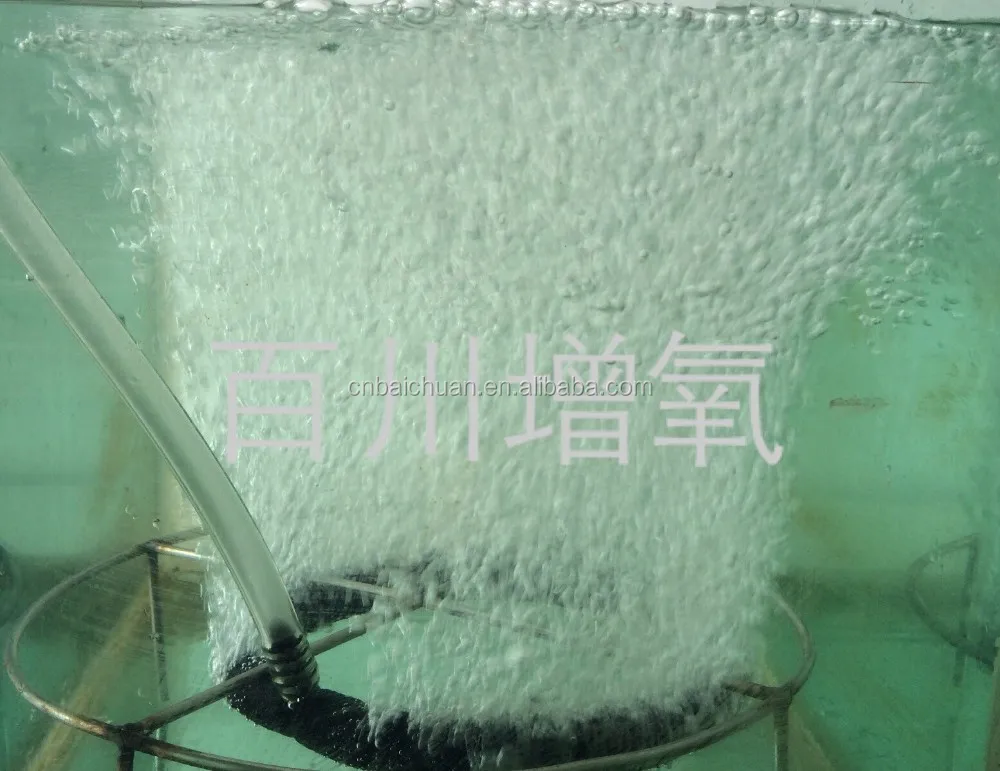

Fresh air through the "Baichuan" brand pressure increases oxygen aeration dedicated fan, uniform aeration hose expansion and reach the set value, a large number of microporous thin bubble (diameter: 20-30 um) from the wall, smoke floating in the water, rising speed is very slow, obvious effects of dissolved oxygen, thus greatly increased water oxygen, increase liquidity in the water, raise the breeding density.Apply pressure range: 10-80 kpa, applicable range of water depth: 1-5 meters, change the hose can be wrapped around the steel plate, plastic corresponding three links and pipe fittings, can be suitable for all kinds of fish pond layout, farmers to bring real benefits.


Features of Aeration Rubber Hose

Application: Used to make dissolved oxygen in the water reach higher amount and enhance the stocking density. Apply to aquaculture, sewage treatment.
1. An effective energy consumption saving of 75%
2 . Increasing the growth rate of fish and shrimp
3. Maintaining oxygen levels in water
4. Reducing the harmful gases in water


 Ultra-small bubble Aero-Tube dissolved oxygen aeration tube

size
inner diamete(mm)
out diamete(mm)
Thickness(mm)

weight(kg)

volume(m3)
Packaging Details
9*14
9
14
2.5
18
0.07
200m/roll
10*16
10
16
3
20
0.08
200m/roll
10*18
10
18
4
15
0.05
100m/roll
10*20
10
20
5
20
0.08
100m/roll
12*25
12
25
5
30
0.1
100m/roll
13*25
13
25
6
30
0.1
100m/roll
16*22
16
22
3
17
0.05
100m/roll
16*25
16
25
4.5
25.5
0.13
100m/roll
16*28
16
28
6
34.5
0.17
100m/roll
18*22
18
22
2
12
0.05
100m/roll
20*28
20
28
4
32
0.18
100m/roll

Main Features

Nano tube achieves its high energy efficiency in two ways:

Due to the number of pores created during our manufacturing process, there is little resistance created when pushing air through the tubing. Resistance equals energy demand. By working with nano tube, you can use significantly less horsepower when compared with traditional methods of aeration (paddlewheels, aspirators, less efficient tubing).

Nano tube tiny pore size creates extremely small diameter bubbles. The smaller a bubble of air the more efficiently it transfers oxygen into water (more surface area!). Small bubbles also take longer to rise once they are introduced into water. Slower rising, small-diameter bubbles mean more contact with the water and a much higher rate of oxygen transfer.


 By creating significantly smaller bubbles, more efficiently, nano tube products are able to deliver high rates of oxygen transfer and energy efficiency.

Certifications
Detailed Images

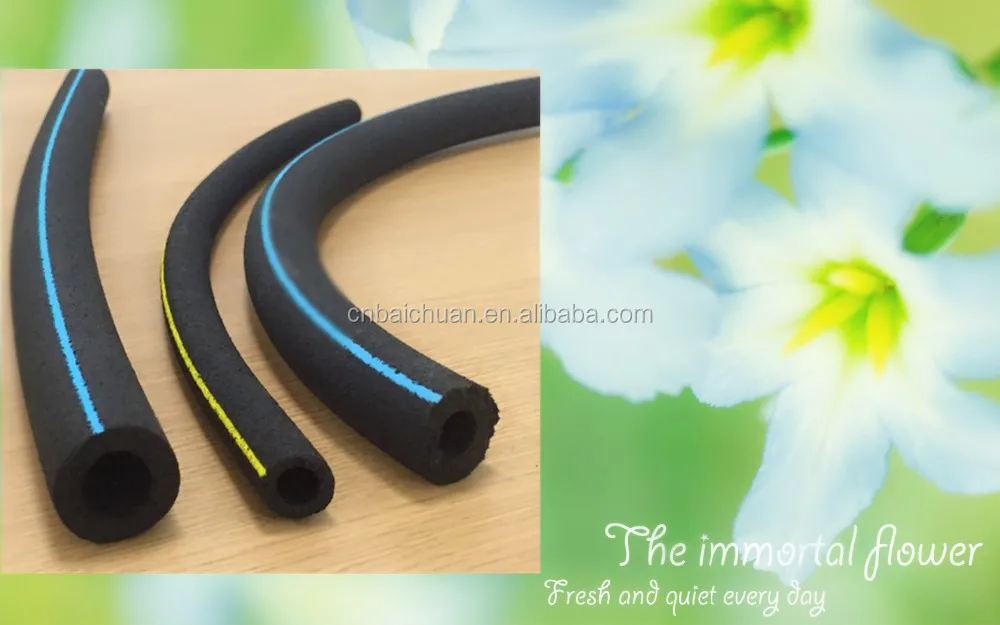

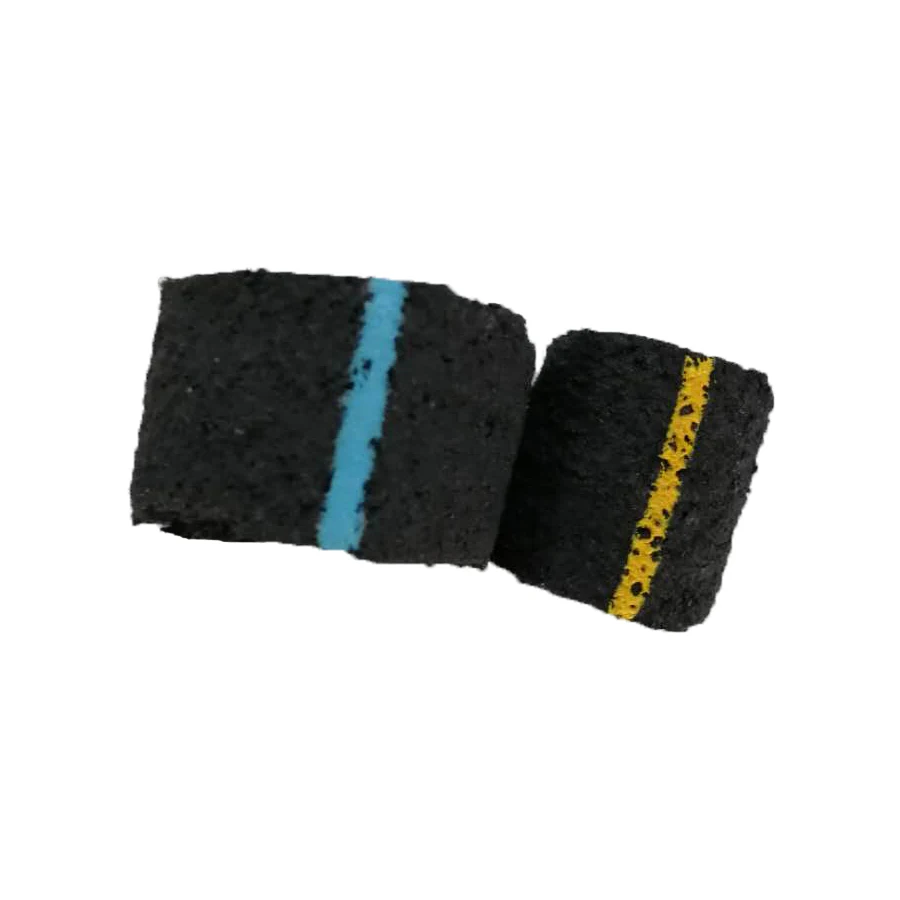

Name:Ultra-small bubble Aero-Tube dissolved oxygen aeration tube






size:18*22mm





Wall thickness:2mm






100m/roll


Packing & Delivery
Packaging
Size
0.05m3
Weight
12KG



Package

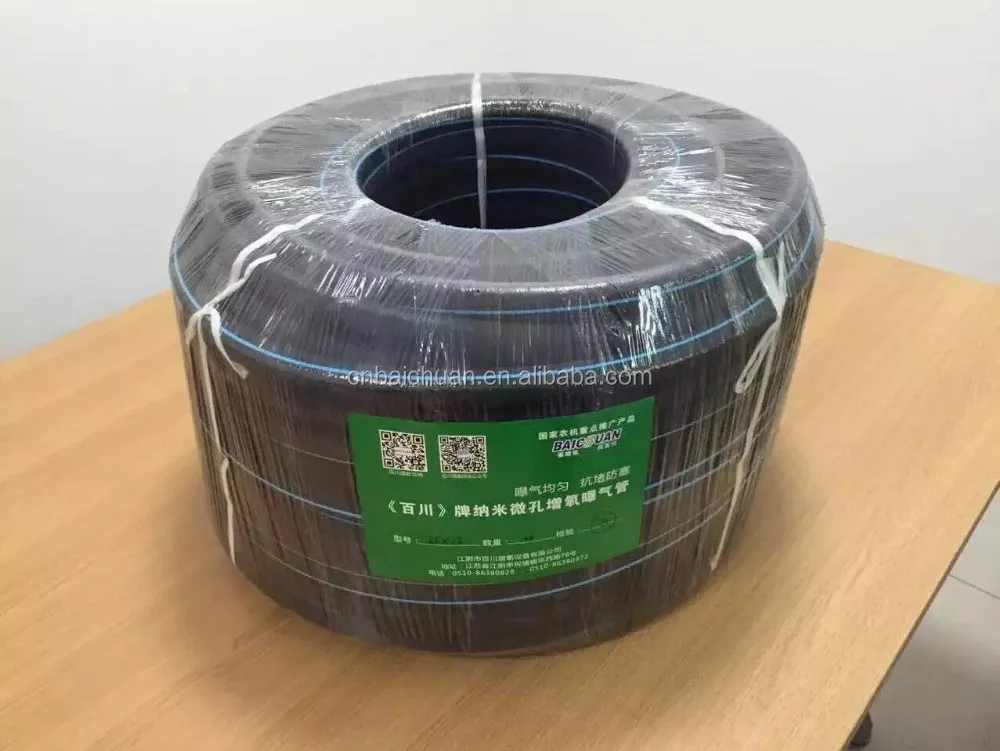

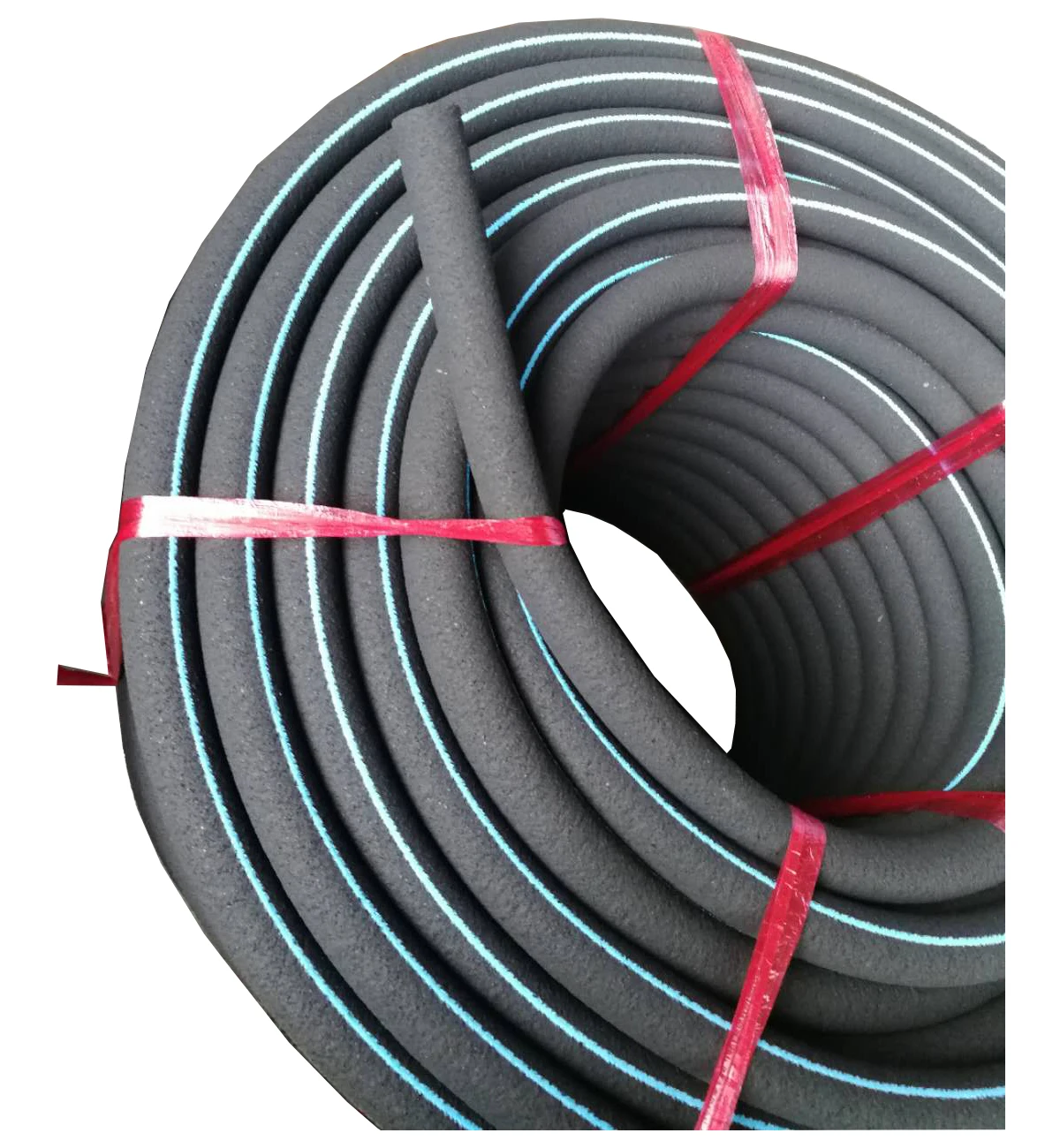

Aeration hose fixed with packing straps ,wrapped by plastic clear film or no-woven fabrics.
