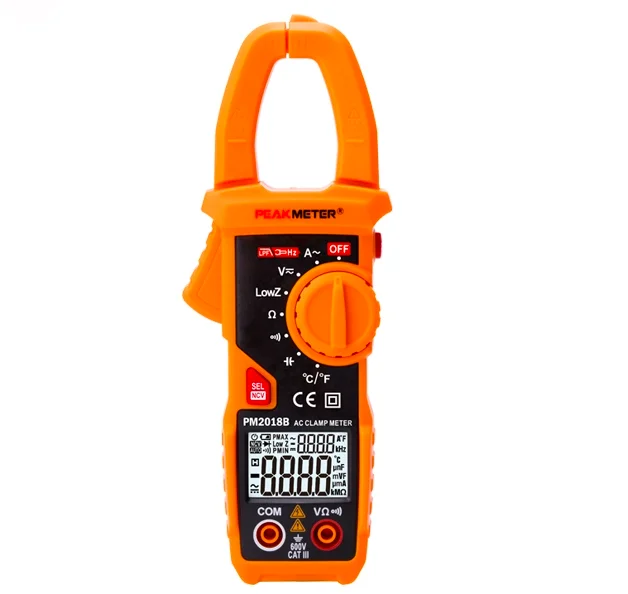

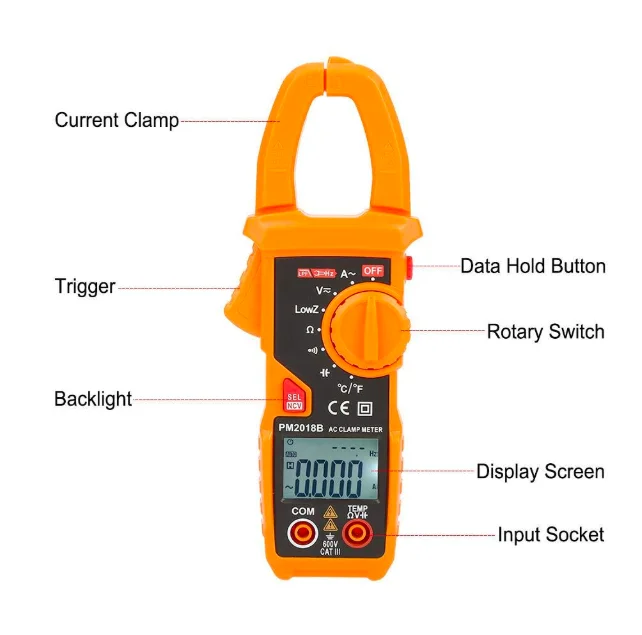

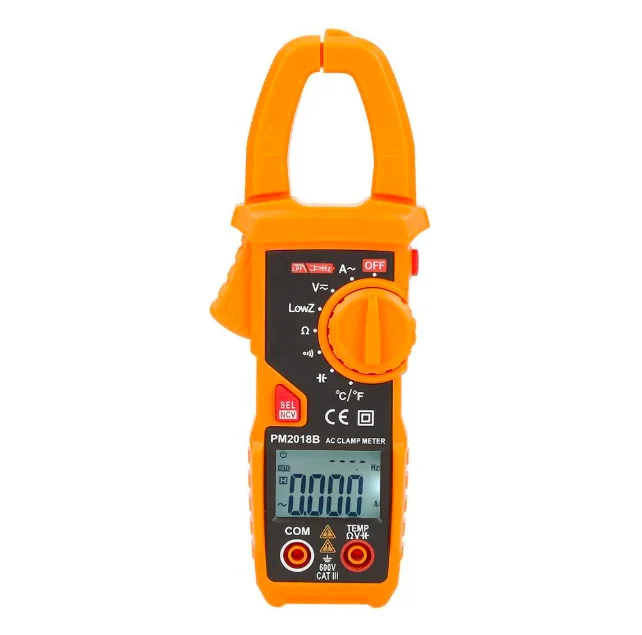

PM2018B Portable AC/DC Auto Range Digital Clamp Meter with 6000 Counts
PM2018B Portable AC/DC Auto Range Digital Clamp Meter with 6000 Counts
PM2018B Portable AC/DC Auto Range Digital Clamp Meter with 6000 Counts
PM2018B Portable AC/DC Auto Range Digital Clamp Meter with 6000 Counts
PM2018B Portable AC/DC Auto Range Digital Clamp Meter with 6000 Counts
PM2018B Portable AC/DC Auto Range Digital Clamp Meter with 6000 Counts
PM2018B Portable AC/DC Auto Range Digital Clamp Meter with 6000 Counts

PM2018B Portable AC/DC Auto Range Digital Clamp Meter with 6000 Counts

Share on (62299433281):


Price:$13.91 - $16.01

Quantity:


Product Overview

Description


Product Description



Specifications
DC Voltage0 – 600.0V±(0.5% +3)
AC Voltage (40 – 65Hz)0.01 – 600V±(0.8% +5)
Resistance0 – 60MΩ±(0.8% +3)
Continuity<30Ω<30Ω
AC Current (40 – 65Hz)10mA – 400A±(2.5%+5)
400A - 600A±(3% +5)

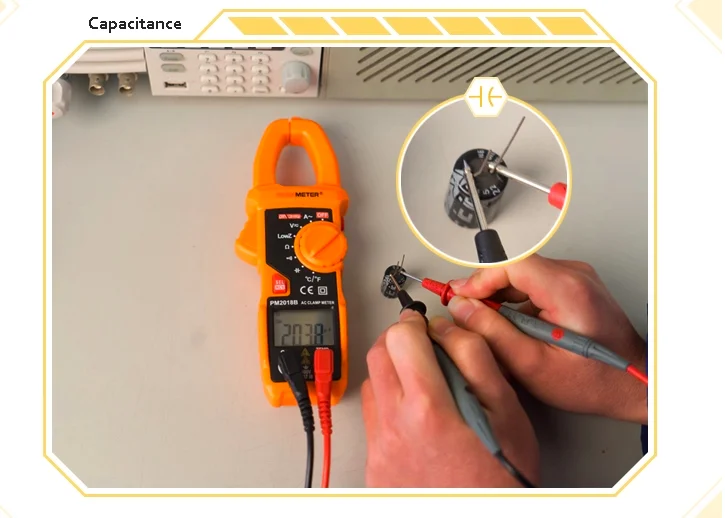

Capacitance0.1uF – 6000uF±(3% +5)
Frequency40Hz - 1000Hz1% rdg
LowZ1.0 – 600V±(0.8%+3)
°C / °F-40 to 1000°C±(1%+2)
 -40 to 1832°F±(1%+2)

Features
DisplayDual display, 6000 counts
RangeAuto range
ACA (AC + DC)6A / 60A/600A
DCV600mV / 6V / 60V 600V
ACV (AC + DC)6V / 60V 600V
Ω600Ω / 6KΩ/ 60KΩ / 600KΩ / 6MΩ / 60MΩ
Capacitance600uF – 6000uF
Frequency (Clamp)1KHz
Frequency (Voltage)1KHz
Continuity√
°C / °F√
LPF (1KHz – 3dB)√
LowZ√

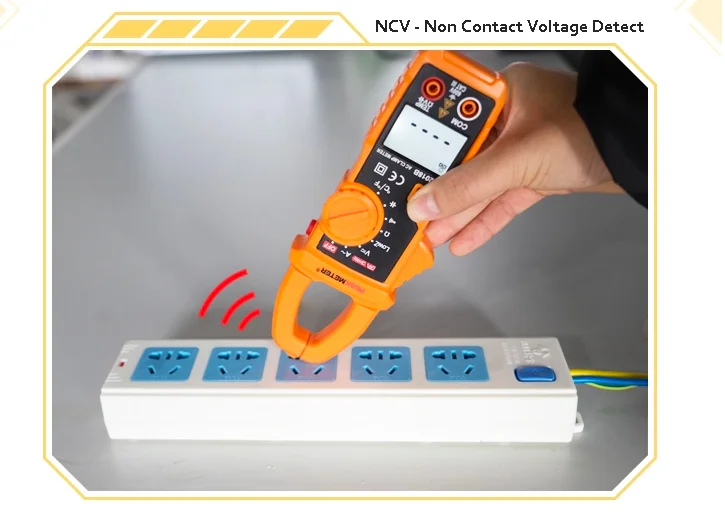

Non-contact AC Voltage Detection (NCV)√
Data Hold√
Back Light√
Low-battery Indication√
Auto Power Off√

General Specifications
Power supply2 x 1.5V AAA Battery
Weight 250g

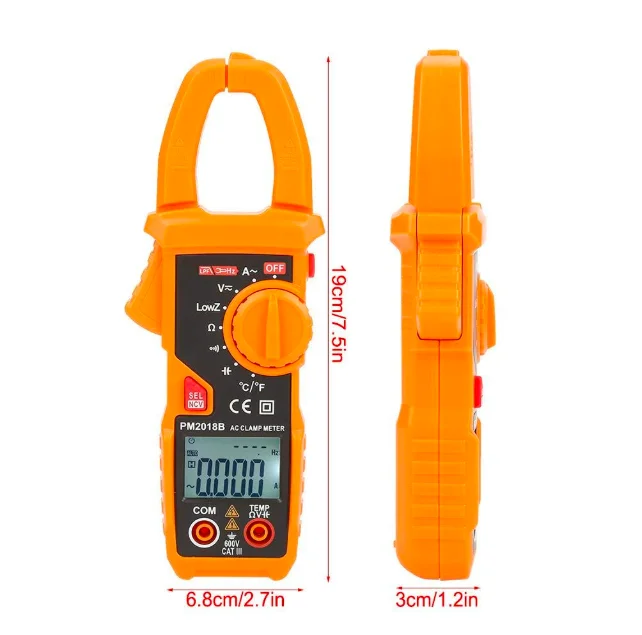

Size187 x 65 x 38 mm
Jaw size¢24mm
Safety Rating EN 61010-1, -2-030, EN 61010-2-033,
EN61326-1, CAT.III 1000V

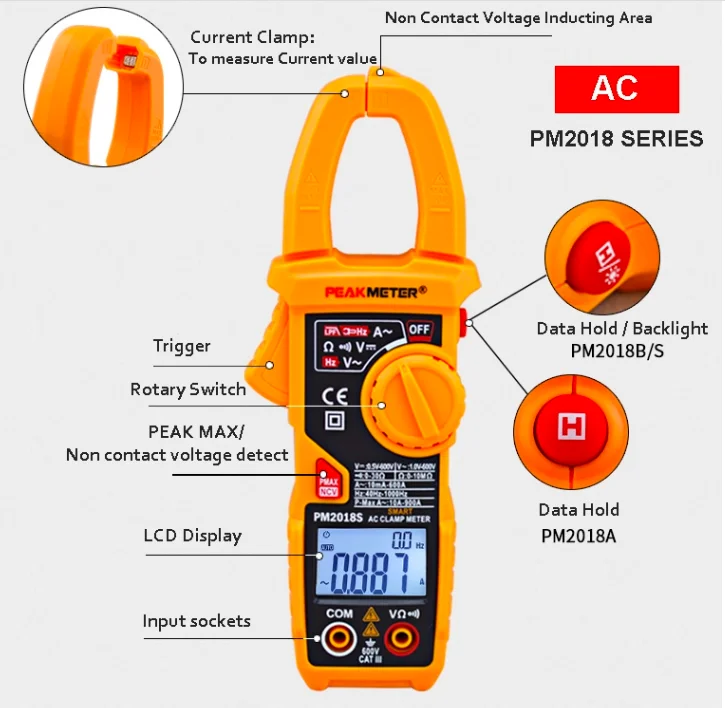

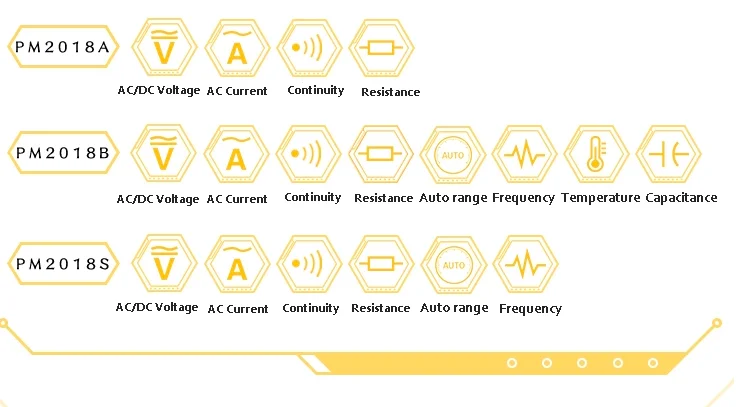

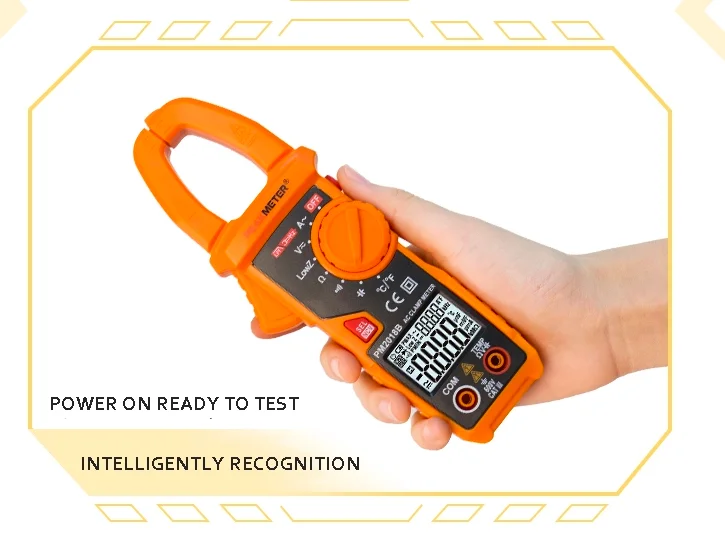

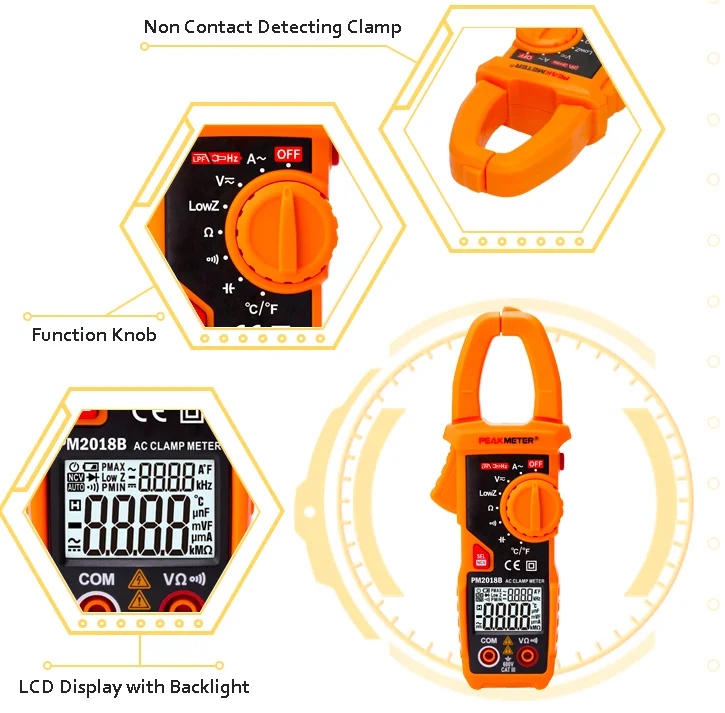

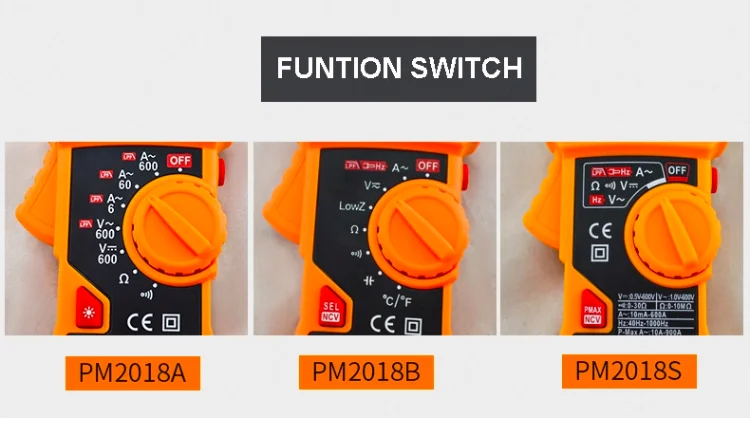

2019-05-21 3.11.47.png 2019-05-21 3.11.55.png 2019-05-21 3.12.08.png 2019-05-21 3.12.23.png 2019-05-21 3.12.36.png 2019-05-21 3.12.45.png 2019-05-21 3.12.52.png 2019-05-21 3.13.00.png 2019-05-21 3.13.18.png 2019-05-21 3.13.48.png 2019-05-21 3.14.02.png 2019-05-21 3.14.12.png
