CX60E_A_V1.3 is an ultra hd board for EDP interface LCD screen.Industrial design, high temperature resistance, compact size, HDMI input point-to-point display, clear display effect, no jagged, no font, no flash screen. Perfect solution to other EDP card intermittent flash screen instability problem, HDMI display effect is several times better than the general TV baords on the market. 2K version: Max support 2560x1600@60hz screen and HDMI point-to-point input display.
Signal board model name
HDM to EDP 2K controller board
LCD model
LQ133T1JW02
Place of Origin
Shen Zhen, China
Display resolution
3840X2160
Board demensions

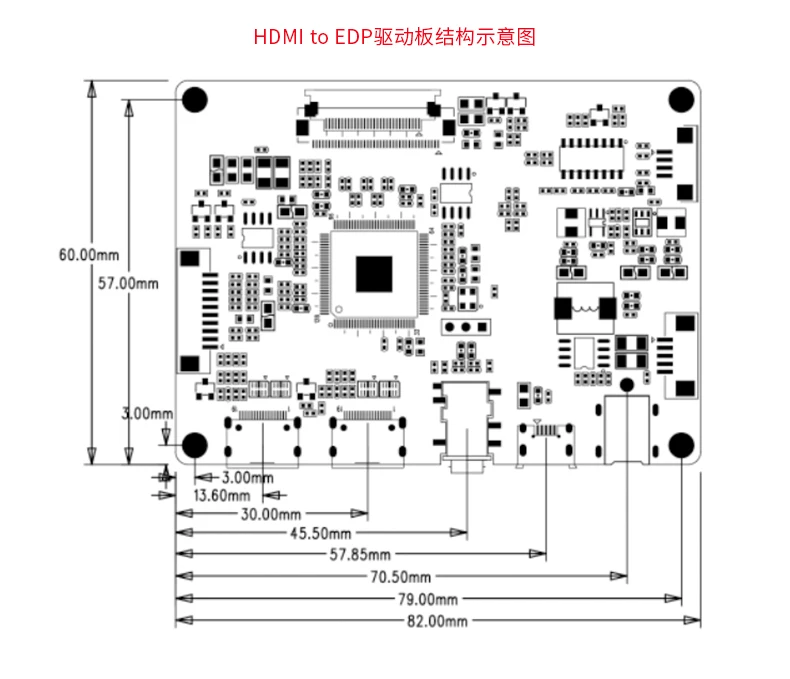

82(W)x60(H)x0.61(T)mm( Max Thickness 4.8mm)
Basic system
Windows/Linux/Android/IOS
Other accessories
speaker, keypad（12V DC adapter/Mini HD-MI/ USB cable could be provided extra charge if needed）
Applications

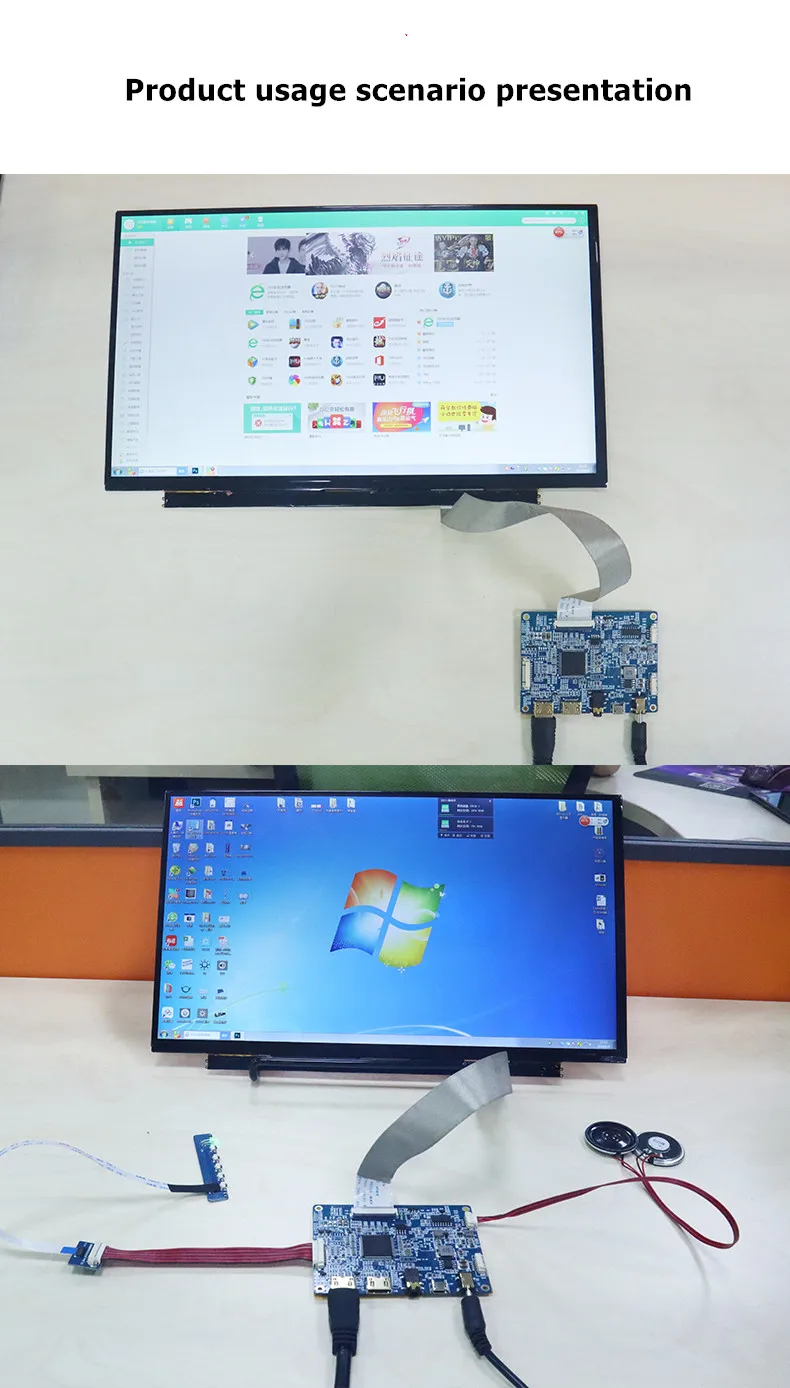

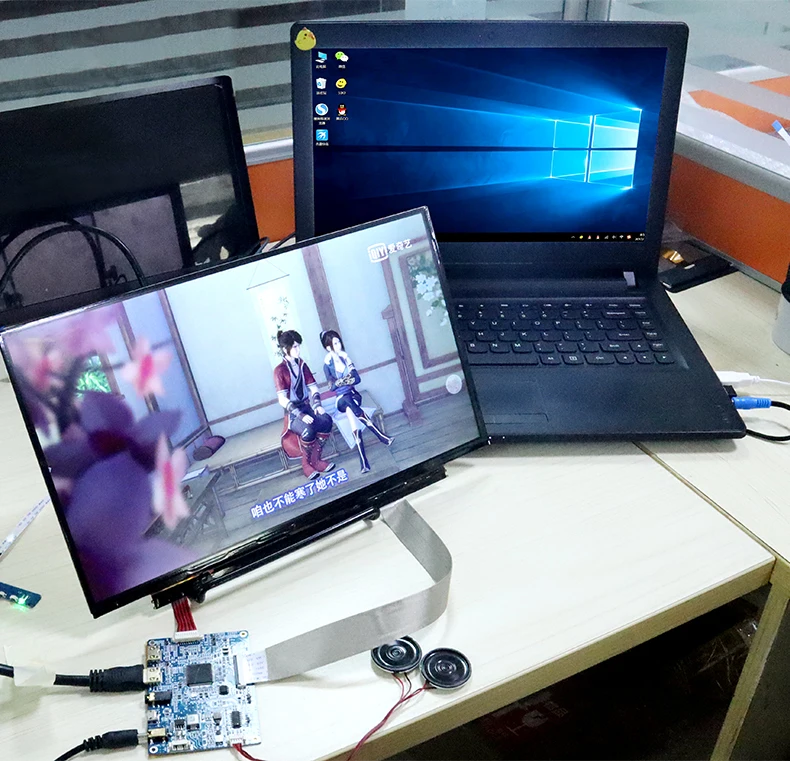

Laptop, desktop, raspberry Pi, 3D light curing printing, X86 embedded motherboard, car navigation system, intelligent android 4K set-top box
Input voltage and current
DC 12V
Input single cable
USB for touch, mini HD-MI for signal
Features

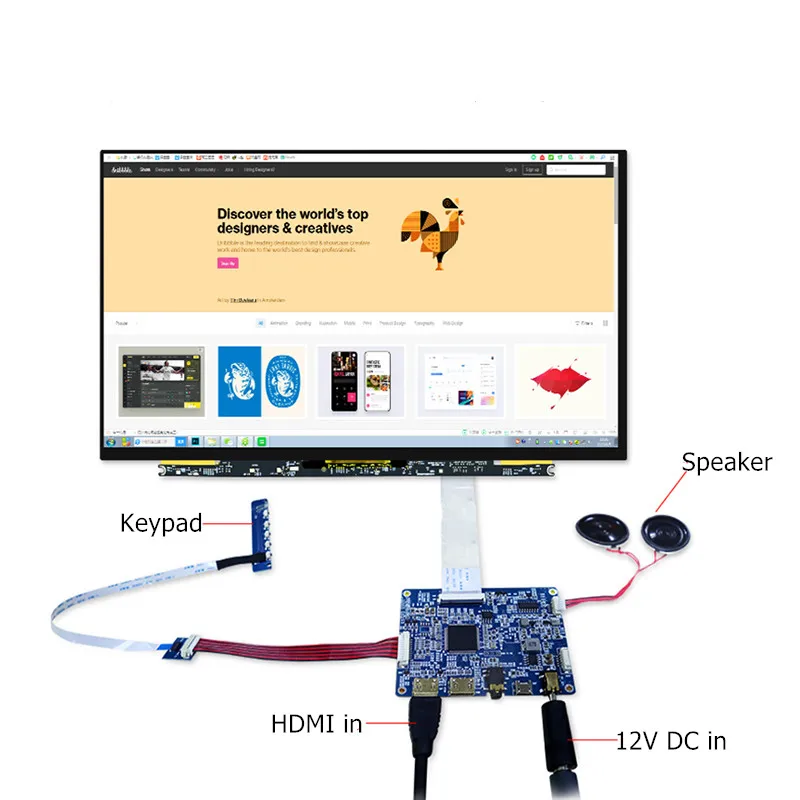

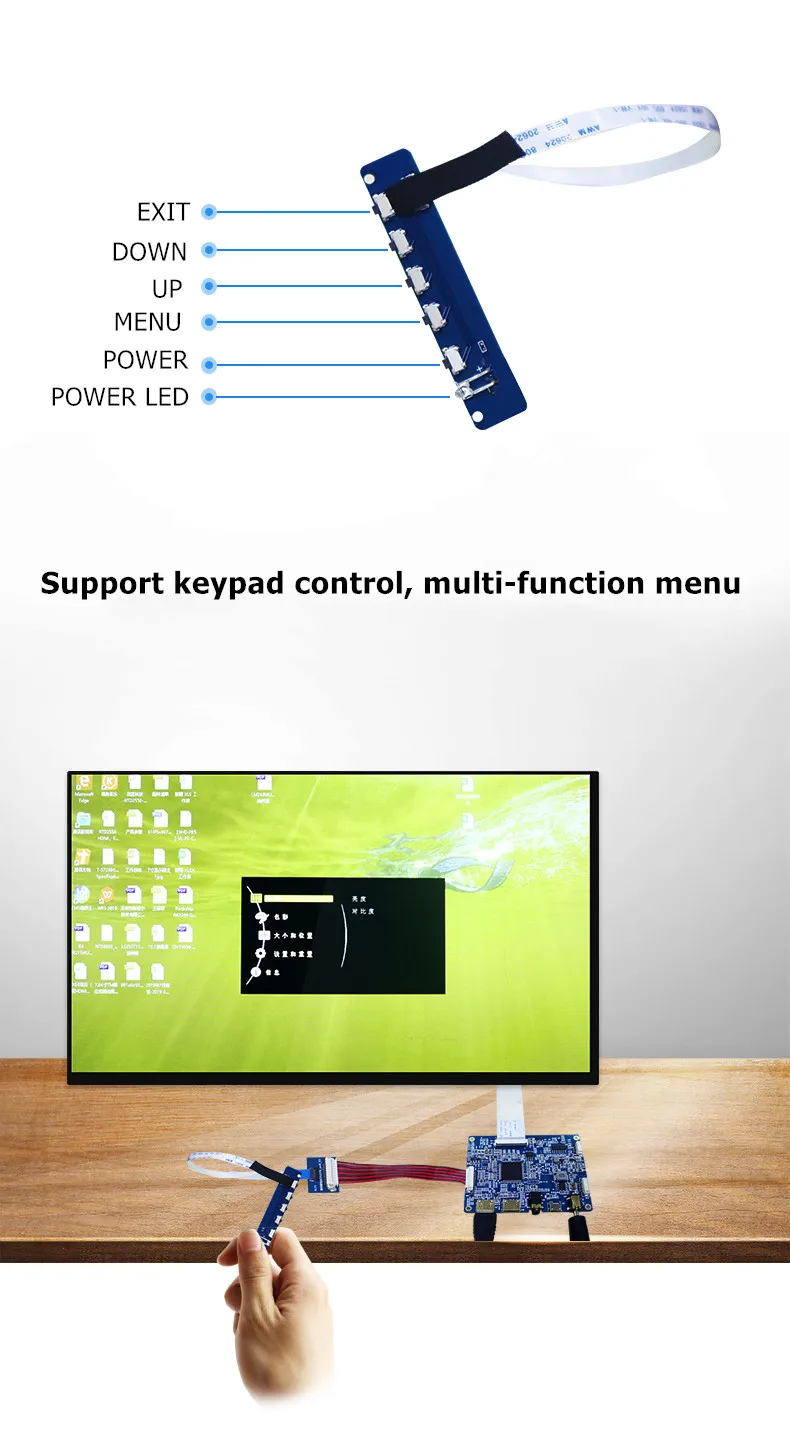

Support dual HDMI 1.4 video input. Standard 40Pin FPC interface can light 2560*1600(2K) resolution eDP screen. Standard 30Pin FPC interface can light 1920*1080P resolution eDP screen. Support 3.5mm headset audio output. External connect a pair of 8Ω/1w speakers. Support USB touch, Micro_USB connect to PC, 5 Pin connect to touch screen interface. External connect to 5 key keypad, the functions are: Power, Menu, Up, Down, Exit There is LED switch indicator light (ON green light shows, OFF green light disappear), IR function is supported. Built-in multi-language OSD menu, for brightness, contrast, color temperature and other needs to adjust. The boot LOGO can be changed according to customer requirements.
Product Details

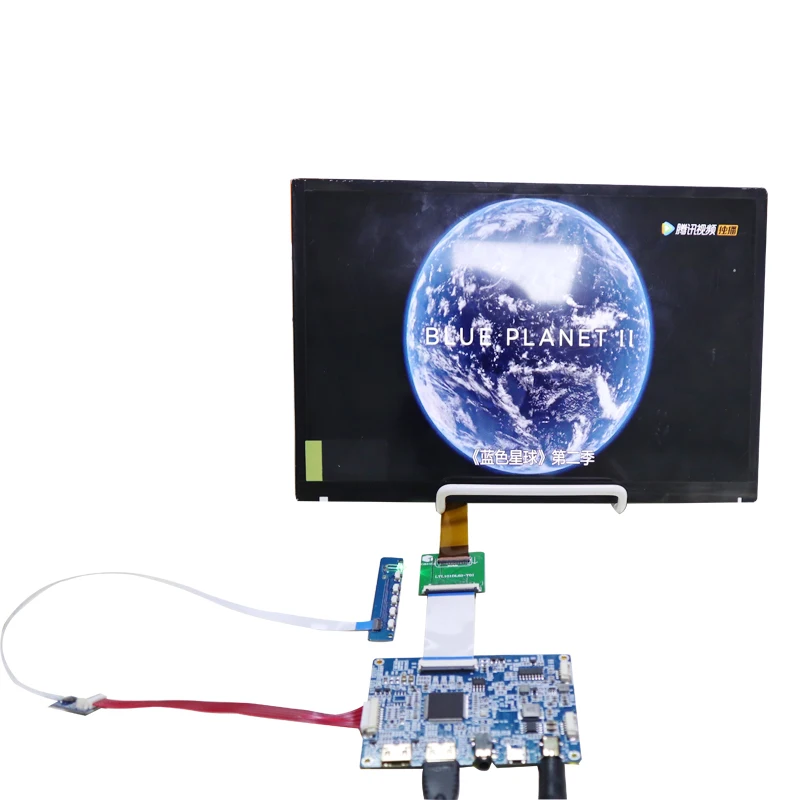

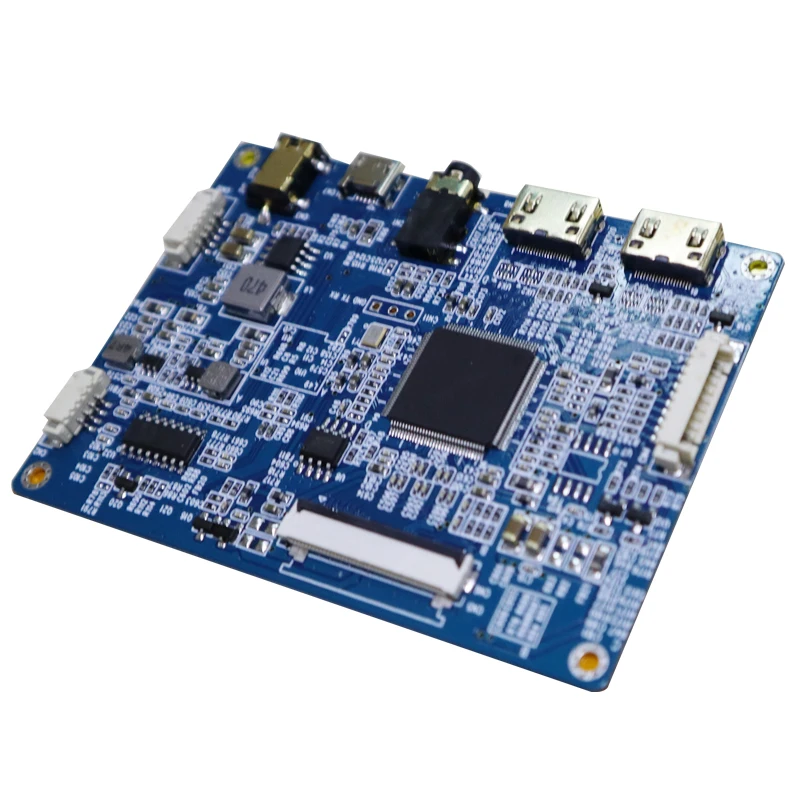

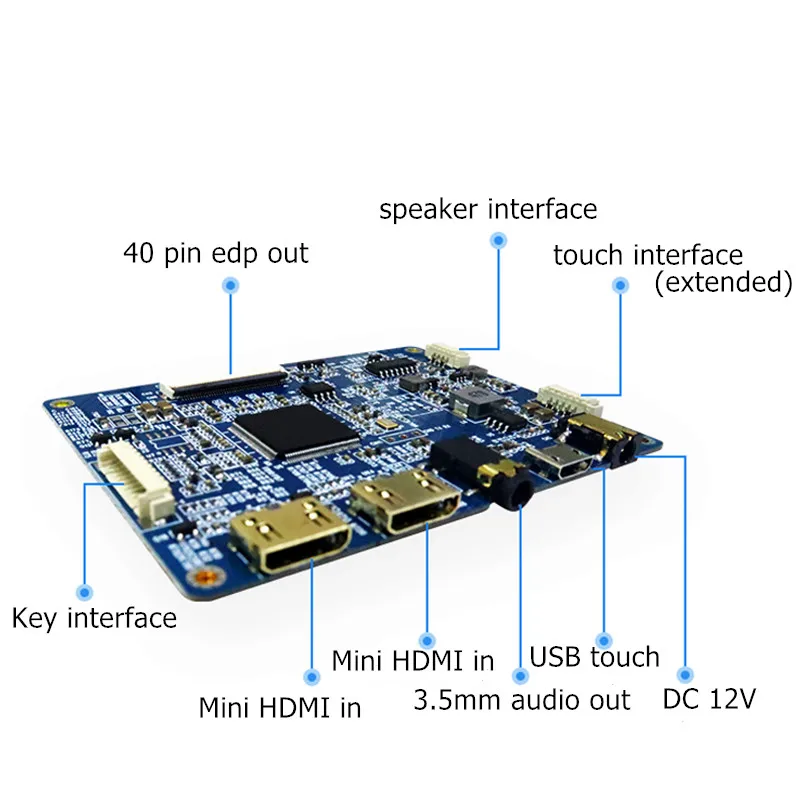

CX60E_A_V1.3 HDMI to EDP 2k controller Board:
Interface:
EDP 40 pin
Input Power Adapter:
12V DC
Signal Input:
adapt to dual mini HDMI, USB(touch is supported)
Board Size:
82mmx60mmm
Language:
Chinese, English, Japanese etc
Working temparature:
-20-70℃
Applications:
3D printer, VR, AR, automotive, industrial, Instruments and Apparatuses, etc.

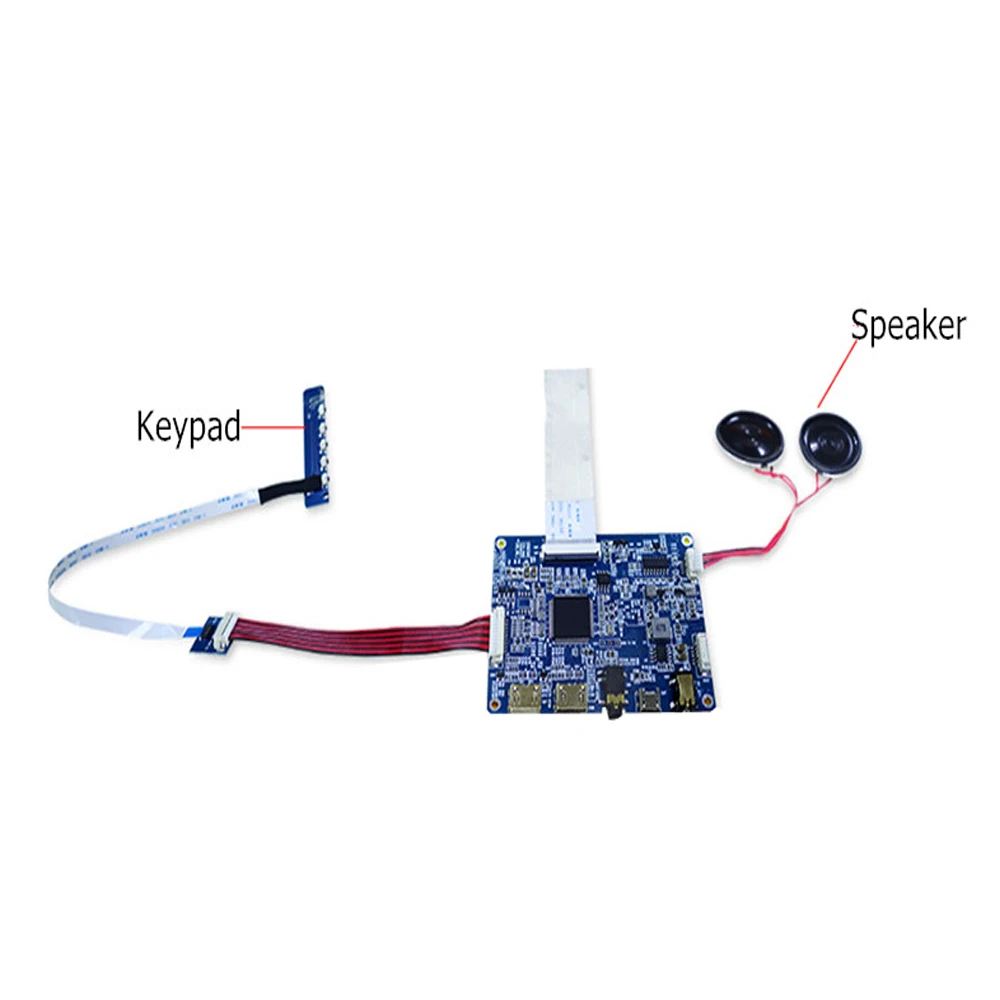

Package included
1x HD-MI to EDP driver board
1x FPC cable
1x keyboard
1x speaker
OEM and ODM requirements
Our company could offer all different driver boards' design and R&D program，rich experience in this field for years. Please do not contact us freely if you have any requirements！
