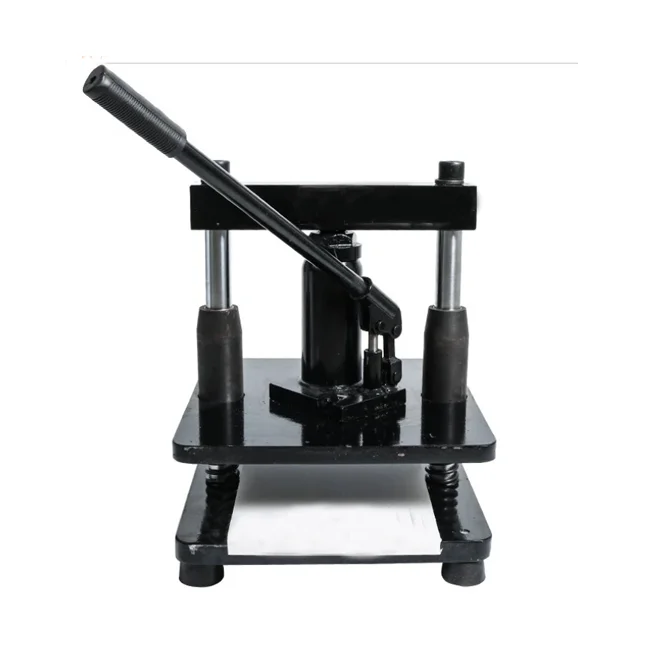

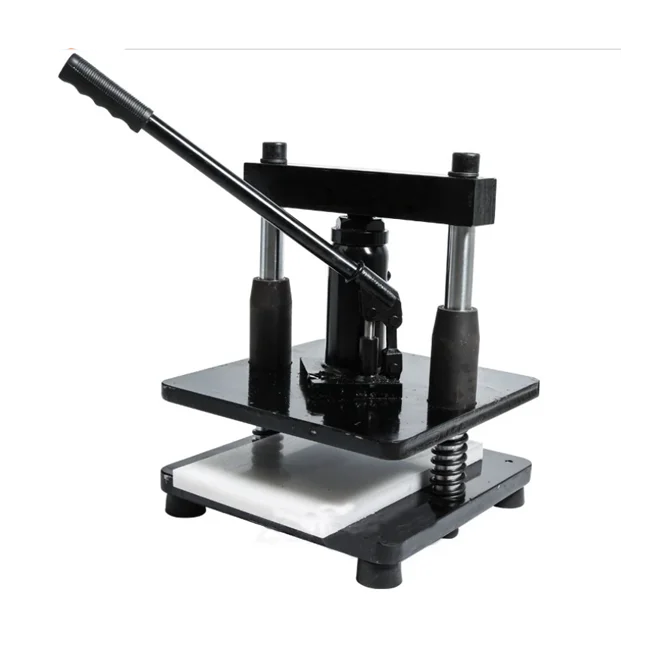

Hand leather cutting machine DIY wallet bag die cutting machine

Product Overview

Description

Hand leather cutting machine DIY wallet bag die cutting machine







Machine press plate size 20x14cm

Structure made in #45 carbon steel

Press plate thickness in 16mm

Bottom base plate thickness in 14mm

Plate corder edge 1mm

Press plate with 4screw hole for use for fix mold

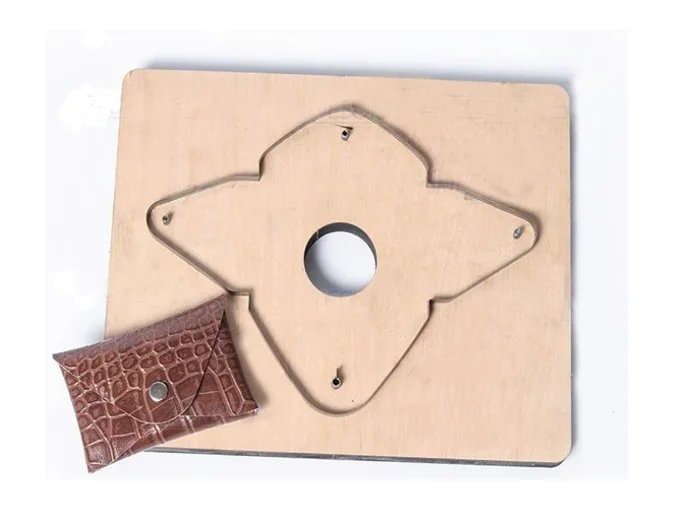

Knife mold width better less than 150mm,max not more than 200mm,

knife length not limited, but need to less than Nylon plate size

the Eccentric wheel size in 5.5mm,Press plate work range max. 11mm ,

so max cutting thickness less than 11mm,

but suggest best work less than 7mm, if not material hard to put in.

The thickest can be cut Max. 7mm

Machine package in wooden case about 35-40kg
