Охладитель и нагреватель 20HP для рыбной фермы, Охладитель морской воды, охладитель воды для аквакультуры
- Category: Industrial Chiller >>>
- Supplier: Dongguan Lechang Machinery Co. Ltd.
Share on (62301717704):
Product Overview
Description
30HP Air cooled chiller
Model
Item | LC-30A |
Band | |
Power supply | 380V/3PH/50HZ |
| |
Nominal cooling capacity
| Kcal/h | 77130 |
|
kw | 90 |
| |
Refrigerant
| Name | R22(or R407C/R404A) | Import of high quality refrigerant
|
Control method | Thermostatic expansion valve | ||
Compressor
| Type | Scroll compressor | Copeland(America)
|
Power(HP) | 10*3 | ||
Condenser
| Type | Finned copper tube+low noise outer rotor fan | High efficiency Finned copper tube heat exchanger
|
Cooling air flow(m3/h) | 35400 | ||
Power(kw) | 0.7*3 | ||
Environment Temp(dissipate heat | ≤45℃ | ||
Evaporator
| Type | Shell tube | Shell tube
|
Chilled water flow (L/min) | 650 | ||
Inlet/out pipe caliber | 21/2″ | ||
Water pump
| Power(HP) | 3 | Muchuan
|
Lift(m) | 16 | ||
Safety protection
| Control pane | Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection. | Punp |
High/low pressure gauge | JAVE(Taiwan) | ||
Filter | ALCO(America) | ||
Relay | Schneider(France) | ||
Contactor | Schneider(France) | ||
Power switch | Chint | ||
Dimension
| weight(kg) | 980 | Wooden case |
LxWxH(mm) | 2650*850*1750 |
| |
| Surface treatment | Mainboard :2mm, closingboard: 1.5mm | Baking varnish |
Remark:
1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C
2.range of work:Chilled water(Temp range):5℃-35℃;inlet and outlet water(temp range) :3℃-8℃.working environment: ≤35℃(condensation Temp)
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

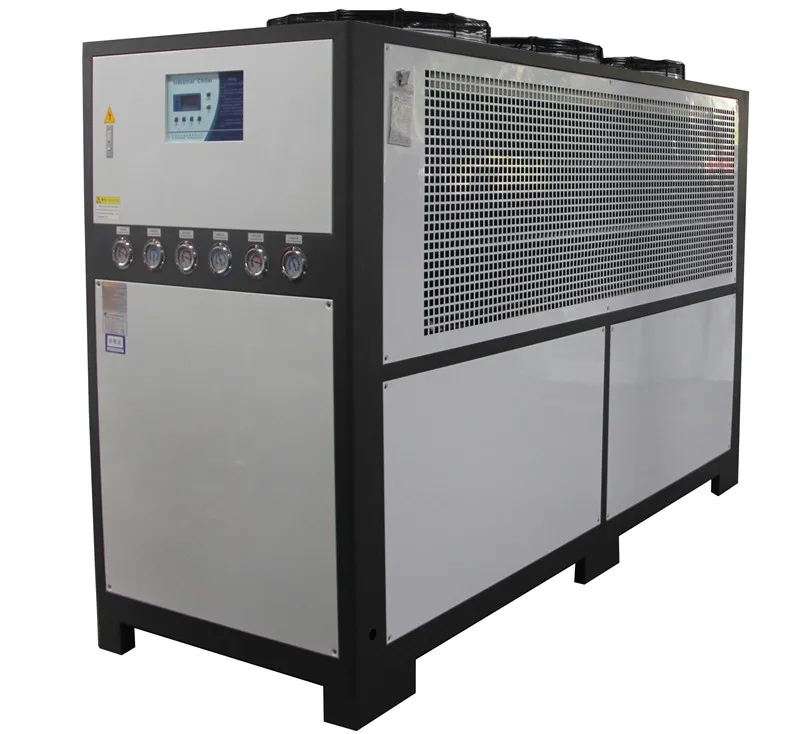

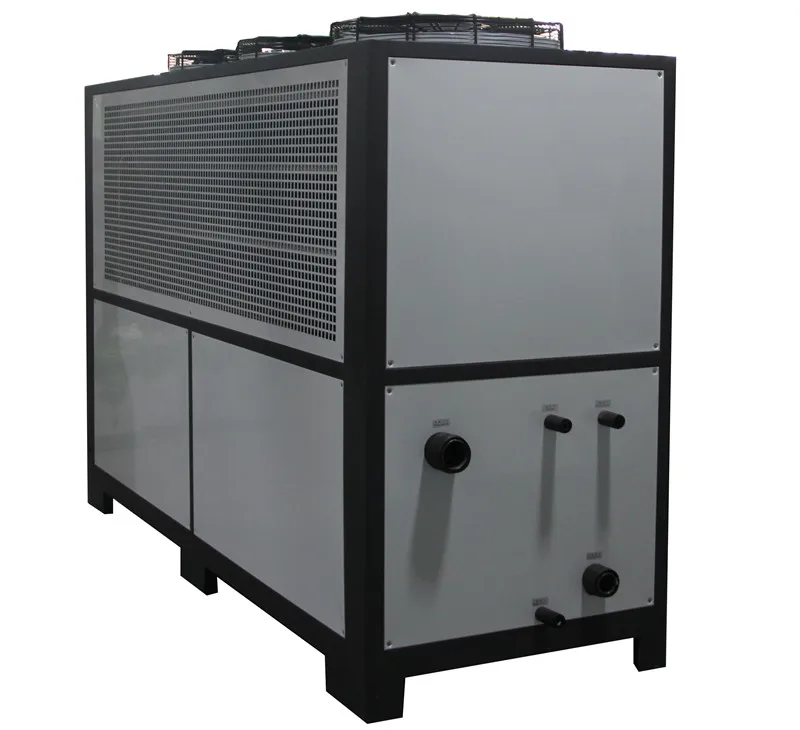

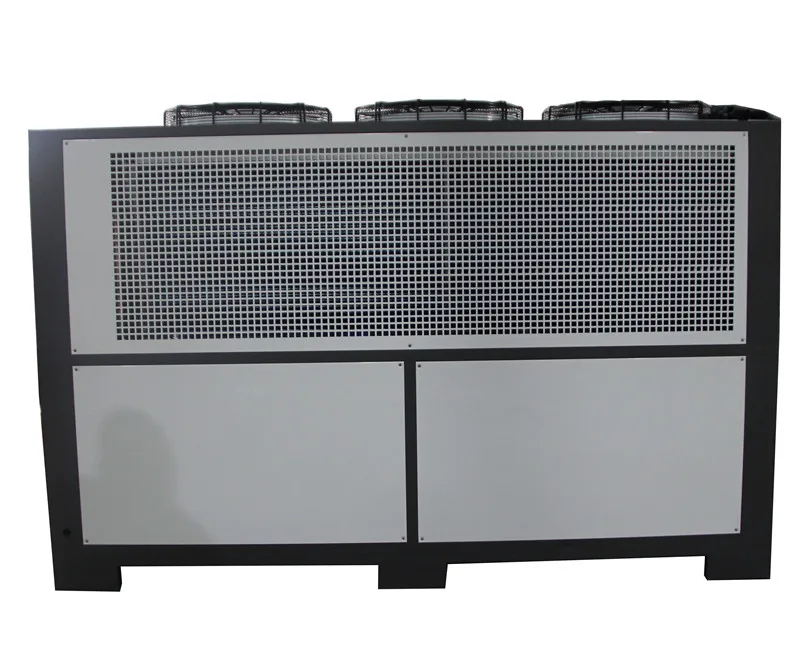

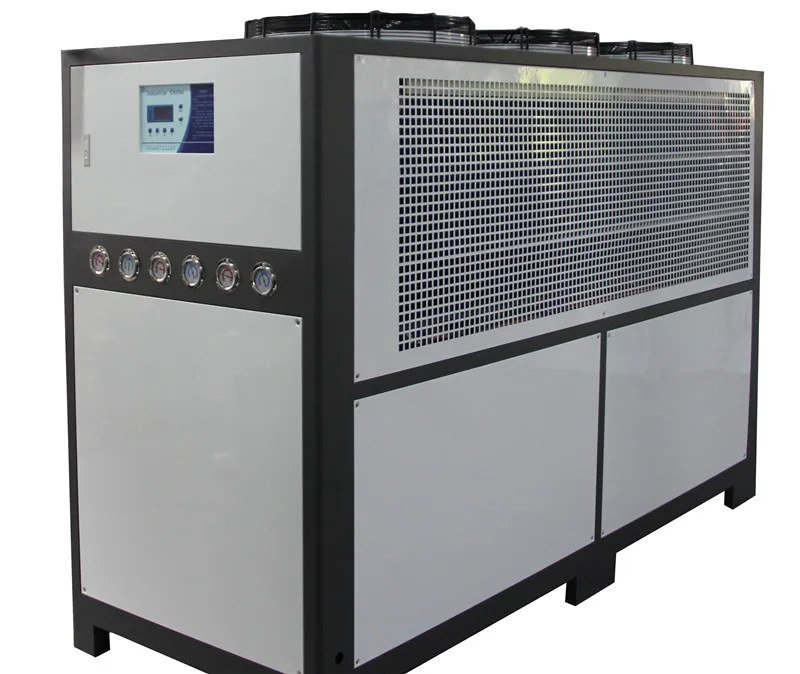

PRODUCT PICTURES
