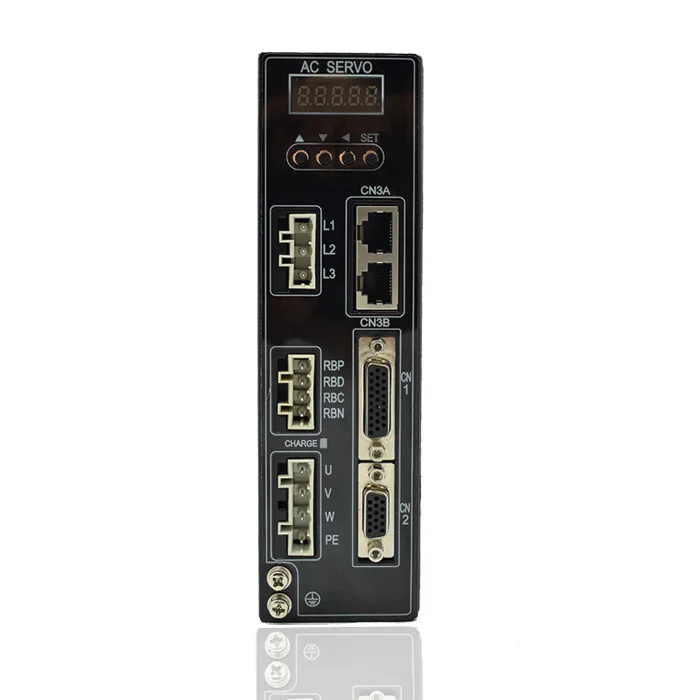

High performance low price digital servo drive motor driver

Product Description

Control technique	3 phase full wave rectification, SVPWM space vector control
Input power	AC220V -15%~10%
Feedback	incremental 1000 wire/2500 wire photoelectric rotary encoder
Speed ratio	3.513888889
Speed volatility	<±0.03%within rated torque
Pulse command input	pulse type	pulse+direction, pulse+pulse A+B 90°orthogonal pulse
	pulse form	differential drive open collector
	pulse frequency	differential drive:500k open collector:200K
Analog command input	- 10V~10V, input resistance 10k∩
Pulse output signal	encoder ABZ phase differential outputZ signal collector output
Input signal	servo enable alarm clear position forbid forward limit reversal limit,control mode
Output signal	locate finish , servo alarm , servo ready , brake output, zero output
Protection function	over current ,over voltage , low voltage , overload , overheat,phase loss,over speed , encoder unusual,module unusual
Monitoring function	rotation speed , current position ,current pulse frequency , position deviation , motor torque , motor current , analog input value etc.
Communication function	by RS232/485 to communicate with PC, modify real time parameters, monitor of servo system running status
Work environment	using/storage temp	45°C/-40°C-55°C
	using/storage humidity	40%-80%/90%no dew condensation
	no dew condensation	4.9m/s2/19.6m/s2
	altitude	1000m, above 1000m please derate to use
	air pressure	86-106kpa
