T600 series 3A 250VAC simple mini toggle switch

Share on (62303897430):


Price:$0.55 - $0.75

Quantity:


Product Overview

Description


T600 series 3A 250VAC simple mini toggle switch

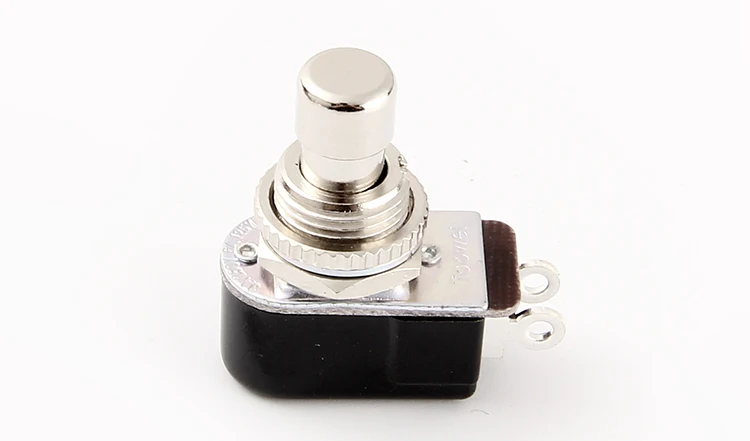

Product display



Technical Parameters
Rating value 3A 250VAC/6A 125VAC
Ambient temperature -25℃~+80℃
Mechanical life 50000 times
Humidity Below 85%Rh
Operating Force 8N-24N
Withstand voltage 1500VAC 50/60hz
Leakage current 5mA
Insulation resistance ≥100mΩ
Electrical life 20,000 times
Terminal form

 Soldering terminal

 Solderable soldering iron: 345±5° 1~2S
 Solder resistance soldering iron:345±5° 3~5S

Installation size 12mm
Protection degree IP67



Model and meaning
T601Button codeFunction codeTerminal formColor code
T601Serial code

A1
A2

A3

1:OFF-(ON)
2:ON-(OFF)

X-type terminal (160MM)
U-shaped terminal (Welding)

R:Red

Y:Yellow

B:Black

G:Green

BL:Blue



Related Products


Product flow


Company Profile


Exhibition
Packing&Shipping


FAQ


Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?
A:Sample needs 2 days, mass production time needs about 1 weeks , based on quantity.


Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.Usually MOQ 500pcs


Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by EMS ,DHL, UPS, FedEx or TNT. It usually takes 1 week to arrive.Airline and sea shipping also optional.


Q5: Do you offer guarantee for the products?
A: Yes, we offer 30 days warranty to our products.


Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. If there is any faulty , if our question , samples is available. We can promise it .
