Product Overview

Description

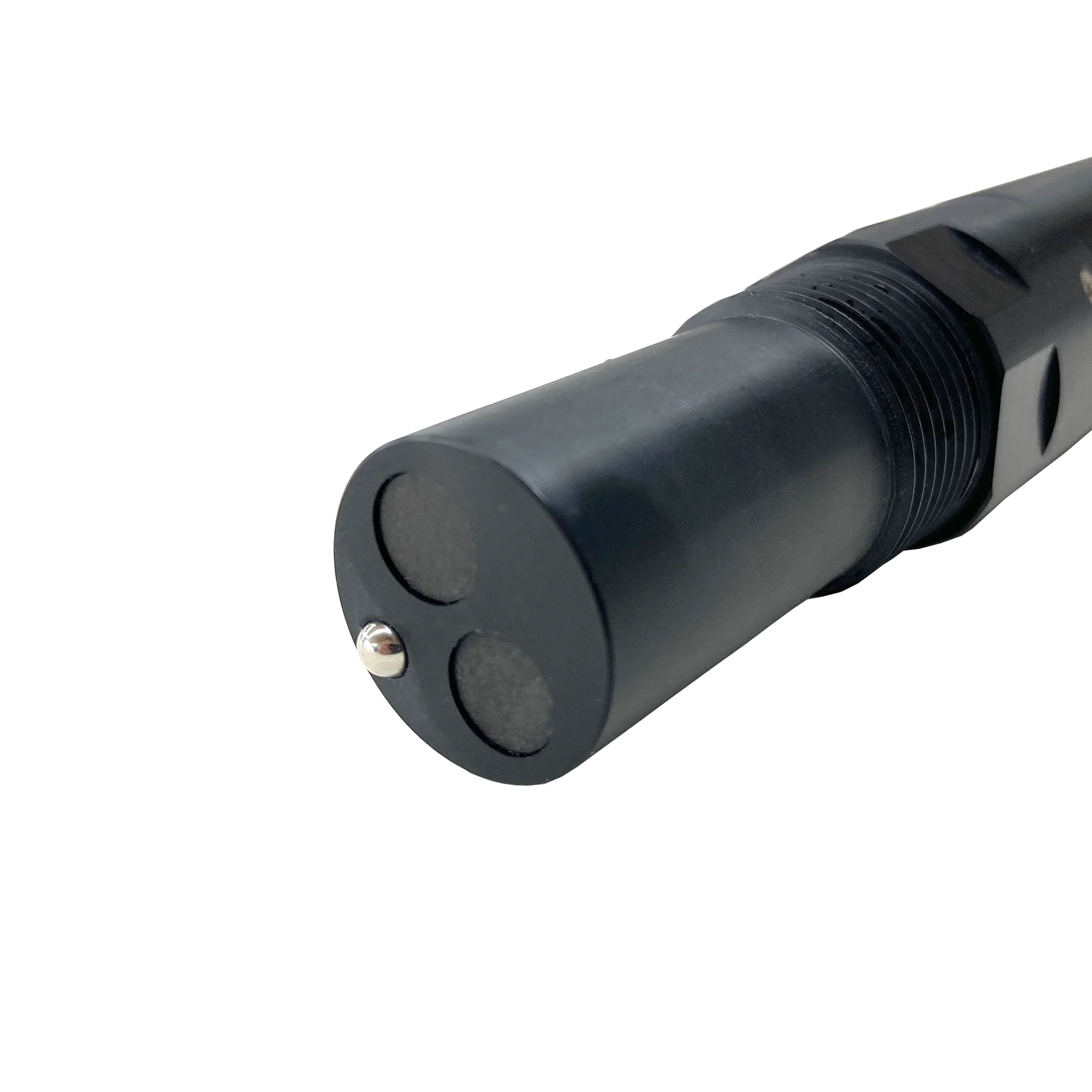

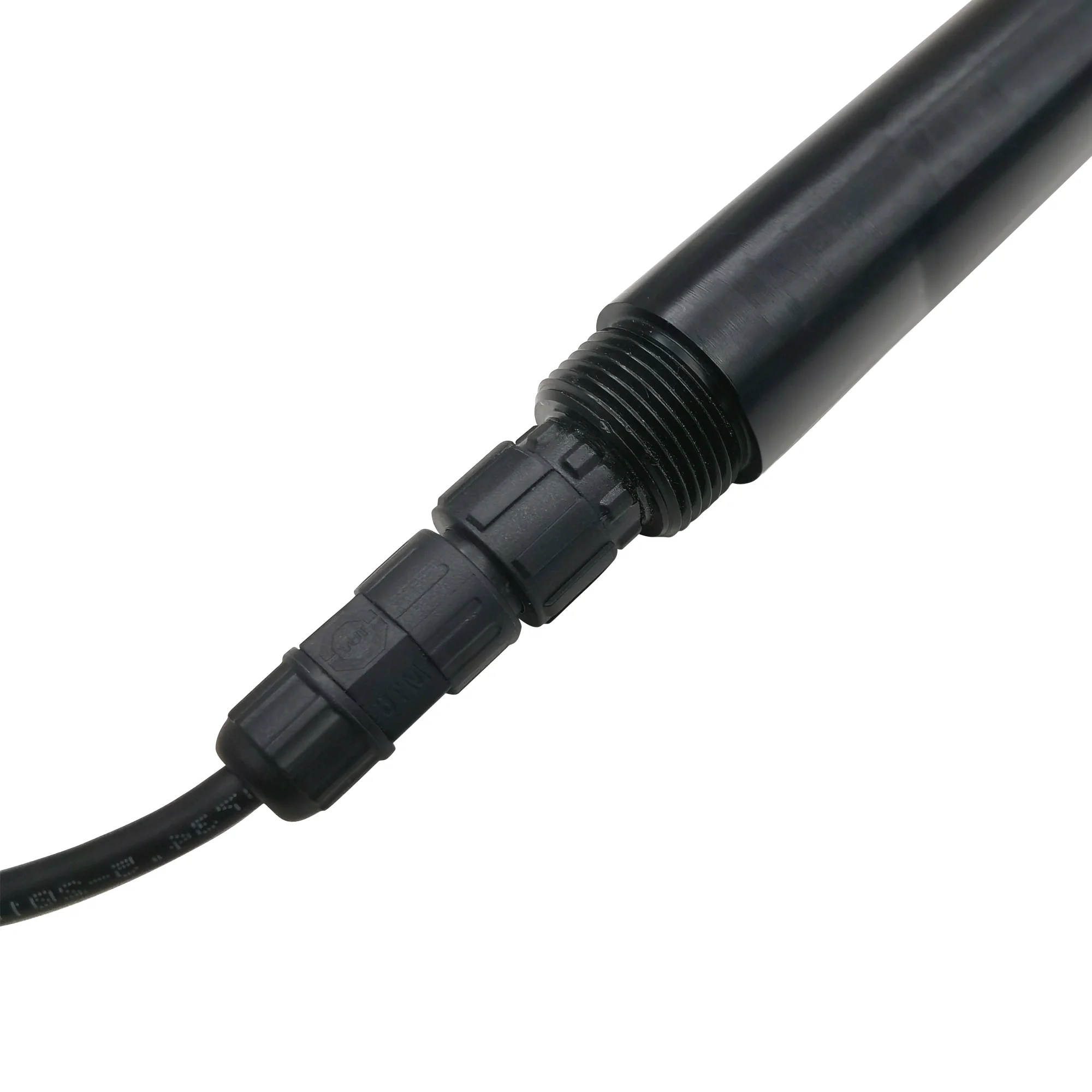

Water Conductivity Sensor DDM-206A






Product Overviews


•  Drinking water / surface water / various water supply / industrial water treatment.


•  Signal output: RS-485 (Modbus/RTU protocol).


•  Convenient connection to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.


•  Immersion installation with 3/4 NPT pipe thread for easy submersible installation or installation in pipes and tanks.


•  IP68 protection grade.





Technology


















































































Model



DDM-206A



Measuring range and resolution



0~20μS/cm



0.01



0~200μS/cm



0.1



0~5000μS/cm



1



0~200 mS/cm



0.1



Precision



±1.5%F.S.



Working temperature



0~65℃



Working pressure



<0.6MPa



Power supply



12~24VDC ±10%



Signal output



RS-485(Modbus/RTU)



Wetted material



ABS/SUS316L(Default)/PVC



Mounting method



Immersion mounting, 3/4 NPT thread



Cable length



5 meters, other lengths can be customized



Temperature compensation



Auto temperature compensation(Pt1000)



Calibration



Two-point calibration



Power consumption



<0.5W



Protection grade



IP68














Note: At least 2 cm from the bottom and side walls of the container during testing.




Related Products













Application


Suitable for environmental monitoring,environment analysis,modern agriculture,sewage treatment,smart city,food and medical,water treatment,tap water otheprocess and fields.












Packaging


This product includes:
Sensor*1


User manual*1


Certificate*1


Calibration solution (optional)








After-Sales Service


Chemins provides the after-sale service within one year from the date of the sales, but does not include the damage caused by improper using. If you need repair or adjustment, please send it back, and the freight should be paid. When sending back, determine the good packaging to avoid transit damage, and the company will be free maintenance device damage.
